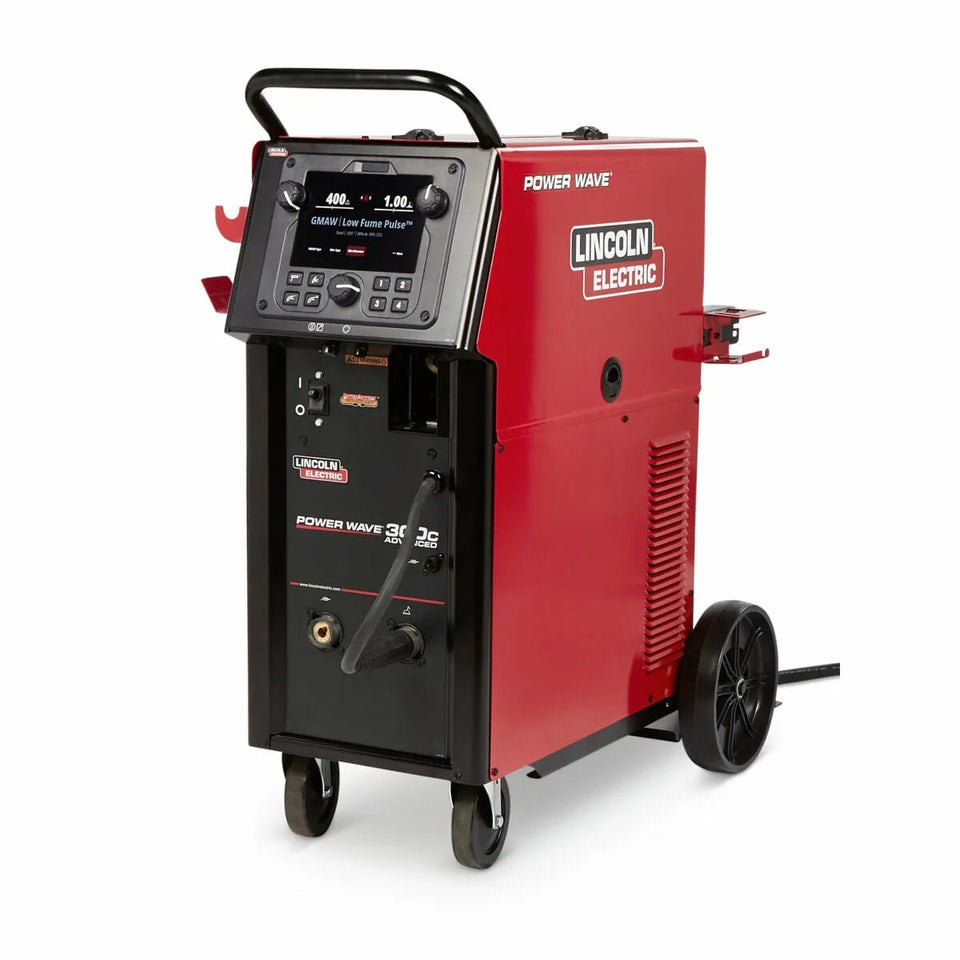

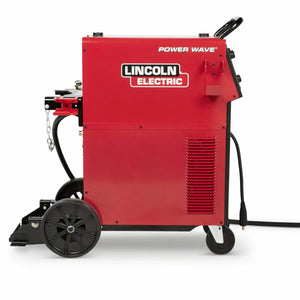

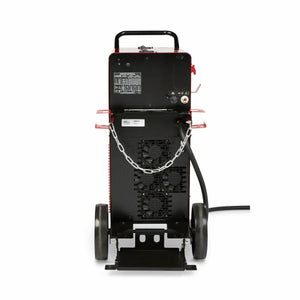

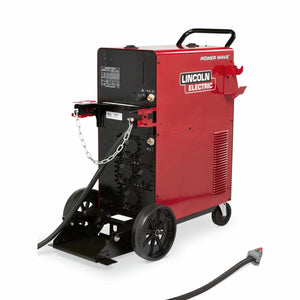

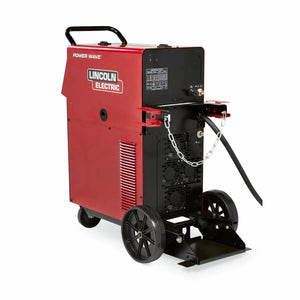

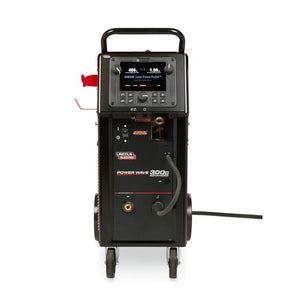

Lincoln Power Wave 300C Advanced - K4488-1

Lincoln Power Wave 300C Advanced - K4488-1

The Lincoln Power Wave 300C Advanced - K4488-1 is a versatile welder engineered to deliver exceptional performance across diverse operating environments with its comprehensive all-process capabilities. This industrial-grade system represents the industry's only true 300 Amp, 100% Duty Cycle, All-Process Machine, establishing it as the ideal solution for professionals who require consistent welding performance across multiple applications, from technical training to industrial fabrication, particularly excelling in environments requiring versatility between SMAW, GTAW, GMAW, FCAW, and CAG processes.

At the core of the Power Wave 300C Advanced is Lincoln's revolutionary Tribrid Power Module, featuring exceptional welding performance with high power factor and efficiency. The patented PowerConnect Technology automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase, while maintaining constant welding output through the entire input voltage range. The advanced connectivity and control systems provide substantial flexibility for consistent performance even in demanding applications, creating a comprehensive solution that virtually eliminates the reliability issues commonly encountered in conventional welders. The integration of Lincoln's advanced process capabilities such as STT, Rapid X and Low Fume Pulse produces remarkably precise arc control with excellent out-of-position capabilities, minimal spatter generation, and superior results whether working with steel, stainless steel, or aluminum materials.

The Power Wave 300C Advanced incorporates numerous user-focused design elements that enhance operational efficiency and adaptability. The system comes with Ready-to-Run design features for simple and straightforward operation, including cable management hooks, integrated cart with tilting bottle rack, and Twist-Mate TIG connection and gas solenoid. The comprehensive Smart Fan Operation only runs when needed to minimize noise and energy consumption. This thoughtful combination of versatile process options, industrial-grade components, and user-friendly features establishes the Power Wave 300C Advanced as the next-level solution for operators requiring a single welding system capable of adapting to diverse working environments and application requirements.

Features

• Best-in-Class Performance - Industry's only true 300 Amp, 100% Duty Cycle, All- Process Machine.
• All-Process Versatility - SMAW, GTAW, GMAW, FCAW, CAG processes, with high-frequency and AC capabilities as well as access to advanced processes such STT, Rapid X and Low Fume Pulse
• Advanced Connectivity and Control - All Power Wave systems come standard with access to Lincoln Electric Power Wave Manager and Lincoln Electric Checkpoint Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.
• Patented PowerConnect Technology - Automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase. Welding output remains constant through the entire input voltage range.
• Tribrid Power Module - Exceptional welding performance with high power factor and efficiency.
• Optional 115V (10A) AC Duplex Auxiliary Power Receptacle - Features Surge Blocker Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current).
• Ready-to-Run - Design features for simple and straightforward operation, including cable management hooks, integrated cart with tilting bottle rack, and Twist-Mate TIG connection and gas solenoid.
• Smart Fan Operation - Only runs when needed to minimize noise and energy consumption.

Specifications
