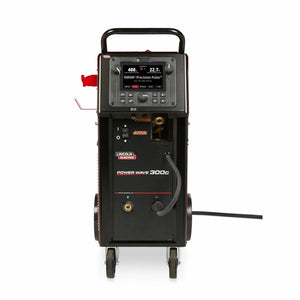

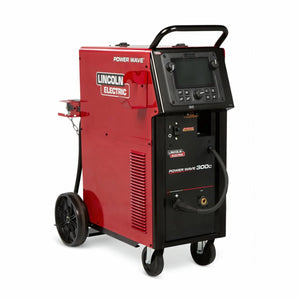

Lincoln Power Wave 300C Standard - K4487-1
The Lincoln Power Wave 300C Standard represents a revolutionary advancement in all-in-one welding technology, delivering exceptional performance and versatility for applications ranging from technical training to industrial fabrication. This groundbreaking 300 Amp system establishes a new benchmark in the industry as the only true 300 Amp, 100% duty cycle, multi-process machine, providing uncompromising capability across SMAW, GTAW, GMAW, FCAW, and CAG processes. The Power Wave 300C integrates Lincoln Electric's advanced waveform control technology with a comprehensive feature set designed to maximize productivity and welding quality in diverse environments.
At the core of the Power Wave 300C is Lincoln's patented PowerConnect Technology, which automatically adapts to input power ranging from 200-600V, 50 or 60 Hz, in either single-phase or three-phase configurations. This exceptional flexibility ensures consistent welding output regardless of input voltage variations, eliminating the need for manual reconnection when moving between power sources. The innovative Tribrid Power Module delivers superior welding performance while maintaining high power factor and efficiency, reducing operational costs and environmental impact. Advanced connectivity features include standard access to Lincoln Electric Power Wave Manager and Checkpoint Production Monitoring, enabling comprehensive remote configuration, process control, and quality assurance capabilities.

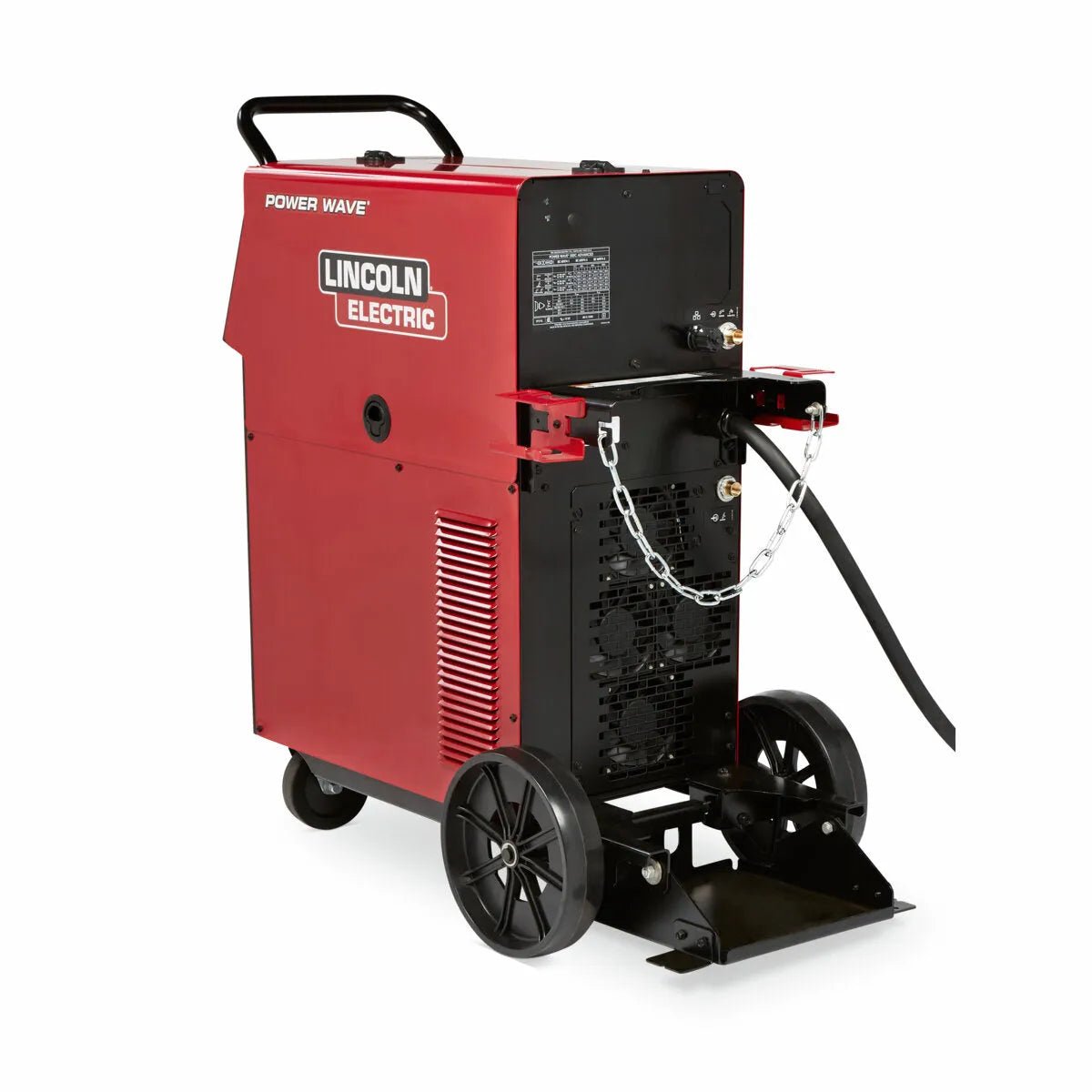

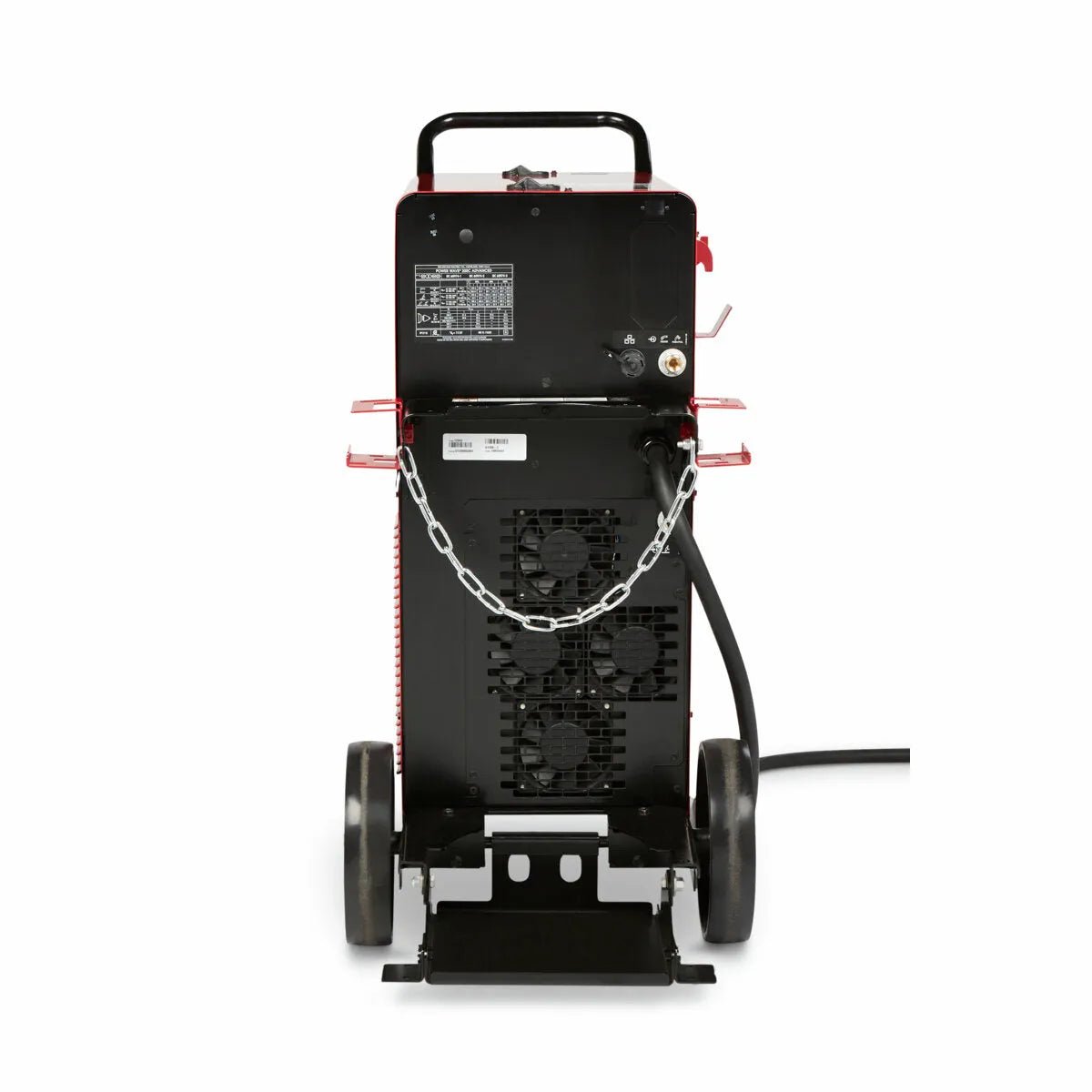

The Power Wave 300C incorporates numerous user-focused design elements that enhance operational efficiency, including an integrated cart with tilting bottle rack, cable management hooks, and Twist-Mate TIG connection with gas solenoid. The optional 115V AC duplex auxiliary power receptacle features exclusive Surge Blocker Technology, ensuring welding performance remains uncompromised when high-starting-current devices are connected. The system's intelligent fan operation activates only when needed, minimizing noise and energy consumption during idle periods. With its combination of industry-leading performance, comprehensive process capabilities, and thoughtful design features, the Power Wave 300C Standard establishes a new paradigm for versatile, high-performance welding systems.
Key Features
- Best-in-Class Performance - Industry's only true 300 Amp, 100% Duty Cycle, All-Process Machine.
- All-Process Versatility - SMAW, GTAW, GMAW, FCAW, CAG processes.
- Advanced Connectivity and Control - Standard access to Lincoln Electric Power Wave Manager and Lincoln Electric Checkpoint Production Monitoring.
- Patented PowerConnect Technology - Automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase.
- Tribrid Power Module - Exceptional welding performance with high power factor and efficiency.
- Optional 115V (10A) AC Duplex Auxiliary Power Receptacle - Features Surge Blocker Technology for uncompromised welding performance.
- Ready-to-Run Design - Includes cable management hooks, integrated cart with tilting bottle rack, and Twist-Mate TIG connection with gas solenoid.
- Smart Fan Operation - Activates only when needed to minimize noise and energy consumption.
- Comprehensive process support with optimized waveforms for superior results across applications.
Specifications
| Dimensions (H x W x D) | |
| Net Weight | 193 lbs (87.5 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) |
| Input Voltage | 200-208/220-230/380-415/460/575/1/3/50/60 |
| Input Current | 3ph /1ph / 40% Duty Cycle: 44/40/25/20/16.5, 3ph /1ph/ 100% Duty Cycle: 35/32/19.5/16/14 |
| Input Hertz | 50/60 |
| Input Phase | 1/3 ph |
| Input Power | 208/230/380/415/460/575/1/3/50/60 |
| Mode Icon | CC/CV |
| Output Range | 5-350A |
| Polarity | DC |
| Output Range by Mode | GMAW: 350A / 31.5 V/ 40% GMAW: 300A / 29 V / 100% SMAW: 325A / 33V / 40% SMAW: 280A / 31.2V/100% FCAW: 350A / 31.5 V/ 40% FCAW: 300A / 29 V / 100% GTAW: 325A / 23V / 40% GTAW: 300A / 22V / 100% |
| Data Technologies | Ethernet |
| Machines Communication Technology | ArcLink |
| Amphenol Pins (type of connector) | 12 |
| Work Lead Connector Type | Dinse |
| Work Cable Length | 10 FT |
| Number of driven rolls | 2 rolls |
| Configuration | Single |
| Communication Technology | ArcLink |
| Wire Configuration | Single |
| Accessories Communication Connector Type | 12-pin |
| Wire Feeders Processes | MIG Pulsed MIG Flux Cored |
| Typical Application | General Fabrication |
| Warranty | 5 Years |
