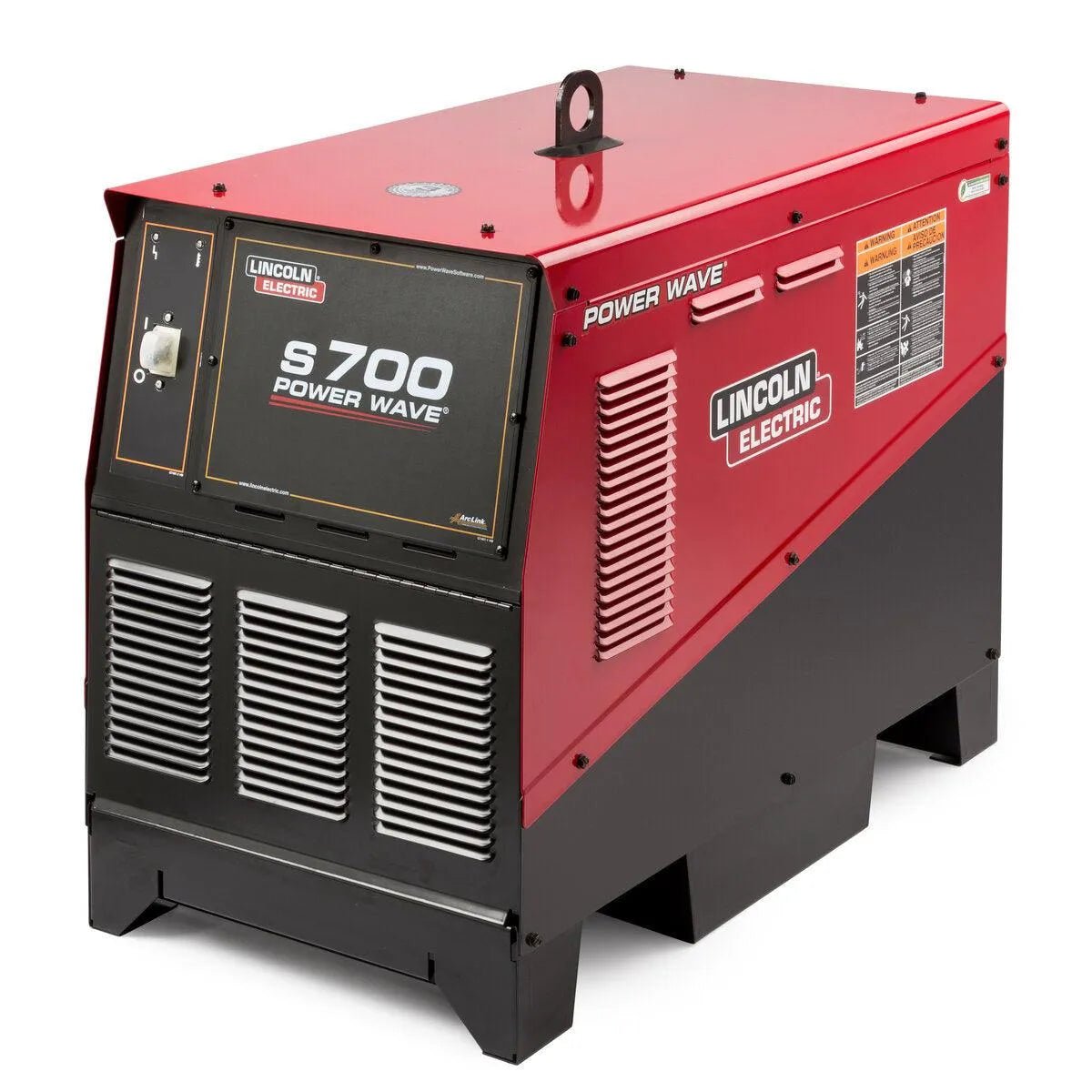

Lincoln Power Wave S700 Advanced Process Welder 200V - K3557-1
The Lincoln Power Wave S700 Advanced Process Welder represents an industrial-grade welding solution engineered specifically for high-output, high-duty cycle applications common in heavy fabrication industries. This powerful multi-process system delivers exceptional performance with a rating of 700 amps at 100% duty cycle and a maximum output capacity of 900 amps at 40% duty cycle, making it the ideal advanced power source for the most demanding welding applications. The Power Wave S700 combines robust construction with sophisticated process control capabilities to provide superior welding performance across a comprehensive range of materials and thicknesses in semi-automatic, hard automation, or robotic applications.
The Power Wave S700 features advanced connectivity options with standard access to Lincoln Electric's Power Wave Manager and Checkpoint Production Monitoring systems, enabling comprehensive remote configuration, sophisticated process control, and detailed quality assurance monitoring. This digital integration ensures that welding operations remain consistently within specified parameters while providing valuable data for process optimization and quality documentation. The system has been engineered for proven severe duty reliability with an IP23 rating that ensures protection against harsh industrial environments, while the input voltage compensation feature provides reliable and consistent operation even with ±10% input voltage variations, maintaining welding performance regardless of power fluctuations.
Designed with operational efficiency in mind, the Power Wave S700 incorporates 95% power factor correction technology, resulting in an energy-efficient design that delivers substantial cost savings compared to traditional transformer-based equipment. The innovative True Energy feature measures, calculates, and displays instantaneous energy in the weld, providing critical data for heat input calculations in applications with strict welding procedure specifications. For additional convenience, the system includes a 115V (10A) AC duplex auxiliary power receptacle with Surge Blocker Technology, which ensures that simultaneous welding performance remains uncompromised even when high starting current devices such as grinders are operated from the same power source. The flexible input voltage range accommodates 200-230 VAC, 3-phase, 50/60Hz power supplies, providing installation versatility across various industrial facilities. With its combination of high output capacity, advanced process control, and robust construction, the Power Wave S700 represents a premium welding solution for industrial applications requiring exceptional performance and reliability.
Key Features
- Exceptional 900A output capacity delivering high-performance operation for demanding heavy fabrication applications.
- Versatile multi-process capability supporting flexible configuration for semi-automatic, hard automation, or robotic systems.
- Advanced connectivity with standard access to Power Wave Manager and Checkpoint Production Monitoring platforms.
- Severe duty reliability with IP23 rating ensuring protection and performance in harsh industrial environments.
- Input voltage compensation maintaining consistent operation despite ±10% power supply fluctuations.
- Energy-efficient 95% power factor correction technology providing substantial operational cost savings.
- True Energy technology measuring and displaying instantaneous weld energy for critical heat input calculations.
- Integrated 115V auxiliary power with Surge Blocker Technology preventing welding performance degradation.
- Flexible input voltage compatibility with 200-230 VAC, 3-phase, 50/60Hz power systems.
Specifications
| Dimensions (H x W x D) | 30.1 in x 485 in x 36.7 in (765 mm x 485 mm x 932 mm) |
| Net Weight | 167.83 lbs (167.83 kg) |
| Data Technologies | Ethernet |
| Machines Communication Technology | ArcLink |
| Wire Feeder Supply Voltage | 40VDC |
| Amphenol Pins (type of connector) | 5 |
| Work Lead Connector Type | Lug |
| Number of Operators per Machine | 1 |
| Input Voltage | 460,380/400/415,575 |
| Input Current | 106/92A |
| Input Hertz | 50,50/60,60 |
| Input Phase | 3 |
| Input Power | 200/230/3/50/60 |
| Mode Icon | CC/CV |
| Output Range | 20 - 900A |
| Rated Output | 700A/44V/100% 900A/44V/40% |
| Polarity | DC |
| Power Factor Correction | 95% |
| Environmental Rating | IP23 |
| Auxiliary Power | 115V (10A) AC Duplex Receptacle with Surge Blocker Technology |
| Process Capability | All standard and advanced welding processes |
| True Energy Technology | Yes - Measures and displays instantaneous weld energy |
| Input Voltage Compensation | Yes - Maintains performance with ±10% input voltage variation |
| Warranty | 5 Years |
