Lincoln Sprinter 180Si Case and TIG One-Pak - K5585-1
The Lincoln Sprinter 180Si Case and TIG One-Pak delivers the ultimate portable welding solution, combining professional-grade TIG and Stick capabilities with enhanced protection and organization for mobile welding professionals. This comprehensive system centers around the revolutionary Sprinter 180Si power source—an ultralight inverter-based welder weighing under 20 pounds that delivers an impressive 180-amp output capable of handling electrodes up to 5/32 inches in diameter, including demanding 7018 and 6010 varieties. The Case and TIG One-Pak configuration elevates this exceptional platform by including not only all essential TIG welding components but also a custom-designed protective case that safeguards the equipment during transport while providing organized storage for accessories. This purpose-engineered solution combines industrial-grade welding performance with unmatched portability and protection, making it the definitive system for professional welders requiring advanced TIG and Stick capabilities in challenging environments including remote locations, outdoor job sites, and mobile service operations where equipment durability is as critical as welding performance.
The Sprinter 180Si Case and TIG One-Pak excels through its advanced multi-process capabilities, delivering exceptional performance across both TIG and Stick welding applications. The system's sophisticated arc control technology includes dual stick welding modes specifically engineered to optimize performance with different electrode types—the crisp mode delivers superior results with cellulosic electrodes like E6010 and E6011, while the soft mode ensures dependable arc starting and stable operation with low-hydrogen electrodes such as E7018. For TIG welding operations, the Sprinter 180Si incorporates professional-grade features including high-frequency non-contact arc starting that ensures precise arc initiation without tungsten contamination. The integrated pulsed TIG functionality provides sophisticated heat management capabilities, enabling precise control over heat input for challenging applications including thin materials, out-of-position welding, and heat-sensitive alloys. The system's compatibility with remote amperage control devices further enhances operational flexibility, allowing precise current adjustment at the point of use for maximum control and efficiency, with the included foot pedal providing immediate access to this advanced capability.
The Lincoln Sprinter 180Si Case and TIG One-Pak establishes new standards for field welding operations through its innovative combination of performance, protection, and portability. The system's dual-voltage input capability allows connection to either 120V or 230V power sources without performance compromise, enabling welders to operate effectively across diverse environments from residential power systems to industrial facilities and remote job sites with generator power. The system's intuitive user interface features a clear digital display and straightforward controls that simplify setup and operation, allowing welders to quickly configure optimal parameters for specific applications. The Sprinter 180Si's extreme portability is enhanced through thoughtful design elements including an ergonomic carry handle and included shoulder strap, while the custom-designed protective case provides superior protection against impact, moisture, and dust during transport between job sites. The comprehensive package includes all essential components for immediate TIG welding implementation, including a professional-grade TIG torch, gas regulator, foot pedal, work clamp, and electrode holder—all organized within the protective case for quick access and inventory management. This complete solution approach eliminates the need for additional component sourcing while ensuring equipment longevity through enhanced protection, allowing welders to immediately leverage the Sprinter 180Si's exceptional capabilities across applications ranging from maintenance and repair to light fabrication, structural welding, and brewery or distillery piping installations—delivering industrial-grade performance with unmatched mobility and durability.
Key Features
- Complete TIG welding solution with protective case and all essential components included.
- Custom-designed protective case providing superior equipment protection and accessory organization.
- Dual input voltage capability supporting both 120V and 230V power sources.
- Multi-process functionality delivering professional performance in both TIG and Stick applications.
- Dual stick welding modes optimized for different electrode types including E6010, E6011, and E7018.
- Advanced TIG capabilities including high-frequency starting and pulsed operation.
- Included foot pedal for precise remote amperage control during TIG welding operations.
- Exceptional portability with under 20-pound weight and ergonomic carrying options.
- Powerful 180-amp output supporting electrodes up to 5/32 inches in diameter.
Specifications
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 120/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | Stick 85A/23.4V/40% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | TIG 110A/14.6V/40% |
| Phase 1: Input Current at Max Rated Ouput #1 (Current) | 22A |
| Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) | 230/1/60 |
| Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) | Stick 180A/26.4V/25% |
| Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) | TIG 200A/16.4V/25% |
| Phase 1: Input Current at MAX Rated Output #2 (Current) | 29A |
| Dimensions (H x W x D) | 11.8 in x 6.25 in x 16 in (299.7 mm x 158.8 mm x 406.4 mm) |
| Net Weight | 20 lbs (9.1 kg) |
| Machines Processes | Stick (SMAW) TIG (GTAW) |
| Open Circuit Voltage | Average OCV - 65V Peak OCV - 110V VRD OCV (Peak) - 14V |
| Number of Operators per Machine | 1 |
| Input Voltage | 120/230 |
| Input Hertz | 60 |
| Input Phase | 1 |
| Input Power | 120/230/1/60 |
| Mode Icon | CC |
| Output Range | SMAW 120V: 20-85A 230V: 20-180A GTAW 120V: 10-110A 230V: 00-200A MAX OCV 110V |
| Polarity | DC |
| IEC Rating | IP21S |
| Output Range by Mode | Stick 20A-180A TIG 10A-200A |
| Machines Communication Technology | analog |
| Work Lead Connector Type | Dinse |
| UI type | Simple |

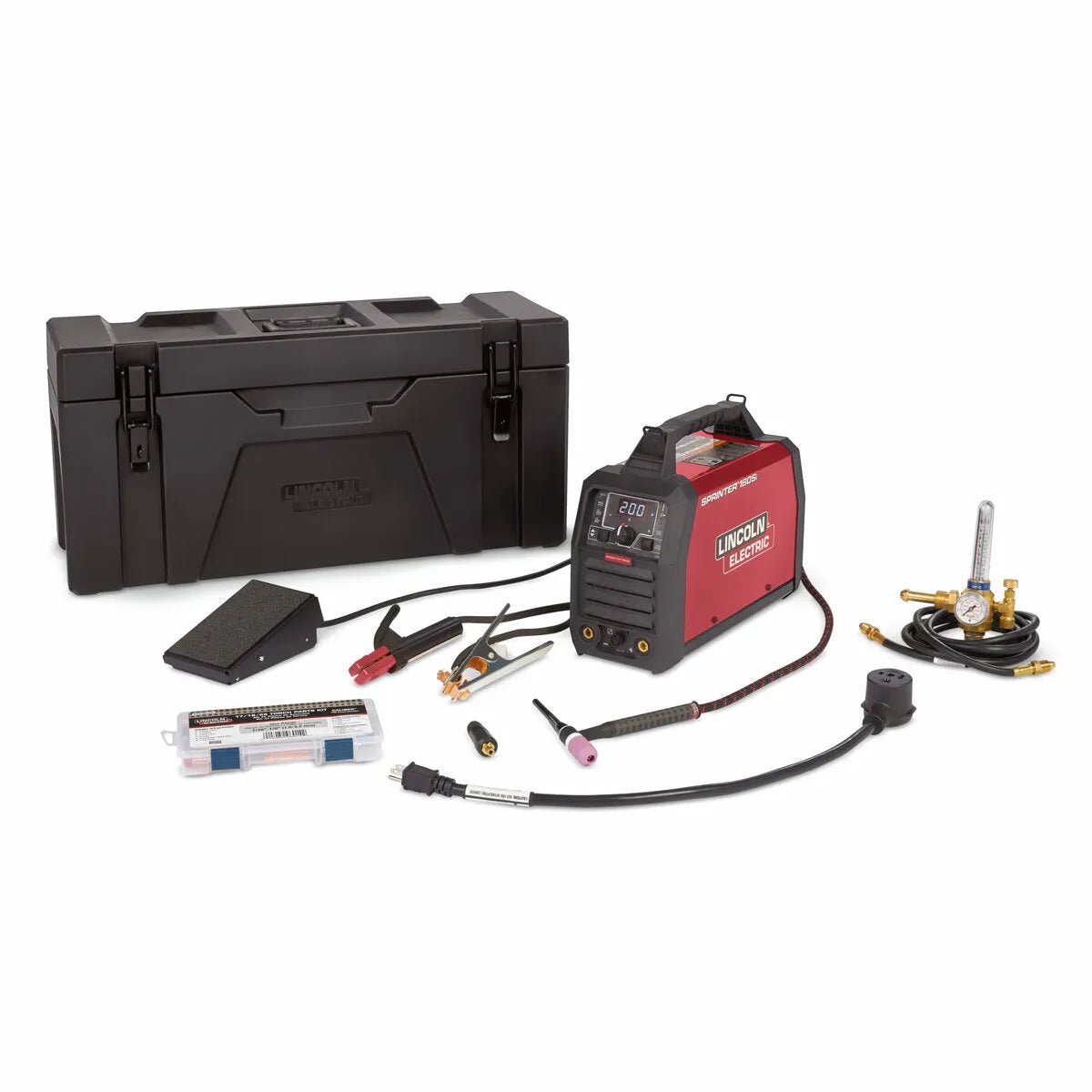

| Included Components | Sprinter 180Si Power Source Professional TIG Torch Foot Amperage Control Pedal Gas Regulator/Flowmeter Gas Hose Work Clamp and Cable Electrode Holder and Cable Shoulder Strap Protective Transport Case Accessory Kit |
| Typical Application | Construction Brewery Distillery General Fabrication Maintenance & Repair Repair Welding Shipbuilding Structural Welding |
| Warranty | 3 Years |
