The Lincoln Sprinter 180Si Case One-Pak offers impressive power and versatility in an ultra-lightweight, portable design. Weighing under 20 lbs., this compact machine is engineered for welders who need high performance on the go. With an output capacity up to 180 amps, the Sprinter 180Si easily handles stick electrodes up to 5/32 inches, including challenging rods like 7018 and 6010. Built for more than just stick welding, it incorporates high-frequency TIG capabilities, pulsed TIG mode for heat control, and full amptrol compatibility. Dual input voltage flexibility (120V/230V) ensures that you can weld virtually anywhere, whether in a shop or out in the field. The simple, intuitive display enables quick weld setup, so you can move fast from project to project without hassle.
Designed for maximum flexibility, the Sprinter 180Si features two selectable stick modes. A crisp arc mode offers greater versatility for electrodes such as E6010 and E6011, delivering dependable performance in demanding conditions. A soft arc mode enables smooth E7018 arc starts and stable operation for broader applications. The pulsed TIG mode gives welders superior control over heat input, allowing for thin, precise welds with minimal distortion. High-frequency start ensures precise, consistent arc initiation for TIG operations, minimizing tungsten contamination and boosting weld quality. Built for durability and portability, the Sprinter 180Si includes an ergonomic handle and a convenient shoulder strap, making it the perfect choice for light fabrication, maintenance, repair, and structural welding jobs on the move.

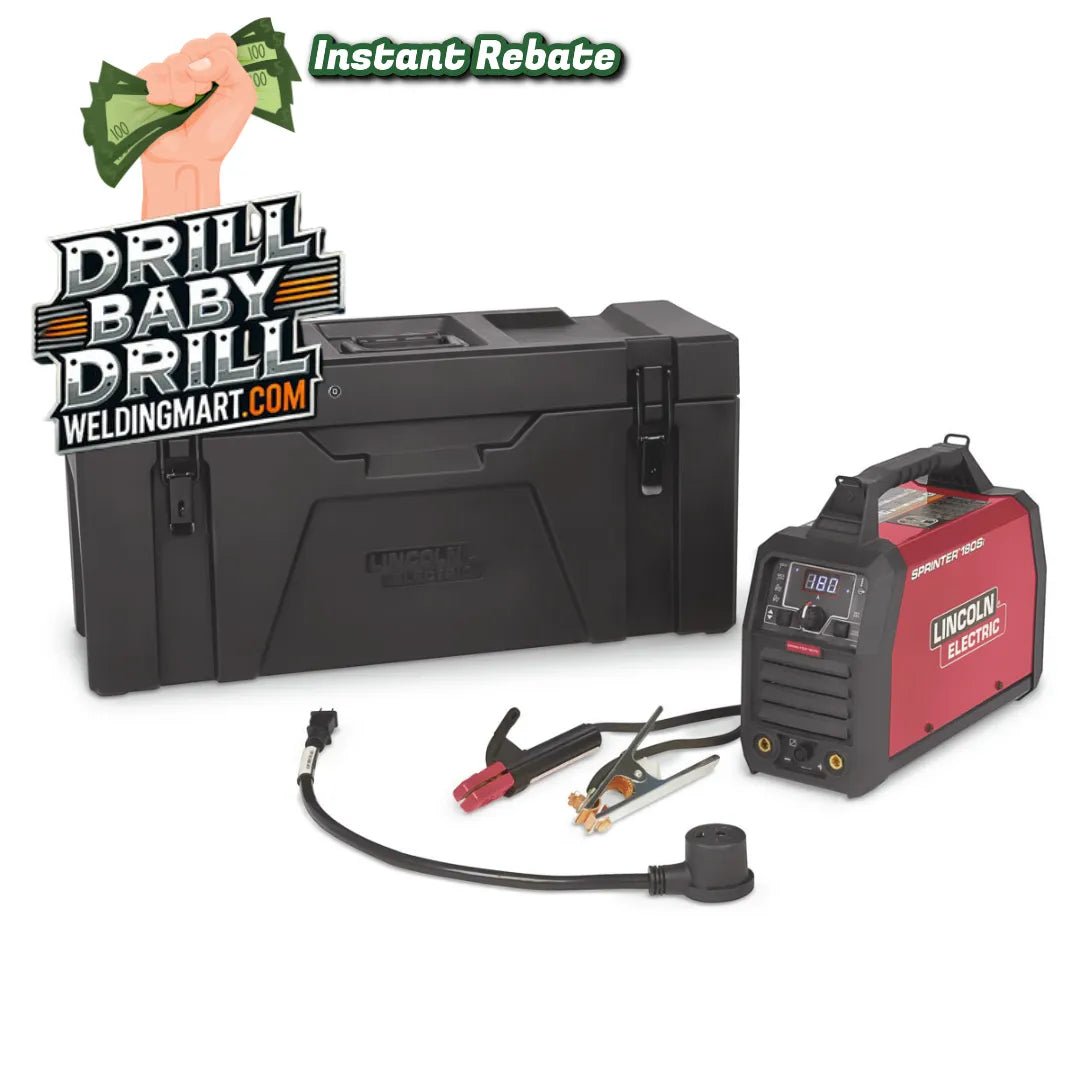

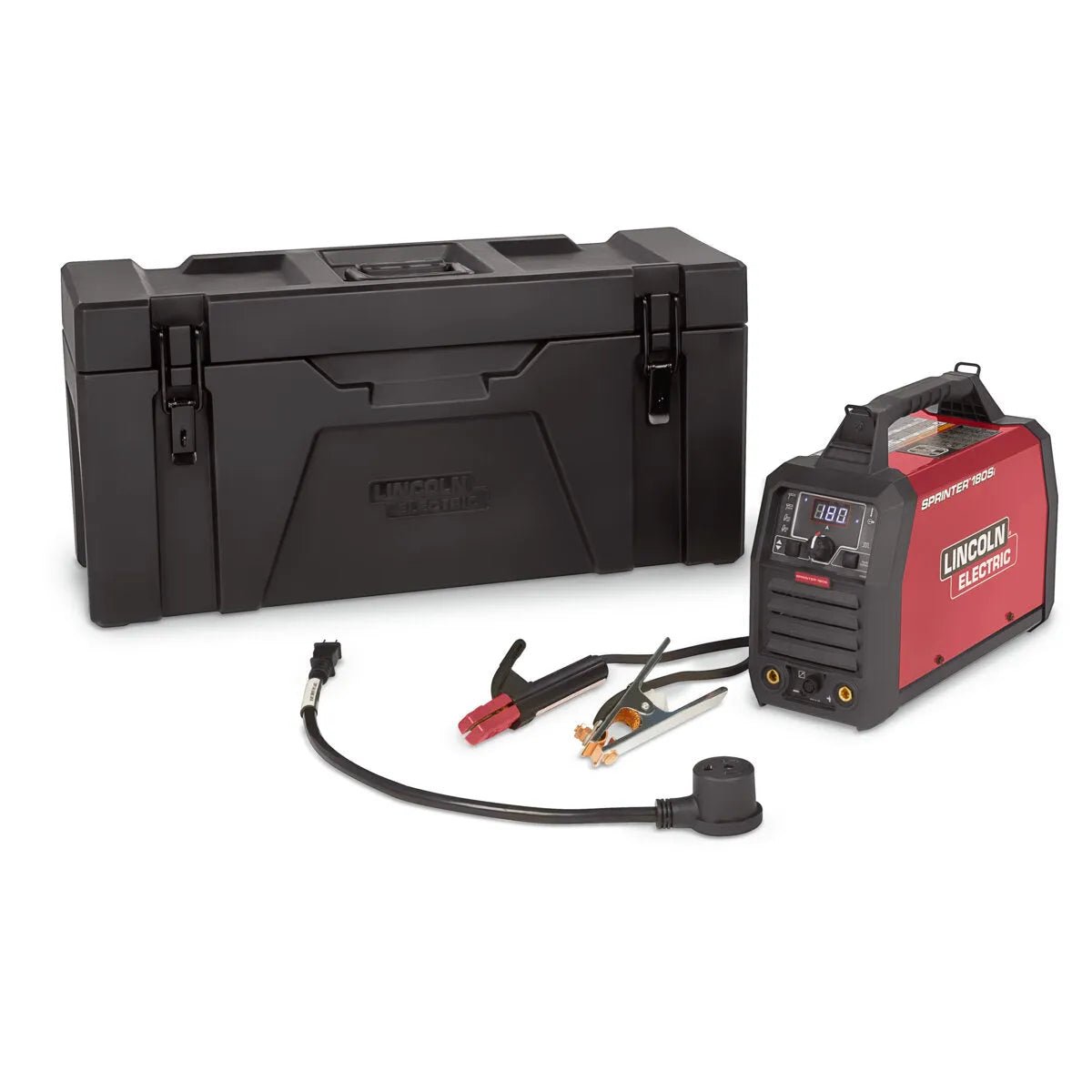

- Sprinter 180Si Welder
- Insulated Electrode Holder and Cable
- Heavy Duty Work Clamp and Cable
- 230V to 120V Power Cord Adapter
- Carrying Case
- Dual Input Voltage capability supports 120V and 230V for flexible power options.
- Multi-Process welding performance with DC Stick and DC TIG functionality.
- Selectable Stick Modes offer crisp arc for 6010/6011 and soft arc for 7018 electrodes.
- Pulsed TIG Mode enhances heat control for thin, precise welds with reduced distortion.
- High-Frequency TIG start enables consistent, reliable arc initiation without contamination.
- Ultra-lightweight design at under 20 lbs. with ergonomic handle and included shoulder strap for easy portability.
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 120/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | Stick 85A/23.2V/40% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | TIG 110A/14.6V/40% |
| Phase 1: Input Current at Max Rated Output #1 (Current) | 22A |
| Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) | 230/1/60 |
| Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) | Stick 180A/26.4V/25% |
| Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) | TIG 200A/16.4V/25% |
| Phase 1: Input Current at MAX Rated Output #2 (Current) | 29A |
| Dimensions (H x W x D) | 11.8 in x 6.25 in x 16 in (299.7 mm x 158.8 mm x 406.4 mm) |
| Net Weight | 20 lbs (9.1 kg) |
| Machines Processes | Stick (SMAW) TIG (GTAW) |
| Open Circuit Voltage | Average OCV - 65V Peak OCV - 110V VRD OCV (Peak) - 14V |
| Number of Operators per Machine | 1 |
| Input Voltage | 120/230 |
| Input Hertz | 60 |
| Input Phase | 1 |
| Input Power | 120/230/1/60 |
| Mode Icon | CC |
| Output Range | SMAW 120V: 20-85A 230V: 20-180A GTAW 120V: 10-110A 230V: 00-200A MAX OCV 110V |
| Polarity | DC |
| IEC Rating | IP21S |
| Output Range by Mode | Stick 20A-180A TIG 10A-200A |
| Machines Communication Technology | analog |
| Work Lead Connector Type | Dinse |
| UI type | Simple |
| Typical Application | Construction Brewery Distillery General Fabrication Maintenance & Repair Repair Welding Shipbuilding Structural Welding |
| Warranty | 3 Years |
