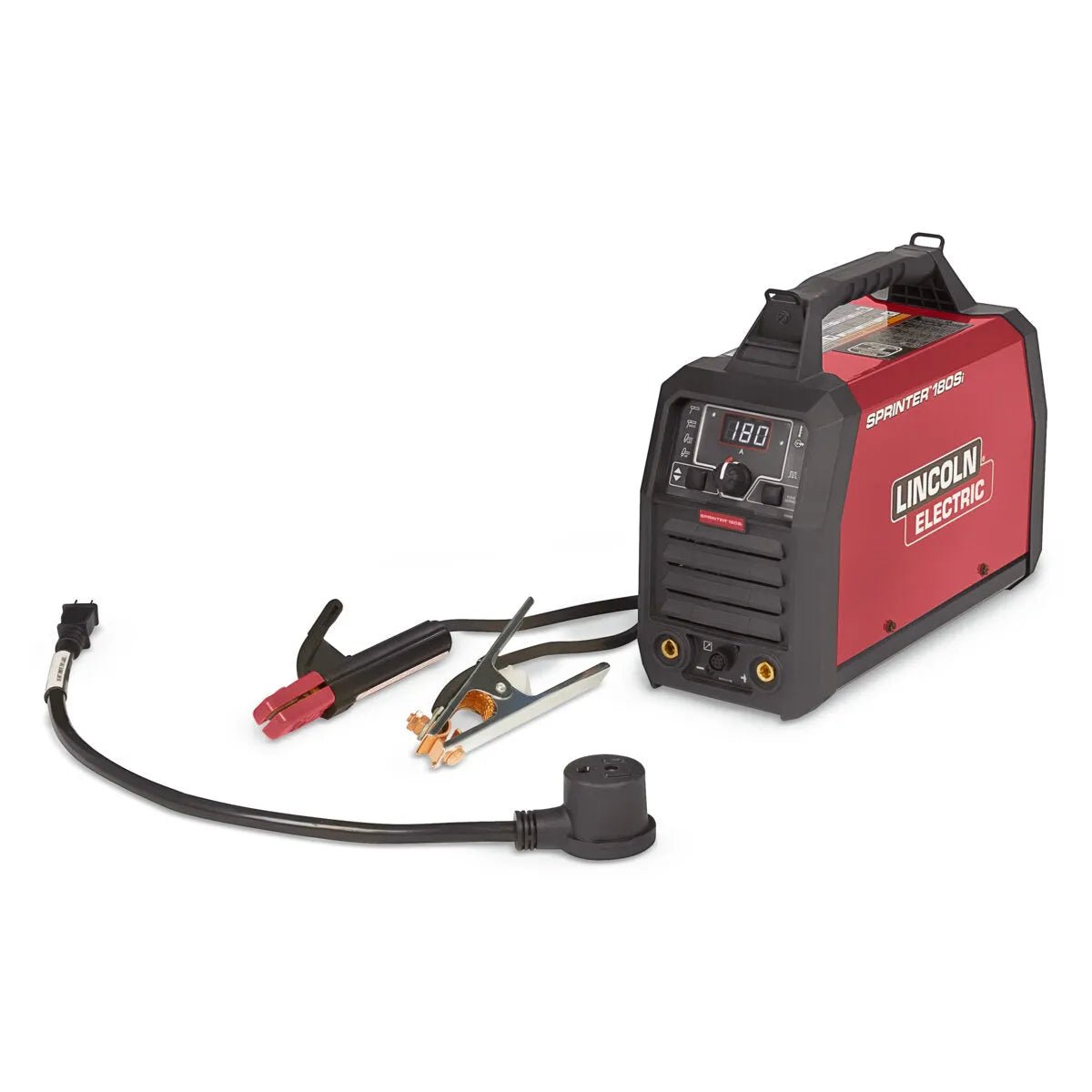

Lincoln Sprinter 180Si - K5453-1
The Sprinter 180Si gives you power in a small package. Weighing in under 20 lbs., it's lightweight and portable, and the 180-amp output enables you to weld electrodes up to 5/32 inches, including 7018 and 6010. This machine is more than just a stick welder, the Sprinter 180Si combines superior stick capabilities with high-frequency TIG, pulsed TIG mode, amptrol compatibility and dual input voltage (120V/230V). A simple display allows you to dial the weld settings so you can get started quickly and easily on any job anywhere – maintenance work, light-fabrication, light structural and everything in between. The Sprinter 180Si is a stick welder and so much more.
The Lincoln Sprinter 180Si represents a remarkable achievement in portable welding technology, delivering professional-grade performance in an exceptionally compact form factor. This versatile powerhouse weighs less than 20 pounds yet provides an impressive 180-amp output capacity, enabling operators to effectively utilize electrodes up to 5/32 inches in diameter, including demanding types such as 7018 and 6010. The dual input voltage capability allows seamless connection to either 120V or 230V power sources, providing true flexibility for welding applications across diverse environments from home workshops to remote job sites.
Designed specifically for professional welders who demand both portability and performance, the Sprinter 180Si incorporates advanced features typically found only in larger, stationary equipment. The system offers two distinct stick welding modes – a crisp arc setting that delivers superior performance with cellulosic electrodes like E6010 and E6011, and a soft arc setting that ensures dependable starts and smooth operation with low hydrogen electrodes such as E7018. Beyond its exceptional stick welding capabilities, the Sprinter 180Si excels in TIG applications, featuring high-frequency arc starting for precise ignition without tungsten contamination and advanced pulsed TIG functionality for enhanced heat control when working with thin materials.
The thoughtful ergonomic design includes an integrated carrying handle and included shoulder strap that make transportation effortless, while the intuitive user interface simplifies setup and operation even in challenging field conditions. The robust construction ensures reliability in demanding environments including construction sites, maintenance operations, light fabrication shops, and shipbuilding facilities. For professionals seeking a single, portable solution capable of handling diverse welding requirements with exceptional results, the Lincoln Sprinter 180Si delivers uncompromising performance in a remarkably compact and accessible package.
Key Features
- Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
- Multi-Process Capable - Welds DC Stick and DC TIG.
- Two Stick Modes - Crisp arc allows for greater welding versatility and superior performance on E6010 and E6011 electrodes while soft arc allows for dependable E7018 arc starting.
- Pulsed TIG Mode - Provides heat management and enhanced control when making thin, precise welds.
- High Frequency Start - Strike a precise arc every time while TIG welding
- Lightweight Portability - This durable machine weighs under 20 lbs. and is easy to carry with its ergonomic handle or included shoulder strap.
Specifications
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 120/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | Stick 85A/23.2V/40% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | TIG 110A/14.6V/40% |
| Phase 1: Input Current at Max Rated Output #1 (Current) | 22A |
| Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) | 230/1/60 |
| Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) | Stick 180A/26.4V/25% |
| Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) | TIG 200A/16.4V/25% |
| Phase 1: Input Current at MAX Rated Output #2 (Current) | 29A |
| Dimensions (H x W x D) | 11.8 in x 6.25 in x 16 in (299.7 mm x 158.8 mm x 406.4 mm) |
| Net Weight | 20 lbs (9.1 kg) |
| Machines Processes | Stick (SMAW) TIG (GTAW) |
| Open Circuit Voltage | Average OCV - 65V Peak OCV - 110V VRD OCV (Peak) - 14V |
| Number of Operators per Machine | 1 |
| Input Voltage | 120/230 |
| Input Hertz | 60 |
| Input Phase | 1 |
| Input Power | 120/230/1/60 |
| Mode Icon | CC |
| Output Range | SMAW 120V: 20-85A 230V: 20-180A GTAW 120V: 10-110A 230V: 00-200A MAX OCV 110V |
| Polarity | DC |
| IEC Rating | IP21S |
| Output Range by Mode | Stick 20A-180A TIG 10A-200A |
| Machines Communication Technology | analog |
| Work Lead Connector Type | Dinse |
| UI type | Simple |
| Typical Application | Construction Brewery Distillery General Fabrication Maintenance & Repair Repair Welding Shipbuilding Structural Welding |
| Warranty | 3 Years |
