Lincoln Electric  |  SKU: ED034791

Lincoln ED034791 SuperGlaze 5183 MIG GMAW Aluminum Welding Wire, 3/64 in, 300 lb Gem-Pak Box

$3,069.00
SuperGlaze® 5183 is used for higher strength welding of 5XXX and 6XXX base materials with superior corrosion resistance
Warranty: 1 Year
AWS / Classification: AWS A5.10: ER5183

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln ED034791 SuperGlaze 5183 MIG GMAW Welding Wire, 3/64 in, 300 lb Gem-Pak Box

SuperGlaze® 5183 Aluminum Magnesium Manganese alloy is commonly used for higher strength welding of 5XXX and 6XXX base materials. Higher strength and superior salt water corrosion resistance with common shipbuilding base materials compared to 5356.

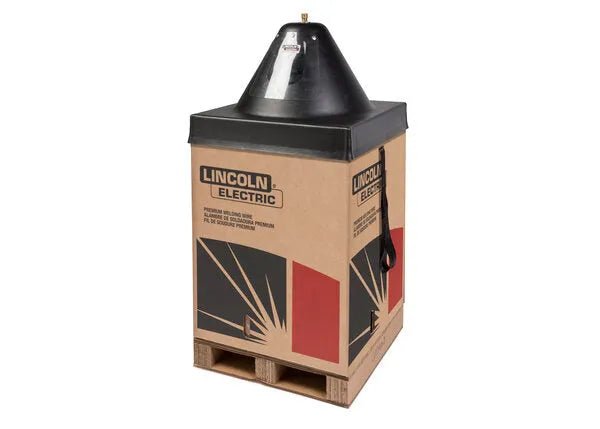

SuperGlaze® Gem-Pak®: TANGLE-FREE FEEDING. GUARANTEED.

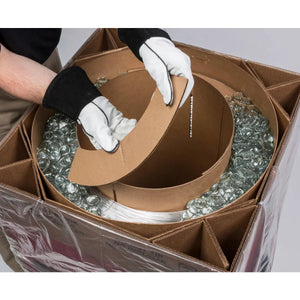

The SuperGlaze® Gem-Pak® is 300 lbs. of premium aluminum weld wire under a layer of glass payoff gems. The patented design provides tangle-free feeding. Guaranteed.

Use Aluminum Gem-Pak® Payoff Kit (K5568-1) or Accu-Pak® Box Payoff Kit (K2175-2) for payoff



Features

  • Designed for applications where higher strength is required
  • Provides very high as-welded strength for high magnesium alloys such as 5083
  • Excellent corrosion resistance ideal for shipbuilding and marine applications
  • Gem-Pak®: layer of included glass gems guarantee tangle-free feeding
  • Gem-Pak®: simple patented design reduces rework and improves productivity
  • Gem-Pak®: fork-lift ready mini-pallet attached to the box - 100% recyclable

Lincoln ED034791 SuperGlaze 5183 MIG GMAW Welding Wire, 3/64 in, 300 lb Gem-Pak Box

SuperGlaze® 5183 Aluminum Magnesium Manganese alloy is commonly used for higher strength welding of 5XXX and 6XXX base materials. Higher strength and superior salt water corrosion resistance with common shipbuilding base materials compared to 5356.

SuperGlaze® Gem-Pak®: TANGLE-FREE FEEDING. GUARANTEED.

The SuperGlaze® Gem-Pak® is 300 lbs. of premium aluminum weld wire under a layer of glass payoff gems. The patented design provides tangle-free feeding. Guaranteed.

Use Aluminum Gem-Pak® Payoff Kit (K5568-1) or Accu-Pak® Box Payoff Kit (K2175-2) for payoff



Features

  • Designed for applications where higher strength is required
  • Provides very high as-welded strength for high magnesium alloys such as 5083
  • Excellent corrosion resistance ideal for shipbuilding and marine applications
  • Gem-Pak®: layer of included glass gems guarantee tangle-free feeding
  • Gem-Pak®: simple patented design reduces rework and improves productivity
  • Gem-Pak®: fork-lift ready mini-pallet attached to the box - 100% recyclable

Includes
What's Included
  • (1) 300 lb Gem-Pak™ Box

Specifications
CONFORMANCE
CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.10 ER5183
WIRE COMPOSITION
Classification %Be %Mg %Zn %Cr %Cu %Fe %Mn %Si %Ti
ER5183 Requirement 0.0003 max. 4.3 - 5.2 0.25 max. 0.05 - 0.25 0.10 max. 0.40 max. 0.50 - 1.0 0.40 max. 0.15 max.
Typical Result 0.0003 max. 4.9 0.01 0.07 0.00 0.12 0.6 0.05 0.07
TYPICAL OPERATING PROCEDURES
Diameter Shielding Gas Gas Flow, L/min (CFH) Polarity CTWD, mm (in.) Wire Feed Speed, m/min (in/min) Voltage, volts Approx. Current, amps
0.9 mm (.035") 100% Ar 14-24 (30-50) DC+ 12.7 (¹/₂) - 15.9 (⁵/₈) 19.6 (770) 21.6 185
1.2 mm (3/64") 100% Ar 14-24 (30-50) DC+ 12.7 (¹/₂) - 15.9 (⁵/₈) 12.7 (500) 23.0 210
1.6 mm (1/16") 100% Ar 14-24 (30-50) DC+ 12.7 (¹/₂) - 15.9 (⁵/₈) 9.1 (360) 24.8 280
2.4 mm (3/32") 100% Ar 85 (180) DC+ 19.0 (³/₄) 8.0 (315) 28.0 500
3.2 mm (1/8") 100% Ar 85 (180) DC+ 19.0 (³/₄) 5.1 (200) 30.3 535
LECO Diameter 3/64 in (1.2 mm)
LECO Package 300 lb Gem-Pak™ Box
Diameter (in) 3/64

Lincoln ED034791 SuperGlaze 5183 MIG GMAW Welding Wire, 3/64 in, 300 lb Gem-Pak Box

SuperGlaze® 5183 Aluminum Magnesium Manganese alloy is commonly used for higher strength welding of 5XXX and 6XXX base materials. Higher strength and superior salt water corrosion resistance with common shipbuilding base materials compared to 5356.

SuperGlaze® Gem-Pak®: TANGLE-FREE FEEDING. GUARANTEED.

The SuperGlaze® Gem-Pak® is 300 lbs. of premium aluminum weld wire under a layer of glass payoff gems. The patented design provides tangle-free feeding. Guaranteed.

Use Aluminum Gem-Pak® Payoff Kit (K5568-1) or Accu-Pak® Box Payoff Kit (K2175-2) for payoff



Features

  • Designed for applications where higher strength is required
  • Provides very high as-welded strength for high magnesium alloys such as 5083
  • Excellent corrosion resistance ideal for shipbuilding and marine applications
  • Gem-Pak®: layer of included glass gems guarantee tangle-free feeding
  • Gem-Pak®: simple patented design reduces rework and improves productivity
  • Gem-Pak®: fork-lift ready mini-pallet attached to the box - 100% recyclable

Lincoln ED034791 SuperGlaze 5183 MIG GMAW Welding Wire, 3/64 in, 300 lb Gem-Pak Box

SuperGlaze® 5183 Aluminum Magnesium Manganese alloy is commonly used for higher strength welding of 5XXX and 6XXX base materials. Higher strength and superior salt water corrosion resistance with common shipbuilding base materials compared to 5356.

SuperGlaze® Gem-Pak®: TANGLE-FREE FEEDING. GUARANTEED.

The SuperGlaze® Gem-Pak® is 300 lbs. of premium aluminum weld wire under a layer of glass payoff gems. The patented design provides tangle-free feeding. Guaranteed.

Use Aluminum Gem-Pak® Payoff Kit (K5568-1) or Accu-Pak® Box Payoff Kit (K2175-2) for payoff



Features

  • Designed for applications where higher strength is required
  • Provides very high as-welded strength for high magnesium alloys such as 5083
  • Excellent corrosion resistance ideal for shipbuilding and marine applications
  • Gem-Pak®: layer of included glass gems guarantee tangle-free feeding
  • Gem-Pak®: simple patented design reduces rework and improves productivity
  • Gem-Pak®: fork-lift ready mini-pallet attached to the box - 100% recyclable
