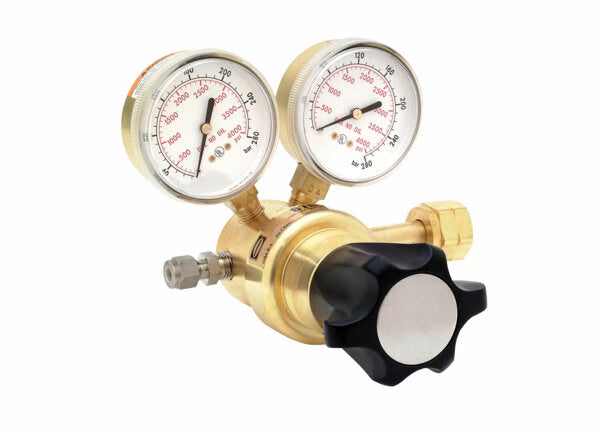

Harris HP8700-2500-590 - 3200305 - Carbon Monoxide/Oxygen Regulator

SKU: 3200305
$619.20 $901.98
Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.

More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.
Model HP8700-2500-590 ultra high-pressure up to 7500 PSIG inlet single-stage brass barstock industrial air/sulfur hexafluoride regulator
Gas Type: Carbon Monoxide
Inlet: CGA 590
Outlet: 1/4 in. NPT outlet with 1/4 in. stainless steel tube fitting
Overview
Harris Model HP8700-2500-590 Single Stage Industrial Air/Sulfur Hexafluoride Regulator - 3200305

Model HP8700 is a single-stage brass industrial air/sulfur hexafluoride regulator that is designed to operate on ultra high-pressure cylinders up to 7500 PSIG. The Model HP8700 is suitable for high pressure testing charging accumulators and pressurizing struts for hydraulic systems and aircraft/heavy equipment.. This model features a brass body bonnet and dual scale (PSIG/bar) gauges ergonomic plastic knob for improved grip and ease of adjustment of the delivery pressure, and one-piece encapsulated seat that is design with internal filter and CTFE (Kel F®) seat. It has a 1/4 in. NPT outlet with stainless steel 1/4 in. tube fitting.

Features
  • Operates on high pressure cylinders up to 7500 PSIG
  • Brass barstock body and bonnet and brass nozzle for longer service life
  • Ergonomic ABS plastic knob for improved grip and precise adjustment
  • 2.5 in. Brass barstock dual scale easy-to-read gauges (psi/bar)
  • One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PCTFE (Kel-F™) seat from particulate contamination
  • Urethane diaphragm for greater flexibility
  • 1/4 in. NPT outlet with stainless steel 1/4 in. tube fitting
  • Suitable for high pressure testing, charging accumulators and pressurizing aircraft struts
  • Conforms to CGA E-4 standard for gas pressure regulators
  • Self-relieving for safety
Specifications

Equipment

Adjusting Knob ABS black plastic
Body Brass barstock
Bonnet Brass barstock
Capacity Ultra high-pressure
Certification CGA E-4
Cv 0.08
Delivery Pressure Gauge (PSIG) 4000
Delivery Pressure Range (PSIG) 0 - 2500
Diaphragm Urethane
Filter Nickel-plated sintered bronze - 10 micron
Gas / Gas Service Industrial Air
Sulfur Hexafluoride
Gauges 2.5 in. Brass dual scale (psi/bar)
Inlet Connection CGA 590 is self-venting
Maximum Inlet Pressure (PSIG) 3000
Nozzle Brass
Outlet Connection 1/4 in. NPT outlet with 1/4 in. stainless steel tube fitting
Pressure Regulation PSIG/100 PSIG 3.3
Recommended Items/Accessories Panel Mounting Nut - PN 9100887
Seat PCTFE (Kel-F®)
Seat Return Spring PH 17-7 Stainless steel
Supply Pressure Gauge (PSIG) 4000

Warranty

Warranty 1 Year
