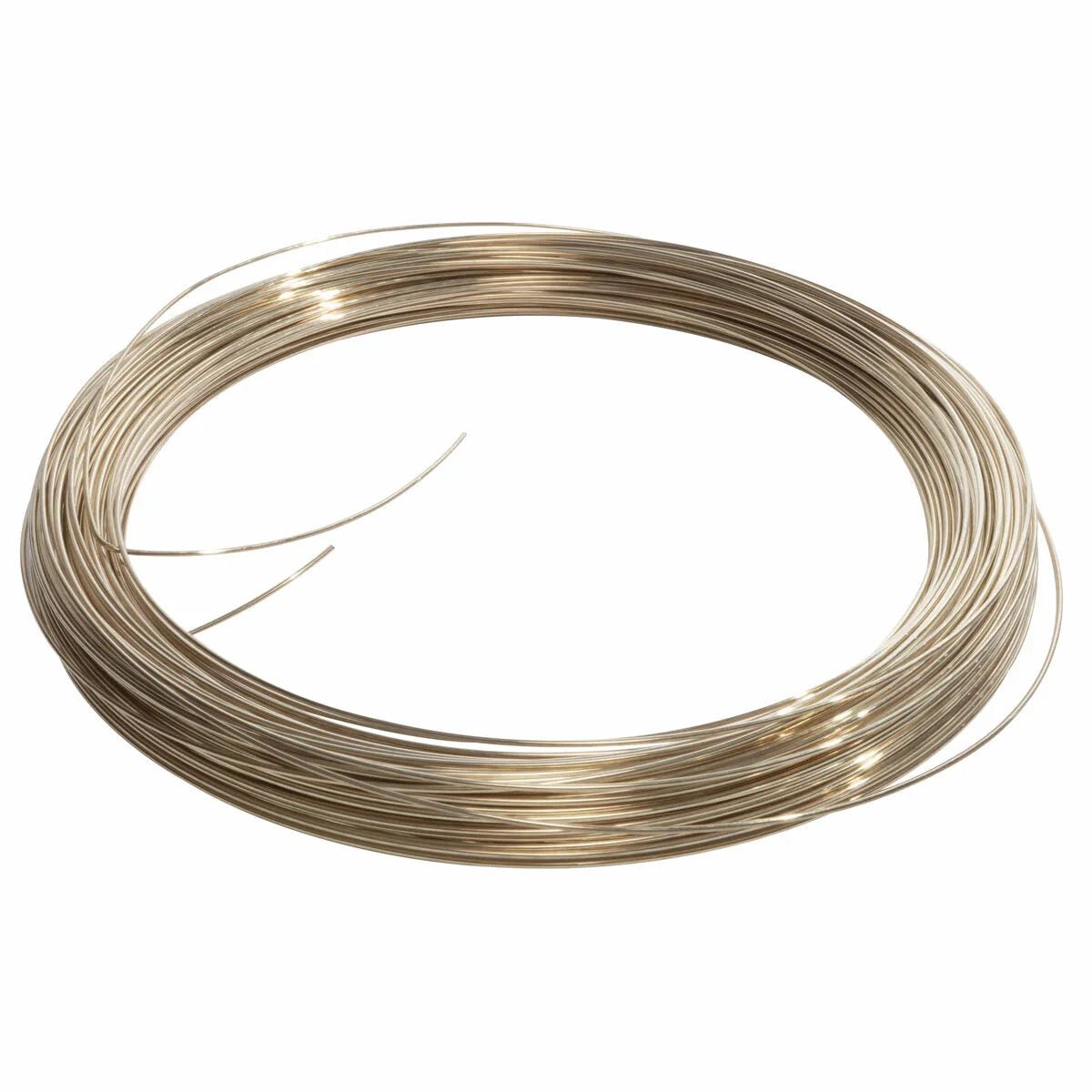

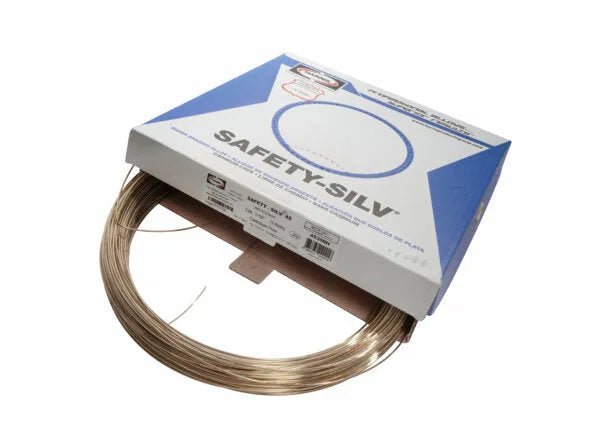

Harris Safety-Silv 45 High Silver Brazing Alloy 1/16 in. x 1 ea. 50 toz. coil/box - 45350H
Typical Application
Brazing copper, brass, steel and Stainless Steel. Melting range makes it useful for wide clearances..
Safety-Silv 45 is an excellent general-purpose high silver brazing filler metal. Used for decades, this alloy is a popular choice for brazing copper, brass, steel, and Stainless Steel. A cadmium-free filler metal with a melting range of approximately 145ยฐF, Safety-Silv 45 provides good fillet forming qualities and is suitable for filling loose connections. This filler metal has excellent joint strength and ductility at a moderately higher temperature. Preferred base metal clearance range is 0.003 in. - 0.006 in. (0.08 mm - 0.15 mm). Color is silver to light yellow. Conforms to the EU Reach & RoHS directive.
Features
โข General purpose cadmium-free silver brazing alloy
โข Excellent joint strength and ductility at moderately higher temperature with a melting range of approximately 145ยฐF (63ยฐC)
โข Good ductility and capillary flow
โข Fillet forming qualities are suitable for filling loose connections
โข Recommended joint clearance of 0.003 in. - 0.006 in. (0.08 mm - 0.15 mm)
โข Popular choice to braze copper, brass, steel and Stainless Steel
โข Fluidity rating of 6.5
โข Complies with the EU Reach & RoHS directive
โข
โข
