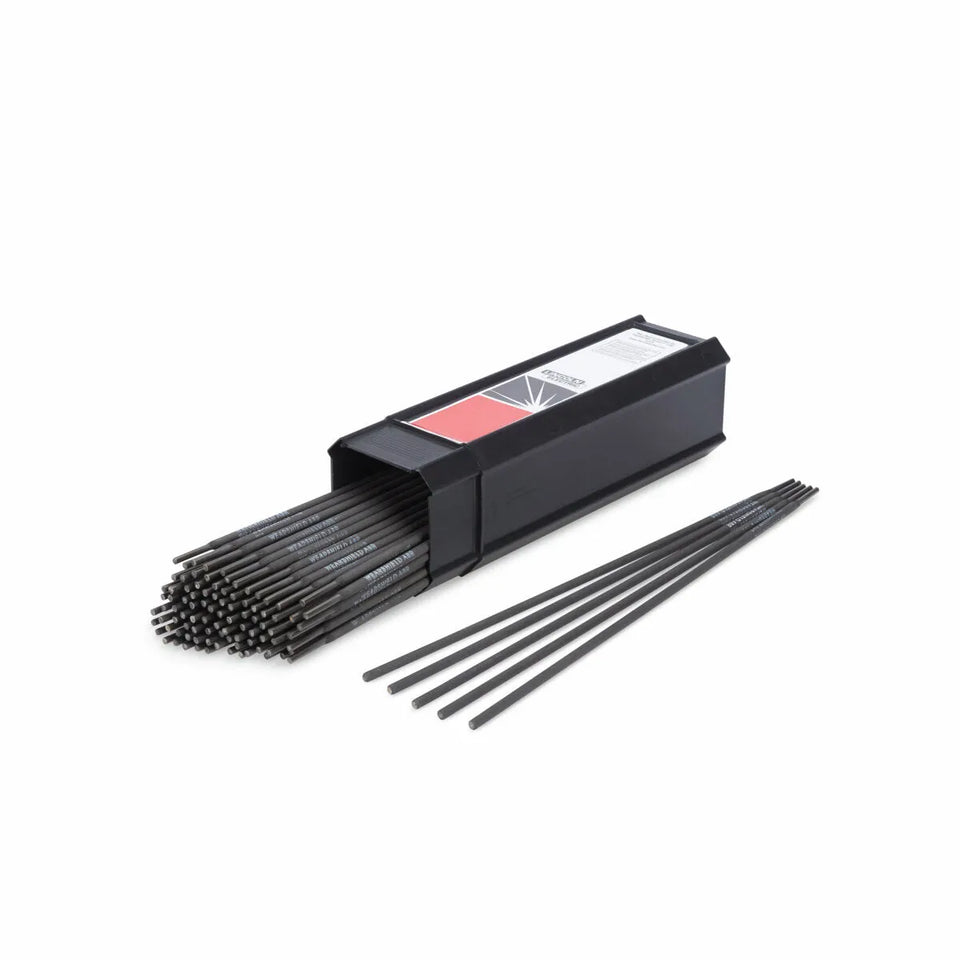

Lincoln ED022012 Wearshield 60 Stick SMAW Welding Rod Electrode 3/16 14in 10 lb Plastic Tube

SKU: ED022012
$113.68 $150.20
Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.

More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.
WEARSHIELD® 60 stick electrode is ideal for extreme abrasion hardfacing applications such as conveyor screws, brick and coke machinery, grader blades and crusher rolls/plates/jaws (Metal-to-Earth (Earth Cutting & Digging) for Extreme Abrasion and Low to Moderate Impact)
Overview
Lincoln ED022012 Wearshield 60 Stick SMAW Welding Rod Electrode, 3/16 14 in,  10 lb Plastic Tube

WEARSHIELD 60 stick electrode is ideal for extreme abrasion hardfacing applications but is limited to two layers. Typical applications include conveyor screws, brick and coke machinery, grader blades and crusher rolls/plates/jaws. It can be welded in flat & horizontal positions.

Features

• Designed to resist severe abrasion
• It exhibits higher alloy and higher abrasion resistance than Wearshield ABR, Wearshield 44 or Wearshield ME
• Can be used on carbon, low alloy, stainless, and manganese steels
• Deposits consist of primary carbides in a matrix of austenite-carbide eutectic
• Deposits should be limited to two layers

Specifications
FeatureValue
Classification Number of layerHardness Rockwell C
Typical Result 1 Layer57-60
Typical Result 2 Layers60-62
Classification Number of layer%C%Cr%Mn%Mo%Si%V
Typical Result 2 Layers5.023.00.82.31.00.6
Diameter Polarity⁽¹⁾Current, Amps
1/8 in (3.2 mm) DC+100 - 140
1/8 in (3.2 mm) AC110 - 150
5/32 in (4.0 mm) DC+130 - 180
5/32 in (4.0 mm) AC140 - 200
3/16 in (4.8 mm) DC+210 - 250
3/16 in (4.8 mm) AC230 - 270
Note
⁽¹⁾ Preferred polarity is listed first.
NOTE: The deposit is not machinable or forgeable. Cooling rate does not significantly influence abrasion resistance. Deposit will usually cross check.
If more than two-layer build-up is required, use Wearshield® 15CrMn (preferred), Wearshield® BU or Wearshield® BU30 for the preliminary layer or layers under Wearshield® 60.
On manganese steel, use Wearshield® Mangjet® or Wearshield® 15CrMn as build-up.
Preheat is not generally necessary except to be sure that work is in room temperature range 25° - 45°C (75° - 100°F).
However, preheat of 120° - 200°C (250° - 400°F) may be necessary to prevent heat affected zone cracking on high carbon steel or low alloy steel base metals.
If more than two layers must be used, or if cross checks must be eliminated, preheat to 650°C (1200°F).
Prolonged or repeated heating of manganese steel base metal over 260°C (500°F) can cause embrittlement and spalling.
Avoid base metal embrittlement by: • Limiting the temperature 260°C (500°F) at distances of 13 mm (1/2 in) away from the weld. • Minimizing the time at elevated temperatures.
The correct welding technique is a vertical electrode with a 3.2 - 4.8 mm (1/8 - 3/16 in) arc length. The large ball on the end of the electrode should never touch the puddle. This technique will give a smooth transfer, low spatter and smooth bead.
LECO Diameter 3/16 x 14 in (4.8 x 350 mm)
LECO Package (4) 10 lb Plastic Tube
Diameter (in) 3/16
Length (in) 14
