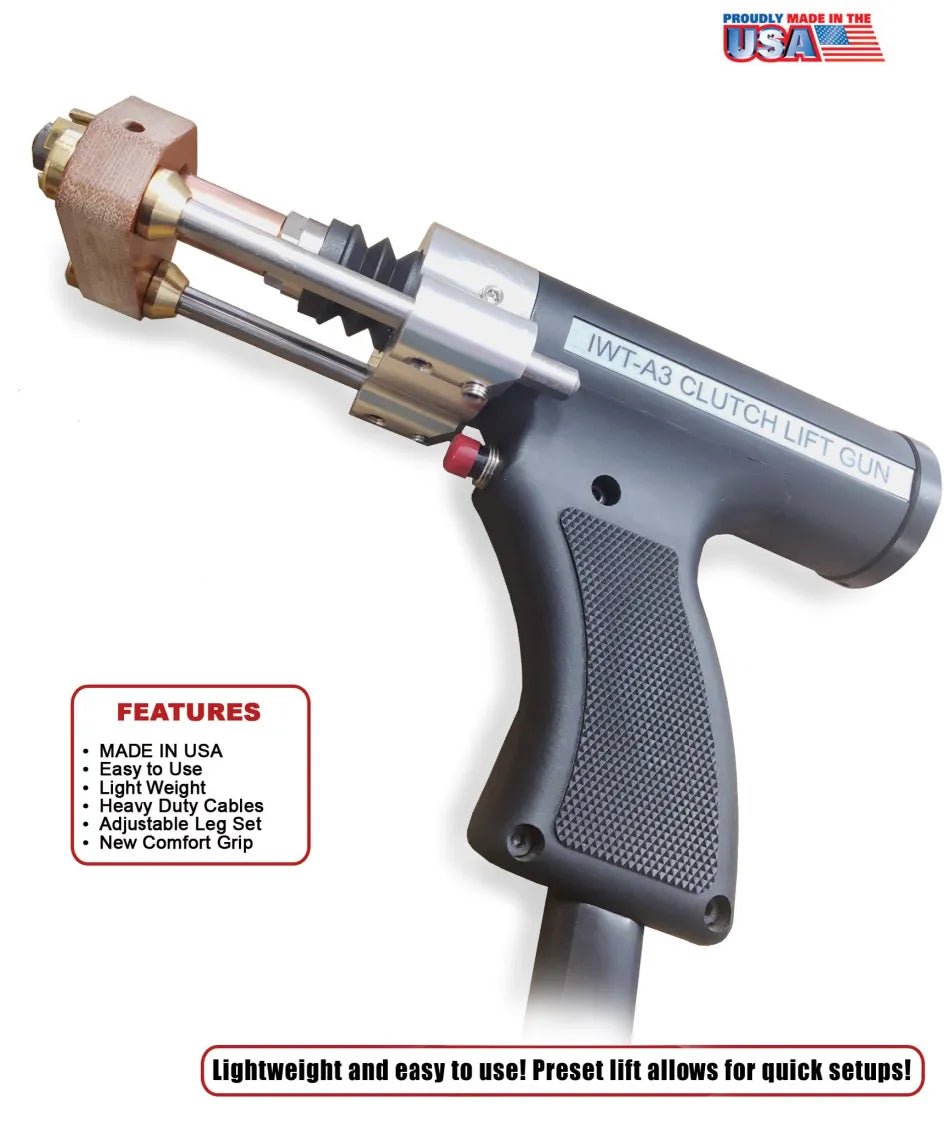

IWT-A3 Clutch Lift, 48VDC - 1-EQ500009A3-48V
The IWT -A3 Gun is designed for setup simplicity. A unique clutch design will keep lift constant regardless of the amount of plunge. Available in several solenoid options, the gun can be configured for use across the Fusion and Freedom platforms, or with another manufacture's equipment.
- Weld Range: 1/4" - 1/2" depending on process
- Welding Process: Drawn Arc with ferrules
- Welding Cables: 20ft of #2 weld Cable (Fusion) 23ft of #4 weld cable (Freedom)
- Gun Length: 7" Long from back cap to chuck nut
- Total Weight: 2lbs without cables.
