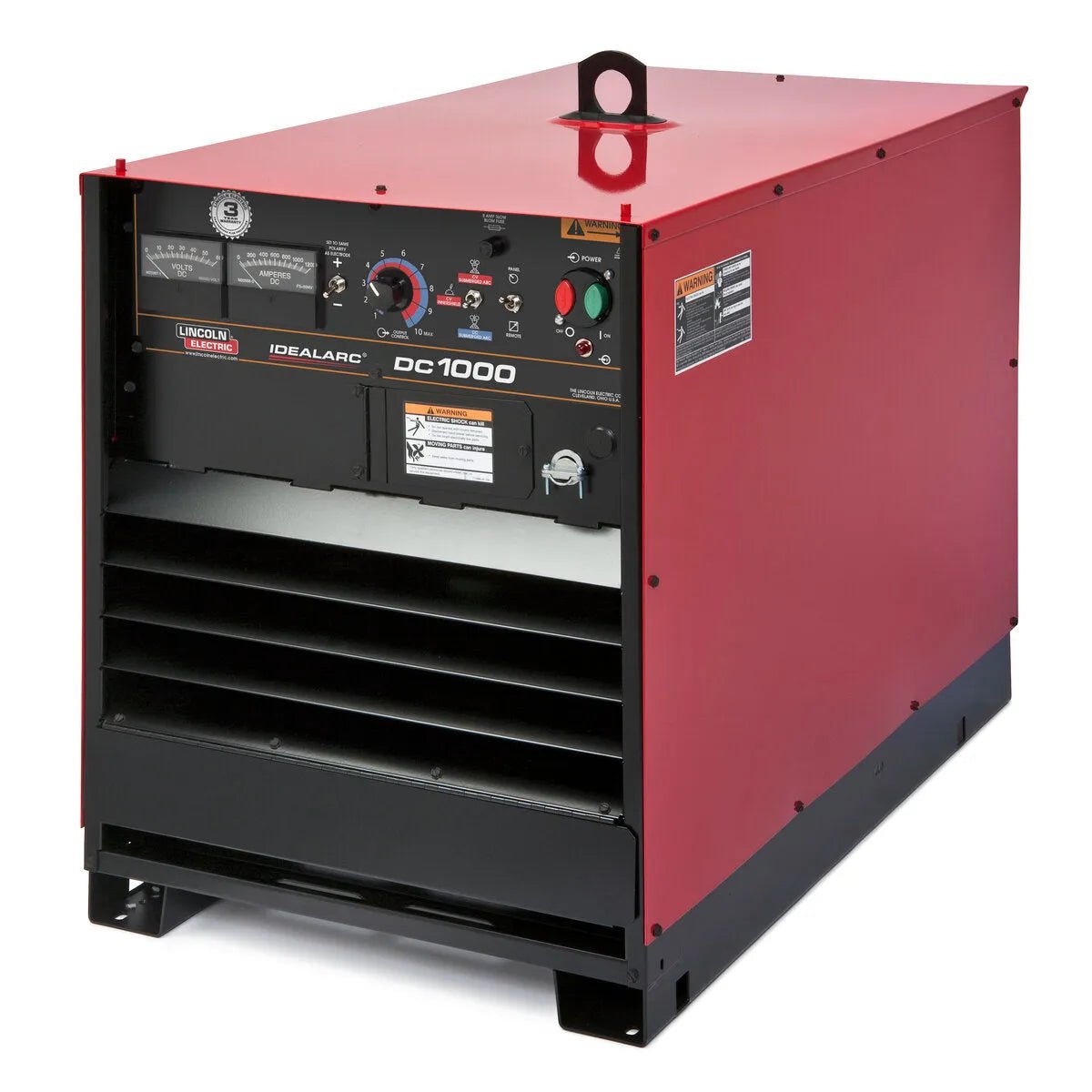

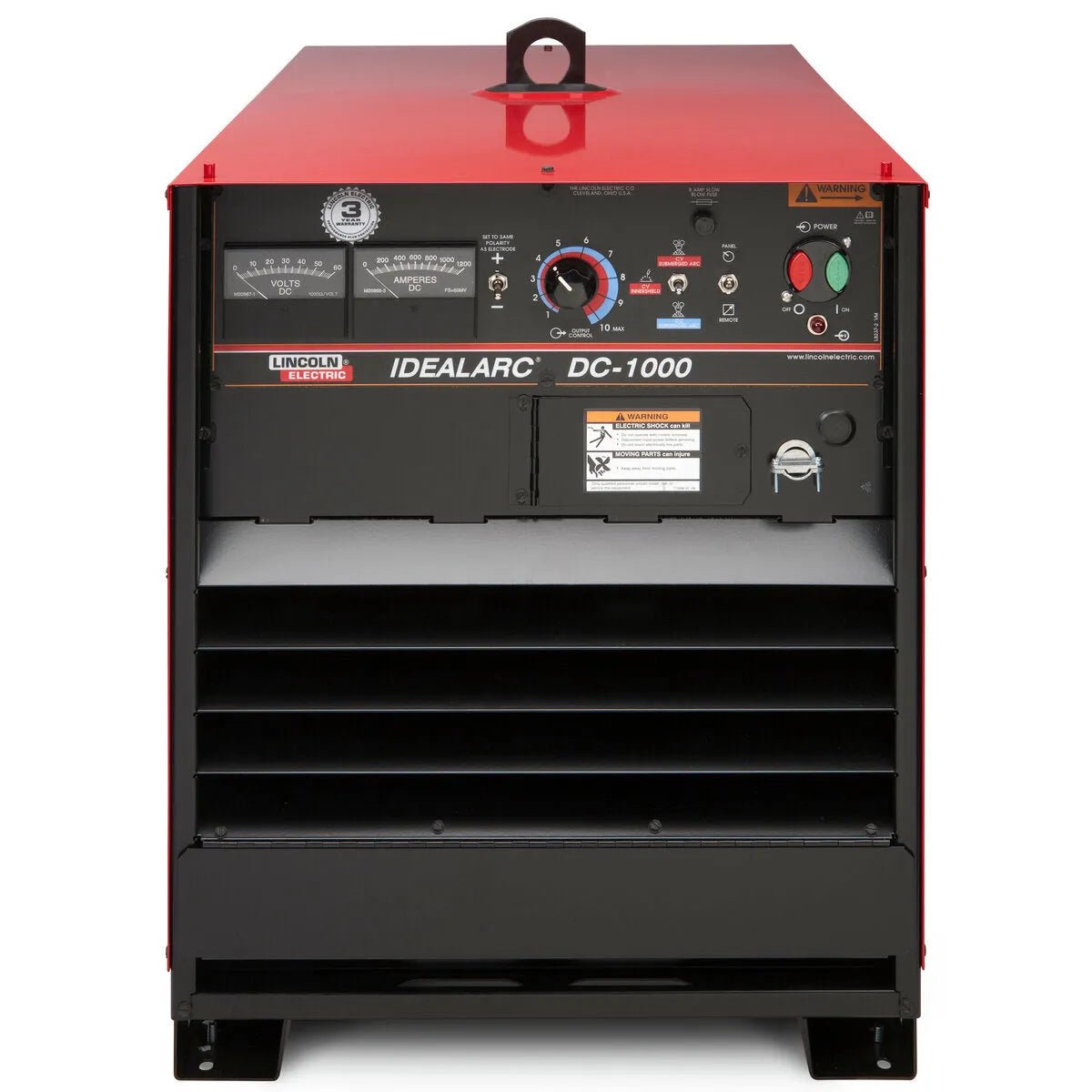

Lincoln Idealarc DC-1000 Subarc Welder - K1386-4
The Lincoln Idealarc DC-1000 - K1386-4 is a high-performance submerged arc welding power source delivering an impressive 1300 amps of smooth DC output for demanding industrial applications. This versatile system combines substantial welding power with multi-process flexibility, making it equally effective for both semiautomatic and fully automatic welding operations. The DC-1000's exceptional output characteristics provide superior arc stability and control across its entire operating range, ensuring consistent weld quality even in challenging production environments.
Designed with operational versatility in mind, the DC-1000 features specialized 500-amp output connections that enhance arc characteristics for precision low-amperage submerged arc and MIG welding procedures. The single-range control system simplifies operation while providing precise output adjustment, allowing operators to fine-tune welding parameters with exceptional accuracy. For integration with automated systems, the unit includes convenient terminal strips and output studs that facilitate remote connections and cable management, streamlining installation in complex production setups.
The DC-1000's practical design incorporates a space-efficient low-profile case that allows for flexible placement options, including under-bench installation or stacking configurations of up to two units to conserve valuable floor space. Removable side panels provide easy access to internal components for maintenance and service, reducing downtime when adjustments are needed. Internal components, including windings, rectifiers, and circuit boards, receive comprehensive protection against moisture and corrosion, ensuring reliable performance in harsh industrial environments. Lincoln's confidence in the DC-1000's durability is demonstrated by their industry-leading seven-year warranty on the power rectifier, providing exceptional long-term value for operations requiring dependable, high-output welding capabilities.
Key Features
- Powerful 1300-amp smooth DC output for demanding submerged arc and multi-process welding applications.
- Specialized 500-amp output connections enhancing arc characteristics for precision low-amperage procedures.
- Single-range control system providing precise output adjustment with simplified operation.
- Convenient terminal strips and output studs facilitating remote connections and integration with automated systems.
- Space-efficient low-profile case design allowing installation under workbenches for flexible placement options.
- Stackable configuration capability (up to two units high) for maximizing available floor space.
- Removable side panels enabling quick access to internal components for maintenance and service.
- Comprehensive protection for internal components against moisture and corrosive environments.
- Multi-process flexibility supporting submerged arc, stick, and gouging applications within machine capacity.
- Industry-leading seven-year warranty on the power rectifier for exceptional long-term investment protection.
Specifications
| Dimensions (H x W x D) | 30.7 in x 22.5 in x 39 in (781 mm x 565 mm x 991 mm) |
| Net Weight | 821 lbs (372 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) Submerged Arc (SAW) |
| Input Voltage | 575 |
| Input Current | 77.2A |
| Input Hertz | 60 |
| Input Phase | 3 |
| Input Power | 575/3/60 |
| Mode Icon | CC/CV |
| Output Range | 150-1300A DC,16-46V |
| Polarity | DC |
| Machines Communication Technology | analog |
| Wire Feeder Supply Voltage | 115VAC |
| Work Lead Connector Type | Lug |
| Typical Application | Heavy Fabrication |
| Warranty | 3 Years |
