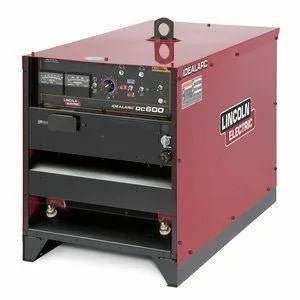

Lincoln Idealarc DC600 220/380/440 3/50/60 (Not Available in US) - K1365-23
The Lincoln Idealarc DC600 - K1365-23 is an international voltage configuration multi-process welder designed specifically for global markets outside the United States. This robust system combines industrial-grade construction with a 100% duty cycle output rating for continuous operation in demanding production environments. The traditional SCR rectifier technology delivers superior arc characteristics that professional welders value, resulting in consistently high-quality welds across multiple processes and materials.
Engineered for international power systems, this K1365-23 model operates on 220/380/440V three-phase power at either 50 or 60Hz, making it adaptable to various global power infrastructures. The intuitive control panel features full-range output voltage adjustment and standard analog meters for precise parameter monitoring. For workplace convenience, 60Hz models include a 115V auxiliary power receptacle that powers shop tools directly at the welding station, enhancing operational efficiency in busy fabrication environments.
The DC600's practical design incorporates a space-efficient flat-top case with a compact footprint, allowing for installation under workbenches or stacking configurations up to three units high. Internal components receive comprehensive protection against moisture and corrosive environments, ensuring reliability in harsh industrial conditions. Lincoln's confidence in the system's durability is demonstrated by their seven-year warranty on the power rectifier. The K1365-23 is RCM compliant for markets requiring this certification, making it an exceptional value for international operations requiring versatile, dependable welding capabilities.
Key Features
- International voltage configuration (220/380/440V) designed for global markets outside the United States.
- 100% duty cycle output rating ensuring continuous operation in demanding production environments.
- Traditional SCR rectifier technology delivering superior arc characteristics and weld quality.
- Full range output voltage control for precise parameter adjustment across multiple processes.
- Standard analog ammeter and voltmeter providing immediate visual feedback on welding conditions.
- Mode switch for quick selection of optimal output characteristics for different welding processes.
- Integrated 115V, 15-amp duplex auxiliary power receptacle on 60Hz models for powering shop tools.
- Space-efficient flat-top case design with compact footprint allowing installation under workbenches.
- Enhanced protection for windings and rectifiers against moisture and corrosive environments.
- RCM compliant for markets requiring this certification with industry-leading seven-year warranty on power rectifier.
Specifications
| Dimensions (H x W x D) | 30.75 in x 22.25 in x 39 in (781 mm x 567 mm x 988 mm) |
| Net Weight | 522 lbs (237 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Submerged Arc (SAW) |
| Number of Operators per Machine | 1 |
| Input Voltage | 380/500 |
| Input Current | 67/51A |
| Input Hertz | 50/60 |
| Input Phase | 3 |
| Input Power | 220/380/440V/3/50/60 |
| Output Range | CV:70A/13V - 780A/44V CC:90A/24V - 780A/44V |
| Machines Communication Technology | analog |
| Wire Feeder Supply Voltage | 115VAC 42VAC |
| Amphenol Pins (type of connector) | 14 |
| Work Lead Connector Type | Lug |
| Typical Application | Construction & Field Erection General Fabrication Pipeline & Offshore |
| Warranty | 3 yr |
