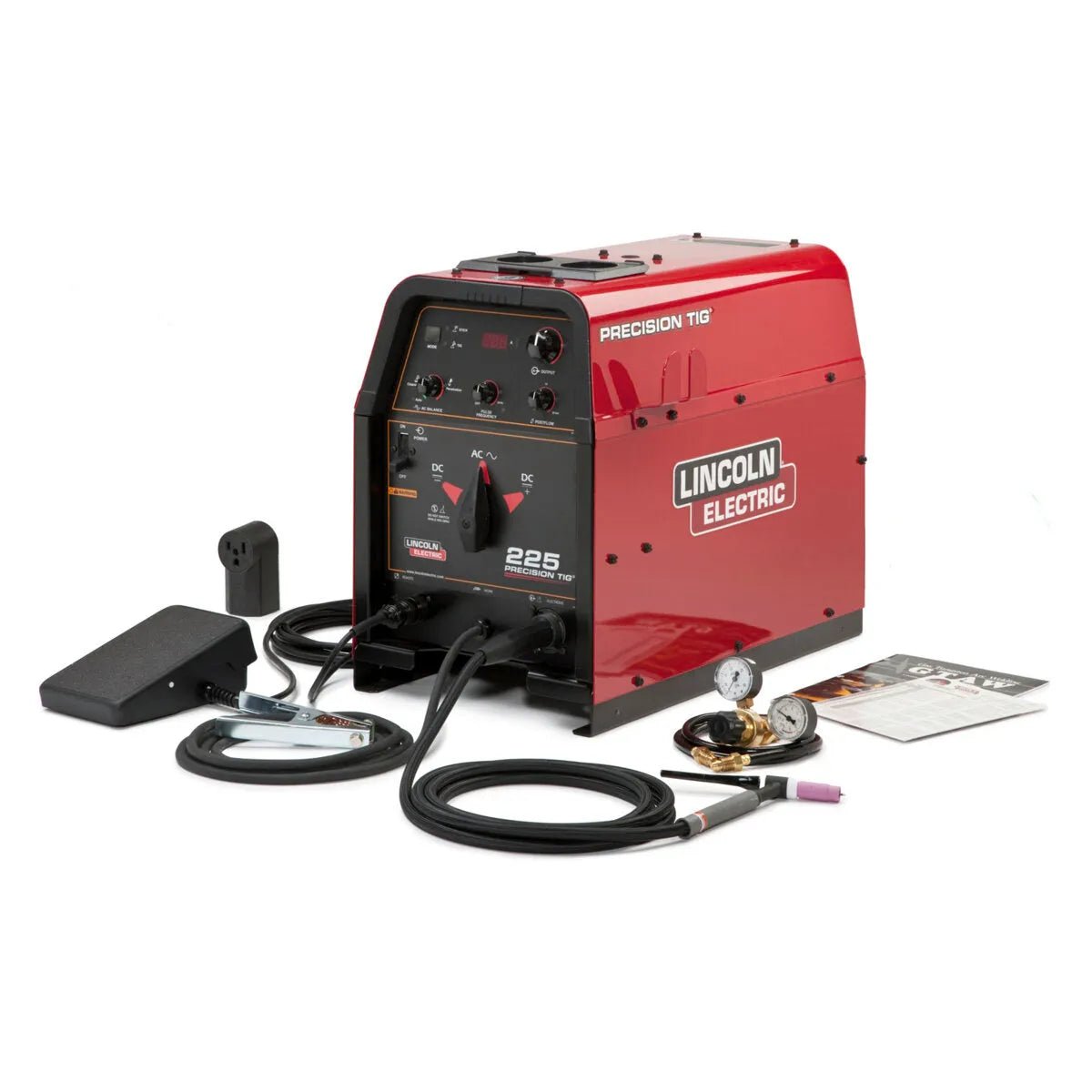

Lincoln Precision TIG 225 TIG Welder Ready-Pak K2535-1
The Lincoln Precision TIG 225 delivers exceptional welding performance with the widest operating range in its class, spanning from 5 to 230 amps to accommodate diverse application requirements. This versatile system incorporates Lincoln's patented Micro-Start™ II technology, which significantly enhances arc initiation characteristics and stability throughout the welding process, resulting in more precise welds and superior crater fills. The integrated 115V receptacles provide convenient power access for water coolers or auxiliary tools, enhancing operational efficiency in small automotive repair shops, fabrication facilities, and vocational training environments.
Designed with user-friendly operation as a core principle, the Precision TIG 225 features an intuitive interface that allows operators to quickly select mode and polarity settings before beginning welding operations. When working with aluminum materials, the innovative AC Auto Balance® technology automatically determines and maintains the optimal ratio between cleaning action and penetration, simplifying the welding process. For applications requiring specific performance characteristics, operators can bypass the automatic settings and manually adjust the balance to increase penetration for thicker materials or enhance cleaning action to penetrate heavy oxide layers.
The Precision TIG 225 includes an integrated TIG pulser functionality that effectively minimizes material distortion from excessive heat input while simultaneously moderating filler metal deposition for consistent bead appearance. Beyond its primary TIG capabilities, the system delivers outstanding stick welding performance with electrodes up to 5/32 in. (4.0 mm) diameter, including compatibility with challenging electrodes like Fleetweld® 5P+ (E6010). This combination of versatile operational capabilities, user-friendly controls, and multi-process functionality establishes the Precision TIG 225 Ready-Pak as an ideal solution for diverse welding applications in small-scale production environments.
Key Features
- Industry-leading operating range from 5 to 230 amps accommodating diverse material thicknesses and applications.
- Patented Micro-Start™ II Technology enhancing arc initiation, stability, and precision throughout the welding process.
- Intuitive operator interface enabling simple mode and polarity selection for streamlined operation.
- Innovative AC Auto Balance® functionality automatically determining optimal cleaning-to-penetration ratios for aluminum welding.
- Manual balance adjustment capabilities providing precise control over cleaning action and penetration characteristics.
- Integrated TIG pulser functionality minimizing material distortion and ensuring consistent bead appearance.
- Exceptional stick welding capabilities supporting electrodes up to 5/32 in. (4.0 mm) diameter including E6010.
- Convenient 115V receptacles for powering auxiliary equipment like water coolers or power tools.
- Ideal design for small automotive repair shops, fabrication facilities, and vocational training environments.
Specifications
Product Weights & Dimensions
| Dimensions (H x W x D) | 20.7 in x 14.5 in x 25.6 in (526 mm x 368 mm x 650 mm) |
| Net Weight | 215 lbs (97.524 kg) |
General Specification
| Machines Processes | Stick (SMAW) TIG (GTAW) |
| Input Voltage | 208/230 |
| Input Current | 40% Duty Cycle: 61/55A, 60% Duty Cycle: 52/47A |
| Input Hertz | 60 |
| Input Phase | 1 |
| Input Power | 208/230/1/60 |
| Mode Icon | CC |
| Output Range | 5-230A, Max OCV: 75V |
| Polarity | AC/DC |
Application
| Typical Application | Construction Automotive Brewery Distillery General Fabrication Maintenance & Repair Marine Applications Marine Fabrication & Repair Repair Welding |
Warranty
| Warranty | 3 Years |
