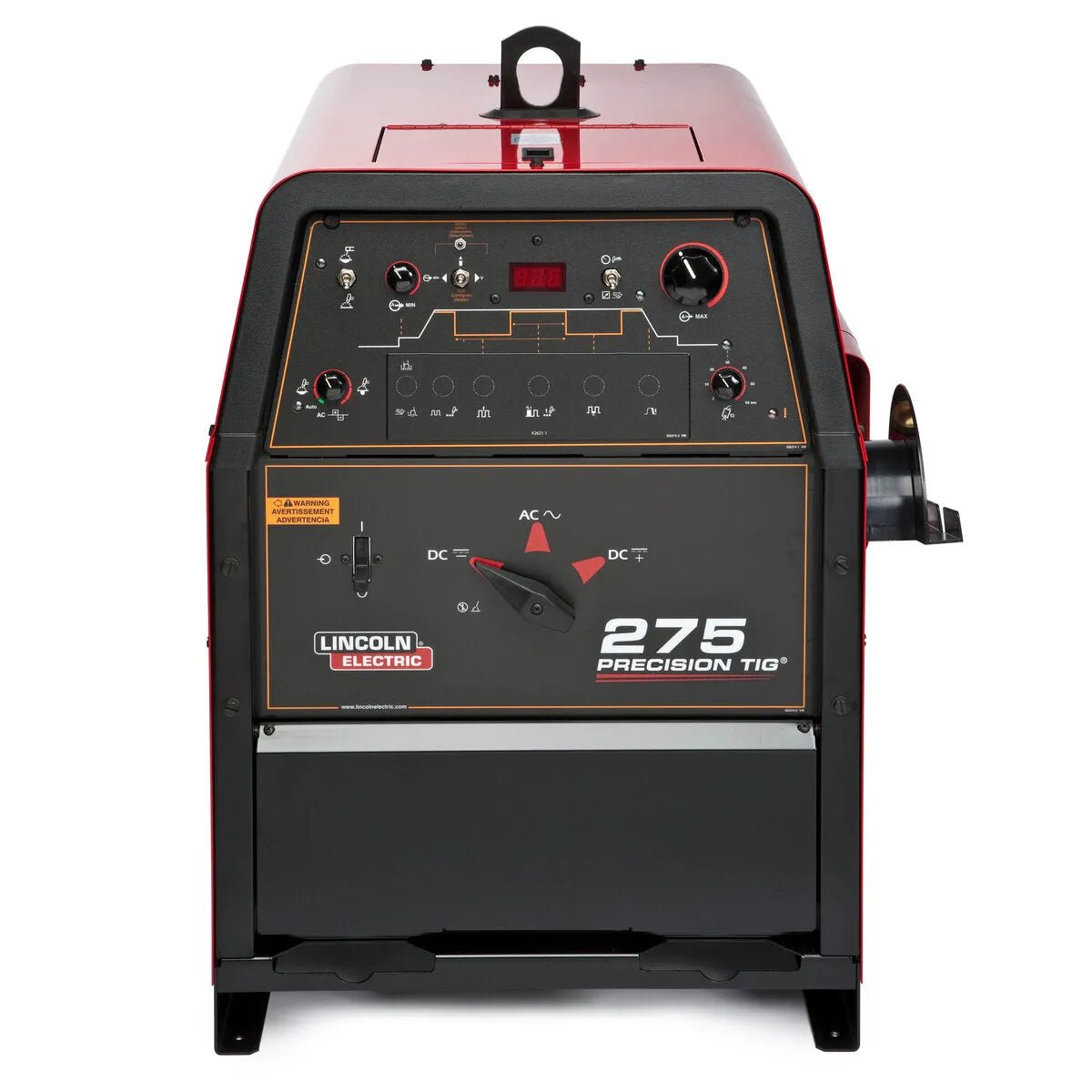

Lincoln Precision TIG 275 TIG Welder 460/575/1/60 - K2619-2

Lincoln Precision TIG 275 TIG Welder 460/575/1/60 - K2619-2

The Lincoln Precision TIG 275 - K2619-2 is a versatile, industrial-grade TIG welding system engineered specifically for shop environments requiring consistent performance across diverse maintenance and fabrication applications. This robust machine delivers exceptional capability for both TIG and Stick welding processes, including the capacity to handle 5/32-inch (4.0 mm) stick electrodes for more demanding applications. Designed for 460/575V single-phase 60Hz power configurations, this model provides stable, reliable performance in industrial settings with appropriate power infrastructure. At the core of this system is Lincoln's patented Micro-Start II Technology, which provides enhanced arc starting characteristics, superior stability during operation, and precise control for creating exceptional welds and crater fills, elevating overall weld quality and appearance regardless of material or thickness.

The Precision TIG 275 embodies Lincoln's commitment to creating systems that balance operational simplicity with advanced customization capabilities. When working with aluminum, the innovative AC Auto Balance feature automatically determines the optimal mix of cleaning action and penetration, ensuring excellent results without requiring extensive operator expertise. For applications demanding specific performance characteristics, the system provides complete manual control over AC balance, allowing operators to increase penetration for thicker materials or enhance cleaning action to break through heavy oxide layers as required. The optional Advanced Pulse Control panel upgrade adds sophisticated TIG pulser functionality, minimizing material distortion from excessive heat input while helping to moderate filler metal deposition for consistent bead appearance—a valuable enhancement for applications requiring precise heat control and superior cosmetic results.

Designed for maximum operational flexibility, the Precision TIG 275 delivers an impressively wide output range from 2 to 340 amps—the broadest in its class—enabling operators to tackle materials across the entire thickness spectrum with a single machine. This exceptional range allows for delicate work on thin materials at the lower end while providing substantial power for thicker sections at the upper limit. Thoughtful design elements include side-mounted torch holder and connections that facilitate cable management and provide convenient torch storage when not in use, enhancing workplace organization and protecting valuable components. This comprehensive combination of advanced technology, precise control capabilities, and practical design features establishes the Precision TIG 275 as an exceptional solution for shop environments requiring a versatile, reliable TIG and stick welding solution for maintenance and fabrication applications.

Key Features

• Designed for 460/575V single-phase 60Hz industrial power configurations.
• Patented Micro-Start II Technology enhancing arc starting, stability, and precision welding control.
• AC Auto Balance automatically optimizing cleaning and penetration for aluminum welding applications.
• Manual AC balance adjustment capability for precise control of aluminum welding characteristics.
• Optional Advanced Pulse Control panel upgrade for enhanced heat input management.
• Industry-leading operating range (2-340 amps) providing exceptional versatility across material thicknesses.
• Superior stick welding performance with electrodes up to 5/32 inch (4.0 mm).

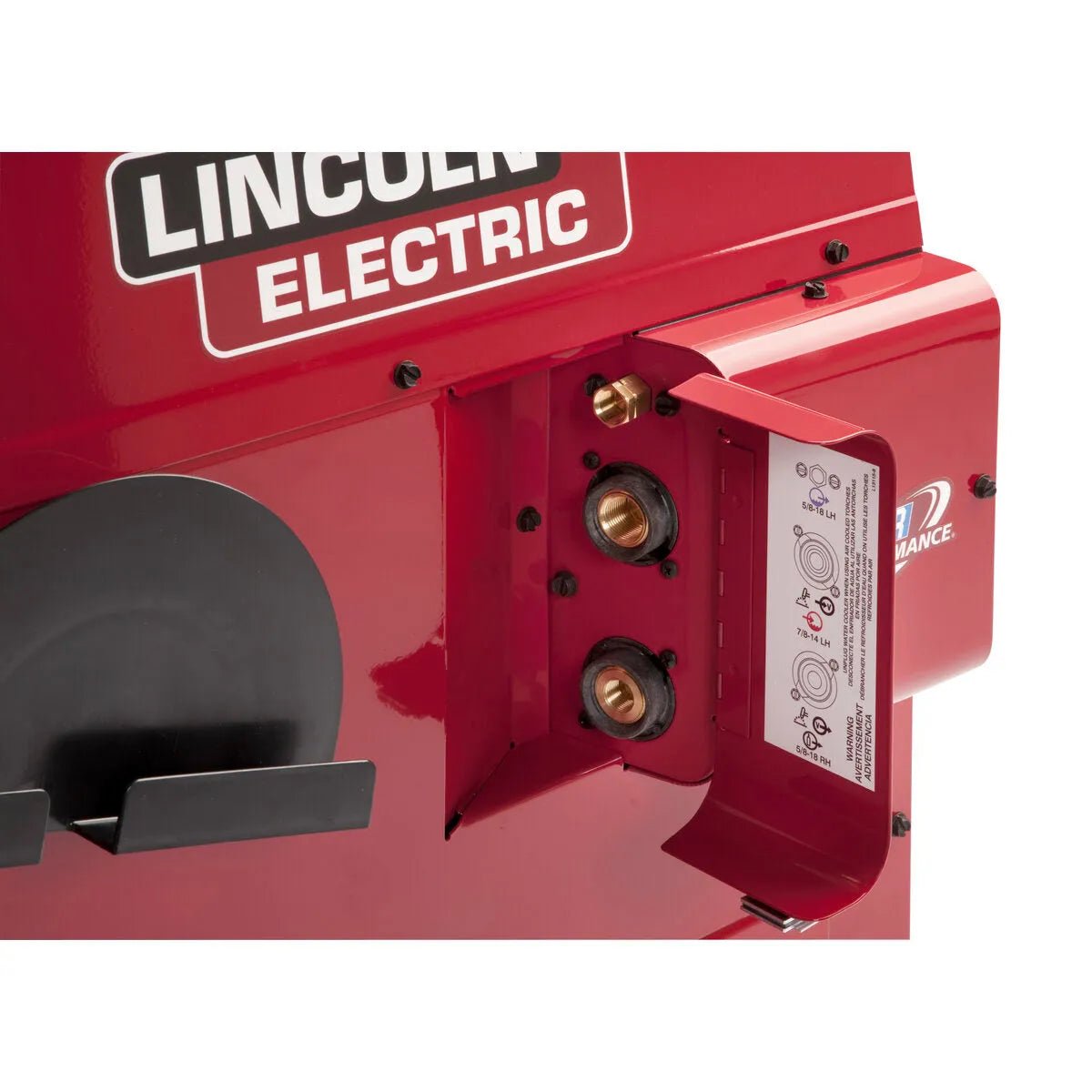

• Practical side-mounted torch holder and connections improving cable management and component protection.
• Durable industrial construction ensuring reliable performance in demanding shop environments.
