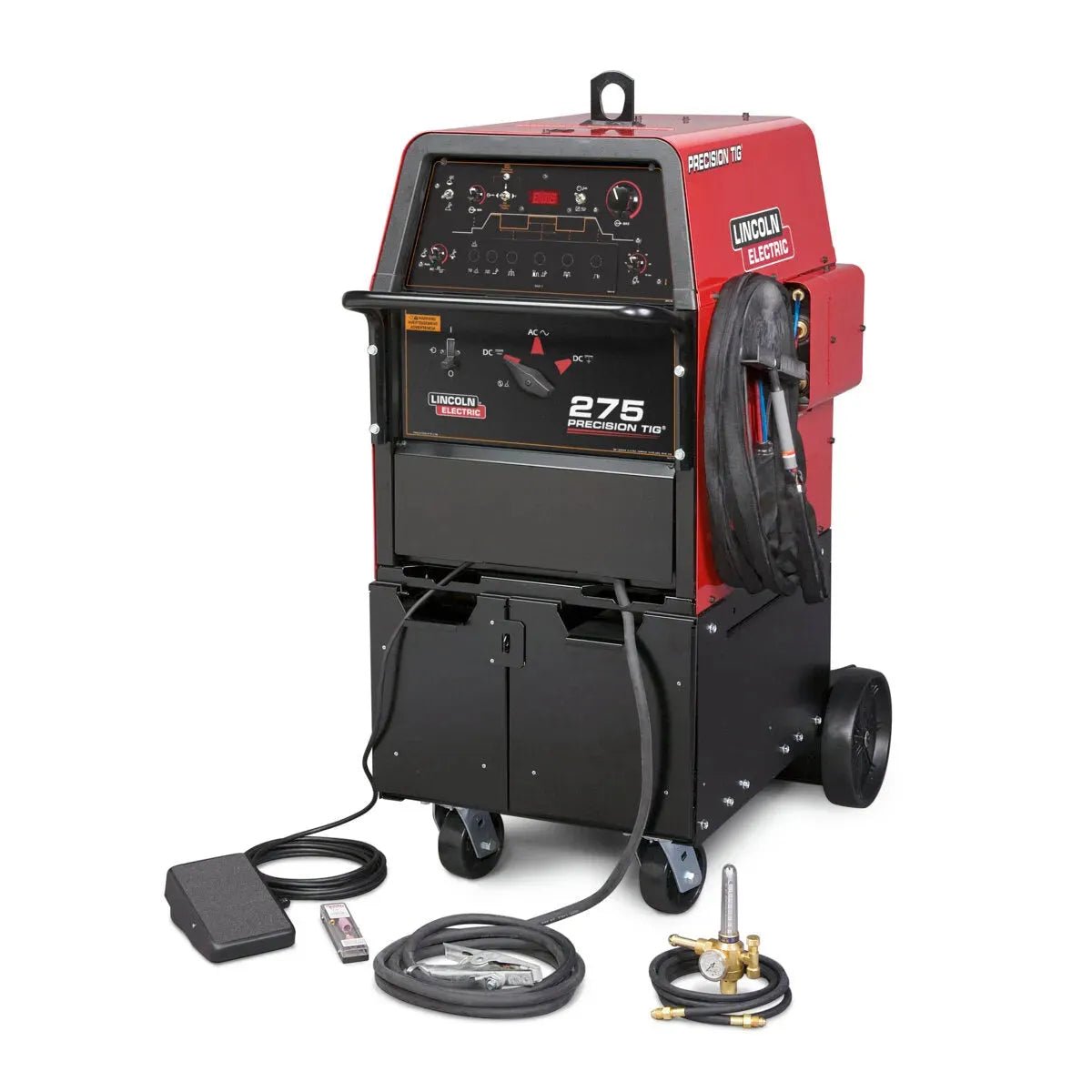

Lincoln Precision TIG 275 TIG Welder Ready-Pak - K2618-1
The Lincoln Precision TIG 275 Ready-Pak delivers exceptional versatility for professional welding operations requiring superior performance across both TIG and Stick applications. This comprehensive welding solution represents the pinnacle of Lincoln Electric's commitment to developing precision welding technology that addresses the demanding requirements of maintenance and fabrication environments. At the core of the Precision TIG 275 is Lincoln's patented Micro-Start II Technology, an advanced starting system that dramatically enhances arc initiation and stability throughout the welding process, enabling operators to achieve more precise welds and superior crater fills across diverse material types and thicknesses. This revolutionary technology transforms challenging welding scenarios into straightforward operations, making the Precision TIG 275 Ready-Pak the ideal solution for applications ranging from delicate thin-gauge materials requiring minimal heat input to heavy-duty fabrication involving 5/32-inch (4.0 mm) stick electrodes and beyond.
The Precision TIG 275 Ready-Pak incorporates Lincoln's innovative AC Auto-Balance technology, delivering exceptional aluminum welding performance through intelligent automatic adjustment of the critical cleaning-to-penetration ratio. This sophisticated system continuously optimizes the AC waveform to provide the ideal balance between oxide removal and weld penetration, ensuring consistent, high-quality aluminum welds without requiring constant operator intervention. For applications demanding precise control, the system also enables complete manual adjustment of the AC balance, allowing skilled operators to fine-tune the cleaning action or penetration characteristics based on specific project requirements. The Precision TIG 275 delivers unmatched output range versatility, providing a continuous amperage control spectrum from an exceptionally low 2 amps for delicate thin materials up to a robust 340 amps for heavy-duty applications. This extraordinary range enables fabricators to address virtually any TIG or Stick welding challenge with a single machine, eliminating the need for multiple specialized power sources.
The Lincoln Precision TIG 275 Ready-Pak features thoughtful design elements that enhance operational efficiency and productivity in professional welding environments. The convenient side-mounted torch holder and connection panel provides organized cable management while protecting critical components from damage during transport or when not in use. For fabricators requiring advanced control over heat input and bead appearance, the Precision TIG 275 offers an optional Advanced Pulse Control panel upgrade that integrates sophisticated pulsing capabilities. This enhancement enables precise regulation of heat input to minimize material distortion on thin sections while also moderating filler metal deposition for consistent, aesthetically superior bead appearance. The Ready-Pak configuration provides a complete welding solution with all essential components assembled and ready for immediate implementation, allowing fabricators to quickly deploy this versatile technology across diverse applications including construction, automotive repair, food and beverage equipment manufacturing, marine fabrication, and pharmaceutical equipment production.
Key Features
- Patented Micro-Start II Technology delivering superior arc initiation and stability across applications.
- Innovative AC Auto-Balance system automatically optimizing aluminum welding performance.
- Manual AC Balance control enabling precise adjustment of cleaning action and penetration.
- Exceptional output range versatility spanning from 2 to 340 amps for diverse applications.
- Optional Advanced Pulse Control panel for minimizing distortion and controlling bead appearance.

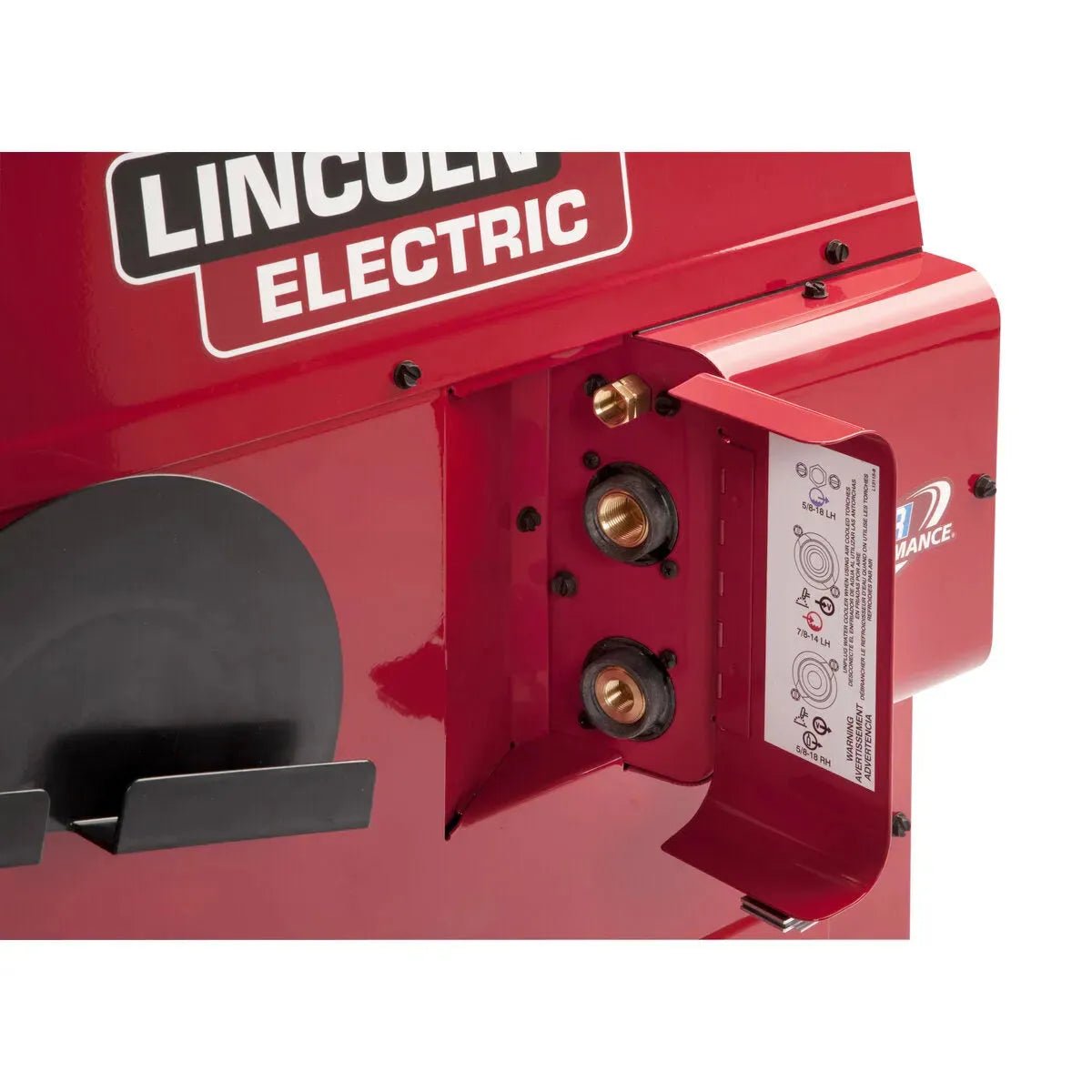

- Practical side-mounted torch holder and connections for enhanced cable management.
- Complete Ready-Pak configuration providing all essential components for immediate implementation.
- Robust construction ensuring reliability in demanding industrial environments.
- Versatile process capability supporting both precision TIG and heavy-duty Stick applications.
| Dimensions (H x W x D) | 49.7 in x 28 in x 41 in (1262 mm x 711 mm x 1041 mm) |
| Net Weight | 683 lbs (309.809 kg) |
| Input Voltage | 208/230/460 |
| Input Current | 40% Duty Cycle: 104/94/47A, 60% Duty Cycle: 86/78/39 |
| Input Hertz | 60 |
| Input Phase | 1 |
| Input Power | 208/230/460/1/60 |
| Mode Icon | CC |
| Output Range | 2-340A Max OCV: 75V |
| Polarity | AC/DC |
| Typical Application | Construction Automotive Brewery Distillery General Fabrication Maintenance & Repair Marine Applications Marine Fabrication & Repair Pharmaceutical Equipment Repair Welding Shipbuilding |
| Warranty | 3 Years |
