Harris  |  SKU: 1401156

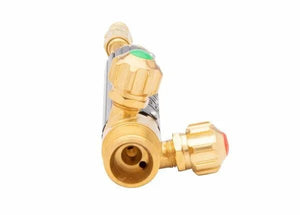

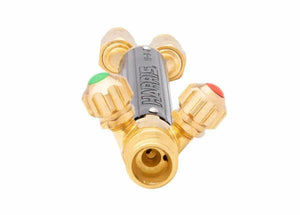

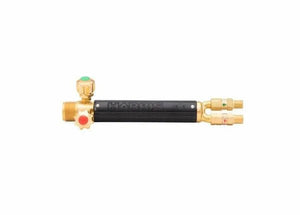

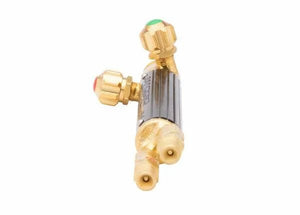

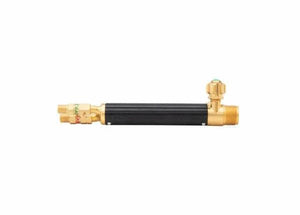

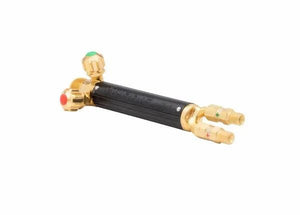

Harris Model 19-6 Combination Torch Handle with Front Valves and Check Valves - 1401156

$175.87 $259.48
Model 19-6 medium duty combination torch handle with front valves and check valves. Compatible mixer Models H-16-E, H-16-2E and H-16-S and cutting attachment Models 36-2 and 36-2N (for alternate fuels only).
Certification: UL® listed

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Harris Model 19-6 Combination Torch Handle with Front Valves and Check Valves - 1401156

Model 19-6 is a medium duty combination torch handle for welding, brazing, cutting and heating. It can be used with acetylene or any of the alternate fuel gases. This model features silver brazed twin-tube construction, front valves for easier adjustment while welding and brazing and 9/16 in. - 18 B-hose fittings. This model is equipped with easy-to-replace FlashGuard check valves. Model 19-6 is UL listed. Cuts up to 2 in. (50.6mm) plate and Welds up to 5/16 in. (7.9mm) plate.

Features

  • Medium duty combination torch handle with front valves for use with all fuel gases
  • Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
  • Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
  • Front valves for easier adjustments during operation
  • Features 9/16 in. - 18 B-hose fittings
  • Embossed with model number for ease in selecting compatible parts
  • Handle is 7 1/2 in. (190.53mm) in length
  • UL listed
  • Equipped with FlashGuard replaceable check valves
  • Cuts up to 2 in. (50.6mm) plate and Welds up to 5/16 in. (7.9mm) plate.

Certification UL listed
Compatible Cutting Attachment Model Number 36-2
36-2N
Compatible Cutting Tip Model Number - Acetylene-h3 (Size) 3690
3690AC
Compatible Cutting Tip Model Number - Alternate Fuel (Size) 3690-P
Compatible Heating Tip Model Number - Acetylene-h3 (Size) J-16 (1, 2)
1390-HA
8490-6-65
J-63 (1, 2)
Compatible Heating Tip Model Number - Alternate Fuel (Size) 1390-B
1390-H
8490-6-65
Compatible Mixer Model Number H-16-E
H-16-2E
H-16-S
Compatible Tip Tube Model Number D-50-C
D-50-CXL
TH-50-2
TH-50-2XL
8593
Compatible Welding/Brazing Tip Style - Acetylene-h3 (Size) 5090 (0-10)
1390 (0-10)
8490 (2, 4, 6, 8)
23A90 (0-10)
Compatible Welding/Brazing Tip Style - Alternate Fuel (Size) 1390 (0-10)
8490 (2, 4, 6, 8)
Construction Twin-tube
Cutting Capacity Up to 3 in. (76.2mm) plate
Duty Medium
Equipped With FlashGuard check valves
Gas / Gas Service Acetylene
Hydrogen
Inlet Connection 9/16 in. - 18
Torch Length 7-1/2 in. (190.5mm)
Typical Application Welding
Brazing
Cutting
Heating
Welding Capacity Up to 5/16 in. (7.9mm) plate
