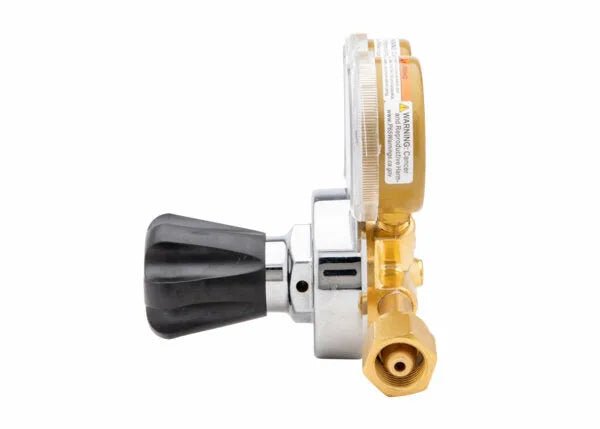

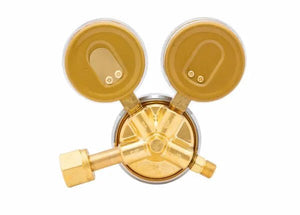

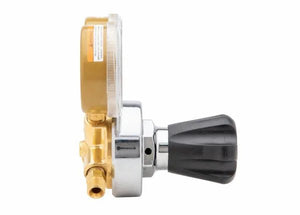

Harris Model 25GX Single Stage Regulator is designed to be the next generation workhorse of the Harris industrial line. It features larger, easy-to-read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants.
Gas Type: Oxygen
Inlet: CGA 540
Outlet: 9/16 in. - 18 RH
Certification: CGA E-4;UL® listed
Features
- High end features for economical price
- Workhorse of Harris industrial Regulator line
- Ergonomic ABS plastic knob for easy grip and precise adjustment
- Brass body and electroless nickel=plated zinc bonnet for longer service life
- Neoprene diaphragm for improved pressure control
- 2.5 in. Steel dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- UL listed
| Adjusting Knob | ABS plastic |
| Body | Brass |
| Bonnet | Electroless nickel-plated zinc |
| Certification | CGA E-4 UL listed |
| Cv | 0.17 |
| Delivery Pressure Gauge (PSIG) | 200 |
| Delivery Pressure Range (PSIG) | 0 - 145 |
| Diaphragm | Neoprene |
| Duty | Medium to heavy |
| Gas / Gas Service | Oxygen |
| Gauges | 2.5 in. Steel dual scale |
| Inlet Connection | CGA 540 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Nozzle | Brass |
| Outlet Connection | 9/16 in. - 18 RH |
| Pressure Regulation PSIG/100 PSIG | 0.2 |
| Recommended Items/Accessories | Steel Gauge Guard - Red (Fuel) - PN 4300238 Steel Gauge Guard - Green (Oxygen) - PN 4300239 |
| Seat | PTFE Teflon |
| Supply Pressure Gauge (PSIG) | 4000 |
