Lincoln Frontier 400X Engine-Driven Welder/Generator Ready-Pak 1 - K3484-2-RP1
The Lincoln Frontier 400X Ready-Pak 1 (K3484-2-RP1) represents the pinnacle of mobile welding technology, delivering unmatched versatility and performance in a complete, factory-assembled trailer package designed for immediate deployment in demanding industrial environments. This comprehensive welding solution arrives jobsite-ready with a professional-grade trailer featuring integrated lights and forklift pockets, fender kit, cable rack, welding cables, ground clamps, and electrode holder, providing contractors, pipeline crews, and rental fleets with maximum operational readiness. Powered by a robust 24.8 HP Kubota diesel engine that meets EPA Tier 4 Final emissions standards, this advanced system delivers exceptional performance in extreme conditions, including high-altitude operations and cold-weather environments, while maintaining optimal fuel efficiency through its innovative Auto-Stop/Start technology that automatically reduces engine idling to minimize fuel consumption and unnecessary engine wear.
The Frontier 400X Ready-Pak 1 establishes a new benchmark for welding versatility with its comprehensive multi-process capabilities, supporting traditional stick, TIG, MIG, and flux-cored applications alongside advanced processes including pulsed MIG, pulsed TIG, and Lincoln's proprietary Surface Tension Transfer (STT) technology. The system delivers up to 400 amps of welding output (IEC rated at 325A/33V at 100% duty cycle in extreme 104°F/40°C conditions) with six optimized CC and CV modes that ensure exceptional arc performance across all welding processes, including carbon arc gouging with electrodes up to 5/16 inch. The revolutionary 7-inch next-generation digital display provides unprecedented control with intuitive navigation, save and recall parameter memories, maintenance reminders, and optional PIN user authorization to prevent unauthorized operation, while the integrated CrossLinc Technology enables remote parameter adjustment directly at the arc without additional control cables, dramatically improving productivity and safety in challenging field environments.
Beyond its exceptional welding capabilities, the Frontier 400X Ready-Pak 1 excels as a robust power generation solution with 11 kW of continuous three-phase 240V power for operating plasma cutters, grinders, inverter welders, and other essential tools in remote locations. The class-leading 20-gallon (75.7L) fuel tank combined with the intelligent Auto-Stop/Start system maximizes operational runtime between refueling, while the advanced engine design delivers impressively quiet operation, significantly improving jobsite communication and reducing operator fatigue. Engineered to withstand harsh environmental conditions and backed by Lincoln Electric's comprehensive 3-year warranty, the Frontier 400X Ready-Pak 1 represents the ultimate solution for professionals requiring maximum versatility, reliability, and productivity in challenging industrial environments, from pipeline construction and mining operations to shipbuilding, structural fabrication, and field maintenance applications where exceptional welding performance and comprehensive power generation capabilities are essential.
What's Included
- Weld Cable - Tweco Male & Open End (2/0, 350A, 60%) - 10 ft (3 m) | K2483-2
- EH-305HD Electrode Holder - 300A, 60% Duty Cycle | K909-7
- Frontier 400X (Kubota) | K3484-2
- Weld Cable - Tweco Male & 0.53 Lug (2/0, 350A, 60%) - 50 ft (15.3 m) | K2484-2
- Weld Cable - Tweco Male & Female (2/0, 350A, 60%) - 50 ft (15.3 m) | K2485-2
- Insulated CT40FS Female Connector | K2487-1
- GC-300 Work Clamp - 300A, 60% Duty Cycle | K910-1
- Fender and Light Kit for Welder Trailers | K2639-1
- Medium Two-Wheel Welder Trailer | K2636-1
- Cable Rack for Welder Trailers | K2640-1
Key Features
- Full Job-Site Versatility – Offers up to 400 amps (IEC rated at 325 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Includes six optimized CC and CV modes, plus advanced modes to support pulsed TIG, pulsed MIG, STT, and mechanized equipment.
- All Day Auxiliary Power – Provides up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.

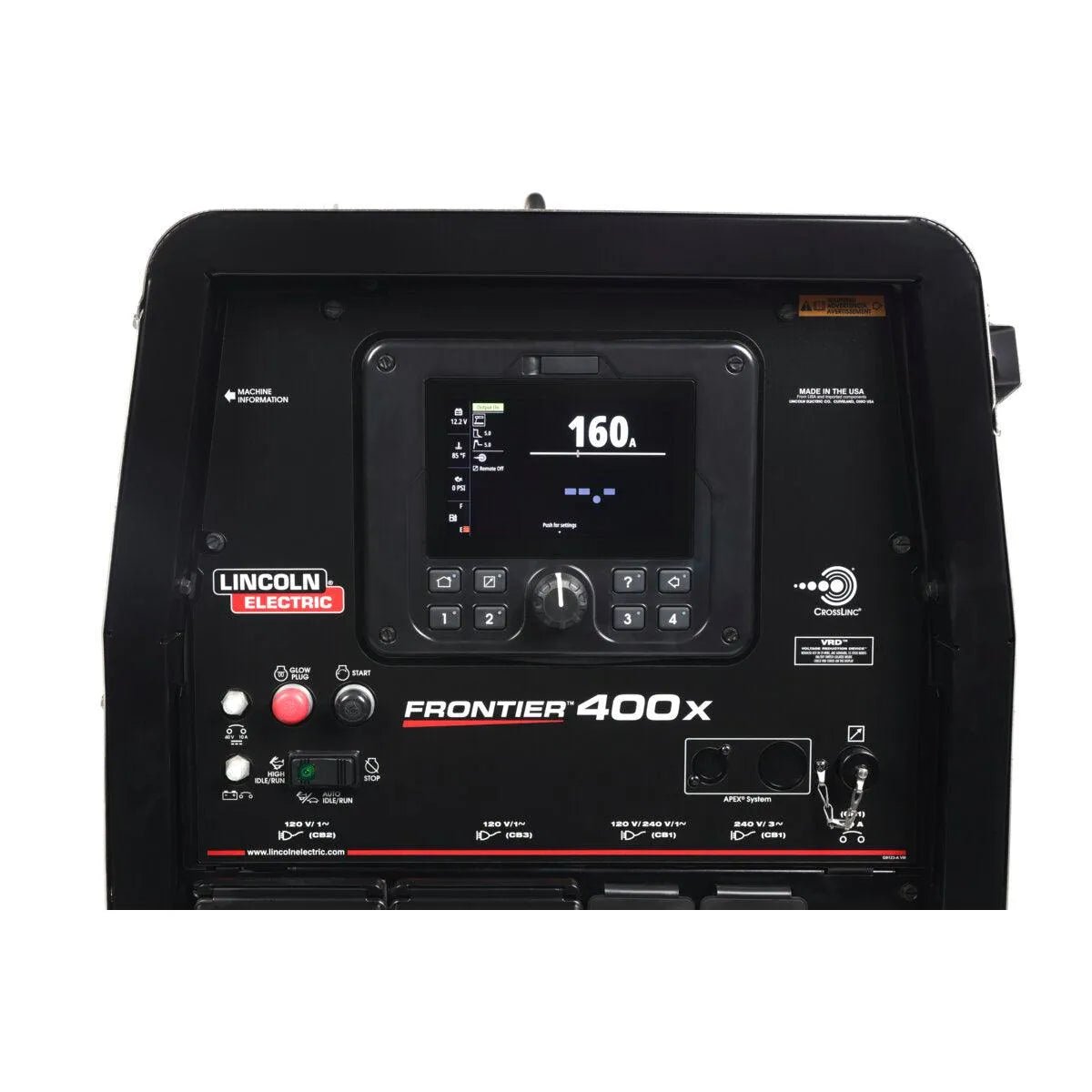

- Next-Gen Display – Bright, durable 7 in. digital user interface for unmatched machine control - Save and recall memories, receive maintenance reminders, and enable PIN authorization.
- CrossLinc Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter.
- Run Longer and More Efficient – Weld longer with a class-leading 20 US gal. (75.7 L) fuel tank and integrated Auto-Stop/Start feature, designed to prevent excessive idling to help save on fuel costs.

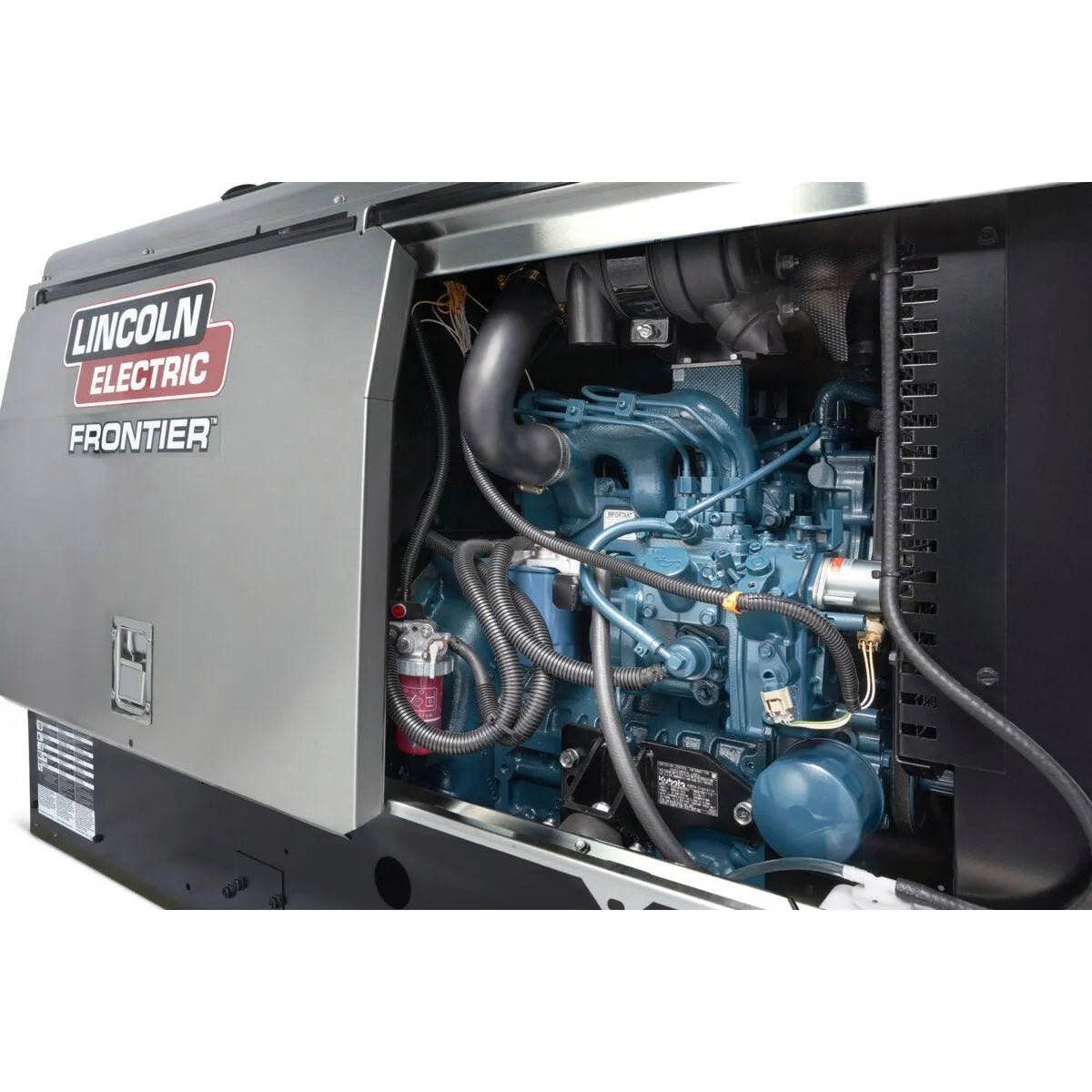

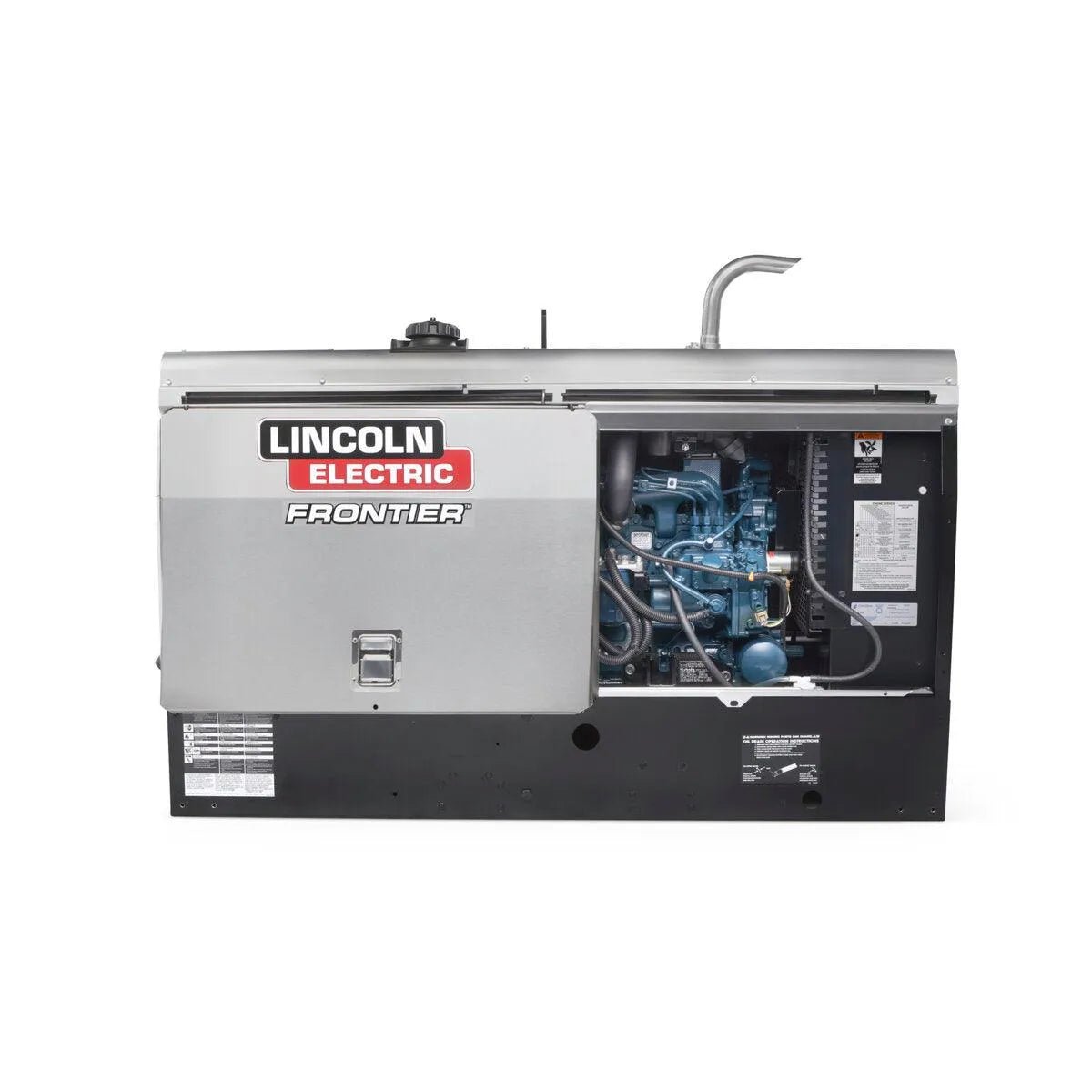

- Field-Proven Diesel Engine – Powered by a 24.8 hp, Kubota diesel engine to provide extremely smooth and quiet operation with excellent cold-weather starting and high altitude performance while meeting EPA Tier 4 Final compliance.

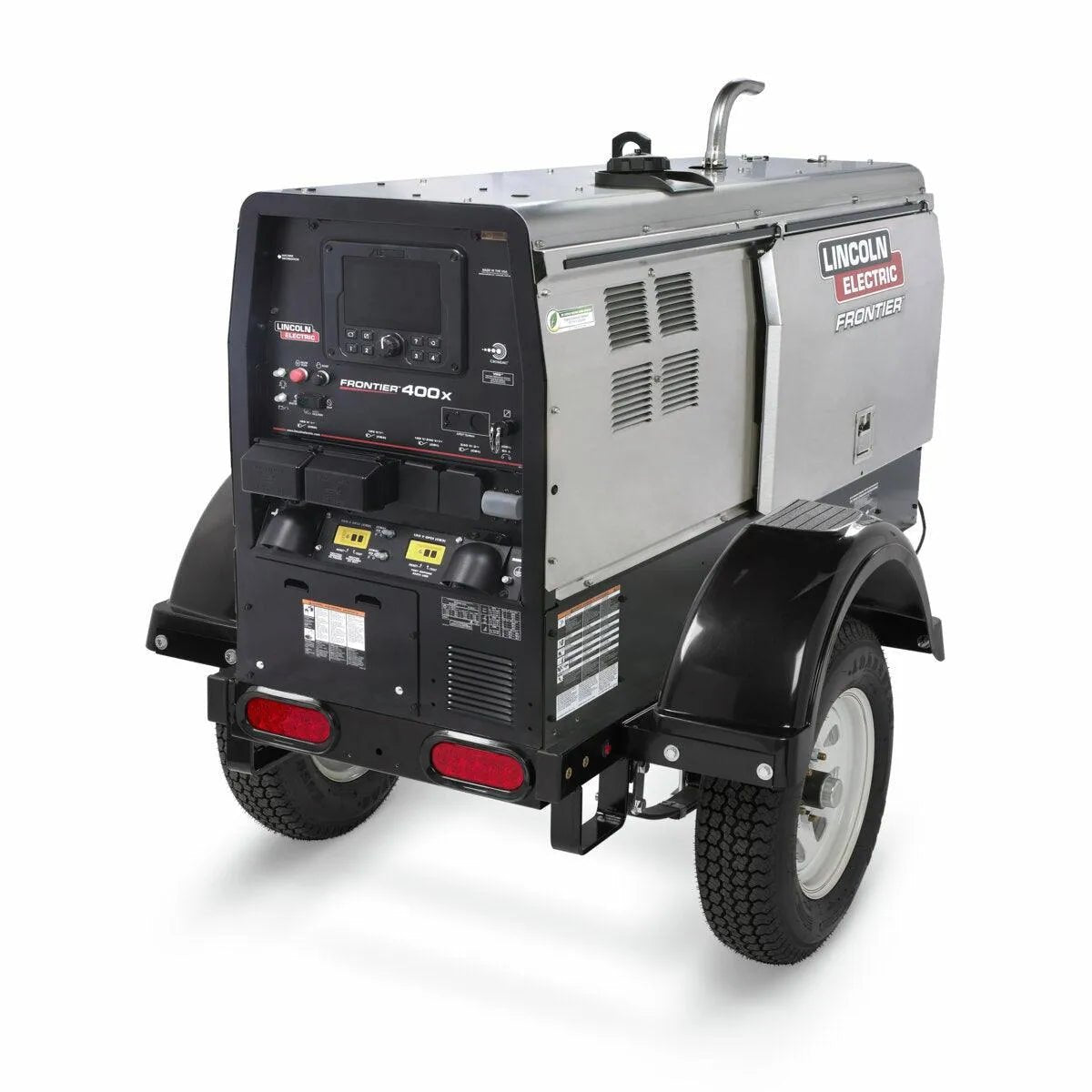

- Rent-Ready Package – Product comes in one preassembled package from the factory. Ready-Pak 1 option includes the welder, trailer with integrated lights and forklift pockets, fender kit, cable rack, welding cables, ground clamps, and electrode holder.
