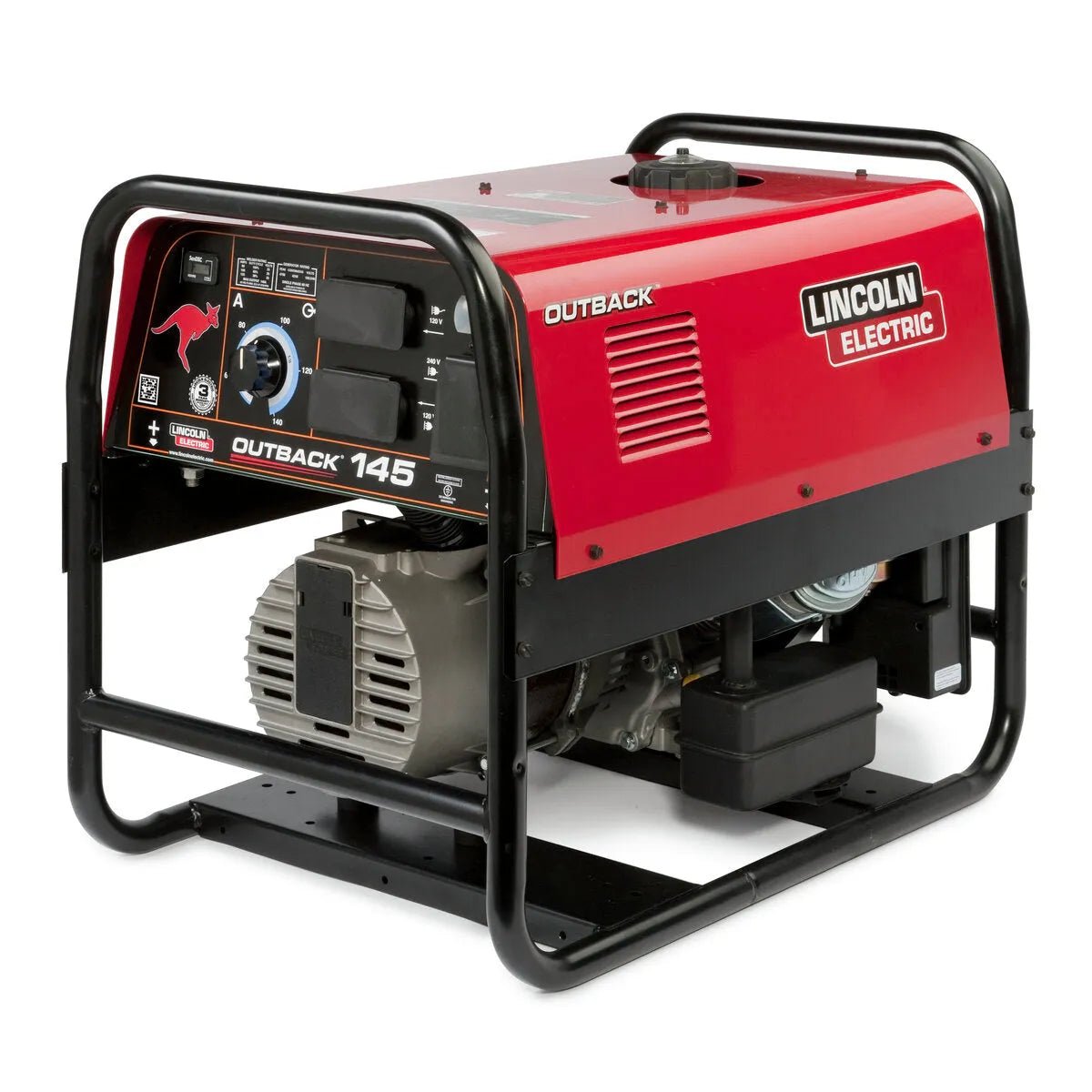

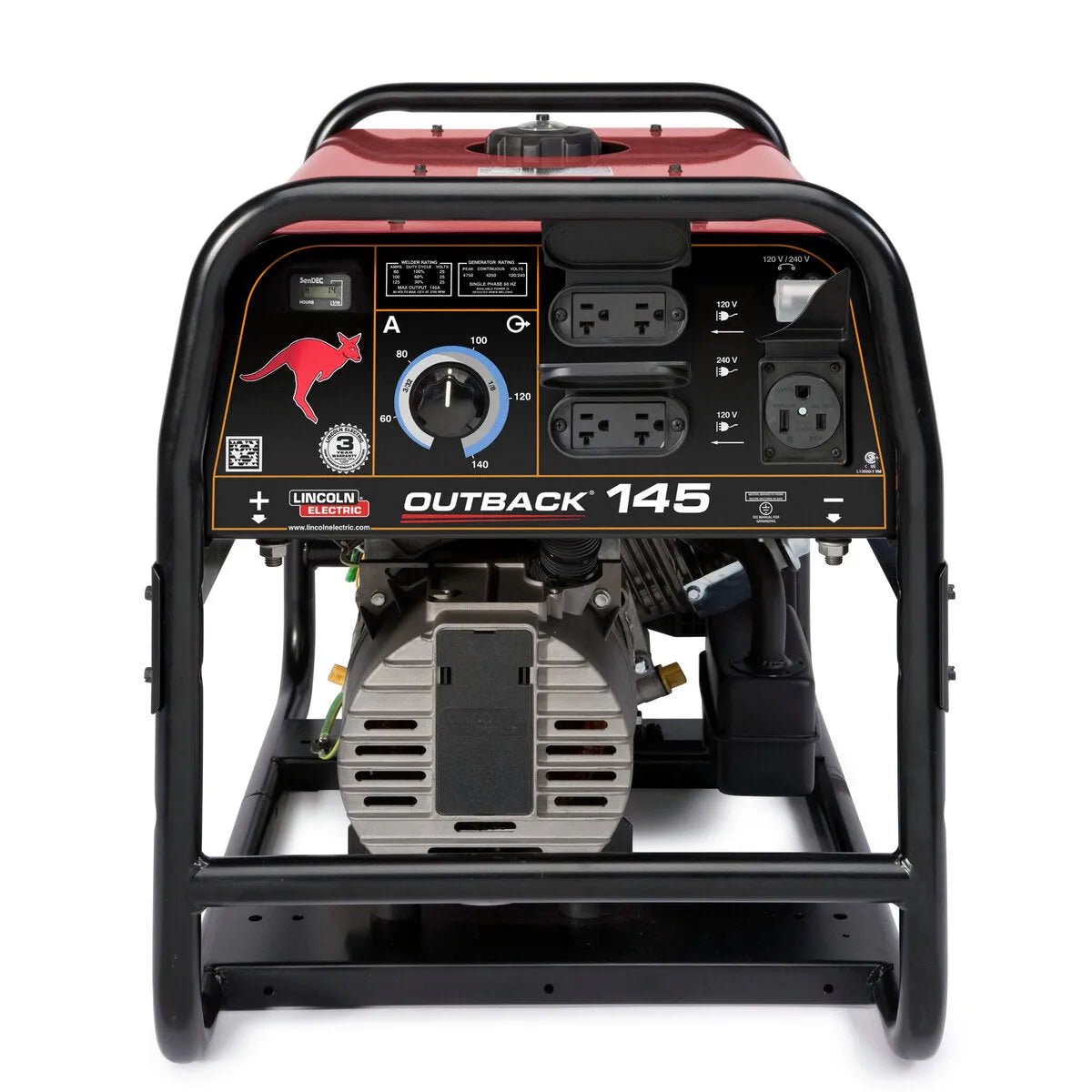

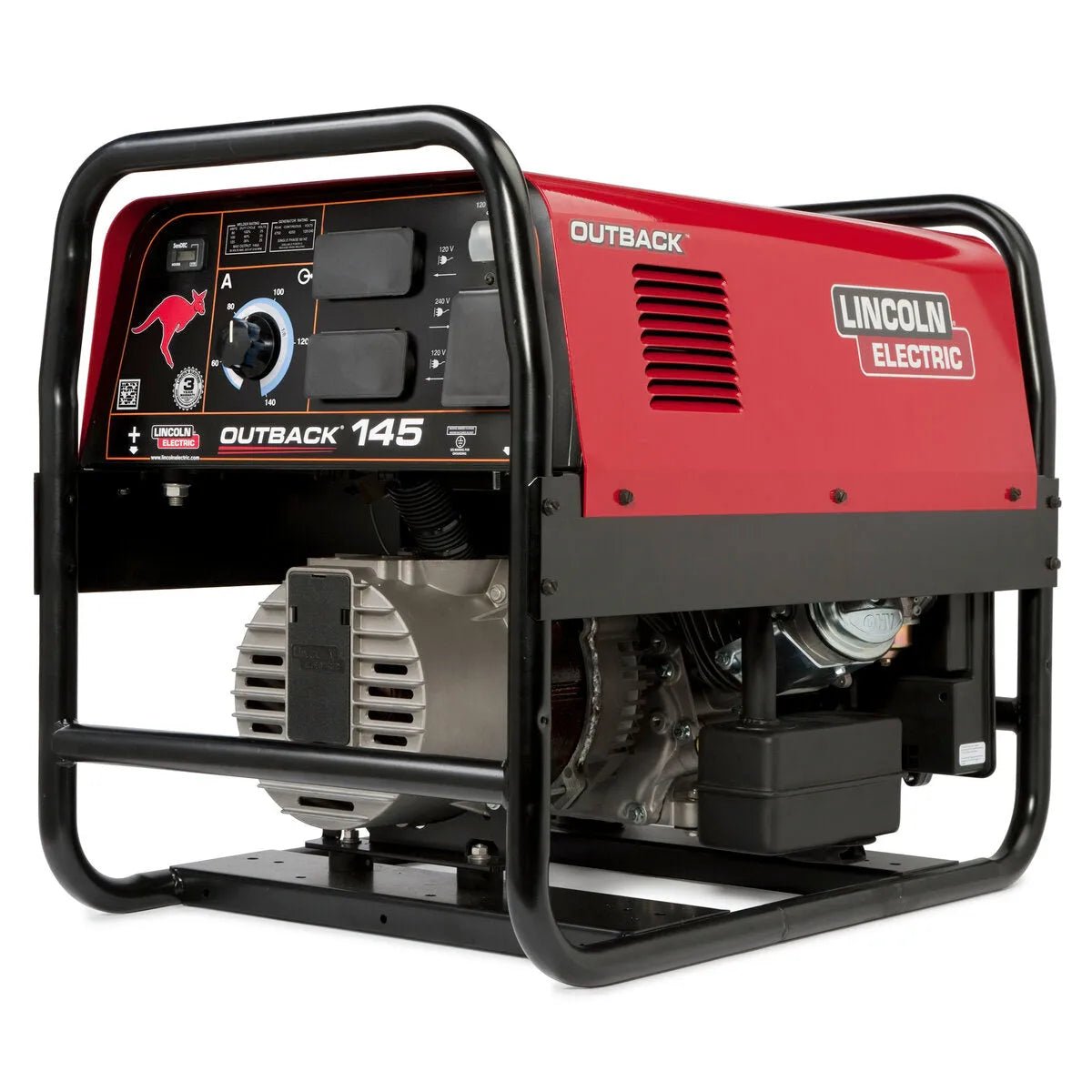

Lincoln Outback 145 Engine Driven Welder Kohler - K2707-2
It's great for service trucks, fence contractors, maintenance crews, farmers, ranchers and anyone who needs portable DC stick welding and AC generator power!
The Lincoln Outback 145 delivers exceptional portability and versatility in a compact engine-driven welder/generator package, making it the ideal solution for professionals requiring reliable welding and auxiliary power in remote locations or job sites without access to conventional power sources. This lightweight yet rugged machine provides up to 145 amps of DC stick welding output, delivering ample power to handle electrodes up to 1/8 inch (3.2 mm) in diameter for a wide range of maintenance, repair, and general fabrication applications. The innovative Low-Lift grab bars positioned at both ends create additional leverage points that significantly reduce the effort required when loading and unloading the unit from truck beds or relocating it around the jobsite, while also providing extra protection against accidental damage during transportation and handling.
Built for durability in demanding field environments, the Outback 145 features a robust 1-1/4 inch (32 mm) diameter tube frame β the largest in its class β that provides superior protection for internal components against impacts and rough handling. The system's substantial 6.8 gallon (25.7 liter) fuel tank offers extended runtime between refueling stops, maximizing productivity during extended operations and reducing downtime. This large capacity, combined with the efficient 8.9 HP Kohler CH395 engine, ensures consistent performance throughout long work sessions in remote locations where refueling options may be limited or inconvenient.
Beyond its primary welding capabilities, the Outback 145 functions as a versatile portable generator, delivering 4,750 watts peak and 4,250 watts continuous AC power that can operate grinders, work lights, pumps, and other electrical equipment, or serve as an emergency power source when conventional utilities are unavailable. The system's versatility extends further through compatibility with Lincoln Electric wire feeders such as the POWER MIG 140C or POWER MIG 180C, enabling MIG and flux-cored welding processes for enhanced application flexibility. With its thoughtful combination of performance, durability, and user-friendly features in a lightweight package weighing just 234 pounds (106 kg), the Lincoln Outback 145 represents an exceptional value for service trucks, fence contractors, maintenance crews, farmers, ranchers, and other professionals requiring a portable, reliable source of both welding capability and auxiliary power in field environments.
Key Features
- Low-Lift Grab Bars - More leverage for lifting unit on and off truck beds with extra protection against product damage.
- 1-1/4 in. (32 mm) Diameter Rugged Tube Frame - Great for all-around sturdy protection, largest diameter tube frame in its class.
- 6.8 Gallon (25.7 Liter) Fuel Tank - For extended run times with less frequent re-fueling and large fuel fill opening for easy re-fueling.
- DC Welding with up to 1/8 in. (3.2 mm) Stick Electrode - Up to 145 amps of DC output for many applications.
- 4,750 Watts Peak (4,250 Watts Continuous) AC Generator Power - For grinders, work lights, pumps, motor starting, or emergency power.
- Compatible with Lincoln POWER MIG 140C or POWER MIG 180C for wire welding capabilities.
Specifications
| Dimensions (H x W x D) | 25.5 in x 21.2 in x 31.5 in (647 mm x 537 mm x 800 mm) |
| Net Weight | 234 lbs (106 kg) |
| Machines Processes | Stick (SMAW) |
| Output Range by Mode | CC-Stick: 50 β 145 Amps |
| Single Phase Auxiliary Output | 4, 250 Watts Continuous, 120/240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 6-50R |
| Engine Brand & Model | Kohler CH395 |
| Engine Description | 1 Cylinder Air Cooled Gasoline Engine |
| Engine Horsepower | 8.9 HP |
| High Idle Operating Speed @ Rated Output | 3600 |
| Fuel Tank Size (US gal.) | 6.8 |
| Fuel Tank Size (L) | 25.7 |
| Oil Capacity (qts.) | 1.2 |
| Oil Capacity (L) | 1.1 |
| Typical Application | General Fabrication Maintenance & Repair Repair Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
