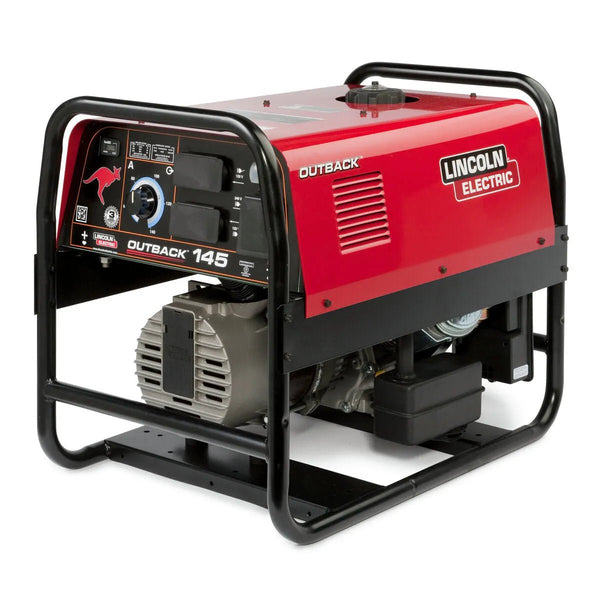

The Lincoln Outback 145 (K2707-2) is a compact, lightweight engine-driven welder/generator built for one-person portability and field reliability — delivering up to 145 amps of DC stick welding output and 4,250 watts of continuous AC generator power from a 8.9 HP Kohler CH395 gasoline engine. At just 234 lbs (106 kg), it is the go-to machine for service trucks, fence contractors, pipeline maintenance crews, farmers, ranchers, and any professional who needs both welding capability and auxiliary power without access to grid electricity.
The Outback 145 is purpose-built for portability without sacrificing protection. Its 1-1/4 inch (32 mm) diameter tube frame — the largest in its class — provides superior impact resistance for machines that get loaded, unloaded, and moved daily. Low-Lift Grab Bars at both ends reduce the effort required to maneuver the unit onto and off truck beds and into confined spaces, while providing additional bumper protection during transport. The large 6.8-gallon (25.7 L) fuel tank delivers extended runtime before refueling, keeping crews productive through long work sessions in locations where fuel access is limited.
The Outback 145 handles stick welding with up to 1/8-inch (3.2 mm) electrodes for general maintenance, repair, and light fabrication — carbon steel, cast iron repair, and hardfacing. Its DC output provides stable arc characteristics for out-of-position and overhead work. When a wire feeder is needed, the Outback 145 is compatible with Lincoln Electric wire feeders including the POWER MIG 140C and POWER MIG 180C for MIG and flux-cored wire processes, significantly expanding application flexibility for general fabrication. The 4,750-watt peak / 4,250-watt continuous generator output supports grinders, work lights, water pumps, battery chargers, and other field equipment.
The Outback 145 fills the gap between a compact portable generator and a full-size engine-driven welder. For farm and ranch operations where a single machine needs to fix fence posts and power a work light, for rural pipeline maintenance crews who handle occasional stick repairs on small-diameter pipe and utility lines, and for service technicians who need a machine that fits in a truck bed and won't require two people to move it — the Outback 145 delivers. The Kohler CH395 engine is a proven, parts-available platform. The Lincoln Electric brand stands behind every unit with comprehensive warranty support. No other machine in this weight class matches the Outback 145's frame protection and Low-Lift grab bar system.
| Welding Output | Up to 145A DC |
| Welding Process | SMAW (Stick) | MIG/FCAW with compatible wire feeder |
| Max Electrode Size | 1/8 in. (3.2 mm) |
| Engine | Kohler CH395, 8.9 HP, gasoline, air-cooled, single-cylinder |
| Generator Peak Output | 4,750W peak |
| Generator Continuous Output | 4,250W continuous |
| Fuel Tank | 6.8 U.S. gal (25.7 L) |
| Fuel Type | Gasoline |
| Net Weight | 234 lbs (106 kg) |
| Frame | 1-1/4 in. (32 mm) diameter tube frame — largest in class |
| Portability Feature | Low-Lift Grab Bars at both ends for truck-bed loading |
| Wire Feeder Compatible | POWER MIG 140C, POWER MIG 180C (sold separately) |
- Lincoln Outback 145 engine-driven welder/generator (K2707-2)
- Operator's manual and safety documentation
- Recoil (pull) start system
Welding leads, electrode holders, and wire feeders sold separately.
- Electrode holders & welding leads: Browse welding leads and electrode holders — Magnum® holders rated for daily field use
- Wire feeders: POWER MIG 140C or POWER MIG 180C for MIG and flux-cored capability — browse wire feeders
- Engine-driven accessories: Battery maintainers, protective covers, and transport accessories in the engine-driven welder accessories collection
- Farm & ranch: Fence repair, equipment maintenance, and structural repairs with one machine that also powers lights and pumps — no generator required separately
- Pipeline maintenance: Small-diameter utility line repairs and cathodic protection system maintenance in remote field locations
- Service truck operations: Fits standard truck beds; Low-Lift grab bars allow one-person loading/unloading without a crane or lift gate
- Rural construction: Light framing, gating, and ornamental ironwork in areas without utility power access
- Emergency backup power: 4,250W continuous output supports essential site equipment, lighting, and pumps during power outages
- Light industrial repair: General maintenance welding on carbon steel, cast iron, and hardfacing applications at remote facilities
Looking to save up to 35%? Browse Factory Demo engine-driven welders — same warranty, factory-tested, restocked frequently.
Shop Factory Demo Engine Drives →The Outback 145 natively supports SMAW (Stick) welding with electrodes up to 1/8 inch (3.2 mm). When used with a compatible Lincoln Electric wire feeder (POWER MIG 140C or POWER MIG 180C), it also supports MIG (GMAW) and Flux-Cored (FCAW) wire processes for sheet metal and general fabrication work.
The Outback 145 weighs 234 lbs (106 kg) — designed for one-person handling with the help of the Low-Lift Grab Bars at both ends. It fits standard truck beds and can be moved without a lift gate or hoist by most operators.
The 6.8-gallon (25.7 L) fuel tank provides extended runtime. At light welding and generator loads, expect 8–12+ hours per tank depending on duty cycle and load. Actual runtime varies with engine speed and output demand.
Yes. The 4,250-watt continuous generator output allows simultaneous operation of lights, small grinders, water pumps, and battery chargers while the machine is welding, within the total power budget.
Yes — the Outback 145 is one of the most popular choices for farm and ranch operations. Its light weight, Low-Lift grab bars, large fuel tank, and dual welding-plus-generator capability make it ideal for fence repair and equipment maintenance without access to shore power.
