What is the Harris 316L .045 36in. S/S Rod 10LB Tube - 316LTH0 used for?

Stainless TIG rod is used for GTAW (TIG) welding of stainless steel base metals. Match the filler alloy to the base material: ER308L for 304/308 stainless, ER309L for dissimilar welds (stainless to carbon steel), ER316L for marine and chemical service, ER317L for higher corrosion resistance than 316L. Using the wrong filler can reduce corrosion resistance at the weld zone.

What diameter is the Harris 316L .045 36in. S/S Rod 10LB Tube - 316LTH0 available in, and how do I choose the right size?

The Harris 316L .045 36in. S/S Rod 10LB Tube - 316LTH0 is available in .045 diameter. Rod diameter selection depends on the base metal thickness and the amperage being used: 1/16 in (1.6 mm) rods suit light gauge up to 3/16 in at 60–130A; 3/32 in (2.4 mm) rods cover 3/16 in–1/2 in material; 1/8 in (3.2 mm) rods are used for heavier sections at 130–250A+. As a general rule, rod diameter should be close to or slightly smaller than base metal thickness.

What shielding gas should I use with the Harris 316L .045 36in. S/S Rod 10LB Tube - 316LTH0?

TIG welding shielding gas selection: use pure argon (99.995% purity) for most TIG applications including steel, stainless, aluminum, and titanium. Helium additions (25–75% He/Ar mix) increase heat input and travel speed for heavy section work and aluminum welding where higher deposition is needed. Never use CO2 or mixed gases designed for MIG welding in TIG torches.

What is the AWS classification of the Harris 316L .045 36in. S/S Rod 10LB Tube - 316LTH0?

TIG filler rods carry an AWS classification (e.g., ER70S-2 for mild steel, ER308L for 304 stainless, ER4043 for aluminum) that specifies the chemical composition and mechanical properties of the deposited weld metal. Always verify the AWS class when writing or qualifying a Welding Procedure Specification (WPS) for code work.

How should I store the Harris 316L .045 36in. S/S Rod 10LB Tube - 316LTH0 to maintain weld quality?

The Harris 316L .045 36in. S/S Rod 10LB Tube - 316LTH0 is sold in 10 lb packages. TIG rods are 36 in long and sold by weight (1 lb, 5 lb, 10 lb, 25 lb tubes). Store rods in a dry location — TIG rods, especially low-hydrogen stainless and nickel alloy rods, are sensitive to moisture. Keep tubes sealed and store at room temperature with low humidity.

Harris 316L Welding Wire 36" – 10 lb

SKU: 316LTH0

$236.00

Factory Direct

Free Shipping over $250

Lowest Price

316L stainless steel GTAW (TIG) welding alloy 0.045 x 36 in. x 10 lb. Box

Overview

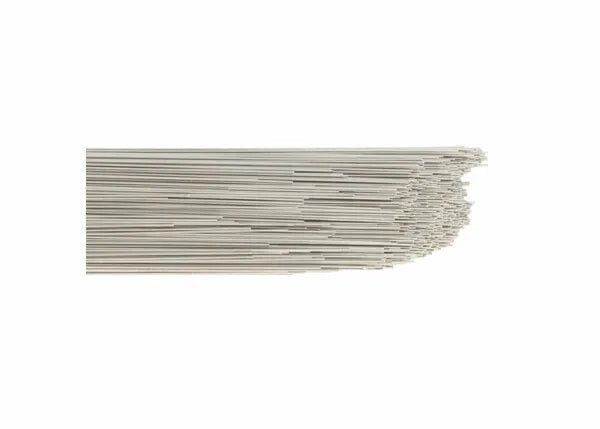

Harris 316L .045 36in. S/S Rod 10LB Tube - 316LTH0

316L Stainless Steel GTAW (TIG) welding alloy is used principally for welding molybdenum-bearing alloys and similar alloys containing 0.03% maximum carbon content. The carbon content increases resistance to intergranular corrosion. Conforms to ANSI/AWS A5.9 &ASME SFA 5.9 ER 316L.

Features

Stainless Steel TIG welding rod welds molybdenum-bearing alloys
Welds similar alloys containing (.03% max.) carbon content
Lower carbon content resists intergranular corrosion
88, 000 psi tensile strength (as welded)
59, 000 psi yield strength (as welded)
35% elongation (as welded); 40% reduction of area (as welded)
85 HRB Rockwell B Hardness (as welded)
160 HB Brinell Hardness (as welded)
80 ft./lb. @ room temperature Charpy V (as welded)
Conforms to ANSI/AWS A5.9 & ASME SFA 5.9 ER 316L

Reviews

Q&A

Product Overview

Harris 316L .045 36in. S/S Rod 10LB Tube - 316LTH0

Features

Stainless Steel TIG welding rod welds molybdenum-bearing alloys
Welds similar alloys containing (.03% max.) carbon content
Lower carbon content resists intergranular corrosion
88, 000 psi tensile strength (as welded)
59, 000 psi yield strength (as welded)
35% elongation (as welded); 40% reduction of area (as welded)
85 HRB Rockwell B Hardness (as welded)
160 HB Brinell Hardness (as welded)
80 ft./lb. @ room temperature Charpy V (as welded)
Conforms to ANSI/AWS A5.9 & ASME SFA 5.9 ER 316L
