Model 447-50-1/4 in. (LH) heavy duty back-entry single-stage pipeline fuel gas regulator
Victor Cross Reference Model & Part #: ESL4-80-250F - 0781-5210
Gas Type: Fuel Gas
Inlet: 1/4 in. NPT (F)
Outlet: 9/16 in. - 18 LH
Overview

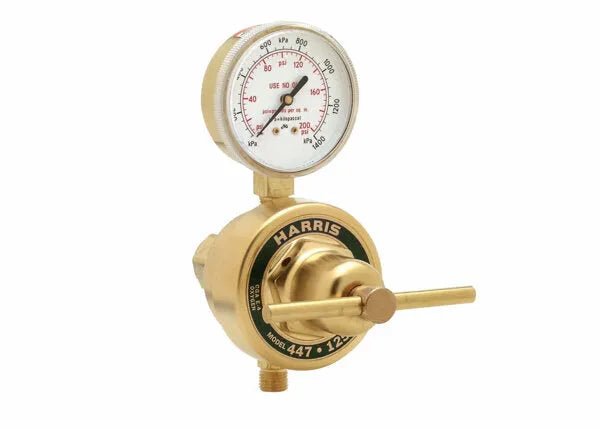

Harris 447-50-1/4 in. (LH) Pipeline Single Stage Fuel Gas Regulator - 4000571

Model 447 Fuel Gas Regulator is designed to deliver high gas flows from piping systems that are equipped with standard pipe connection outlets. This heavy-duty, high flow, pipeline Fuel Gas Regulator has back entry access and a 1/4 in. NPT inlet connection. It features a brass body and bonnet, 2.5 in. dual scale brass gauge, brass T-screw adjustment handle and one-piece encapsulated seat design with internal filter and PTFE Teflon seat.

Features
  • Provides high gas flows for piping systems
  • Designed to work with back-entry standard pipe connection outlets
  • Easy-to-operate brass T-screw adjusting handle
  • Forged brass body and bonnet for longer service life
  • Rubber diaphragm for better pressure control
  • 2.5 in. Brass-plated steel dual scale easy-to-read gauges (psi/kPa)
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • 1/4 in. NPT (F) inlet connection
  • 9/16 in. - 18 LH outlet connection
Specifications

Equipment

Adjusting Screw Brass T-screw
Body Forged brass
Bonnet Forged brass
Capacity High flow
Certification CGA E-4
Cv 0.53
Delivery Pressure Gauge (PSIG) 100
Delivery Pressure Range (PSIG) 0 - 50
Diaphragm Rubber
Duty Heavy
Gas / Gas Service Fuel gas
Gauges 2.5 in. Brass-plated steel dual scale (psi/kPa)
Inlet Connection 1/4 in. NPT (F)
Maximum Inlet Pressure (PSIG) 500
Outlet Connection 9/16 in. - 18 LH
Pressure Regulation PSIG/100 PSIG 1.6
Recommended Items/Accessories Station drops and valves (Contact Harris Customer Service for assistance)
Seat PTFE Teflon®

Warranty

Warranty 7 Years
