Harris 5636F Stay-Silv5 Phos-Copper Brazing Alloy - 0.050 x 1/8 in (1.3 x 3.2 mm) - 25 lb Box -

SKU: 5636F
$1,775.00 $2,871.74
Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.

More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

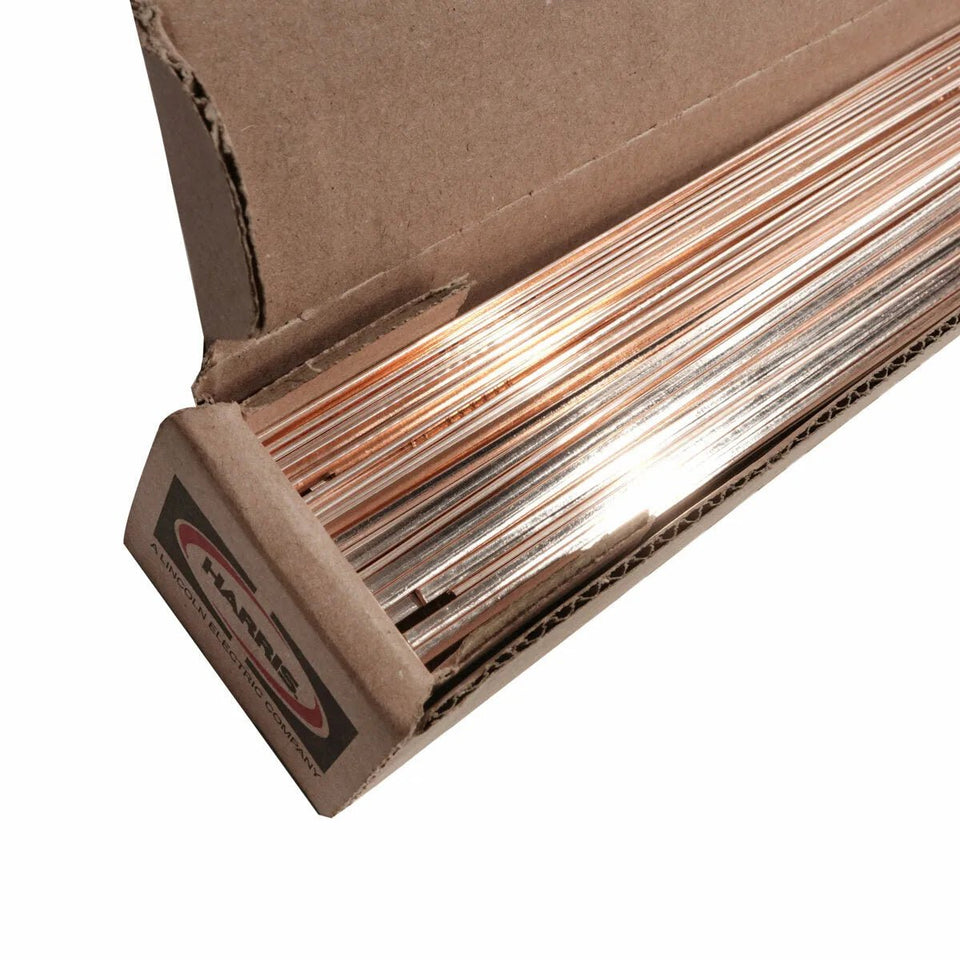

Stay-Silv 5 phos-copper brazing alloy 0.050 x 1/8 x 36 in. x 1 ea. 25 lb. box
Certification: AWS A5.8 BCuP-3;ASME SFA 5.8 BCuP-3;ISO 17672 CuP 281
Overview
Harris Stay-Silv5 Phos-Copper Brazing Alloy - 0.050 x 1/8 in (1.3 x 3.2 mm) - 25 lb Box - 5636F
Typical Application

Stay-Silv 5 Phos Copper filler metal is designed for brazing copper to copper, copper to brass, and copper to low zinc brass, especially in applications where maintaining a close fit-up is challenging. This medium-range filler metal is more ductile than Harris 0 or Stay-Silv 2 and is ideal for copper-to-copper joints, but can also be used with copper to low zinc brass when Stay-Silv white brazing flux is applied. Stay-Silv 5 flows rapidly when heated quickly to its liquidus, allowing for penetration into tight clearance connections, while slower heating enables the filler metal to fill wider gaps. It is often selected as an economical alternative to higher silver content filler metals for copper and brass applications. However, it is not suitable for brazing steel or other ferrous base metals due to the phosphorus content, which may form low ductility intermetallic compounds. The corrosion resistance of Stay-Silv 5 is similar to copper base metal, but it should not be used if exposed to sulfur or sulfur compounds. This product conforms to the EU Reach & RoHS directive.

Features

• Medium-range silver brazing alloy for copper-to-copper applications
• More ductile than Harris 0 or Stay-Silv 2
• A frequent choice for brazing copper as it is "self-fluxing"
• When heated quickly to its liquidus, allows penetration into tight clearance connections
• With slower heating, the alloy melting range allows the operator to fill loose connections
• Use Stay-Silv white flux to braze low-zinc brass
• Corrosion resistance is generally similar to the copper base metal, but phosphorus containing alloys, including Stay-Silv 5, should not be used if the braze is exposed to sulfur or sulfur compounds in service
• Not recommended for brazing steel or other ferrous base metals
• The phosphorus content promotes formation of a low ductility intermetallic with the base metal
• Complies with the EU Reach & RoHS directive
