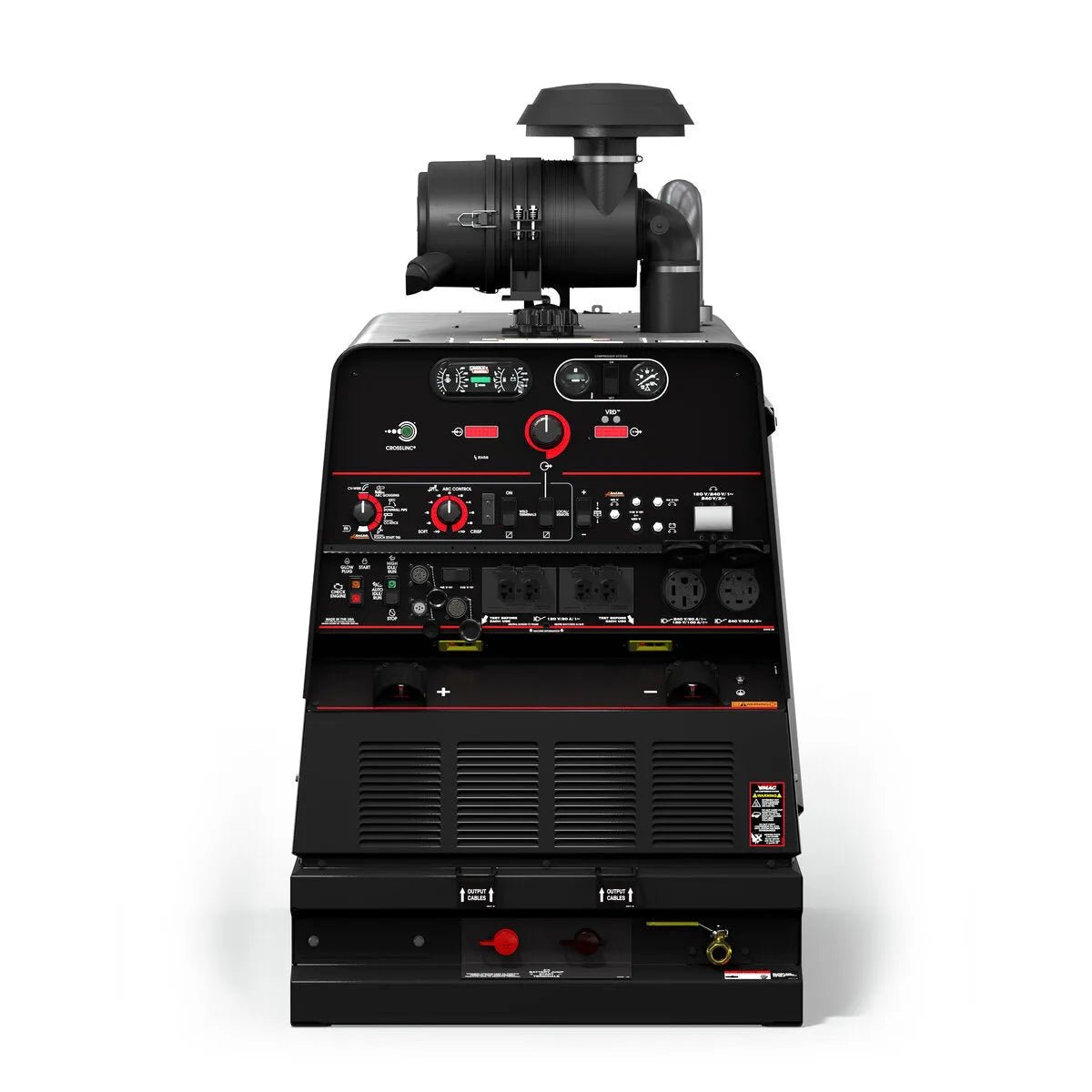

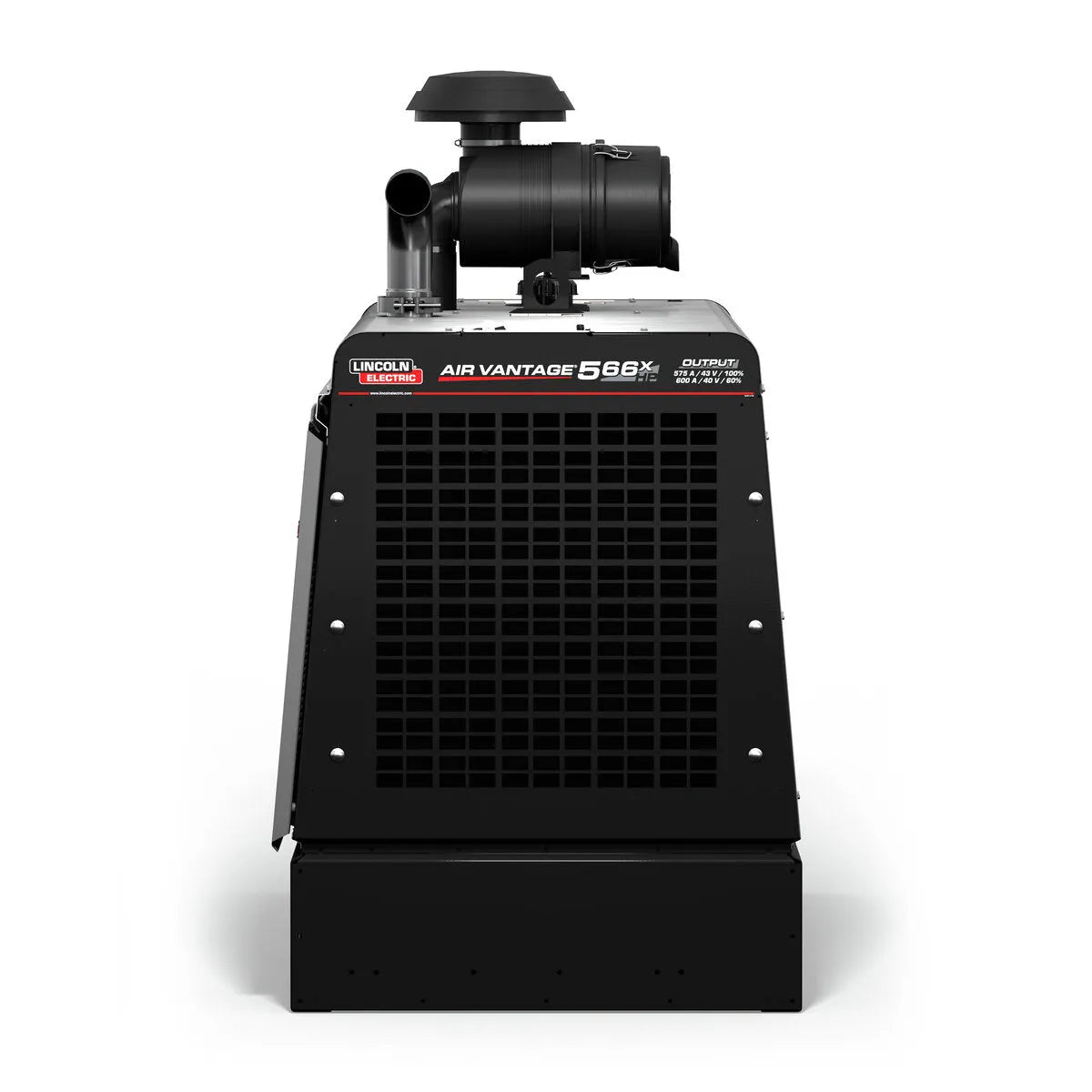

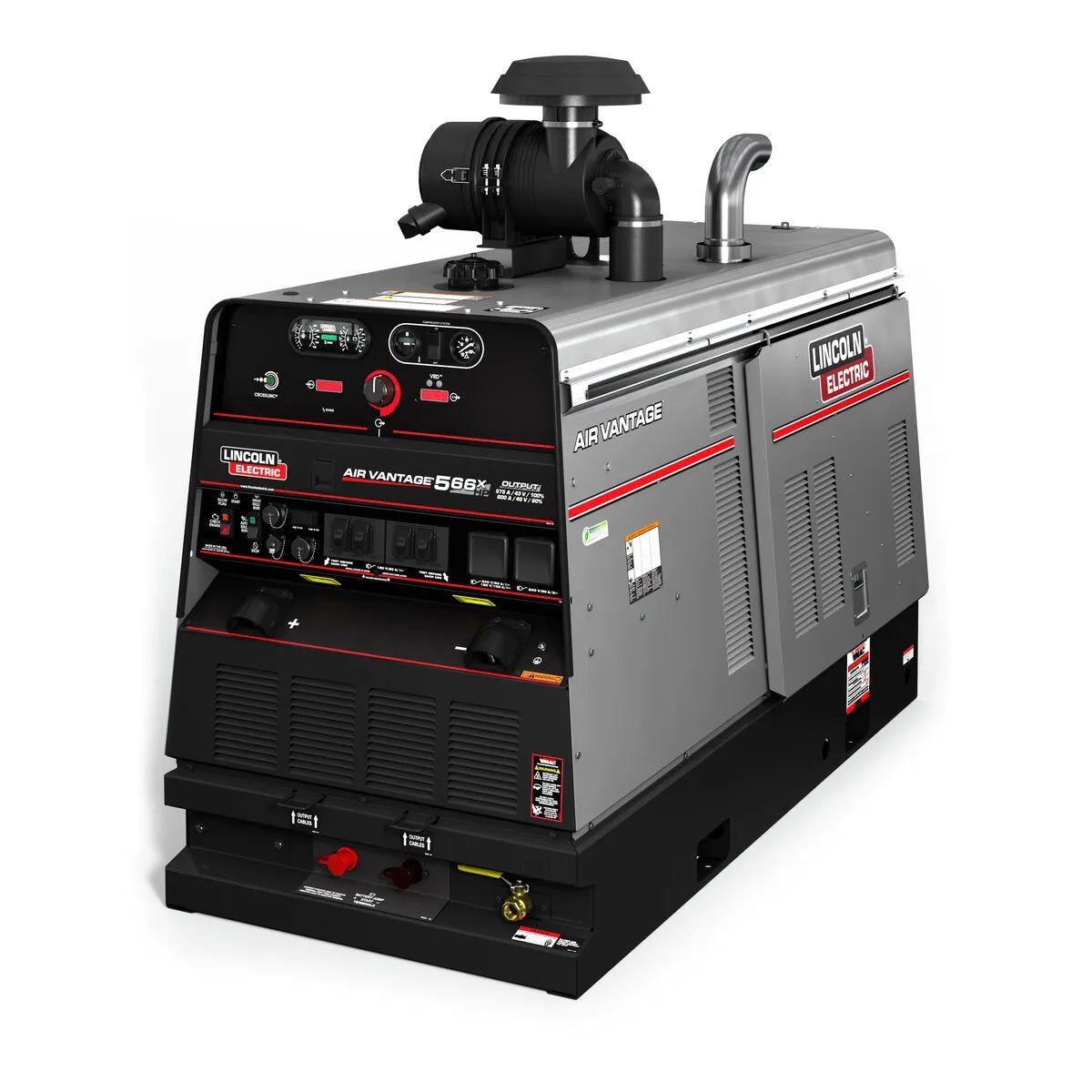

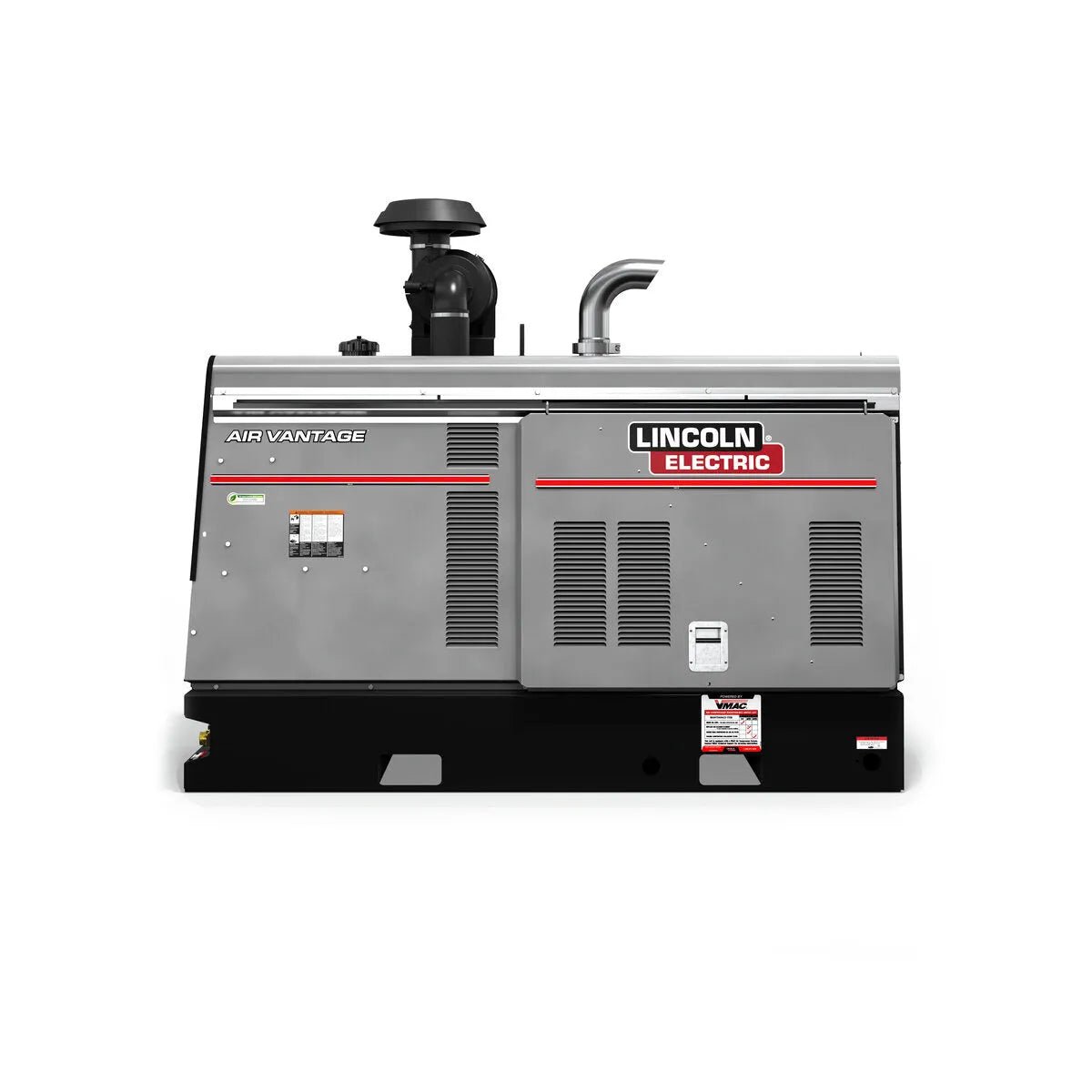

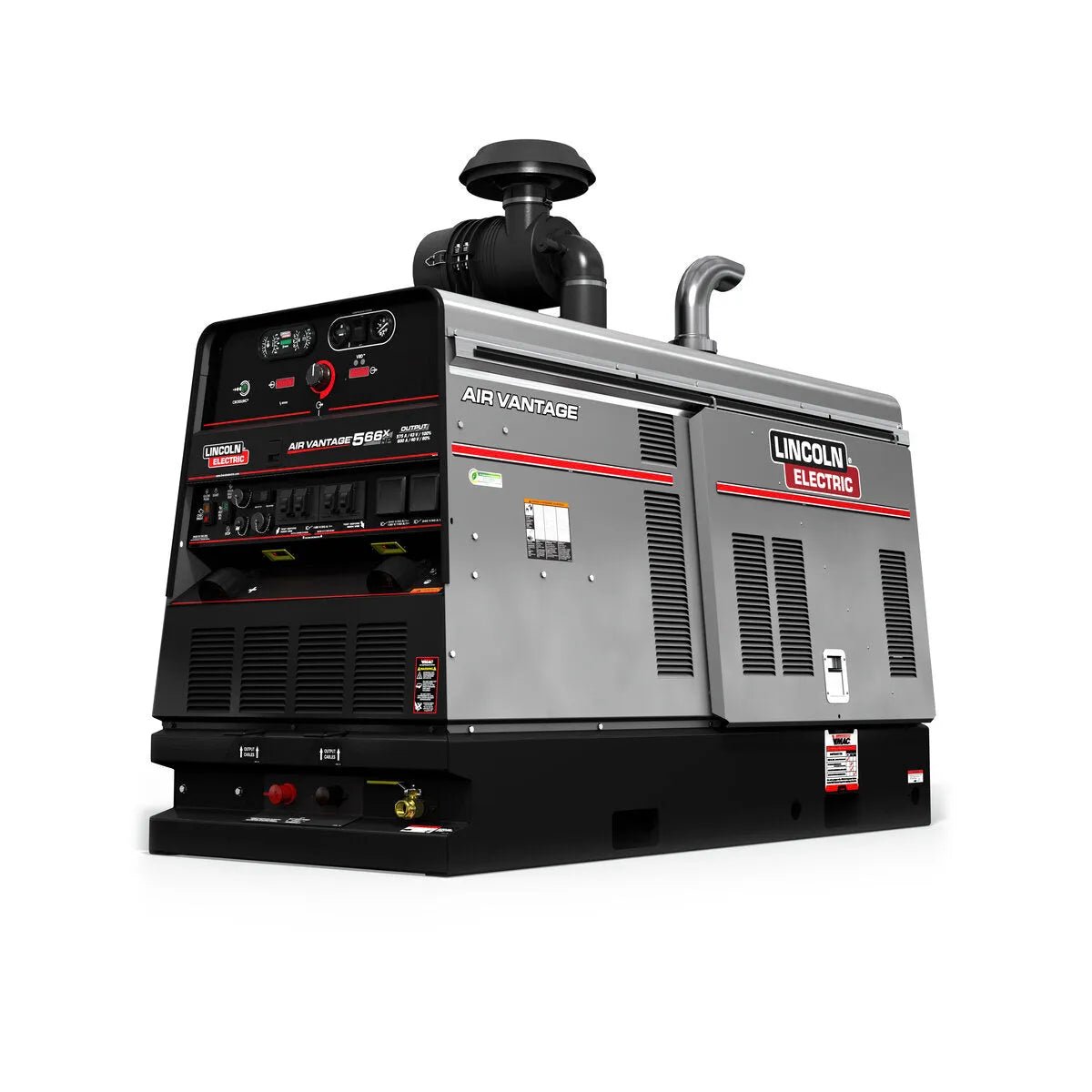

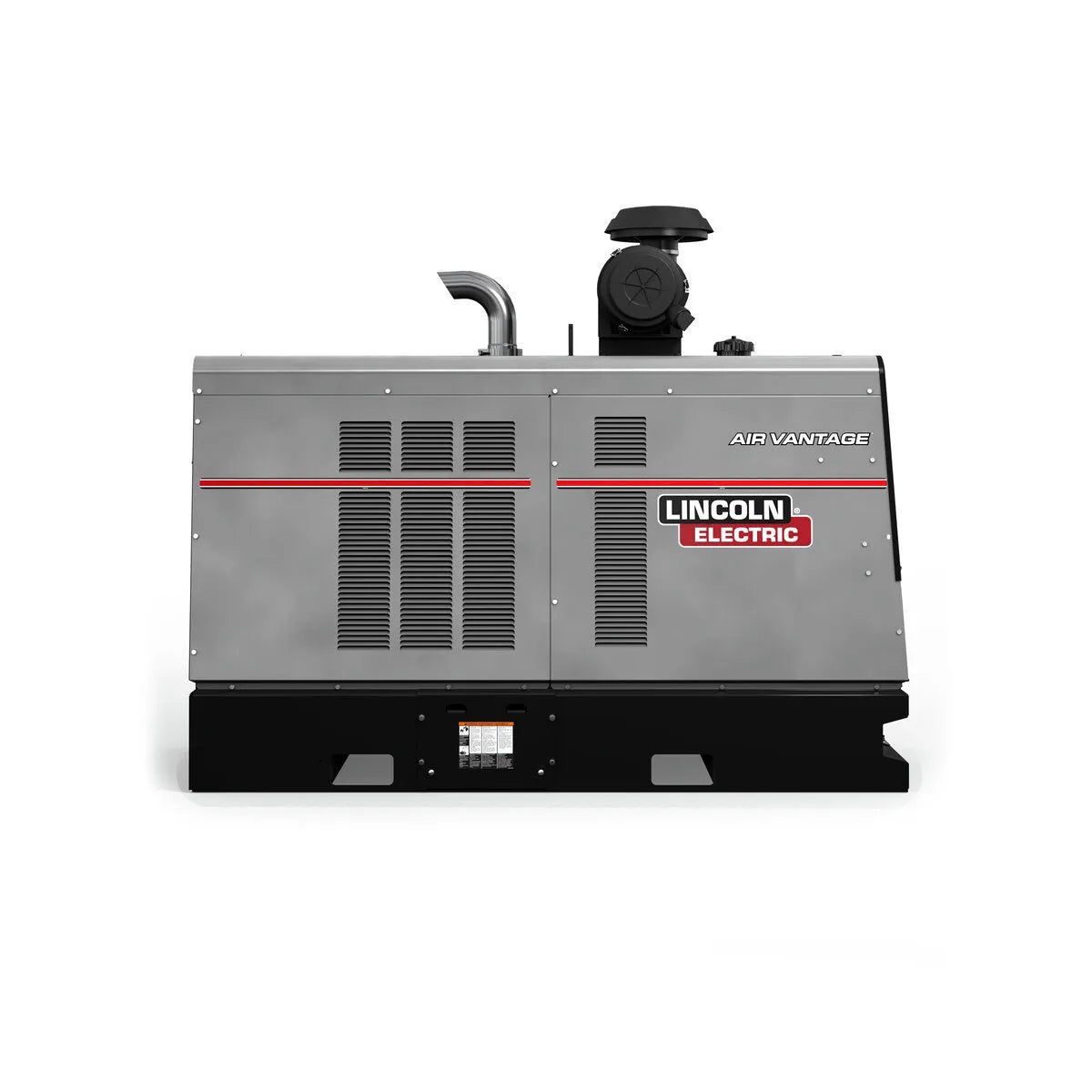

The Lincoln Air Vantage 566X (K3242-3) is the ultimate 3-in-1 industrial powerhouse that revolutionizes jobsite efficiency by combining a high-capacity 600-amp welder, robust 20 kW generator, and professional-grade 60 CFM air compressor in one rugged, mobile package. Engineered specifically for demanding construction sites, pipeline operations, and heavy industrial applications, this premium multi-process welding system delivers exceptional performance for stick welding, TIG welding, MIG welding, flux-cored welding, and aggressive carbon arc gouging with carbons up to 3/8 inch. The advanced CrossLinc Technology enables precise remote control at the arc without additional control cables, dramatically improving workplace safety, reducing jobsite clutter, and enhancing productivity in challenging environments.
Powered by a reliable 65.7 HP Deutz TD2.9L4 turbocharged diesel engine that meets strict EPA Tier 4 Final emissions standards, the Air Vantage 566X delivers industrial-grade performance with reduced environmental impact. The integrated Lincoln Electric Chopper Technology provides superior arc characteristics across all welding processes, minimizing spatter during stick and pipe welding while preventing engine stalling during aggressive gouging operations. With expanded welding capabilities including specialized modes for stainless steel, aluminum, steel, submerged arc welding, and orbital pipe applications, this versatile machine adapts to virtually any welding challenge. The pulse welding functionality offers exceptional control for out-of-position welding and critical applications requiring precise heat input management.
The Lincoln Air Vantage 566X excels in remote jobsite applications with its comprehensive power generation capabilities, providing up to 20 kW of continuous three-phase 240V power and 12 kW of single-phase 120/240V power for operating plasma cutters, grinders, inverter welders, and other essential tools. The industrial-grade VMAC rotary screw air compressor delivers a consistent 60 CFM at 100 PSI, eliminating the need for separate air compressors for plasma cutting, air carbon arc gouging, or pneumatic tools. Built with Lincoln Electric's legendary durability and backed by a comprehensive 3-year warranty, the Air Vantage 566X is engineered to withstand harsh environmental conditions, extreme temperatures, and continuous heavy-duty operation. This premium multi-function machine represents the ultimate solution for contractors, fabrication shops, pipeline crews, and maintenance teams requiring maximum versatility, reliability, and productivity in remote locations and challenging industrial environments.
- On Demand Versatility – Offers up to 600 amps (IEC rated at 525 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Select one of five basic process modes including CC-Stick, Downhill Pipe, DC Touch Start TIG, CV-Wire, or Arc Gouging mode, which maximizes output for up to 3/8 in. (9.5 mm) carbon rods.
- Generator Output – Provides up to 20 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
- Integrated Air Compressor – 60 cfm @ 100 psi of compressed air powered by VMAC
- Patented Chopper Technology – Experience premium arc performance with minimized spatter for stick or pipe welding as well as enhanced gouging performance that prevents the engine from stalling, resulting in smooth material removal.
- CrossLinc Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter.
| Dimensions (H x W x D) | 42 in x 32.9 in x 69 in (1067 mm x 836 mm x 1753 mm) |
| Net Weight | 1737 lbs (788 kg) |
| Machine Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Fluxed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Submerged Arc (SAW) |
| Open Circuit Voltage | 66 Peak OCV @ 1800 RPM |
| IEC Rating | 525A / 41V / 100% @ 104°F (40°C) |
| Output Range by Mode | CC-Stick: 30 - 600 A Downhill Pipe (CC): 40 - 350 A Touch Start TIG (CC): 20 - 350 A CV-Wire: 15 - 45 V Arc Gouging: 90 - 600 A |
| Rated Gouging Carbon Diameter | 3/8" (9.5 mm) |
| Machines Communication Technology | CrossLinc ArcLink |
| Single Phase Auxiliary Output | 12,000 Watts Continuous, 120/240V |
| Three Phase Auxiliary Output | 20,000 Watts Continuous, 240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R NEMA 15-50R |
| Engine Brand & Model | Deutz TD2.9L4 |
| Engine Description | 4 Cylinder Turbocharged Water Cooled Diesel Engine |
| Engine Horsepower | 65.7 hp (49.0 kW) |
| Engine Block Size & Displacement | 178 cu. in. (2.9 L), Bore x Stroke - 3.62 in x 4.33 in (92 mm x 110 mm) |
| Emissions Rating | US EPA Tier 4 Final |
| High Idle Operating Speed @ Rated Output | 1800 |
| Low Idle Operating Speed | 1525 |
| Fuel Tank Size (US gal.) | 25 US gal. |
| Fuel Tank Size (L) | 94.6 L |
| Oil Capacity (qts.) | 9.0 qts. |
| Oil Capacity (L) | 8.5 L |
| Coolant Capacity (US gal.) | 2.5 US gal. |
| Coolant Capacity (L) | 9.5 L |
| Air Compressor Brand/Model | VMAC S700162 |
| Air Compressor Description | Belt Rotary Screw |
| Air Compressor Output | 60 cfm @ 100 psi (1.7 m³/min @ 6.9 bar) |
| Air Compressor Max System Pressure | 150 psi (10.3 bar) |
| Air Compressor Protections | Safety Relief Valve High Temp Shutdown |
| Air Compressor Oil Capacity (US gal.) | 1.1 US gal. |
| Air Compressor Oil Capacity (L) | 4.0 L |
| Typical Application | Construction Mining Railroad Maintenance Construction & Field Erection Maintenance & Repair Offshore Oil & Gas Power Generation Shipbuilding Structural Fabrication Structural Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer. Compressor warranted separately by compressor manufacturer. |
