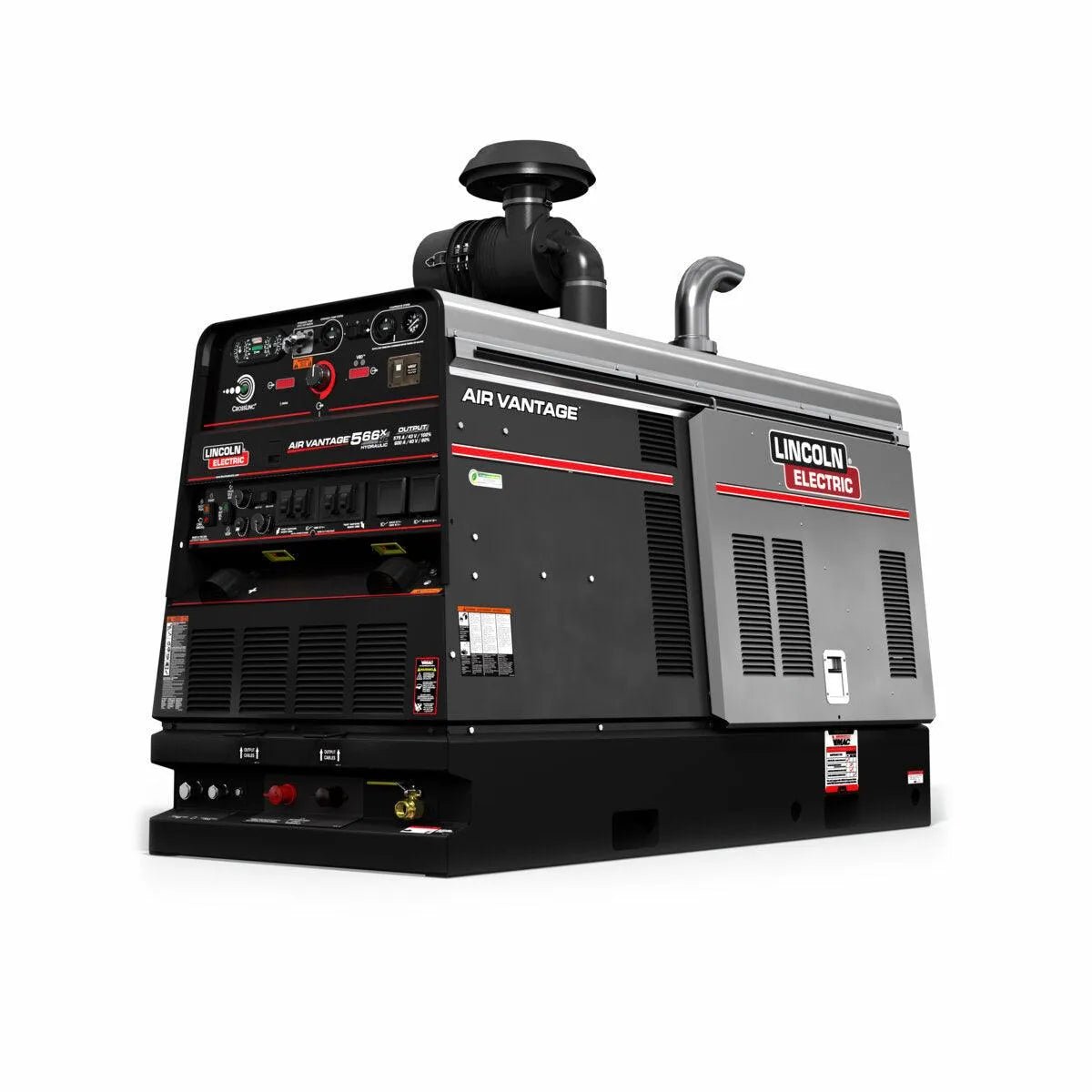

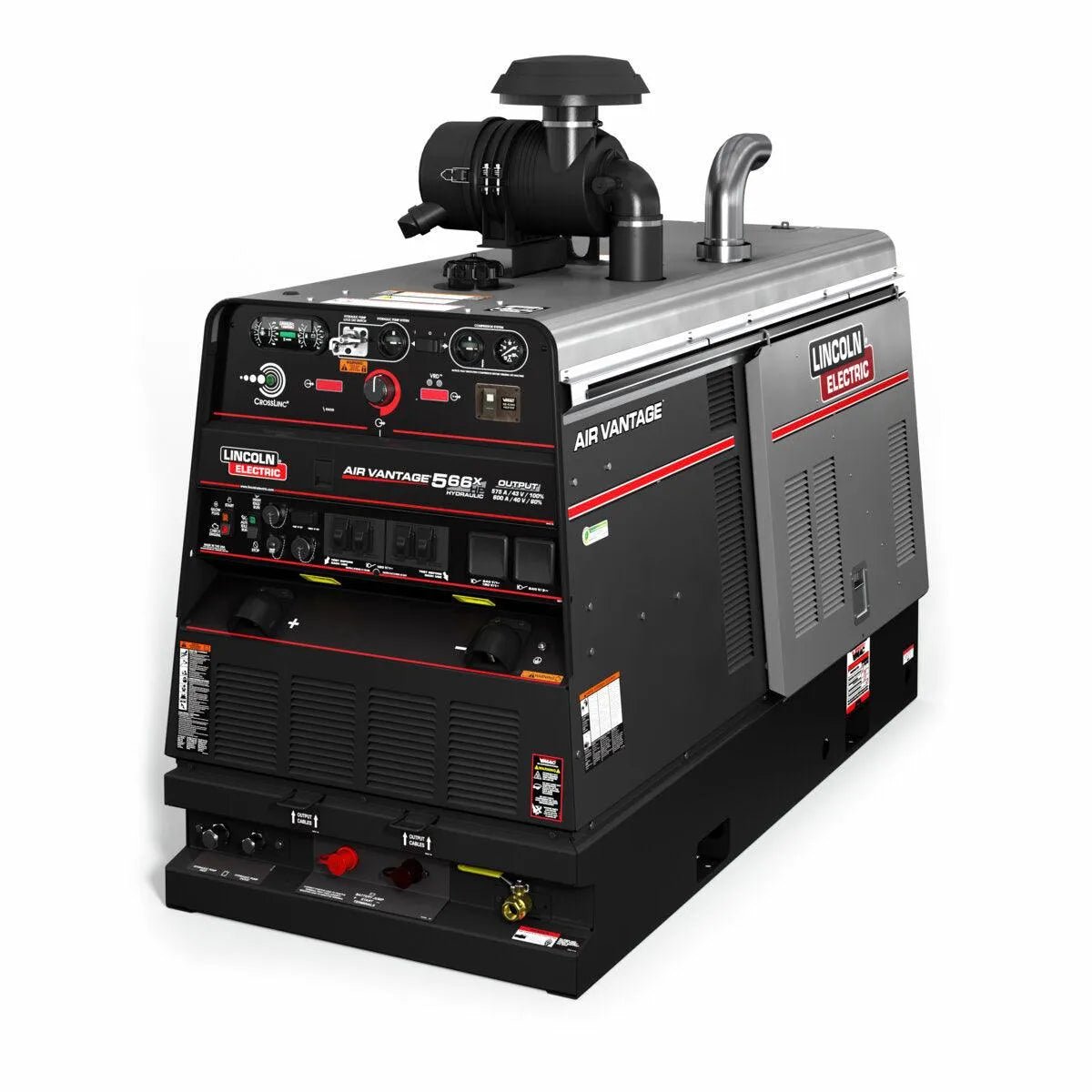

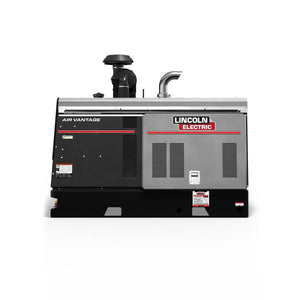

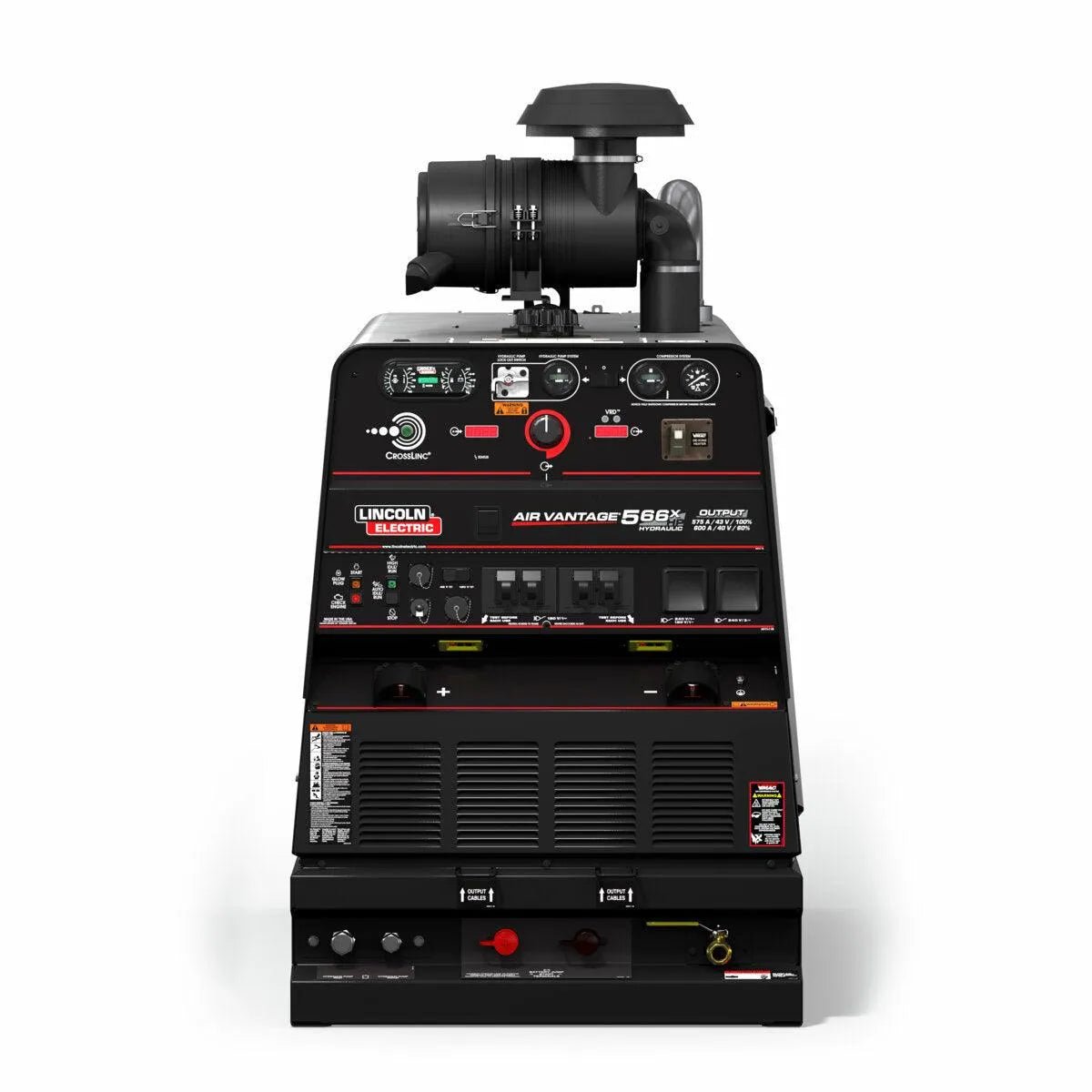

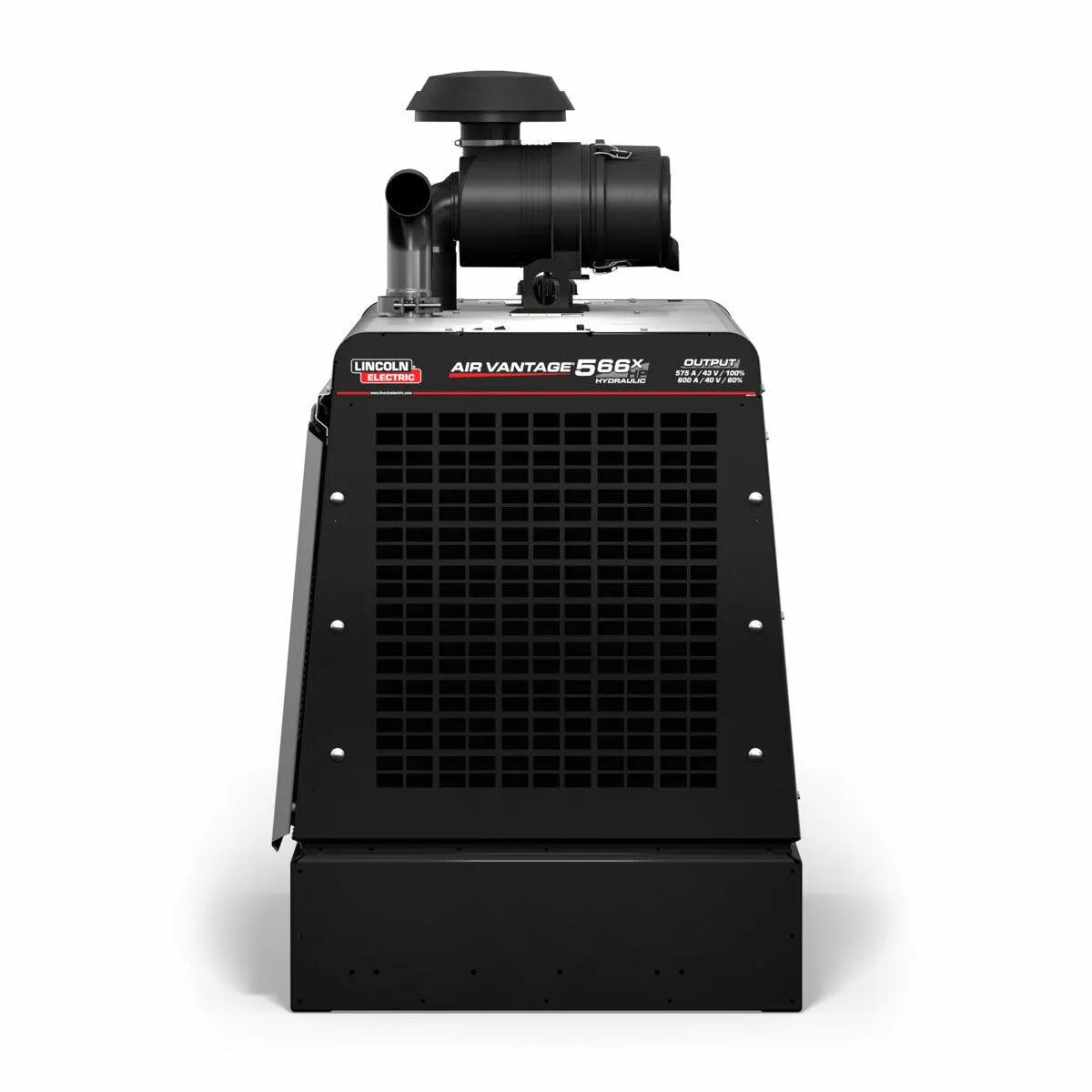

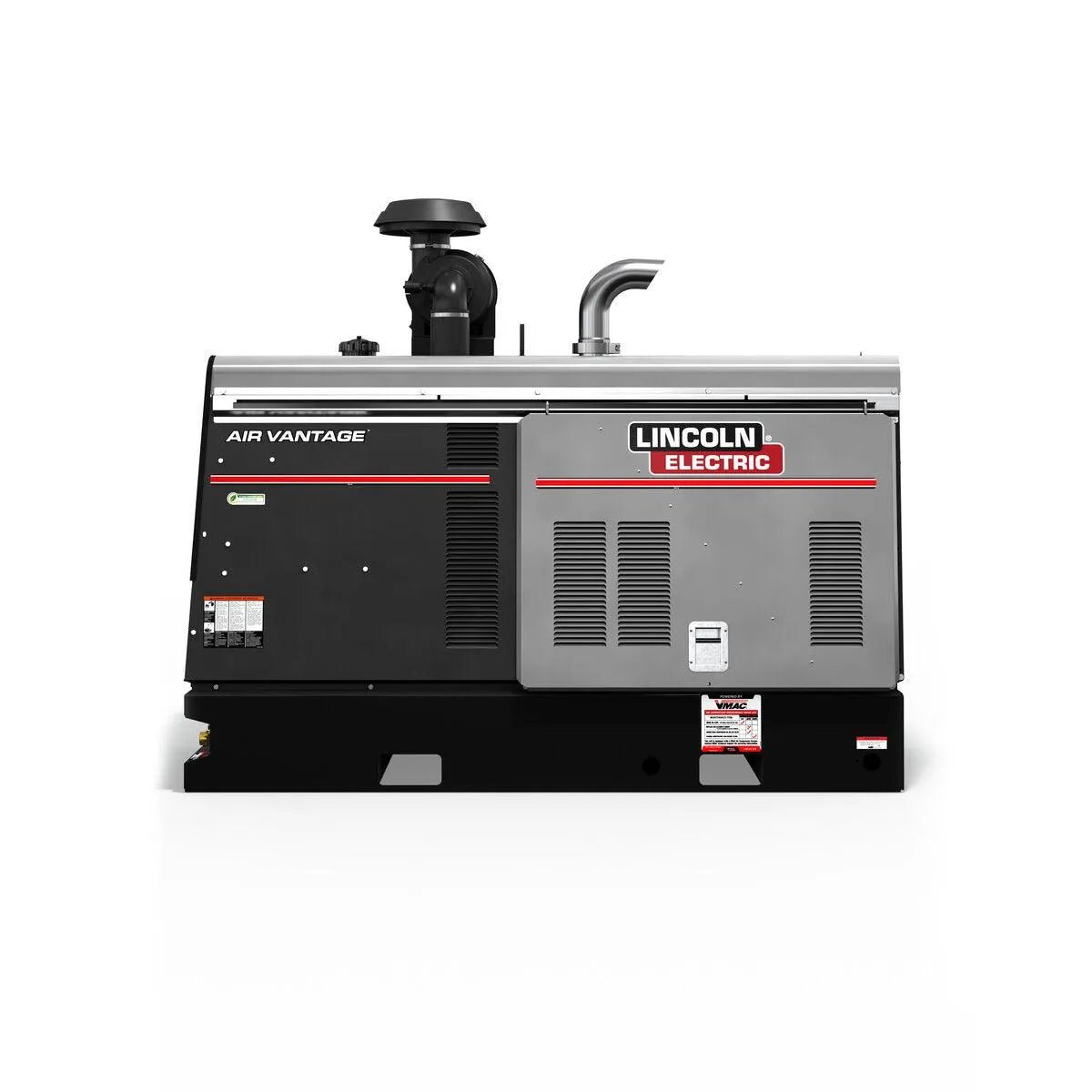

Lincoln Air Vantage 566X Hydraulic 4-in-1 Welder/Generator/Compressor/Pump - K4343-4

Product Overview

The Air Vantage 566X Hydraulic is the ultimate utility machine. This versatile and powerful machine boasts a 575 amp welder, 20 kW generator, 60 cfm air compressor, and 14 gpm hydraulic pump to combine as a genuinely epic 4-in-1 workhorse. Suited for the most challenging job sites, the rugged Air Vantage 566X Hydraulic can handle various unique tasks from heavy-duty carbon arc gouging, powering industrial tools, or running a hydraulic crane. Now better than ever, the machine features CrossLinc Technology to provide welders with greater control at the arc to help improve safety, productivity, and quality. Select this multifunctional workhorse for your next job!

Experience unparalleled multi-function capability with the Lincoln Air Vantage 566X Hydraulic, the industry's most comprehensive mobile power system integrating four essential jobsite functions into a single robust platform. This revolutionary 4-in-1 solution combines industrial-grade welding, substantial power generation, high-capacity air compression, and powerful hydraulic pumping capability to eliminate the need for multiple dedicated machines on demanding jobsites. Engineered specifically for extreme applications in mining, construction, pipeline, and heavy maintenance sectors, the Air Vantage 566X Hydraulic delivers exceptional performance across all integrated systems, providing contractors with unprecedented operational flexibility and resource efficiency. The comprehensive capabilities enable crews to handle diverse operational requirements—from precision welding and heavy gouging to pneumatic tool operation and hydraulic equipment power—without the logistical complexity and expense of deploying and maintaining separate specialized machines.

The advanced welding system delivers professional-grade performance with up to 600 amps (525 amps IEC-rated) of welding power supporting multiple processes through five specialized modes including stick, downhill pipe, DC TIG, CV wire, and carbon arc gouging capability for up to 3/8-inch (9.5 mm) carbon rods. Lincoln's exclusive Chopper Technology ensures superior arc characteristics with minimized spatter and exceptional puddle control, while preventing engine stalling during demanding gouging operations. Enhanced with CrossLinc Technology, the system enables remote parameter adjustment at the welding location without control cables, significantly improving productivity by eliminating trips to the power source while enhancing jobsite safety through reduced cable management requirements. The integrated True Voltage Technology automatically compensates for voltage drop across long cable runs, ensuring precise output regardless of distance from the power source—a critical advantage on expansive worksites.

Beyond its impressive welding capabilities, the Air Vantage 566X Hydraulic delivers exceptional performance across its additional integrated systems. The industrial-grade power generation provides substantial 20 kW three-phase continuous output capable of operating plasma cutters, inverter welders, and demanding tools simultaneously. The VMAC-engineered rotary screw air compressor system with integrated rope heater delivers 60 CFM at 100 PSI (7.7 bar) with 150 PSI (10.3 bar) maximum pressure for pneumatic tool operation and material handling applications. The high-capacity Marzocchi hydraulic pump generates 14 GPM at 3000 PSI (53 LPM at 207 MPa) through industry-standard SAE16 fittings for powering hydraulic cranes, tools, and equipment. Powered by a robust 65.7 HP turbocharged Deutz diesel engine meeting EPA Tier 4 Final emissions standards, the system provides reliable operation in extreme conditions with excellent cold-weather starting capability. For operations requiring maximum versatility with minimum equipment footprint, the Lincoln Air Vantage 566X Hydraulic represents the ultimate integrated jobsite power solution combining unmatched multi-function capability with superior performance across all operational modes.

Key Features

• Complete 4-in-1 Multi-Function System - Integrates professional 600-amp welding capability, 20 kW three-phase power generation, 60 CFM air compression, and 14 GPM hydraulic pumping in a single platform, eliminating the need for multiple dedicated machines.
• Advanced Welding Performance - Lincoln Chopper Technology delivers superior arc characteristics with five specialized process modes supporting stick, downhill pipe, DC TIG, wire feed, and heavy-duty carbon arc gouging applications.
• CrossLinc Remote Control Technology - Exclusive system enables parameter adjustment at the welding location without control cables, improving productivity, safety, and quality through reduced cable management and fewer trips to the power source.
• Industrial-Grade VMAC Air Compression - Professional rotary screw compressor with integrated rope heater provides 60 CFM at 100 PSI (7.7 bar) with 150 PSI (10.3 bar) maximum pressure for demanding pneumatic tool requirements.
• High-Capacity Hydraulic System - Precision-engineered Marzocchi cast iron gear-belt driven pump delivers 14 GPM at 3000 PSI (53 LPM at 207 MPa) through standardized SAE16 male flare fittings for hydraulic equipment operation.
• True Voltage Technology - Automatic compensation for voltage drop across long cable runs ensures precise welding output regardless of distance from the power source for consistent quality across expansive jobsites.
• Premium Deutz Turbocharged Diesel Engine - Powerful 65.7 HP water-cooled TD2.9L4 power plant delivers reliable performance in extreme conditions while meeting EPA Tier 4 Final emissions standards.
• Extended Runtime Capability - Substantial 25-gallon (94.6 L) fuel capacity combined with efficient power management enables extended operation without refueling interruptions for improved productivity in remote locations.
