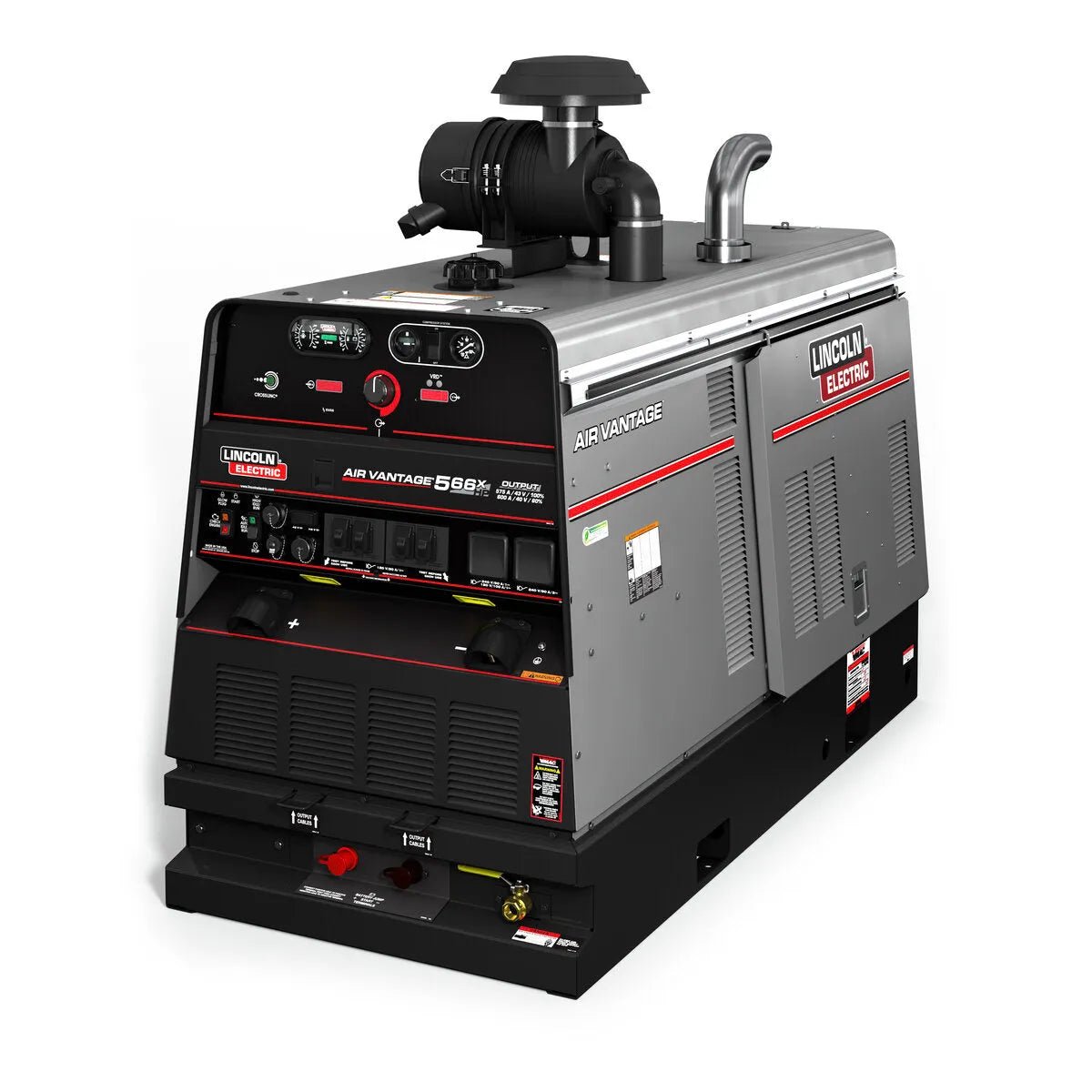

Lincoln Air Vantage 566X Ready-Pak 1 Engine Driven Welder Deutz - K3242-3-RP1
The Lincoln Air Vantage 566X Ready-Pak 1 Engine Driven Welder (K3242-3-RP1) delivers the ultimate turnkey welding solution combining a powerful 3-in-1 multifunction machine with a comprehensive accessory package ready for immediate deployment. This factory-assembled system integrates up to 600 amps of welding output (IEC rated at 525 amps), 20 kW of continuous three-phase auxiliary power, and 60 cfm of compressed air at 100 psi in a trailer-mounted package complete with fender and light kit, cable rack, welding cables, ground clamps, and electrode holders. Powered by a 65.7 hp turbocharged Deutz diesel engine meeting EPA Tier 4 Final compliance, this all-inclusive solution eliminates the need for separate welders, generators, air compressors, and accessory purchases, providing immediate operational capability upon delivery.
What distinguishes the Ready-Pak 1 configuration is its comprehensive inclusion of all essential welding accessories and trailer components in a single factory-assembled unit. The system incorporates Lincoln's advanced CrossLinc® Technology, enabling remote voltage and current control at the arc without requiring additional control cables, which substantially improves jobsite safety, enhances weld quality, and increases productivity. The built-in True Voltage Technology™ (TVT) compensates for voltage drop across long weld cables, ensuring consistent performance even at distance. With expanded welding capabilities including customized modes for various materials, advanced pulse welding for precise control in out-of-position work, heavy-duty carbon arc gouging capability with rods up to 3/8 inch (9.5 mm), and the VMAC® rotary screw air compressor system, the Air Vantage 566X Ready-Pak 1 represents the ultimate complete welding solution for construction, mining, railroad maintenance, offshore applications, and heavy industrial fabrication where immediate deployment and maximum capability are essential.
Discover the exceptional features that make the Lincoln Air Vantage 566X Ready-Pak 1 the preferred comprehensive turnkey welding solution for professionals requiring maximum capability with immediate deployment.
Key Features
- Factory-assembled complete package with welder, trailer, fender and light kit, cable rack, welding cables, ground clamps, and electrode holders
- 3-in-1 multifunction machine combining welder, generator, and air compressor in one package
- Powerful welding output up to 600 amps (IEC rated at 525 amps at 41V, 100% duty cycle)
- Integrated VMAC® rotary screw air compressor delivering 60 cfm @ 100 psi (7.0 bar)
- Five process modes: CC-Stick, Downhill Pipe, DC Touch Start TIG®, CV-Wire, and Arc Gouging
- Enhanced carbon arc gouging capability with 3/8 inch (9.5 mm) carbon rods
- Robust 20 kW continuous three-phase generator output (12 kW single-phase)
- CrossLinc® Technology for remote control at the arc without additional control cables
- True Voltage Technology™ (TVT) compensates for voltage drop in long weld cables
- Patented Chopper® Technology for premium arc performance with minimized spatter
- Advanced pulse welding capability for better arc control in out-of-position work
- Specialized welding modes for stainless, aluminum, steel, SAW, and orbital pipe applications
- 65.7 hp turbocharged Deutz® TD2.9L4 diesel engine meeting EPA Tier 4 Final compliance
- Air compressor safety features including relief valve and high-temperature shutdown
- Ready for immediate operation with included welding accessories
Specifications
Product Weights & Dimensions
| Dimensions (H x W x D) | 42 in x 32.9 in x 69 in (1067 mm x 836 mm x 1753 mm) |
| Net Weight | 2159 lbs (979 kg) |
Machines
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Submerged Arc (SAW) |
| IEC Rating | 525A / 41V / 100% @ 104°F (40°C) |
| Max Rating | 600A / 40V / 60% @ 104°F (40°C) |
| Output Range by Mode | CC-Stick: 30 - 600 A Downhill Pipe (CC): 40 - 350 A Touch Start TIG: 20 - 350 A CV-Wire: 10 - 45 V Arc Gouging: 60 - 600 A |
| Open Circuit Voltage | 66 Peak OCV @ 1800 RPM |
| Rated Gouging Carbon Diameter | 3/8" (9.5 mm) |
| Machines Communication Technology | CrossLinc ArcLink |
Engine Driven Welders
| Single Phase Auxiliary Output | 12,000 Watts Continuous, 120/240V |
| Three Phase Auxiliary Output | 20,000 Watts Continuous, 240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R NEMA 15-50R |
| Engine Brand & Model | Deutz® TD2.9L4 |
| Engine Description | 4 Cylinder Turbocharged Water Cooled Diesel Engine |
| Engine Horsepower | 65.7 hp (49.0 kW) |
| Engine Block Size & Displacement | 178 cu. in. (2.9 L), Bore x Stroke - 3.62 in x 4.33 in (92 mm x 110 mm) |
| Emissions Rating | US EPA Tier 4 Final |
| High Idle Operating Speed @ Rated Output | 1800 |
| Low Idle Operating Speed | 1525 |
| Fuel Tank Size (US gal.) | 25 US gal. |
| Fuel Tank Size (L) | 94.6 L |
| Oil Capacity (qts.) | 9.0 qts. |
| Oil Capacity (L) | 8.5 L |
| Coolant Capacity (US gal.) | 2.5 US gal. |
| Coolant Capacity (L) | 9.5 L |
Air Compressor Specifications
| Air Compressor Brand/Model | VMAC® S700162 |
| Air Compressor Description | Belt Rotary Screw |
| Air Compressor Output | 60 cfm @ 100 psi (1.7 cmm @ 6.9 bar) |
| Air Compressor Max System Pressure | 150 psi (10.3 bar) |
| Air Compressor Protections | Safety Relief Valve High Temp Shutdown |
| Air Compressor Oil Capacity (US gal.) | 1.1 US gal. |
| Air Compressor Oil Capacity (L) | 4.0 L |
Ready-Pak 1 Components
| Included Components | Air Vantage 566X Welder/Generator/Air Compressor Heavy-Duty Trailer Fender and Light Kit Cable Rack Welding Cables Ground Clamps Electrode Holders |
| Trailer Features | DOT Compliant Highway Rated Ball Hitch Connection Safety Chains Electric Brakes |
Application
| Typical Application | Construction Mining Railroad Maintenance Construction & Field Erection Maintenance & Repair Offshore Oil & Gas Power Generation Shipbuilding Structural Fabrication Structural Welding |
Warranty
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer; Compressor warranted separately by compressor manufacturer |
