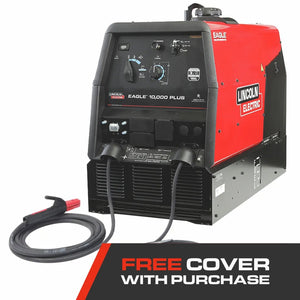

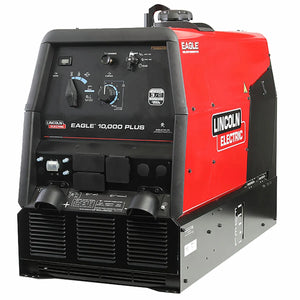

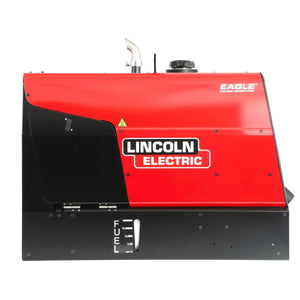

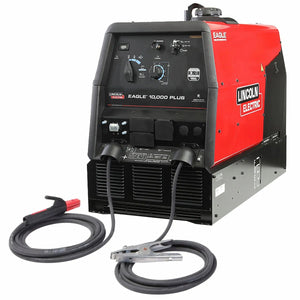

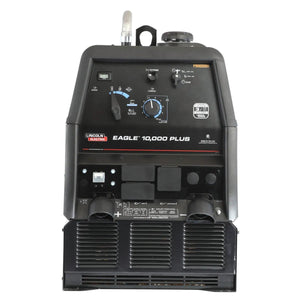

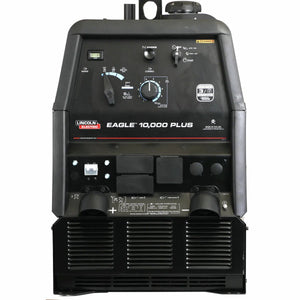

Lincoln Eagle 10,000 Plus Engine Driven Welder - K2343-4
Lincoln Electric Eagle 10,000 with Lincoln Electric engine is a great choice for getting the job done. For construction contractors, maintenance crews, farmers or ranchers, the Eagle 10,000 does a variety of basic welding jobs. And with AC generator power, it handles a variety of other jobs: lights, grinder, Lincoln Electric welders, plasma cutters or emergency power simultaneous while welding.
The Eagle 10,000 features extra protection with a totally enclosed case that protects the engine and lowers the sound level for safer, more comfortable operation. The unit delivers versatile, smooth DC welding output allowing the use of a broad range of stick electrodes, with MIG, flux-cored and TIG capabilities available with optional equipment. Enhanced quality comes from the 12-gallon gasoline tank for extended run time, complete with a visual fuel level gauge on both sides of the unit for convenient monitoring from any angle. The fine adjustment control allows you to dial in just the right welding output for each application, ensuring optimal results across different welding tasks.
Beyond its welding capabilities, the Eagle 10,000 serves as a heavy-duty power source with 10,500 watt surge and 9,000 watt continuous AC generator output. This substantial power capacity enables simultaneous welding and power generation for lights, grinders, Lincoln Electric welders, plasma cutters, or emergency power applications. The unit offers convenient truck or trailer mounting with front and rear holes in the base, making it ideal for mobile applications and job site flexibility. Powered by a reliable 22 HP OHV Command CH730 gasoline engine operating at 3600 RPM, the Eagle 10,000 delivers dependable performance with a 12-gallon fuel tank (45L) and 1.6 quarts (1.5L) oil capacity. With welding output ranges of 220-225A, 70-145A, and 50-90A, the Eagle 10,000 accommodates various welding applications including stick, gouging, flux-cored, TIG, and MIG processes. The compact dimensions of 29.9 in x 21.5 in x 42.3 in and weight of 514 lbs make it portable yet substantial enough for serious work, representing excellent value for professionals who need reliable welding and power generation in a single, versatile package.
Features

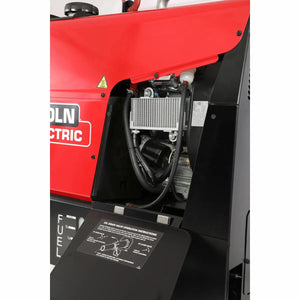

- EXTRA PROTECTION: Totally enclosed case that protects the engine and lowers the sound level
- WELDING CAPABILITIES: Versatile, smooth DC welding output for a broad range of stick electrodes
- MULTI-PROCESS READY: MIG, flux-cored and TIG capabilities with optional equipment

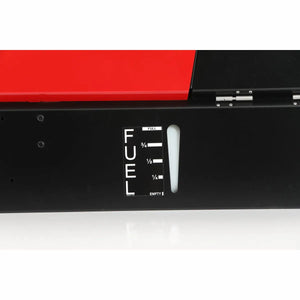

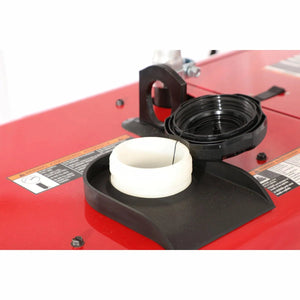

- ENHANCED QUALITY: 12 gallon gasoline tank for extended run time with visual fuel level gauge on both sides

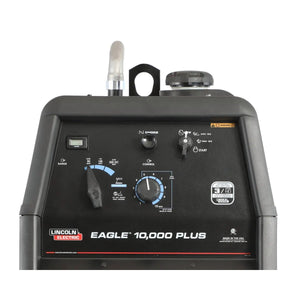

- EASY-TO-USE: Fine adjustment control to dial in the right welding output for each application
- HEAVY DUTY: 10,500 watt surge and 9,000 watt continuous AC generator
- WELD ANYWHERE: Convenient truck or trailer mounting with front and rear holes in base

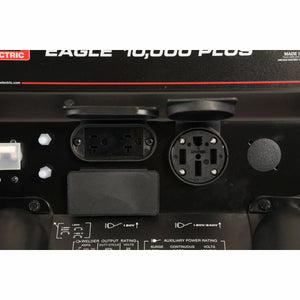

- SIMULTANEOUS OPERATION: Weld while running generator power for lights, grinders, and other equipment
Specifications
| Dimensions (H x W x D) | 29.9 in x 21.5 in x 42.3 in (759 mm x 546 mm x 1074 mm) |
| Net Weight | 514 lbs (233 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) |
| Input Power | Gasoline |
| Output Range | 220-225A ; 70-145A ; 50-90A |
| Polarity | DC |
| Engine Brand & Model | OHV Command CH730 |
| Engine Horsepower | 22 HP @ 3600 RPM |
| Fuel Tank Size (US gal.) | 12 |
| Fuel Tank Size (L) | 45 |
| Oil Capacity (qts.) | 1.6 |
| Oil Capacity (L) | 1.5 |
| Generator Output | 10,500 Watts Surge ; 9,000 Continuous |
| Typical Application | Construction Maintenance & Repair Farm & Ranch General Fabrication Mobile Welding Emergency Power Light Industrial |
| Warranty | 3 Years Parts and Labor |
