Lincoln Electric  |  SKU: ED032849

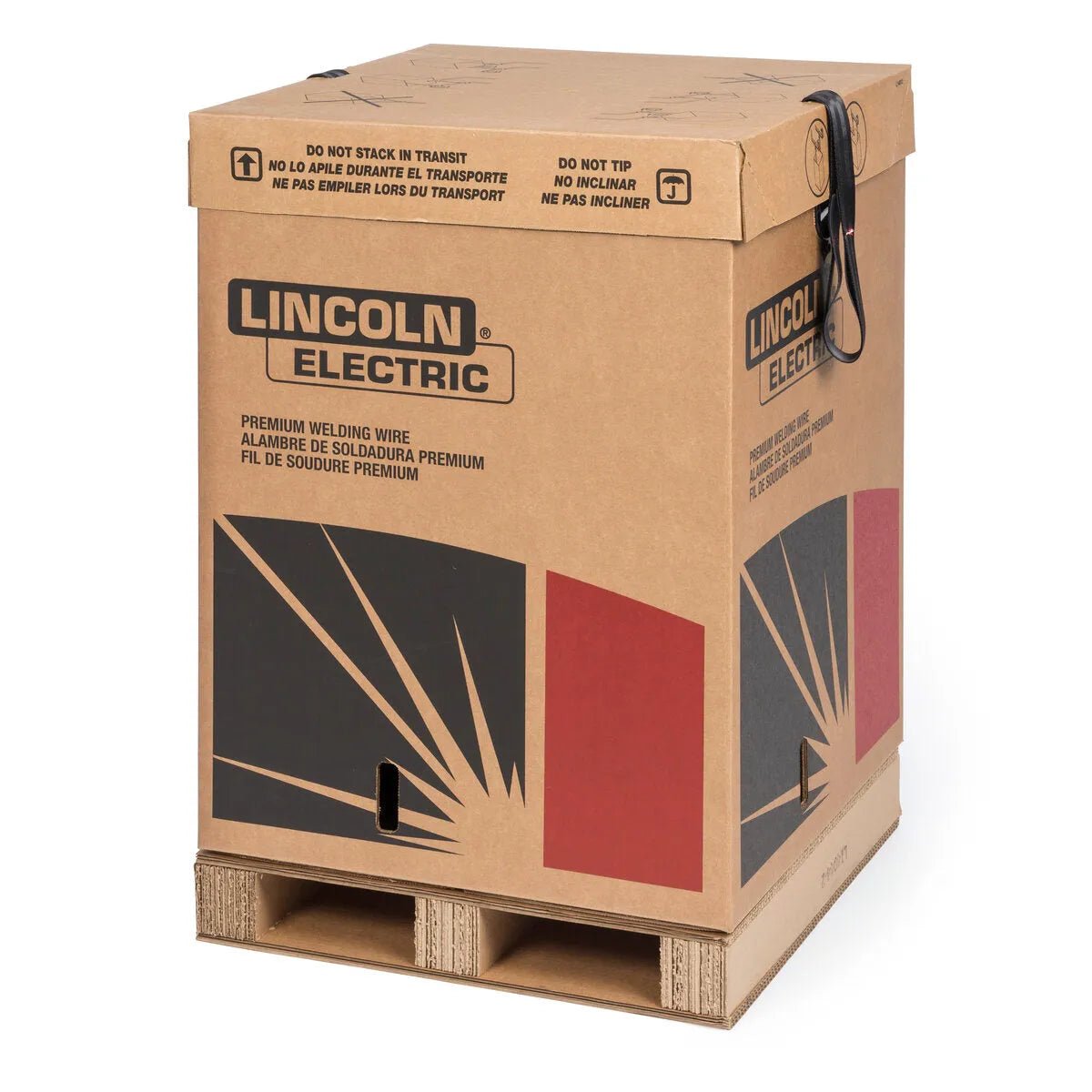

Lincoln Electric SuperArc® L-56 MIG Welding Wire 0.045” Diameter 1000lb Accu-Pak Box - ED032849

$4,200.00
Lincoln Electric SuperArc® L-56 MIG Welding Wire 0.045” Diameter 1000lb Accu-Pak Box - ED032849 features high manganese and silicon content for superior deoxidization. Ideal for welding metals with medium to heavy mill scale, with support for multiple transfer modes for exceptional performance.
AWS / Classification: ER70S-6

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.



More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln Electric SuperArc® L-56 MIG Welding Wire 0.045” Diameter 1000lb Accu-Pak Box - ED032849

The Lincoln Electric SuperArc® L-56 - ED032849 is a premium copper-coated MIG welding wire designed for superior performance on metals with medium to heavy mill scale. Engineered with high levels of manganese and silicon deoxidizers, this wire tolerates challenging surface conditions while providing excellent toe-wetting for a smooth and uniform bead appearance. The copper coating extends contact tip life, ensuring consistent performance during prolonged welding operations. Its versatility supports various transfer modes, including short-circuiting, globular, axial spray, and pulsed spray transfer, making it an exceptional choice for demanding fabrication and structural welding applications. The 0.045” diameter and 1000lb Accu-Pak Box ensure productivity in high-volume environments.

  • Premium copper-coated wire for long-lasting contact tip life
  • High manganese and silicon content for deoxidization on medium to heavy mill scale surfaces
  • Exceptional toe-wetting for clean, uniform bead appearance
  • Supports multiple transfer modes: short-circuiting, globular, axial spray, and pulsed spray
  • 0.045” diameter wire in a 1000lb Accu-Pak Box for maximum efficiency
  • Meets Buy America requirements for government and infrastructure projects

Lincoln Electric SuperArc® L-56 MIG Welding Wire 0.045” Diameter 1000lb Accu-Pak Box - ED032849

The Lincoln Electric SuperArc® L-56 - ED032849 is a premium copper-coated MIG welding wire designed for superior performance on metals with medium to heavy mill scale. Engineered with high levels of manganese and silicon deoxidizers, this wire tolerates challenging surface conditions while providing excellent toe-wetting for a smooth and uniform bead appearance. The copper coating extends contact tip life, ensuring consistent performance during prolonged welding operations. Its versatility supports various transfer modes, including short-circuiting, globular, axial spray, and pulsed spray transfer, making it an exceptional choice for demanding fabrication and structural welding applications. The 0.045” diameter and 1000lb Accu-Pak Box ensure productivity in high-volume environments.

  • Premium copper-coated wire for long-lasting contact tip life
  • High manganese and silicon content for deoxidization on medium to heavy mill scale surfaces
  • Exceptional toe-wetting for clean, uniform bead appearance
  • Supports multiple transfer modes: short-circuiting, globular, axial spray, and pulsed spray
  • 0.045” diameter wire in a 1000lb Accu-Pak Box for maximum efficiency
  • Meets Buy America requirements for government and infrastructure projects

Includes
What's Included
  • (1) 1000 lb Accu-Pak® Box

Specifications
CONFORMANCE
CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.18 ER70S-6
ABS ABS - Part 2 3YSA, 3YSA H5
CWB CSA W48 B-G 49A 3 C1 S6, B-G 49A 3 C1 S6 (B-G 49A 3 C G6), B-G 49A 3 Z S6
DNV-GL DNV - 2.9 III YMS H5
DB ISO 14341-A G 42 3 C1 3Si1, G 46 4 M21 3Si1
LR LR - Chapter 11 3YS H5
MIL MIL-E-23765/1D MIL-70S-6
MECHANICAL PROPERTIES
Classification Shielding Gas Polarity Yield Strength @ 0.2% Offset, MPa (ksi) Tensile Strength, MPa (ksi) Elongation, % Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F) Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)
ER70S-6 Requirement 100% CO2 DC+ 400 (58) min. 480 (70) min. 22 min. 27 (20) min.
Typical Result, As-welded 100% CO2 DC+ 420 (61) 530-570 (77-82) 25 43-121 (32-89)
Typical Result, As-welded 75% Ar, 25% CO2 DC+ 430 (62) 530-600 (77-86) 23 62-182 (46-135) 42-156 (31-115)
Typical Result, As-welded 90% Ar, 10% CO2 DC+ 490 (71) 600 (87) 24 87-109 (64-80)
WIRE COMPOSITION
Classification %C %Cr %Mn %Mo %Ni %P %S %Si %V %Total Cu
ER70S-6 Requirement 0.06 - 0.15 0.15 max. 1.40 - 1.85 0.15 max. 0.15 max. 0.025 max. 0.035 max. 0.80 - 1.15 0.03 max. 0.50 max.
Typical Result 0.07-0.10 0.01-0.05 1.41-1.58 0.01 max. 0.03 max. 0.003-0.013 0.013 max. 0.80-0.98 0.005 max. 0.13-0.29
TYPICAL OPERATING PROCEDURES
Diameter Transfer Mode Shielding Gas Polarity CTWD, mm (in.)⁽¹⁾ Wire Feed Speed, m/min (in/min) Voltage, volts Approx. Current, amps Melt-off Rate, kg/hr (lb/hr)
0.025 in (0.6 mm) Short Circuit Transfer 100% CO2 DC+ 9-12 (3/8-1/2) 2.5 (100) 17 35 0.4 (0.9)
0.025 in (0.6 mm) Short Circuit Transfer 100% CO2 DC+ 9-12 (3/8-1/2) 6.4 (250) 19 80 0.9 (2.0)
0.030 in (0.8 mm) Short Circuit Transfer 100% CO2 DC+ 9-12 (3/8-1/2) 1.9 (75) 17 35 0.4 (0.9)
0.030 in (0.8 mm) Short Circuit Transfer 100% CO2 DC+ 9-12 (3/8-1/2) 3.8 (150) 18 70 0.8 (1.8)
0.030 in (0.8 mm) Short Circuit Transfer 100% CO2 DC+ 9-12 (3/8-1/2) 7.6 (300) 22 130 1.6 (3.6)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 9-12 (3/8-1/2) 2.5 (100) 18 80 0.7 (1.6)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 9-12 (3/8-1/2) 3.8 (150) 19 120 1.1 (2.4)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 9-12 (3/8-1/2) 6.4 (250) 22 175 1.8 (4.0)
0.035 in (0.9 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 9.5 (375) 23 195 2.7 (6.0)
0.035 in (0.9 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 12.7 (500) 29 230 3.6 (8.0)
0.035 in (0.9 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 15.2 (600) 30 275 4.4 (9.6)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 12-19 (1/2-3/4) 3.2 (125) 19 145 1.5 (3.4)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 12-19 (1/2-3/4) 3.8 (150) 20 165 1.8 (4.0)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 12-19 (1/2-3/4) 5.1 (200) 21 200 2.5 (5.4)
0.045 in (1.1 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 8.9 (350) 27 285 4.2 (9.2)
0.045 in (1.1 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 12.1 (475) 30 335 5.7 (12.5)
0.045 in (1.1 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 12.7 (500) 30 340 6.0 (13.2)
0.052 in (1.3 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 7.6 (300) 30 300 4.8 (10.7)
0.052 in (1.3 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 8.1 (320) 30 320 5.2 (11.5)
0.052 in (1.3 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 12.3 (485) 32 430 7.8 (17.1)
1/16 in (1.6 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-25 (1/2-1) 5.3 (210) 27 325 4.8 (10.7)
1/16 in (1.6 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-25 (1/2-1) 6.0 (235) 28 350 5.4 (12.0)
1/16 in (1.6 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-25 (1/2-1) 7.4 (290) 29 430 6.7 (14.8)
LECO Diameter 0.045 in (1.1 mm)
LECO Package 1000 lb Accu-Pak® Box
Diameter (in) 0.045
