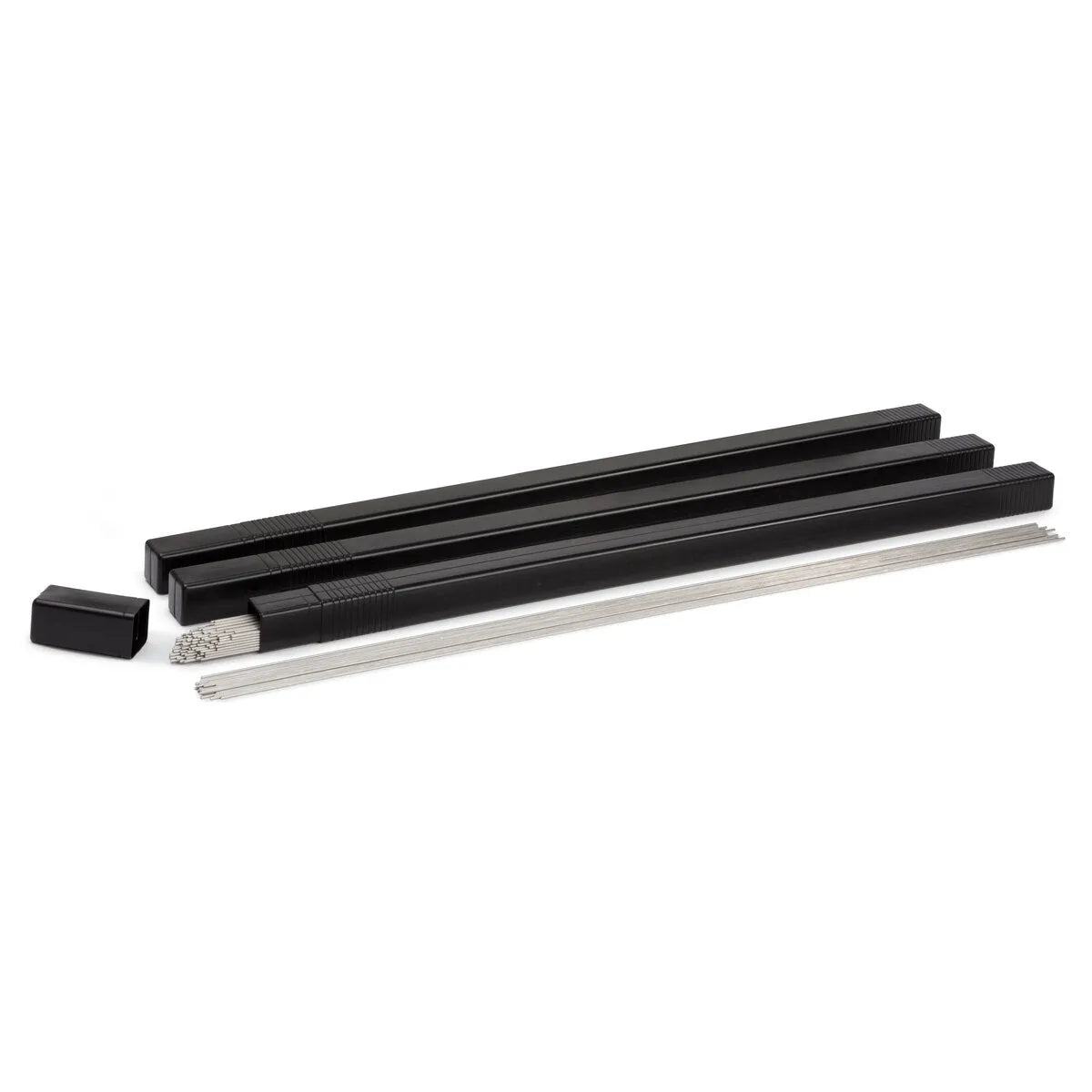

Lincoln ED035252 Lincoln ER630 TIG GTAW Welding Rod, 3/32 in, 10 lb Tube

SKU: ED035252
$225.48
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
LINCOLN® ER630 Tungsten Inert Gas Rod is a precipitation hardening martensitic stainless steel used for welding materials of similar chemical composition such as 17-4 and 17-7 plates.
AWS / Classification: AWS A5.9: ER630
Overview
Lincoln ED035252 Lincoln ER630 TIG GTAW Welding Rod, 3/32 in, 10 lb Tube

Stainless steel welding rods designed to provide optimal bead appearance when TIG welding on a variety of materials

Features

• Precipitation hardening martensitic stainless steel used for welding materials of similar chemical composition such as 17-4 and 17-7 plates
• Can be used in as welded condition or may be heat treated to obtain higher strength
• Mechanical properties of the alloy are greatly influenced by the heat treatment
• Q2 Lot Certificate showing actual wire composition available online
• Ink jet printing identification on entire length of electrode

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER630
Classification %C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%SiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER630 Requirement 0.05 max.16.00 - 16.753.25 - 4.000.25 - 0.750.75 max.Info. Only0.15 - 0.304.5 - 5.00.03 max.0.03 max.0.75 max.
Typical Result 0.0216.45-16.603.60-3.700.57-0.650.09-0.120.02-0.040.22-0.234.6-4.80.020.003 max.0.46-0.562019
LECO Diameter 3/32 in (2.4 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 3/32
Length (in) 36
Includes
  • (3) 10 lb Tube
