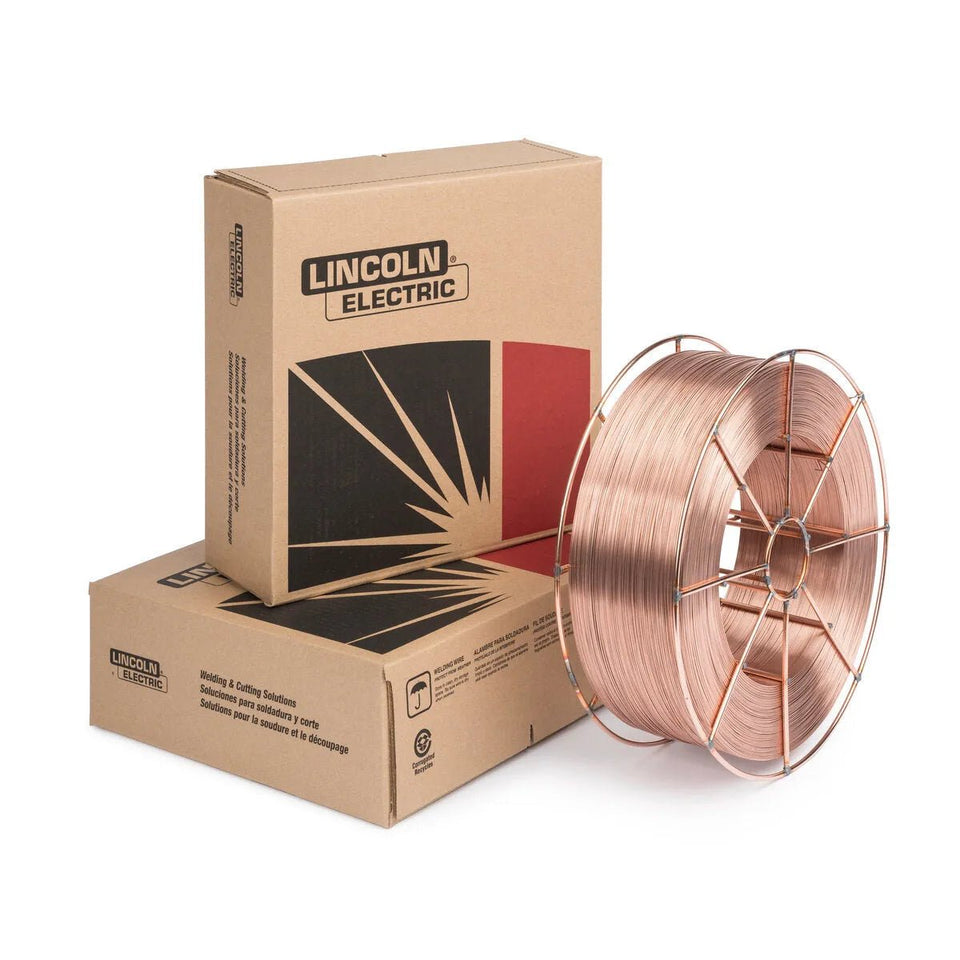

Lincoln EDS30778 SuperArc LA-100 MIG GMAW Mild Steel Welding Wire, 0.035 in, 44 lb Spool

SKU: EDS30778
$559.94 $622.16
Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.

More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

SuperArc® LA-100™ from Lincoln Electric is a premium copper coated, low alloy MIG welding wire designed for use on 100,000 psi (690 MPa) tensile base material.
AWS / Classification: ER100S-G, ER110S-G

Overview
Lincoln EDS30778 SuperArc LA-100 MIG GMAW Welding Wire, 0.035 in, 44 lb Spool

Our premium copper coated, low alloy MIG wire is designed for use on 100,000 psi (690 MPa) tensile base material and those materials that require a minimum yield strength of 82,000 psi (565 MPa).

Features
  • Capable of producing welds with 690 MPa (100 ksi) tensile strength
  • Excellent for welding quenched and tempered steels and HY-80 base materials
  • Supports short-circuiting, globular, axial spray and pulsed spray transfer
  • Copper coating provides superior arc-starting characteristics for long contact tip life
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.28 ER100S-G, ER110S-G
ABS ABS - Part 2 4YQ550SA
CWB CWB AWS A5.28 ER69S-G (ER100S-G)
DB ISO 16834-A T 69 5 M21 Mn3Ni1,5Mo
MIL MIL-E-23765/2E MIL-100S-1
MIL T9074-BC-GIB-010/0200 MIL-100S-1
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -50°C (-60°F)
ER110S-G Requirement Not SpecifiedNot Specified760 (110) min.
Typical Result, As-welded 95% Ar, 5% CO2DC+700 (102)770 (111)21153-175 (113-129)
Typical Result, As-welded 98% Ar, 2% O2DC+740 (107)780-800 (113-116)20149-239 (110-176)
Classification %Al%C%Cr%Mn%Mo%Ni%P%S%Si%Ti%V%Zr%Total Cu
ER110S-G Requirement 0.30 min. *0.20 min. *0.50 min. *
Typical Result 0.010.05-0.060.03-0.041.58-1.670.42-0.451.88-1.990.004-0.0090.003-0.0060.43-0.480.02-0.04<0.005<0.0010.08-0.12
Diameter Transfer ModeShielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)
0.035 in (0.9 mm) Short Circuit Transfer75% Ar / 25% CO2DC+9-12 (3/8-1/2)2.5 (100)18800.7 (1.6)
0.035 in (0.9 mm) Short Circuit Transfer75% Ar / 25% CO2DC+9-12 (3/8-1/2)3.8 (150)191201.1 (2.4)
0.035 in (0.9 mm) Short Circuit Transfer75% Ar / 25% CO2DC+9-12 (3/8-1/2)6.4 (250)221751.8 (4.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+9-12 (3/8-1/2)9.5 (375)231952.7 (6.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+9-12 (3/8-1/2)12.7 (500)292303.6 (8.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+9-12 (3/8-1/2)15.2 (600)302754.4 (9.6)
0.045 in (1.1 mm) Pulsed Spray Transfer ⁽²⁾DC+12-19 (1/2-3/4)5.1 (200)19-211302.4 (5.4)
0.045 in (1.1 mm) Pulsed Spray Transfer ⁽²⁾DC+12-19 (1/2-3/4)6.4 (250)20-231403.0 (6.7)
0.045 in (1.1 mm) Spray Transfer98% Ar / 2% O2DC+12-19 (1/2-3/4)8.9 (350)272854.2 (9.2)
0.045 in (1.1 mm) Spray Transfer98% Ar / 2% O2DC+12-19 (1/2-3/4)12.1 (475)303355.7 (12.5)
0.045 in (1.1 mm) Spray Transfer98% Ar / 2% O2DC+12-19 (1/2-3/4)12.7 (500)303406.0 (13.2)
0.045 in (1.1 mm) Spray Transfer95% Ar / 5% CO2DC+12-19 (1/2-3/4)8.9 (350)272854.2 (9.2)
0.045 in (1.1 mm) Spray Transfer95% Ar / 5% CO2DC+12-19 (1/2-3/4)12.1 (475)303355.7 (12.5)
0.045 in (1.1 mm) Spray Transfer95% Ar / 5% CO2DC+12-19 (1/2-3/4)12.7 (500)303406.0 (13.2)
1/16 in (1.6 mm) Spray Transfer98% Ar / 2% O2DC+12-25 (1/2-1)5.3 (210)253254.8 (10.7)
1/16 in (1.6 mm) Spray Transfer98% Ar / 2% O2DC+12-25 (1/2-1)6.0 (235)273505.4 (12.0)
1/16 in (1.6 mm) Spray Transfer98% Ar / 2% O2DC+12-25 (1/2-1)7.4 (290)284306.7 (14.8)
1/16 in (1.6 mm) Spray Transfer95% Ar / 5% CO2DC+12-25 (1/2-1)5.3 (210)253254.8 (10.7)
1/16 in (1.6 mm) Spray Transfer95% Ar / 5% CO2DC+12-25 (1/2-1)6.0 (235)273505.4 (12.0)
1/16 in (1.6 mm) Spray Transfer95% Ar / 5% CO2DC+12-25 (1/2-1)7.4 (290)284306.7 (14.8)
Note
* To meet the requirements of a "G" classification, the chemical composition of the eletrode must meet the minimum requirement for one or more of
⁽¹⁾ CTWD (Contact Tip to Work Distance). Subtract 1/4 in (6.4 mm) to calculate Electrical Stickout.
⁽²⁾ Procedures in this area are for pulse MIG mode for welding in the vertical up and overhead welding positions. Actual results are dependent on joint, material thickness, as well as wave shape and pulse frequency.
LECO Diameter 0.035 in (0.9 mm)
LECO Package 44 lb Spool
Diameter (in) 0.035
Includes
  • (1) 44 lb Spool
