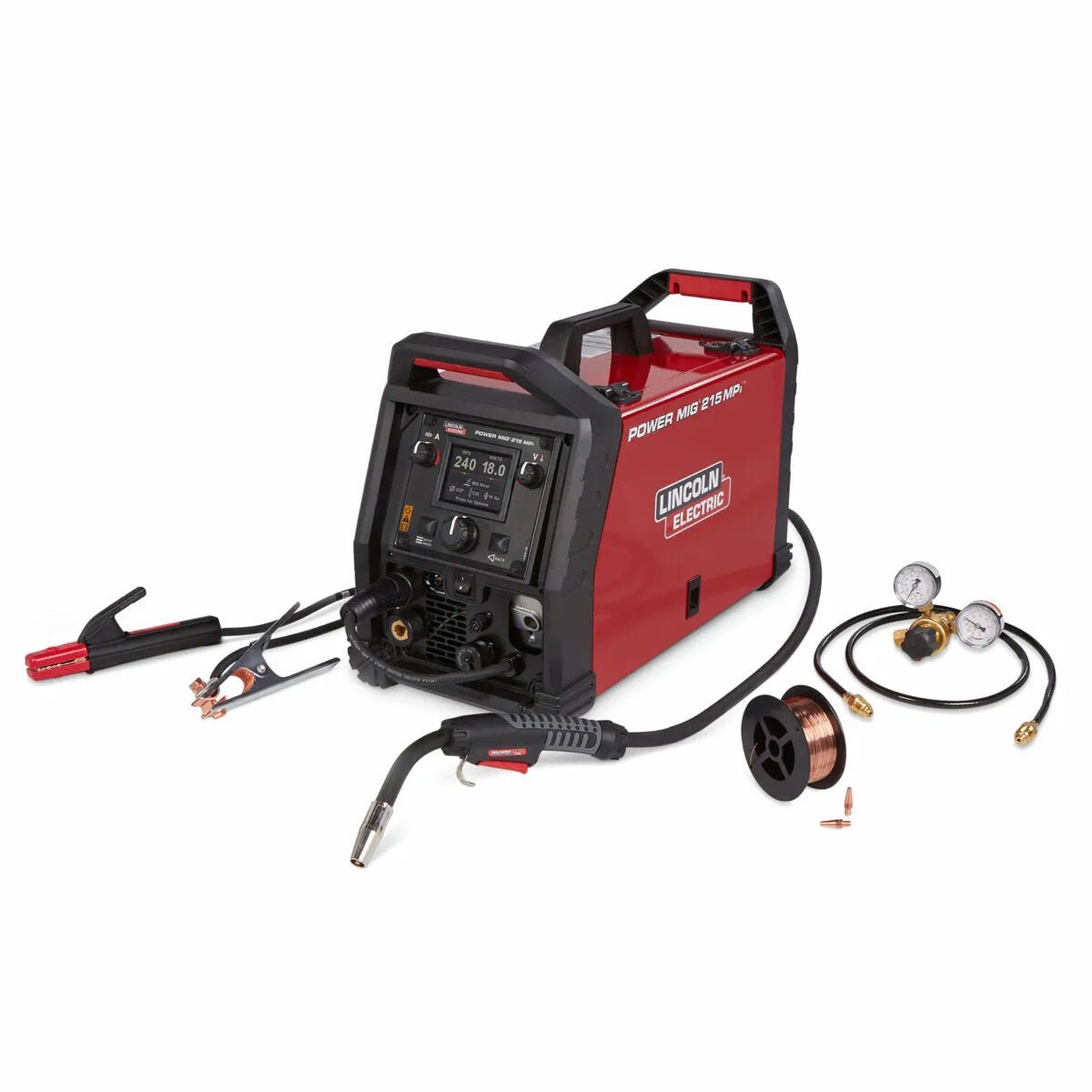

The POWER MIG 215 MPi multi-process welder is a reliable, easy-to-use machine for the general fabricator, small contractor, or repair personnel. The sleek and solid ergonomic design with multiple lift points maximizes mobility around the shop, and user-friendly technology simplifies the setup process and selection of weld settings. Take on any job – MIG, TIG, Stick or Flux-Cored – with the versatile POWER MIG 215 MPi welder.
The POWER MIG 215 MPi combines exceptional versatility with user-friendly operation, making it an ideal solution for diverse welding applications. This multi-process powerhouse delivers impressive performance across MIG, Flux-Cored, Stick, and DC TIG welding processes, eliminating the need for multiple specialized machines. The dual input voltage capability allows seamless connection to either 120V or 230V power supplies, providing the flexibility to work in various environments without compromising capability.
Designed with the mobile professional in mind, the POWER MIG 215 MPi features a sleek yet robust ergonomic case with strategically placed lift points for easy transportation around the shop or jobsite. At just 48 pounds, this lightweight powerhouse offers remarkable portability without sacrificing performance or durability. The built-in TIG solenoid and foot pedal adapter eliminate the need for additional installation when connecting a TIG torch, while the robust and reliable wire drive system ensures consistent feeding for optimal welding results across all compatible processes.
Lincoln Electric's innovative technology enhances the user experience with features like Ready.Set.Weld Technology, which simplifies setup by recommending optimal welding parameters for each procedure. The advanced ArcFX Technology provides instant visual feedback on how settings affect weld outcomes, allowing for real-time adjustments to achieve superior results. With convenient memory capability, operators can easily save and recall their preferred settings for various applications, significantly reducing setup time between jobs. This thoughtful combination of versatility, portability, and user-focused technology makes the POWER MIG 215 MPi an exceptional value for professionals seeking a comprehensive welding solution.
- Multi-Process Capable - Welds MIG, Flux-Cored, Stick, and DC TIG.
- Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
- Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
- Built-in TIG Solenoid and Foot Pedal Adapter - The POWER MIG 215 MPi welder is designed to accept a TIG torch, so no installation is required.
- Robust and Reliable Wire Drive - Ensures proper and consistent feeding for optimal welding experience.
- Ready.Set.Weld Technology - Simplifies setup by recommending optimal welding parameters for each welding procedure.
- ArcFX Technology - Provides instant visual feedback on how settings affect the weld outcome.
- Memory Capability - Easily recall saved settings to get welding faster.
- Lightweight and Portable - Only 48 lbs.
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 120/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | MIG: 105A/19.25V/40% 85A/18V/100% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | TIG: 130A/15.2V/40% 100A/14V/100% |
| Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) | Stick: 85A/23.4V/40% 65A/22.6V/100% |
| Phase 1: Input Current at Max Rated Output #1 (Current) | 22A |
| Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) | 230/1/60 |
| Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) | MIG: 215A/24.8V/30% 120A/20V/100% |
| Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) | TIG: 175A/17V/30% 110A/14.4V/100% |
| Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle) | Stick: 175A/27V/30% 110A/24.4V/100% |
| Phase 1: Input Current at MAX Rated Output #2 (Current) | 29A |
| Dimensions (H x W x D) | 15.08 in x 10.88 in x 23.14 in (383 mm x 276 mm x 588 mm) |
| Net Weight | 48 lbs (21.8 kg) |
| Machines Processes | Stick (SMAW) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) |
| Number of Operators per Machine | 1 |
| Input Voltage | 120/230 |
| Input Current | 120V: 15A, 230V: 15.5A |
| Input Hertz | 60 |
| Input Phase | 1 |
| Input Power | 120/230/1/60 |
| Mode Icon | CC/CV |
| Output Range | 120V: 20-140A DC 230V: 20-220A DC Max. OCV: 58V |
| Polarity | DC |
| IEC Rating | IP21S |
| Output Range by Mode | MIG: 20-220A |
| Machines Communication Technology | digital |
| Work Lead Connector Type | Dinse |
| Welding Gun Cable Assembly Length | Magnum PRO 175L |
| Work Cable Length | 10 FT |
| Spool Gun Compatible (Duty) | Light |
| UI type | TFT - Graphic |
| Wire Feeders Processes | MIG Flux Cored |
| Maximum Wire Thickness | 0.045 in (1.1 mm) |
| Minimum Wire Thickness | 0.025 in (0.6 mm) |
| Typical Application | Automotive Brewery Distillery General Fabrication Maintenance & Repair Repair Welding |
| Warranty | 3 Years |
