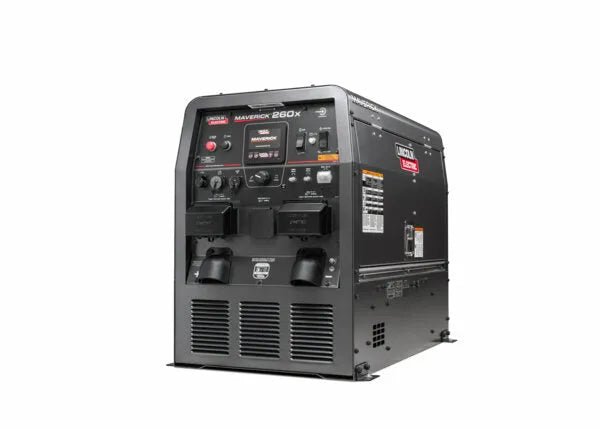

Lincoln Maverick 260X Engine-Driven Welder Kubota - K5272-1
The Maverick 260X is an advanced engine-driven welder with the perfect combination of size, performance, and innovation. This best-in-class arc welding machine provides substantial power and promotes fuel savings with auto start/stop capability. In addition, the machine boasts an advanced user interface on a heavy-duty 4.6 in. weatherproof LCD screen. The machine also features CrossLinc technology, which allows the adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality.
Experience professional-grade welding versatility with the Lincoln Maverick 260X, the industry's most advanced compact diesel-powered welding generator delivering exceptional performance in an optimized footprint. This innovative system combines substantial welding capability with intelligent power management and digital controls, providing contractors and maintenance professionals with a modern solution for diverse field applications. Engineered specifically for work truck installation and mobile operations, the streamlined design maximizes available space while providing the robust 300-amp output and 9kW auxiliary power required for demanding professional applications. The advanced digital interface with weatherproof 4.6-inch LCD display represents a significant advancement in operator control and system monitoring, establishing a new standard for user experience in engine-driven welding equipment.
Designed for exceptional welding performance across multiple processes, the Maverick 260X delivers precise arc control for stick, TIG, MIG, and flux-cored applications with specialized output characteristics optimized for each welding method. The system provides dedicated support for direct-connect spool gun applications, enabling aluminum welding capability without additional interface modules or complex setup procedures. Enhanced with Lincoln's exclusive CrossLinc Technology, the system enables remote parameter adjustment at the welding location without control cables, significantly improving productivity by eliminating trips to the power source while enhancing jobsite safety through reduced cable management requirements. The intelligent interface provides comprehensive digital control including process setup, parameter adjustment, maintenance scheduling and PIN authorization, enabling supervisor control of machine usage and settingsโa critical feature for rental and fleet operations.
Engineered for exceptional operational efficiency and reduced total cost of ownership, the Maverick 260X incorporates advanced Auto-Stop/Start technology that automatically shuts down the engine during idle periods, significantly reducing fuel consumption, engine wear, and maintenance requirements. The substantial 12-gallon fuel capacity combined with this intelligent power management system enables extended operation without refueling interruptions. Powered by a reliable 16.8 HP Kubota Z602 two-cylinder water-cooled diesel engine meeting EPA Tier 4 Final emissions standards, the system delivers dependable performance in extreme environments with excellent cold-weather starting capability. The impressively quiet operation with just 77.1 dB sound rating at idle and 82.6 dB under load minimizes jobsite disruption while improving operator comfort during extended use. For contractors requiring professional welding capability with maximum efficiency in a compact platform, the Lincoln Maverick 260X represents the ultimate combination of performance, control, and operational economy in the industry's most advanced compact diesel-powered welder generator.
Key Features
- Compact High-Performance Design - Optimized footprint with substantial 300-amp welding output and 9kW clean single-phase auxiliary power in a work-truck friendly package weighing just 620 lbs.
- Advanced Digital Control Interface - Durable 4.6-inch weatherproof LCD display provides comprehensive control of all system functions with intuitive process selection, maintenance scheduling, and secure PIN authorization.
- Multi-Process Welding Capability - Specialized output modes for stick, TIG, MIG, flux-cored processes, and direct-connect spool gun applications enable complete application versatility without additional interface equipment.
- Integrated CrossLinc Remote Control - Exclusive technology enables parameter adjustment at the welding location without control cables, improving productivity, safety, and quality through reduced cable management and fewer trips to the power source.
- Intelligent Auto-Stop/Start System - Advanced engine management automatically reduces idle time, significantly lowering fuel consumption, decreasing noise and environmental impact, and extending service intervals.
- Premium Kubota Water-Cooled Diesel Engine - Reliable 16.8 HP naturally aspirated Z602 power plant delivers consistent performance in extreme conditions while meeting EPA Tier 4 Final emissions standards with exceptional fuel efficiency.
- Superior Noise Reduction - Remarkably quiet operation with just 77.1 dB sound level at idle and 82.6 dB under full load improves operator comfort and enables operation in noise-sensitive environments.
- Enhanced Carbon Arc Gouging Capability - Supports 3/16-inch (5.0 mm) carbon electrodes with specialized gouging mode providing smooth material removal and stable arc characteristics without engine stalling.
Specifications
| Dimensions (H x W x D) | 39.25 in x 21.25 in x 42.34 in (997 mm x 540 mm x 1076 mm) |
| Net Weight | 620 lbs (281 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| Open Circuit Voltage | 80 Peak OCV at 3600 RPM |
| IEC Rating | 260A / 30.4V / 100% @ 104ยฐF (40ยฐC) |
| Output Range by Mode | Stick (SMAW): 35 - 300 Amps CV Wire (GMAW, FCAW-S, FCAW-G): 13 - 40 Volts DC TIG (GTAW): 25 - 300 Amps Arc Gouging (CAC-A): 100 - 300 Amps |
| Rated Gouging Carbon Diameter | 3/16 in (5.0 mm) |
| Data Technologies | USB |
| Machines Communication Technology | CrossLinc |
| Amphenol Pins (type of connector) | 6 7 |
| Single Phase Auxiliary Output | 9,000 Watts Continuous, 120/240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R |
| Engine Brand & Model | Kubota Z602 |
| Engine Description | 2 Cylinder Naturally Aspirated Water Cooled Diesel Engine |
| Engine Horsepower | 16.8 hp (12.36 kW) |
| Engine Block Size & Displacement | 36.55 cu. in (599 L) Bore x Stroke - 2.83 in x 2.90 in (72 mm x 73.6 mm) |
| Emissions Rating | US EPA Tier 4 Final |
| High Idle Operating Speed @ Rated Output | 3600 |
| Low Idle Operating Speed | 2500 |
| Sound Rating @23 ft. (7m) | Idle: 77.1 dB Max Load: 82.6 dB |
| Fuel Tank Size (US gal.) | 12 US gal. |
| Fuel Tank Size (L) | 45.4 L |
| Oil Capacity (qts.) | 2.64 qts. |
| Oil Capacity (L) | 2.5 L |
| Coolant Capacity (US gal.) | 0.74 US gal. |
| Coolant Capacity (L) | 3.1 L |
| Max OCV | 80 OCV |
| Typical Application | Construction Repair Welding Structural Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
