What shielding gas should I use with the Lincoln TZ100X-32 Zeron100X TIG GTAW Welding Rod Cut Lengths, 1/8in. 5kg Tubes?

TIG welding shielding gas selection: use pure argon (99.995% purity) for most TIG applications including steel, stainless, aluminum, and titanium. Helium additions (25–75% He/Ar mix) increase heat input and travel speed for heavy section work and aluminum welding where higher deposition is needed. Never use CO2 or mixed gases designed for MIG welding in TIG torches.

What is the AWS classification of the Lincoln TZ100X-32 Zeron100X TIG GTAW Welding Rod Cut Lengths, 1/8in. 5kg Tubes?

The Lincoln TZ100X-32 Zeron100X TIG GTAW Welding Rod Cut Lengths, 1/8in. 5kg Tubes carries AWS ER2594 classification, confirming it meets the American Welding Society's chemical composition and mechanical property requirements for that filler metal category. The AWS classification appears on the rod tube label and verifies the rod's chemistry for code-compliance welding procedures (WPS/PQR).

Lincoln TZ100X-32 Zeron100X TIG GTAW Welding Rod Cut Lengths, 1/8in. 5kg Tubes

Q: What is the Lincoln TZ100X-32 Zeron100X TIG GTAW Welding Rod Cut Lengths, 1/8in. 5kg Tubes used for?

TIG (GTAW) filler rods are used in the gas tungsten arc welding process, where the welder manually feeds the rod into the weld pool while maintaining the arc with the torch. TIG welding produces the highest quality, lowest spatter welds and is the process of choice for precision work on stainless, aluminum, titanium, and exotic alloys.

Q: What diameter is the Lincoln TZ100X-32 Zeron100X TIG GTAW Welding Rod Cut Lengths, 1/8in. 5kg Tubes available in, and how do I choose the right size?

TIG filler rod diameter selection: match the rod diameter approximately to the base metal thickness. 1/16 in (1.6 mm) for thin sheet, 3/32 in (2.4 mm) for medium gauge, 1/8 in (3.2 mm) for heavy plate. Using a rod that is too large requires excessive heat to melt the rod and can cause overheating of thin base metal.

SKU: TZ100X-32

$395.76 ~~$401.50~~

Lincoln Elite Dealer

Free Shipping

Lowest Price

25%Cr ferritic-austenitic superduplex stainless steels wires

AWS / Classification: AWS A5.9: ER2594

Overview

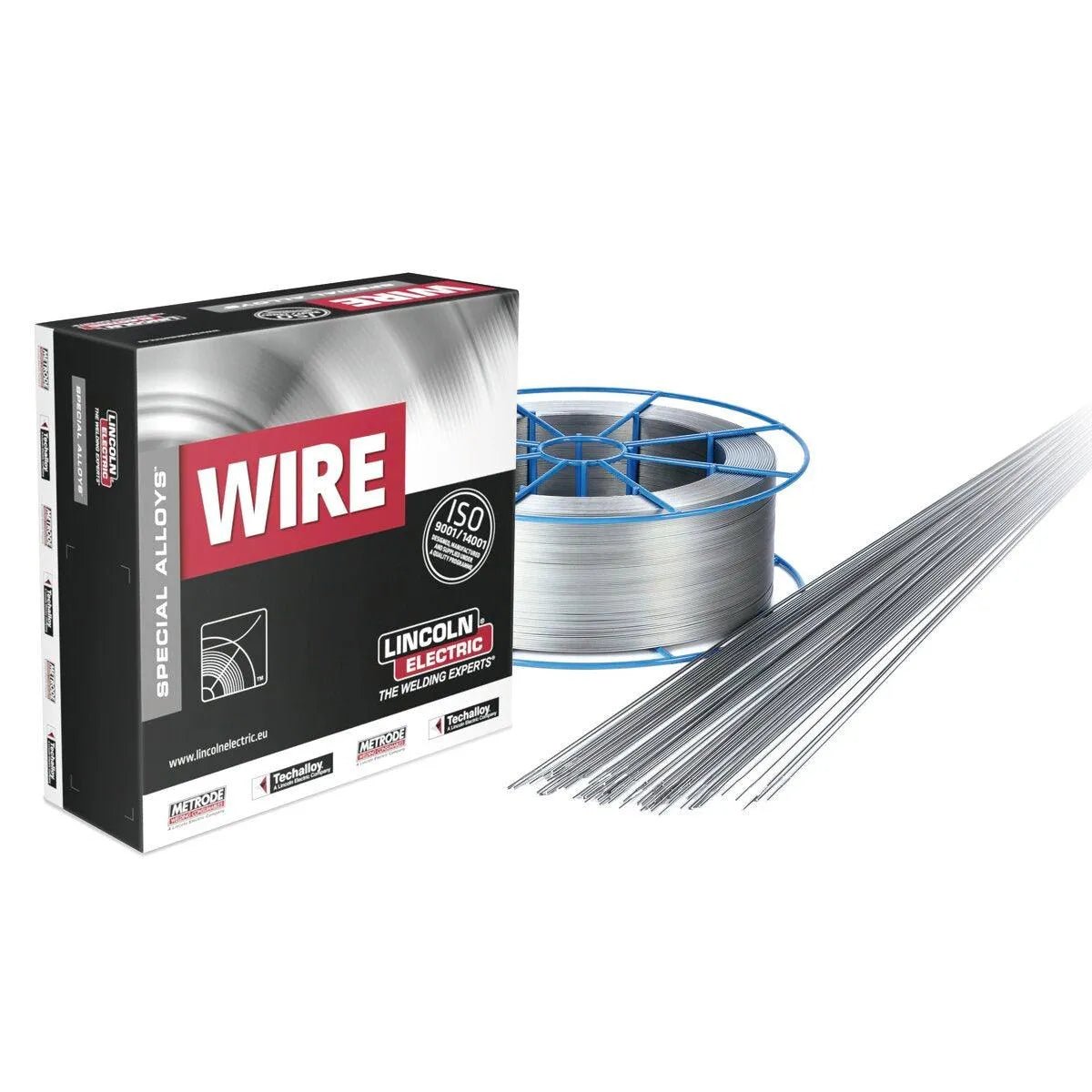

Lincoln TZ100X-32 Zeron100X TIG GTAW Welding Rod Cut Lengths, 1/8in. 5kg Tubes

Zeron 100X has an exceptional combination of strength and resistance to corrosion and erosion in a wide range of aggressive media. The presence of Cu+W provides superior resistance to sulphuric and hydrochloric acids when compared to similar alloys without these additions

Features

• Designed for strength and resistance to corrosion
• Used for joining supermartenstic stainless steels
• Superior resistance to stress corrosion cracking (SCC) and pitting corrosion
