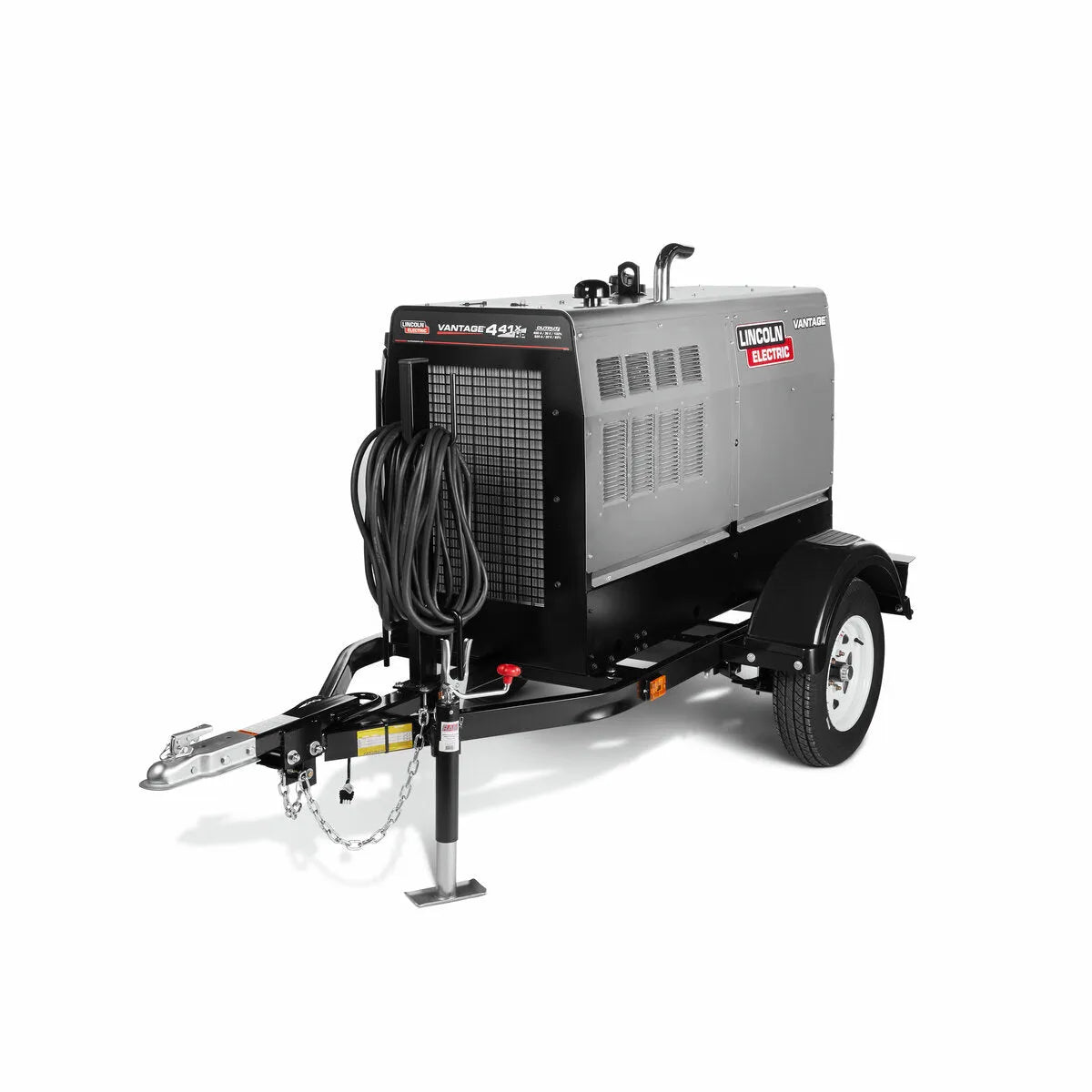

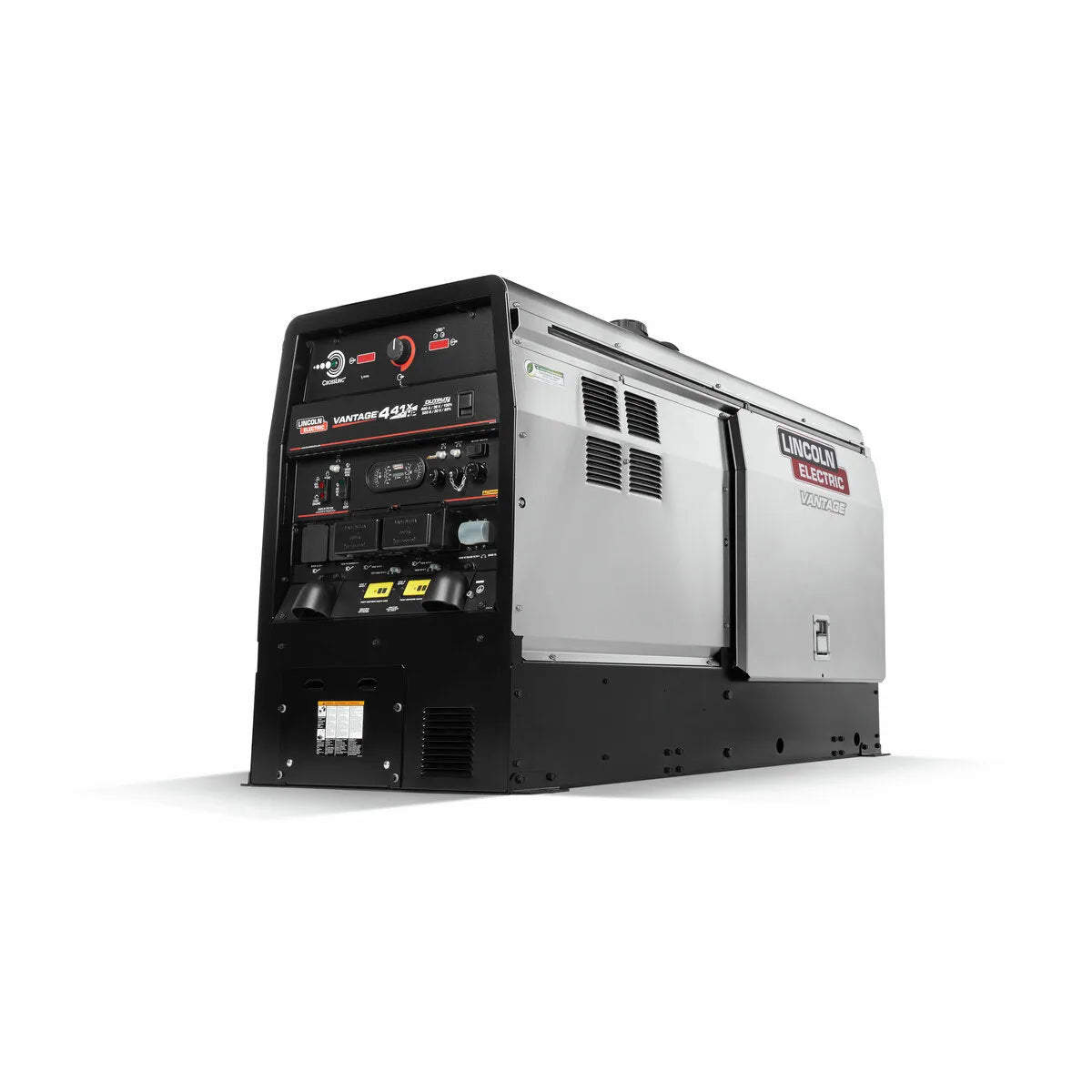

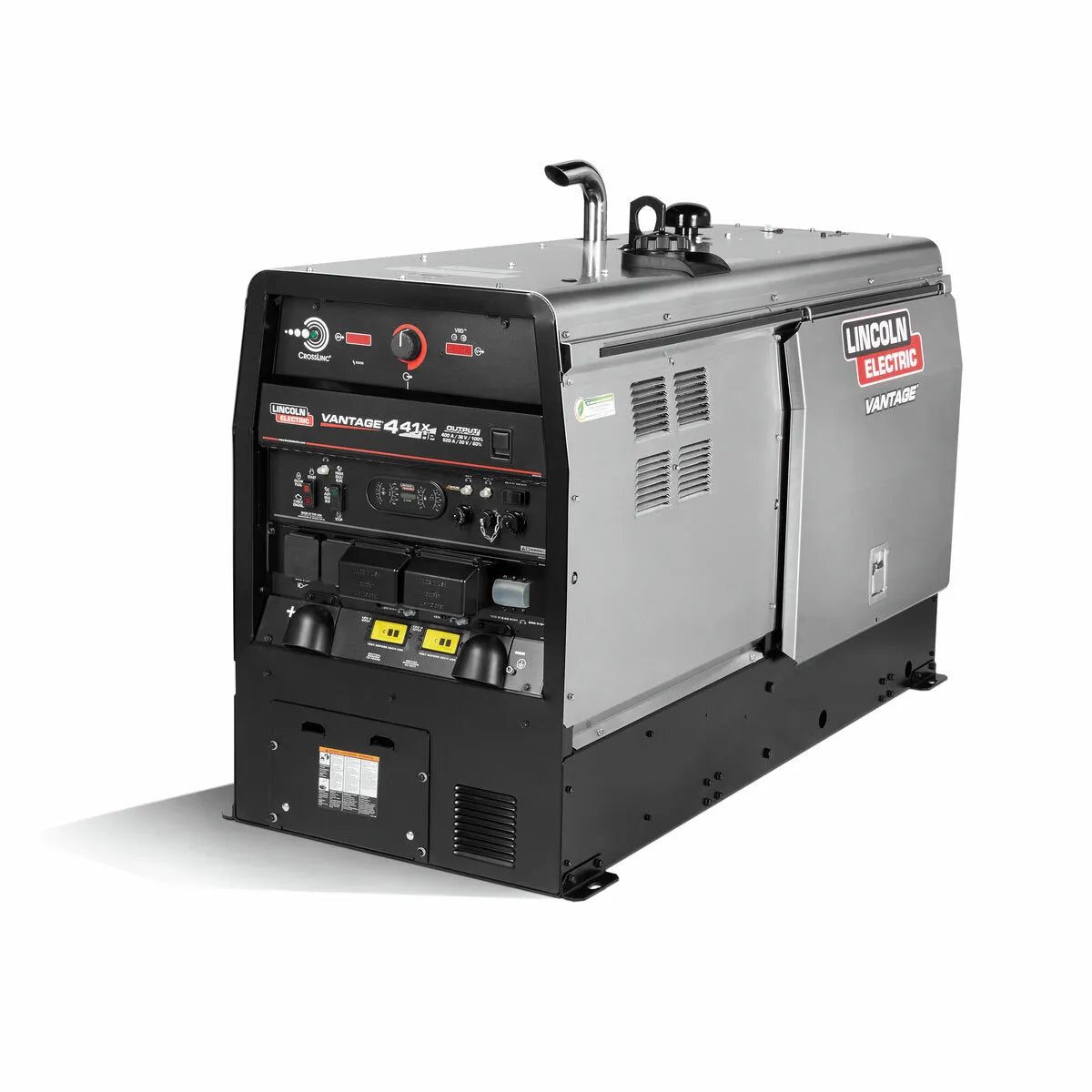

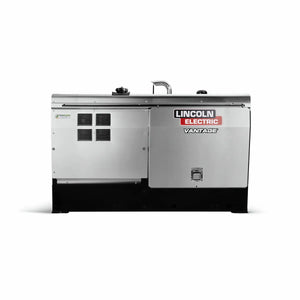

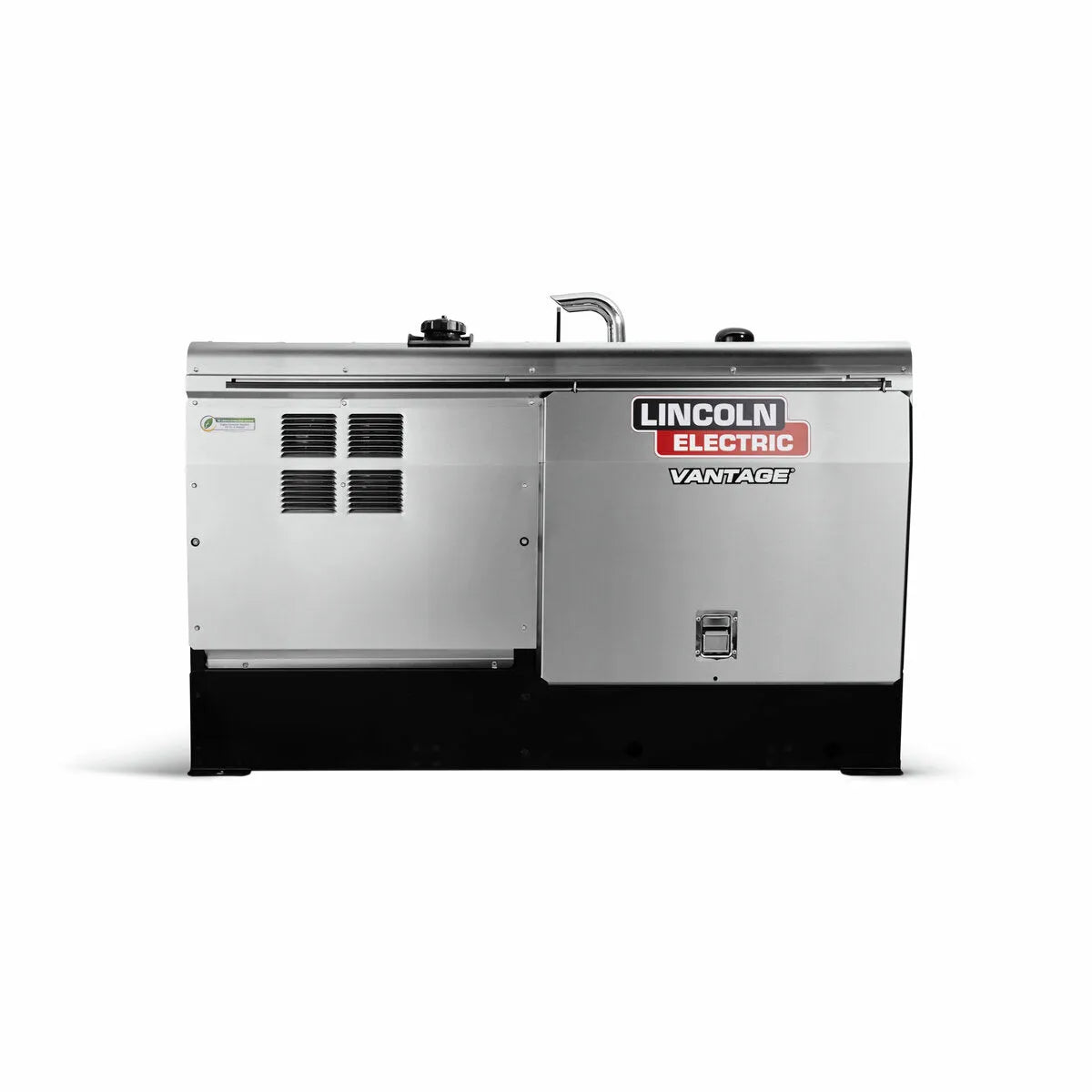

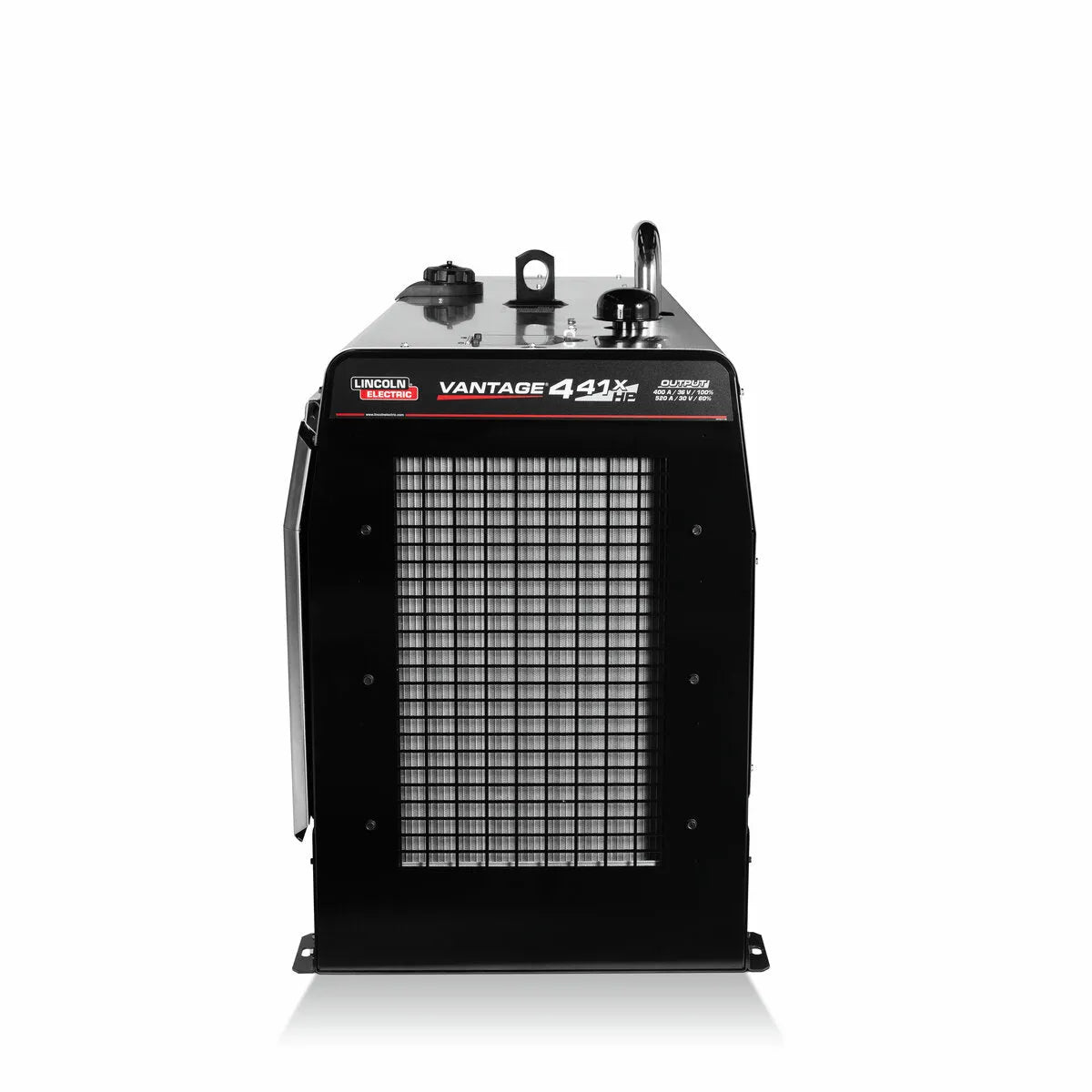

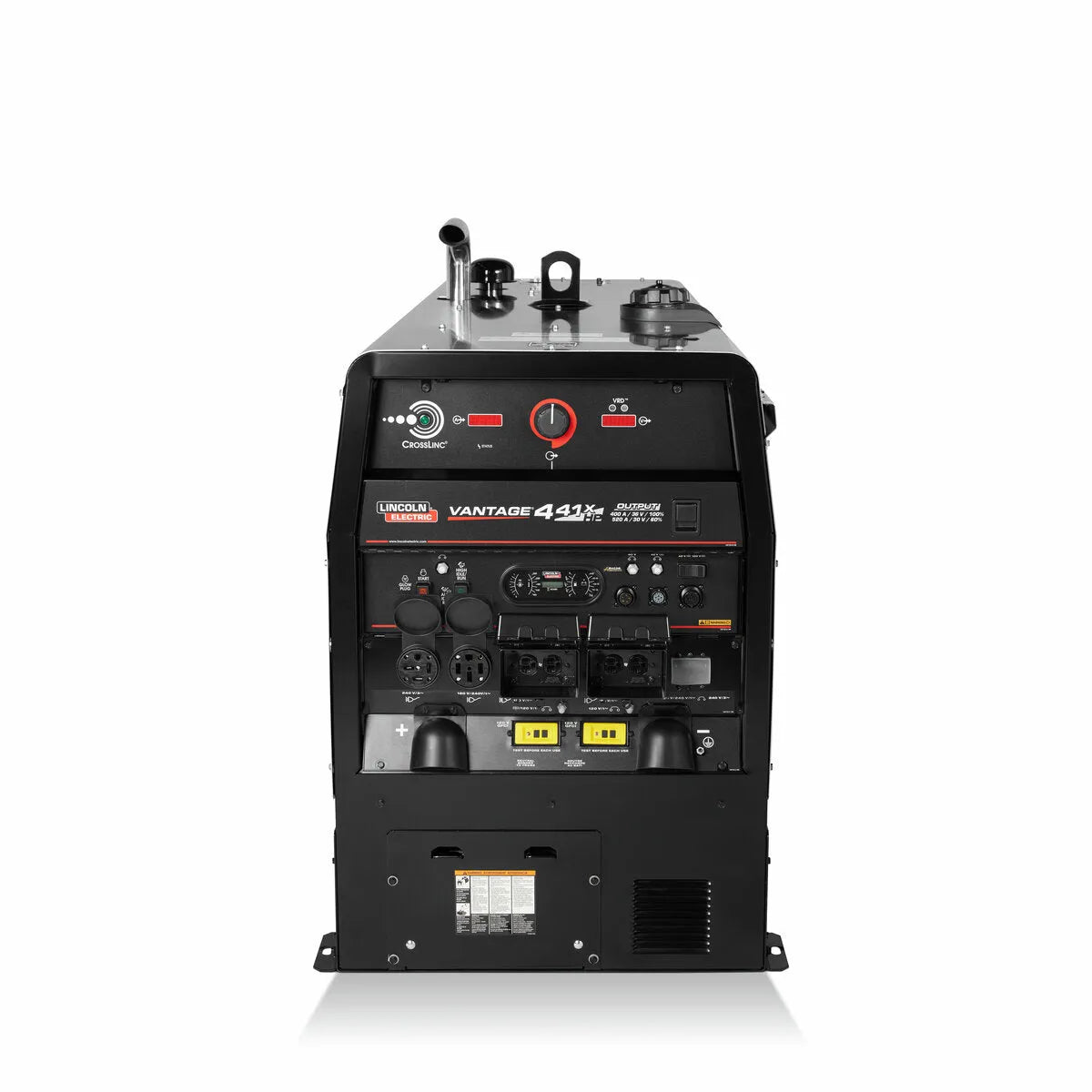

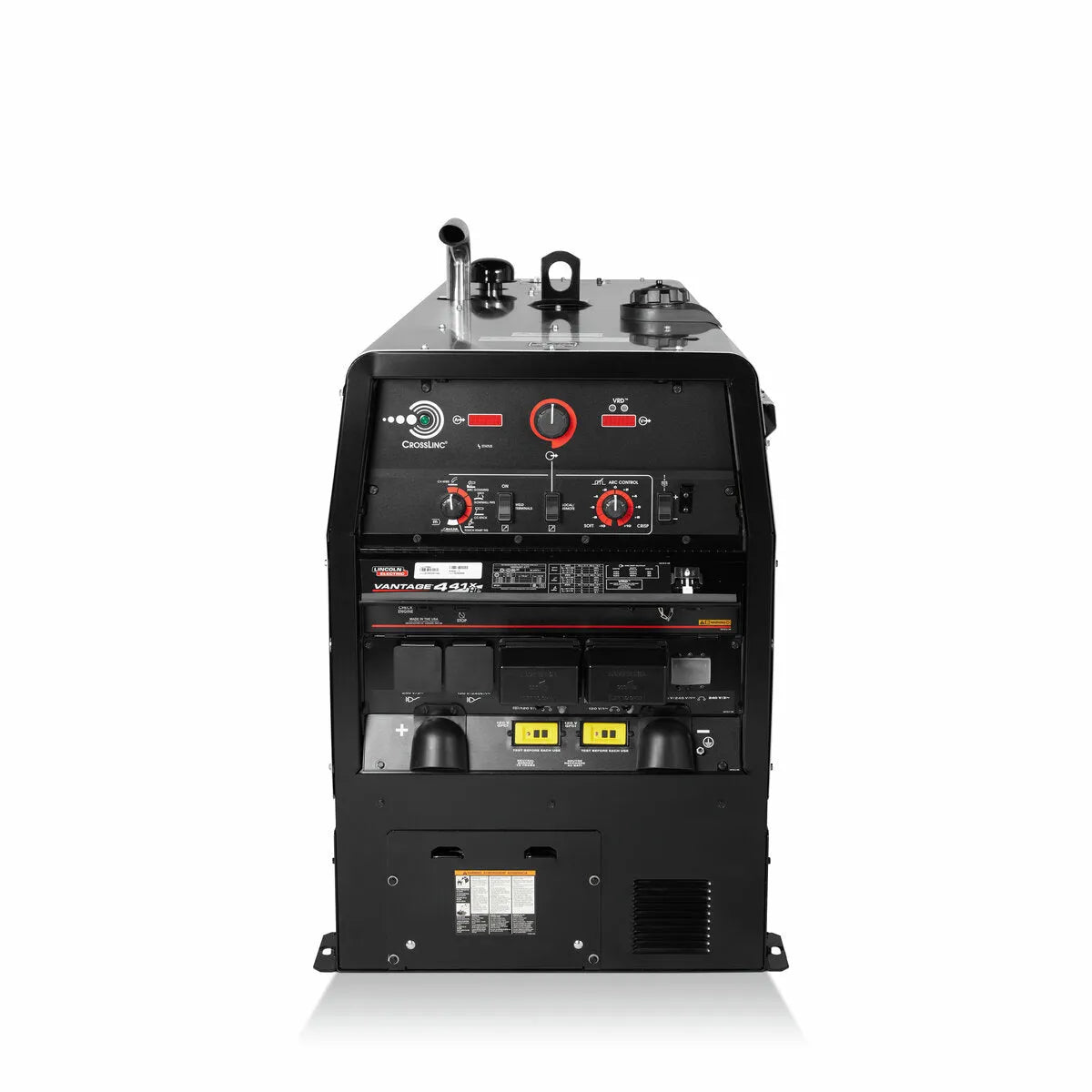

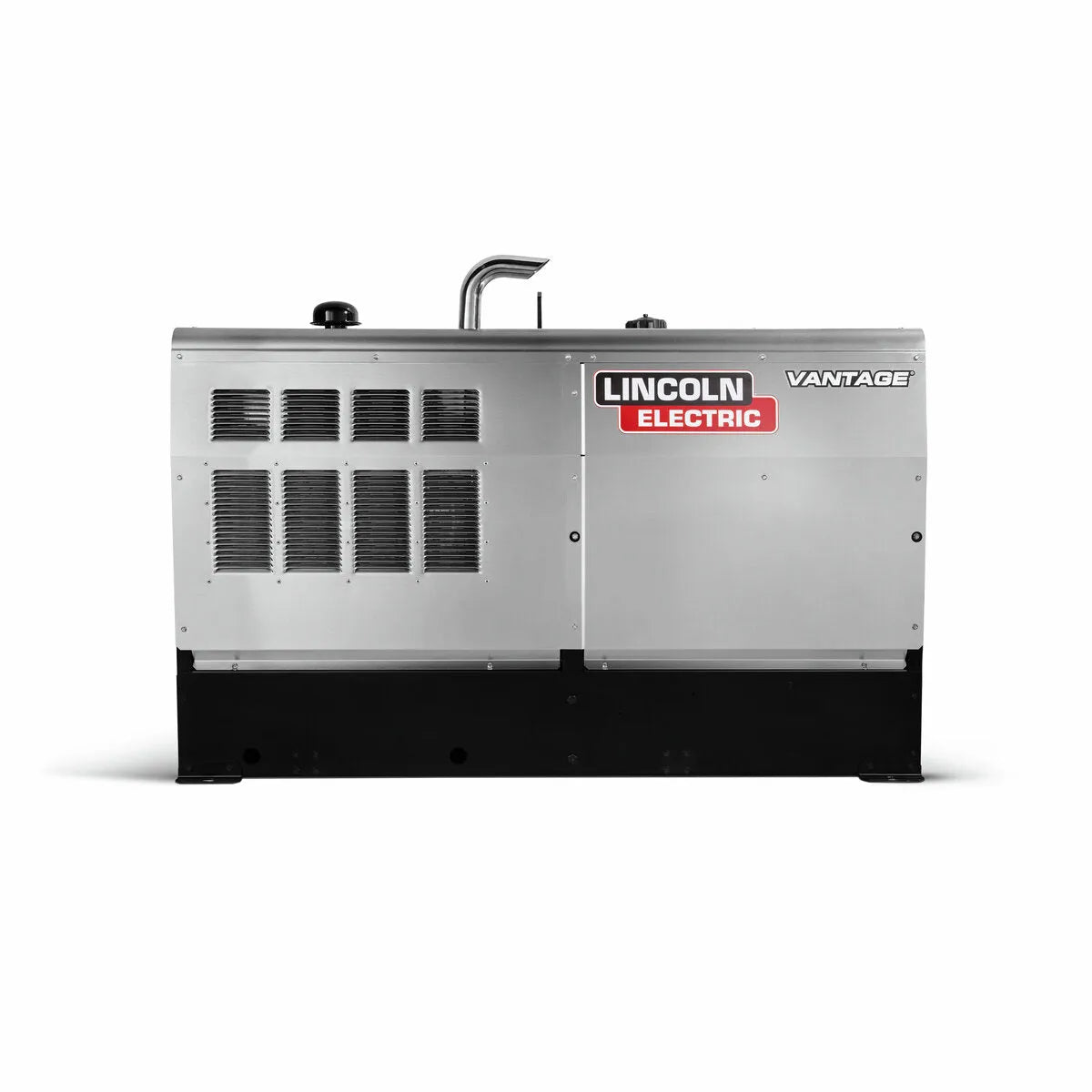

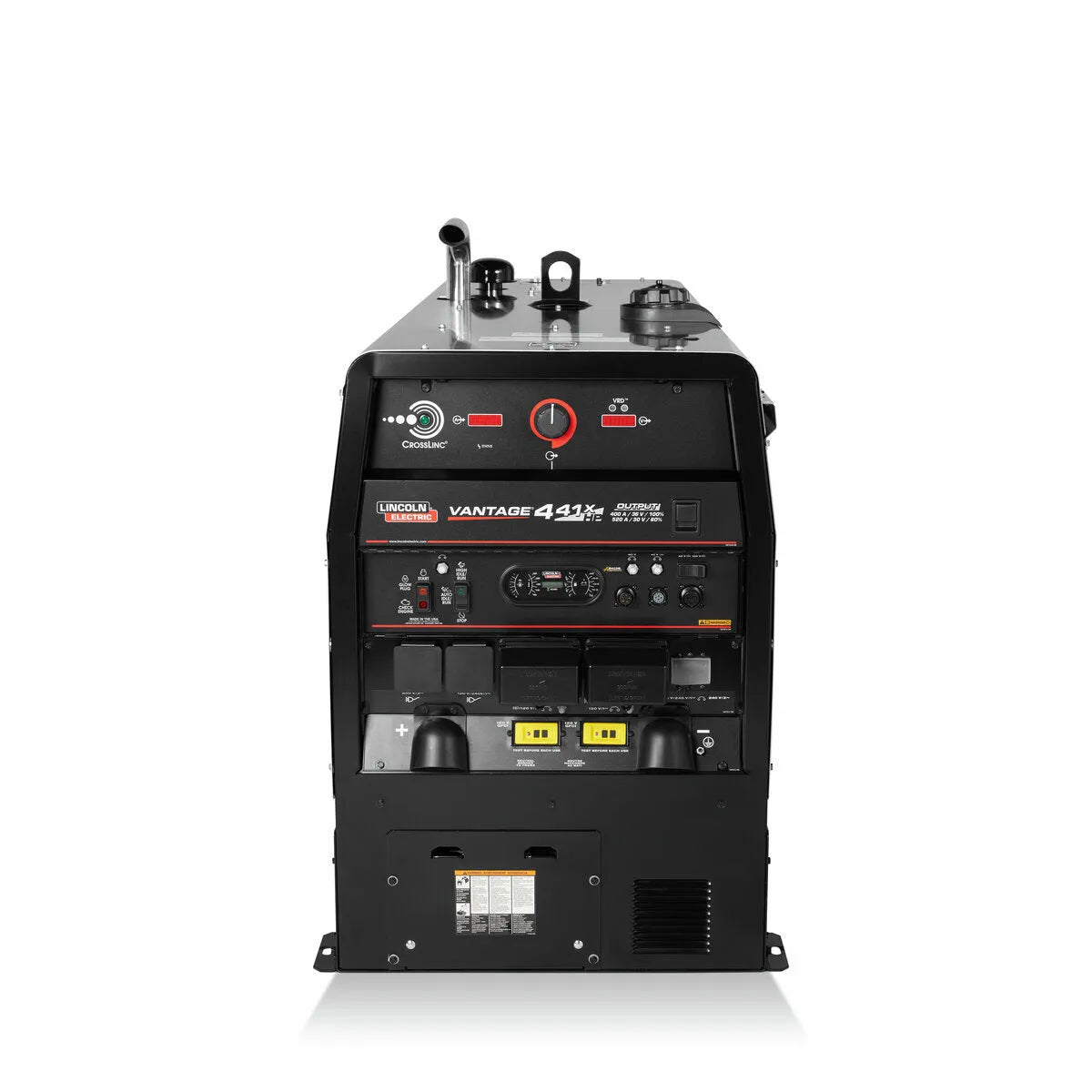

The Lincoln Vantage 441X Engine Driven Welder - K4535-1 is a high-performance diesel-powered welding solution designed for the most demanding jobsites. With a powerful 41.0 HP turbocharged Perkins engine and up to 520 amps of welding output, this machine is built to tackle everything from heavy-duty carbon arc gouging to advanced pulse MIG and TIG welding. Engineered to deliver top-tier reliability, ruggedness, and versatility, the Vantage 441X ensures professional-grade performance in extreme environments including high altitudes and cold-weather conditions.
Equipped with CrossLinc Technology, this welder enables remote voltage and current control directly at the arc—no need for additional control cables—helping reduce jobsite clutter and improve operator safety and efficiency. The Vantage 441X offers advanced welding capabilities including customized modes for stainless steel, aluminum, and steel, as well as SAW and orbital pipe applications. Its five primary welding process modes include CC-Stick, Downhill Pipe, Touch Start TIG, CV-Wire, and Arc Gouging, supporting up to 3/8 in. carbon rods for intense gouging applications.
This welder also functions as a robust power generator, delivering 11,000 watts of continuous single-phase power and 17,000 watts of three-phase power. It's more than capable of running jobsite essentials like inverter welders, plasma cutters, and heavy-duty tools. Backed by patented Chopper Technology and True Voltage Technology (TVT), the Vantage 441X ensures a smooth arc with low spatter, responsive output, and stable voltage even under long cable runs or heavy load conditions. Designed for industrial professionals, it’s the complete power and welding solution for field operations.
- Delivers up to 520 amps of welding output (IEC rated at 400A) for demanding industrial welding tasks.
- Five process modes: CC-Stick, Downhill Pipe, Touch Start TIG, CV-Wire, and Arc Gouging for maximum application versatility.
- Capable of handling up to 3/8 in. (9.5 mm) carbon rods for arc gouging.
- Generates 17,000 watts of three-phase and 11,000 watts of single-phase continuous AC power for industrial tools.
- Powered by a 41.0 HP Perkins turbocharged diesel engine that runs smoothly in high altitude and cold environments.
- CrossLinc Technology allows remote control of voltage/current at the arc through the weld cable—no control cable required.
- True Voltage Technology (TVT) compensates for voltage drops to ensure consistent performance.
- Chopper Technology enhances arc control and prevents engine stalling during heavy-duty gouging operations.
- Advanced modes for stainless steel, aluminum, orbital pipe, and low-heat input pulse welding.
- Meets US EPA Tier 4 Final emissions standards for compliance and sustainability.
| Dimensions (H x W x D) | 39.1 in x 28.4 in x 65.1 in (994 mm x 721 mm x 1654 mm) |
| Net Weight | 1414 lbs (641 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| Open Circuit Voltage | 70 Peak OCV @ 1800 RPM |
| IEC Rating | 400A / 36V / 100% @ 104°F (40°C) |
| Output Range by Mode | CC-Stick: 30–525 A Downhill Pipe (CC): 40–350 A Touch Start TIG: 20–350 A CV-Wire: 10–45 V Arc Gouging: 60–525 A |
| Rated Gouging Carbon Diameter | 3/8" (9.5 mm) |
| Machines Communication Technology | CrossLinc ArcLink |
| Single Phase Auxiliary Output | 11,000 Watts Continuous, 120/240V |
| Three Phase Auxiliary Output | 17,000 Watts Continuous, 240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R NEMA 15-50R |
| Engine Brand & Model | Perkins 404F-E22T |
| Engine Description | 4 Cylinder Turbocharged Water Cooled Diesel Engine |
| Engine Horsepower | 41.0 hp (30.6 kW) |
| Engine Block Size & Displacement | 134 cu. in. (2.2 L), Bore x Stroke – 3.30 in x 3.90 in (84 mm x 100 mm) |
| Emissions Rating | US EPA Tier 4 Final |
| High Idle Operating Speed @ Rated Output | 1800 |
| Low Idle Operating Speed | 1500 |
| Fuel Tank Size (US gal.) | 20 US gal. |
| Fuel Tank Size (L) | 75.7 L |
| Oil Capacity (qts.) | 10.0 qts. |
| Oil Capacity (L) | 9.5 L |
| Coolant Capacity (US gal.) | 2.55 US gal. |
| Coolant Capacity (L) | 9.7 L |
| Typical Application | Construction Mining Railroad Maintenance Construction & Field Erection Maintenance & Repair Offshore Oil & Gas Power Generation Shipbuilding Structural Fabrication Structural Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
