Mathey Dearman Fit-Up Pro Protractors 8"x1 1/2"x1/4" / 203x38x6.4mm - D271

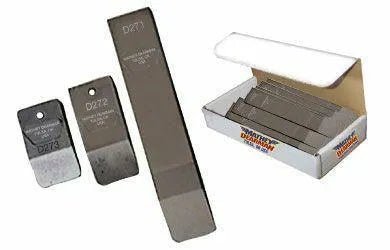

The Mathey Dearman Fit-Up Pro Protractor (D271) is a versatile tool designed to enhance precision in welding and pipefitting applications. While primarily functioning as a protractor for angle measurements, it can also serve as a spacing wedge when used with Mathey Dearman clamps, offering dual functionality in pipe fit-up processes.
Measuring 8"x1 1/2"x1/4" (203x38x6.4mm), this protractor is engineered to provide accurate angle measurements and, when necessary, can be used to create precise weld gaps. When used as a spacing wedge, it enables welders to achieve better fit-up of pipe ends by allowing for precise adjustment of the weld gap. The process involves moving pipe ends together, mounting and tightening the chain clamp or cage clamp, and then using this tool to spread the gap to the desired width.
The wedge portion of this tool, when used for spacing, is case hardened, ensuring long-lasting durability even under frequent use in demanding welding environments. Importantly, the thinner part is designed to be soft enough to prevent splintering, enhancing safety and maintaining the integrity of the pipe surfaces during the fit-up process.
Key Features
- Dimensions: 8"x1 1/2"x1/4" (203x38x6.4mm)
- Dual functionality: Protractor for angle measurements and spacing wedge for weld gaps
- Compatible with Mathey Dearman chain and cage clamps when used as a wedge
- Case hardened portion for extended lifespan
- Soft thinner part to prevent splintering when used as a wedge
- Essential for achieving optimal pipe end fit-up and accurate angle measurements
Specifications
- Model Number: D271
- Dimensions: 8"x1 1/2"x1/4" (203x38x6.4mm)
- Material: Case hardened steel with softer thin edge
