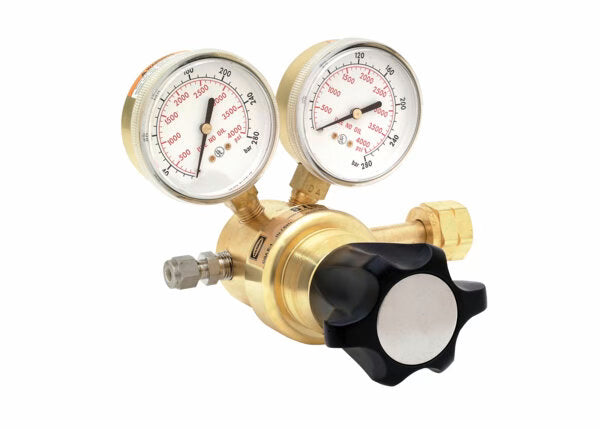

Harris HP8700-2500-580 Single Stage Argon/Nitrogen Regulator - 3200301
Model HP8700 is a Single Stage brass Argon/Nitrogen Regulator that is designed to deliver high outlet pressures from ultra high-pressure Cylinders . The Model HP8700 is suitable for high pressure testing charging accumulators and pressurizing struts for hydraulic systems and aircraft/heavy equipment.. This model features a brass body, bonnet and dual scale gauges, ergonomic plastic knob for improved grip and ease of adjustment of the delivery pressure, and one-piece encapsulated seat that is design with internal 10 micron filter and PTFE seat. It has a 1/4 in. NPT outlet with Stainless Steel 1/4 in. tube fitting.
Features
- Operates on high pressure cylinders up to 3000 psig
- Brass barstock body and bonnet and brass nozzle for longer service life
- Ergonomic ABS plastic knob for improved grip and precise adjustment
- 2.5 in. Brass barstock dual scale easy-to-read gauges (psi/bar)
- One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE seat from particulate contamination
- Urethane diaphragm for greater flexibility
- 1/4 in. NPT outlet with stainless steel 1/4 in. tube fitting
- Suitable for high pressure testing, charging accumulators and pressurizing aircraft struts
- Conforms to CGA E-4 standard for gas pressure regulators
- Self-relieving for safety
Specifications
Equipment
| Adjusting Knob | ABS plastic |
| Body | Brass barstock |
| Bonnet | Brass barstock |
| Capacity | Ultra high pressure |
| Certification | CGA E-4 |
| Cv | 0.08 |
| Delivery Pressure Gauge (PSIG) | 4000 |
| Delivery Pressure Range (PSIG) | 0 - 2500 |
| Diaphragm | Urethane |
| Filter | Nickel-plated sintered bronze - 10 micron |
| Gas / Gas Service | Argon Helium Krypton Neon Nitrogen Xenon |
| Gauges | 2.5 in. Brass dual scale (psi/bar) |
| Inlet Connection | CGA 580 self-venting |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Outlet Connection | 1/4 in. NPT with 1/4 in. stainless steel tube fitting |
| Pressure Regulation PSIG/100 PSIG | 3.3 |
| Recommended Items/Accessories | Panel Mount Nut - PN 9100887 |
| Seat | PCTFE (Kel-F™) |
| Seat Return Spring | PH-17-7 Stainless steel |
| Supply Pressure Gauge (PSIG) | 4000 |
Warranty
| Warranty | 1 Year |
