Lincoln Electric  |  SKU: ED033990

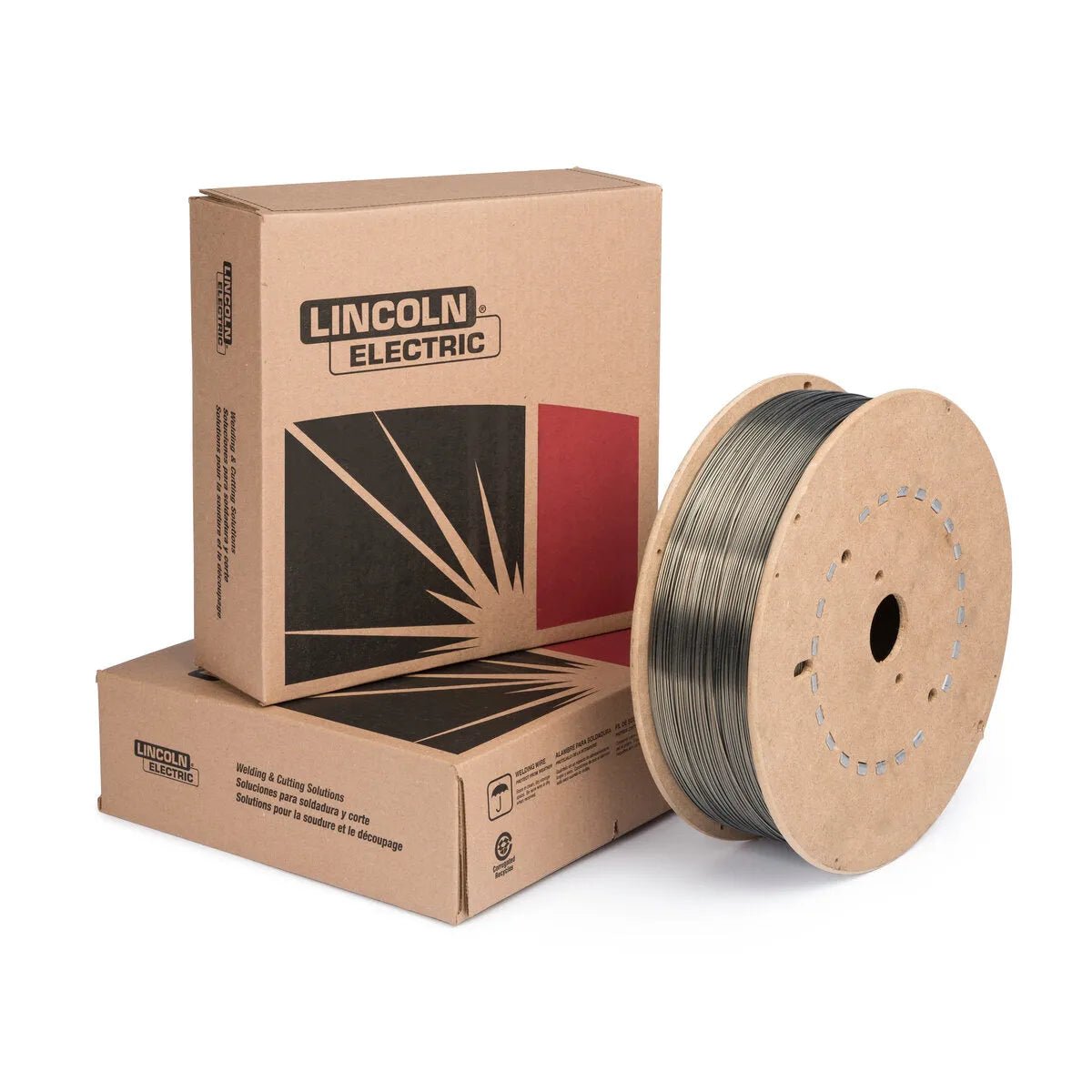

Lincoln ED033990 UltraCore HD-M Flux-Cored FCAW-G Welding Wire, 0.052 Inch Diameter, 33 lb Spool.

$149.49
UltraCore® HD-M from Lincoln Electric is a mild steel, gas-shielded flux-cored wire designed to provide high deposition rates and flat bead appearance.
AWS / Classification: E71T-9M-H8, E71T1-M21A2-CS1-H8

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln ED033990 UltraCore HD-M Flux-Cored FCAW-G Welding Wire, 0.052 Inch Diameter, 33 lb Spool.

UltraCore HD-M is a mild steel, gas-shielded flux-cored wire designed to provide high deposition rates and flat bead appearance required in many out-of-position applications.

Features

  • Increase weld deposition to more than 10 lbs./hr. out-of-position
  • Fast freezing slag for a flat bead shape and increased productivity in all positions, including vertical up
  • Operators can set the machine on a single setting and weld in all positions

Lincoln ED033990 UltraCore HD-M Flux-Cored FCAW-G Welding Wire, 0.052 Inch Diameter, 33 lb Spool.

UltraCore HD-M is a mild steel, gas-shielded flux-cored wire designed to provide high deposition rates and flat bead appearance required in many out-of-position applications.

Features

  • Increase weld deposition to more than 10 lbs./hr. out-of-position
  • Fast freezing slag for a flat bead shape and increased productivity in all positions, including vertical up
  • Operators can set the machine on a single setting and weld in all positions

Includes
What's Included
  • (1) 33 lb Spool

Specifications
CONFORMANCE
CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.20 E71T-1M-H8, E71T-9M-H8
AWS AWS A5.36 E71T1-M21A2-CS1-H8
ABS ABS - Part 2 3YSA H10
CWB CSA W48 E491T1-M21A3-CS1-H8 (E491T-9M-H8)
DNV-GL DNV - 2.9 III YMS H10
LR LR - Chapter 11 3YS H10
MECHANICAL PROPERTIES
Classification Shielding Gas Polarity Yield Strength @ 0.2% Offset, MPa (ksi) Tensile Strength, MPa (ksi) Elongation, % Charpy V-Notch, J (ft-lbs) @ -20°C (0°F) Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E71T-1M-H8 Requirement 75-80% Ar, balance CO2 DC+ 400 (58) min. 480-660 (70-95) 22 min. 27 (20) min.
E71T-9M-H8 Requirement 75-80% Ar, balance CO2 DC+ 400 (58) min. 480-660 (70-95) 22 min. 27 (20) min.
E71T1-M21A2-CS1-H8 Requirement M21-ArC DC+ 400 (58) min. 480-660 (70-95) 22 min. 27 (20) min.
Typical Result, As-welded 75% Ar, 25% CO2 DC+ 540 (78) 600-650 (87-95) 22 34-39 (25-29) 29-128 (21-94)
DEPOSIT COMPOSITION
Classification Shielding Gas Polarity %B %C %Mn %P %S %Si Diffusible Hydrogen, mL/100g Weld Metal
E71T-1M-H8 Requirement 75-80% Ar, balance CO2 DC+ 0.12 max. 1.75 max. 0.03 max. 0.03 max. 0.90 max. 8.0 max.
E71T-9M-H8 Requirement 75-80% Ar, balance CO2 DC+ 0.12 max. 1.75 max. 0.03 max. 0.03 max. 0.90 max. 8.0 max.
E71T1-M21A2-CS1-H8 Requirement M21-ArC DC+ 0.12 max. 1.75 max. 0.030 max. 0.030 max. 0.90 max. 8 max.
Typical Result 75% Ar, 25% CO2 DC+ 0.003-0.0068 0.04-0.06 1.35-1.58 0.01-0.015 0.01 max. 0.45-0.58 3.3-8
TYPICAL OPERATING PROCEDURES
Diameter Shielding Gas Polarity CTWD, mm (in.)⁽¹⁾ Wire Feed Speed, m/min (in/min) Voltage, volts Approx. Current, amps Melt-off Rate, kg/hr (lb/hr) Deposition Rate, kg/hr (lb/hr) Efficiency, %
0.045 in (1.1 mm) 75% Ar / 25% CO2 DC+ 25 (1) 4.4 (175) 21-26 130 1.8 (4.0) 1.6 (3.5) 87 - 88
0.045 in (1.1 mm) 75% Ar / 25% CO2 DC+ 25 (1) 6.4 (250) 22-27 155 2.6 (5.7) 2.3 (5.0) 87 - 88
0.045 in (1.1 mm) 75% Ar / 25% CO2 DC+ 25 (1) 7.6 (300) 23-28 170 3.1 (6.9) 2.7 (6.0) 87 - 88
0.045 in (1.1 mm) 75% Ar / 25% CO2 DC+ 25 (1) 8.9 (350) 23-29 190 3.6 (8.0) 3.2 (7.0) 87 - 88
0.045 in (1.1 mm) 75% Ar / 25% CO2 DC+ 25 (1) 10.2 (400) 25-30 205 4.1 (9.1) 3.6 (8.0) 87 - 88
0.045 in (1.1 mm) 75% Ar / 25% CO2 DC+ 25 (1) 11.4 (450) 26-31 225 4.7 (10.3) 4.1 (9.0) 87 - 88
0.045 in (1.1 mm) 75% Ar / 25% CO2 DC+ 25 (1) 12.7 (500) 27-33 230 5.2 (11.4) 4.5 (9.9) 87 - 88
0.045 in (1.1 mm) 75% Ar / 25% CO2 DC+ 25 (1) 14.0 (550) 28-33 245 5.7 (12.6) 4.9 (10.9) 87 - 88
0.045 in (1.1 mm) 75% Ar / 25% CO2 DC+ 25 (1) 15.2 (600) 28-34 265 6.2 (13.7) 5.4 (11.9) 87 - 88
.052" (1.3 mm) 75% Ar / 25% CO2 DC+ 25 (1) 3.8 (150) 22-26 145 2.0 (4.5) 1.8 (3.9) 87 - 88
.052" (1.3 mm) 75% Ar / 25% CO2 DC+ 25 (1) 5.1 (200) 23-27 170 2.7 (6.0) 2.4 (5.2) 87 - 88
.052" (1.3 mm) 75% Ar / 25% CO2 DC+ 25 (1) 6.4 (250) 23-28 190 3.4 (7.5) 2.9 (6.5) 87 - 88
.052" (1.3 mm) 75% Ar / 25% CO2 DC+ 25 (1) 7.6 (300) 24-29 215 4.1 (9.0) 3.5 (7.8) 87 - 88
.052" (1.3 mm) 75% Ar / 25% CO2 DC+ 25 (1) 8.9 (350) 24-30 235 4.8 (10.5) 4.1 (9.1) 87 - 88
.052" (1.3 mm) 75% Ar / 25% CO2 DC+ 25 (1) 9.5 (375) 25-30 250 5.1 (11.2) 4.4 (9.8) 87 - 88
.052" (1.3 mm) 75% Ar / 25% CO2 DC+ 25 (1) 10.8 (425) 26-31 270 5.8 (12.7) 5.0 (11.1) 87 - 88
.052" (1.3 mm) 75% Ar / 25% CO2 DC+ 25 (1) 12.1 (475) 26-32 295 6.4 (14.2) 5.6 (12.4) 87 - 88
.052" (1.3 mm) 75% Ar / 25% CO2 DC+ 25 (1) 12.7 (500) 27-33 305 6.8 (15.0) 5.9 (13.0) 87 - 88
1/16 in (1.6 mm) 75% Ar / 25% CO2 DC+ 25 (1) 3.8 (150) 22 - 26 195 2.9 (6.3) 2.5 (5.5) 86 -87
1/16 in (1.6 mm) 75% Ar / 25% CO2 DC+ 25 (1) 4.4 (175) 23 - 26 215 3.4 (7.4) 2.9 (6.4) 86 -87
1/16 in (1.6 mm) 75% Ar / 25% CO2 DC+ 25 (1) 5.1 (200) 23 - 27 235 3.8 (8.4) 3.3 (7.3) 86 -87
1/16 in (1.6 mm) 75% Ar / 25% CO2 DC+ 25 (1) 5.7 (225) 24 - 28 255 4.3 (9.5) 3.7 (8.2) 86 -87
1/16 in (1.6 mm) 75% Ar / 25% CO2 DC+ 25 (1) 6.4 (250) 25 - 29 270 4.8 (10.5) 4.1 (9.1) 86 -87
1/16 in (1.6 mm) 75% Ar / 25% CO2 DC+ 25 (1) 7.6 (300) 25 - 30 310 5.7 (12.6) 5.0 (11.0) 86 -87
1/16 in (1.6 mm) 75% Ar / 25% CO2 DC+ 25 (1) 8.3 (325) 26 - 31 330 6.2 (13.7) 5.4 (11.9) 86 -87
1/16 in (1.6 mm) 75% Ar / 25% CO2 DC+ 25 (1) 8.9 (350) 28 - 32 350 6.7 (14.7) 5.8 (12.8) 86 -87
1/16 in (1.6 mm) 75% Ar / 25% CO2 DC+ 25 (1) 10.2 (400) 28 - 33 390 7.6 (16.8) 6.6 (14.6) 86 -87
LECO Diameter 0.052 in (1.3 mm)
LECO Package 33 lb Spool
Diameter (in) 0.052

Lincoln ED033990 UltraCore HD-M Flux-Cored FCAW-G Welding Wire, 0.052 Inch Diameter, 33 lb Spool.

UltraCore HD-M is a mild steel, gas-shielded flux-cored wire designed to provide high deposition rates and flat bead appearance required in many out-of-position applications.

Features

  • Increase weld deposition to more than 10 lbs./hr. out-of-position
  • Fast freezing slag for a flat bead shape and increased productivity in all positions, including vertical up
  • Operators can set the machine on a single setting and weld in all positions

Lincoln ED033990 UltraCore HD-M Flux-Cored FCAW-G Welding Wire, 0.052 Inch Diameter, 33 lb Spool.

UltraCore HD-M is a mild steel, gas-shielded flux-cored wire designed to provide high deposition rates and flat bead appearance required in many out-of-position applications.

Features

  • Increase weld deposition to more than 10 lbs./hr. out-of-position
  • Fast freezing slag for a flat bead shape and increased productivity in all positions, including vertical up
  • Operators can set the machine on a single setting and weld in all positions
