Harris  |  SKU: 4403213

HMD 601 Oxygen Acetylene Port-A-Torch Kit without Cylinders for CGA 540/200 - 4403213

$409.87 $528.78
Harris - Port-A-Torch® kit without cylinders is made with Harris - ’s 3-tube cutting attachment design and thread. This kit is can cut up to 4 in., braze up to 3 in. copper tube and weld up to ½ in.
Warranty: Regulators: 7 Years; All other components: 1 Year

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

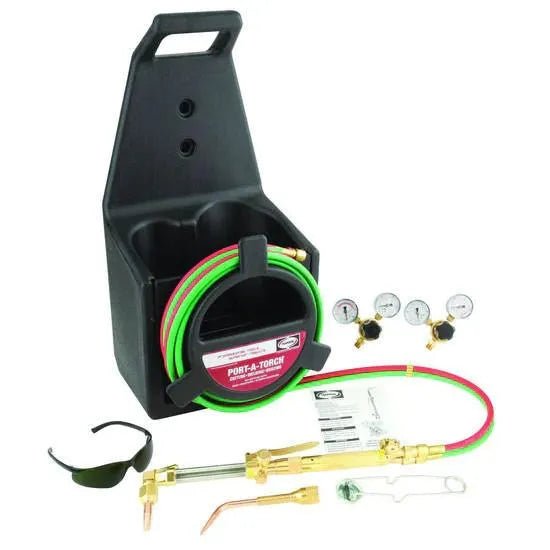

HMD 601 Oxygen Acetylene Port-A-Torch Kit without Cylinders for CGA 540/200 - 4403213



Harris Model HMD 601 Oxygen Acetylene Port-A-Torch kit without Cylinders contains all the quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases all in a convenient portable carrying case. The kit can cut up 4 in. (101.6mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 3 in. (76.2mm) diameter copper tube and is supplied with a size tip for brazing copper up to ¾ in. (19.1mm) tube. The kit is capable of welding up to 1/2 in. (12.7mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.

Features
  • Medium Duty Port-A-Torch 3-tube design kit with Cylinders designed to be used with oxygen and acetylene gases.
  • Regulator oxygen and acetylene Harris Model 601 with 50mm dual scale plastic gauges, notched adjusting knob and our distinguished internal encapsulated seat filter. Oxygen Regulator that delivers up 80 psi and acetylene that Regulator delivers up 15 psi.
  • Torch handle Harris Model 85 has twin-tube, silver-brazed connections and is equipped with external replaceable FlashGuard check valves.
  • Cutting attachment Harris Model 72-3 features brazed triangular stainless-steel tubes, fold-forward cutting lever, ease-on cutting valve and solid brass head.
  • Consumables included - cutting tip Harris Model 6290-1AC, mixer Harris Model D85 and welding/brazing tip Harris Model 23A90-3.
  • Accessories included - Shade 5 safety glasses (ANSI Z87.1 CE Weld);Handheld ignitor;3/16 in. x 12 ft. twin BxB R-grade hose;No. 5 chrome acetylene Cylinder wrench;black plastic PAT hose reel tote - Cylinders shipped empty

HMD 601 Oxygen Acetylene Port-A-Torch Kit without Cylinders for CGA 540/200 - 4403213



Harris Model HMD 601 Oxygen Acetylene Port-A-Torch kit without Cylinders contains all the quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases all in a convenient portable carrying case. The kit can cut up 4 in. (101.6mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 3 in. (76.2mm) diameter copper tube and is supplied with a size tip for brazing copper up to ¾ in. (19.1mm) tube. The kit is capable of welding up to 1/2 in. (12.7mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.

Features
  • Medium Duty Port-A-Torch 3-tube design kit with Cylinders designed to be used with oxygen and acetylene gases.
  • Regulator oxygen and acetylene Harris Model 601 with 50mm dual scale plastic gauges, notched adjusting knob and our distinguished internal encapsulated seat filter. Oxygen Regulator that delivers up 80 psi and acetylene that Regulator delivers up 15 psi.
  • Torch handle Harris Model 85 has twin-tube, silver-brazed connections and is equipped with external replaceable FlashGuard check valves.
  • Cutting attachment Harris Model 72-3 features brazed triangular stainless-steel tubes, fold-forward cutting lever, ease-on cutting valve and solid brass head.
  • Consumables included - cutting tip Harris Model 6290-1AC, mixer Harris Model D85 and welding/brazing tip Harris Model 23A90-3.
  • Accessories included - Shade 5 safety glasses (ANSI Z87.1 CE Weld);Handheld ignitor;3/16 in. x 12 ft. twin BxB R-grade hose;No. 5 chrome acetylene Cylinder wrench;black plastic PAT hose reel tote - Cylinders shipped empty

Includes
What's Included
  • Harris - Model 601-15-200 Fuel Gas Regulator - 3000295
  • Harris - Model 601-80-540 Oxygen Regulator - 3000296
  • Harris - Model 85 Torch Handle - 1401340
  • Harris - Model 72-3 Cutting Attachment - 1300380
  • Harris - Model D-85 Mixer Assembly - 9100614
  • Harris - Model 6290-1AC Cutting Tip - 1502172
  • Harris - Model 23A90-3 Welding Tip - 1600870
  • 3/16 in. x 12 ft. Twin B & B R-grade Oxy-Acetylene Hose - 4300556
  • Safety Glasses Shade 5 - 4303629
  • Handheld Ignitor - 9004486
  • Acetylene B-Cylinder Wrench - KH231
  • Port-A-Torch Hose Reel Case - Black - 8855033
  • Trilingual Kit Manual - 9505643

Specifications
Gas / GasService Acetylene; Oxygen
Cutting Attachment Harris - Model Number 72-3
Cutting Capacity Up to 1 in. (25.4mm) plate with supplied tip(s); Up to 4 in. (101.6mm) plate with optional larger tip(s) and acetylene cylinder; Optional tip(s) sold separately
Cutting Tip Style - Acetylene-H2 (Size) 6290-1AC
Duty Light to medium
Equipped With FlashGuard® check valves - torch
Fuel Gas Regulator Harris - Model Number 601-15-200B
Gauges 50mm ABS plastic dual scale (psi/bar) - regulators
Hose Connection/Fittings BxB
Hose Size 3/16 in. x 12 ft.
Hose Type Twin Oxygen-Acetylene R-grade
Mixer Harris - Model Number D-85
Mixer Type E-Equal or positive pressure
Oxygen Regulator Harris - Model Number 601-80-540B
Seat PTFE Teflon® - regulators
Tank Connection CGA 540B; CGA 200B
Torch Handle Harris - Model Number 85
Welding Capacity Up to 1/16 in. (1.6mm) plate with supplied tip(s); Up to 1/2 in. (12.7mm) plate with optional larger tip(s) and acetylene cylinder; Optional tips sold separately

HMD 601 Oxygen Acetylene Port-A-Torch Kit without Cylinders for CGA 540/200 - 4403213



Harris Model HMD 601 Oxygen Acetylene Port-A-Torch kit without Cylinders contains all the quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases all in a convenient portable carrying case. The kit can cut up 4 in. (101.6mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 3 in. (76.2mm) diameter copper tube and is supplied with a size tip for brazing copper up to ¾ in. (19.1mm) tube. The kit is capable of welding up to 1/2 in. (12.7mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.

Features
  • Medium Duty Port-A-Torch 3-tube design kit with Cylinders designed to be used with oxygen and acetylene gases.
  • Regulator oxygen and acetylene Harris Model 601 with 50mm dual scale plastic gauges, notched adjusting knob and our distinguished internal encapsulated seat filter. Oxygen Regulator that delivers up 80 psi and acetylene that Regulator delivers up 15 psi.
  • Torch handle Harris Model 85 has twin-tube, silver-brazed connections and is equipped with external replaceable FlashGuard check valves.
  • Cutting attachment Harris Model 72-3 features brazed triangular stainless-steel tubes, fold-forward cutting lever, ease-on cutting valve and solid brass head.
  • Consumables included - cutting tip Harris Model 6290-1AC, mixer Harris Model D85 and welding/brazing tip Harris Model 23A90-3.
  • Accessories included - Shade 5 safety glasses (ANSI Z87.1 CE Weld);Handheld ignitor;3/16 in. x 12 ft. twin BxB R-grade hose;No. 5 chrome acetylene Cylinder wrench;black plastic PAT hose reel tote - Cylinders shipped empty

HMD 601 Oxygen Acetylene Port-A-Torch Kit without Cylinders for CGA 540/200 - 4403213



Harris Model HMD 601 Oxygen Acetylene Port-A-Torch kit without Cylinders contains all the quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases all in a convenient portable carrying case. The kit can cut up 4 in. (101.6mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 3 in. (76.2mm) diameter copper tube and is supplied with a size tip for brazing copper up to ¾ in. (19.1mm) tube. The kit is capable of welding up to 1/2 in. (12.7mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.

Features
  • Medium Duty Port-A-Torch 3-tube design kit with Cylinders designed to be used with oxygen and acetylene gases.
  • Regulator oxygen and acetylene Harris Model 601 with 50mm dual scale plastic gauges, notched adjusting knob and our distinguished internal encapsulated seat filter. Oxygen Regulator that delivers up 80 psi and acetylene that Regulator delivers up 15 psi.
  • Torch handle Harris Model 85 has twin-tube, silver-brazed connections and is equipped with external replaceable FlashGuard check valves.
  • Cutting attachment Harris Model 72-3 features brazed triangular stainless-steel tubes, fold-forward cutting lever, ease-on cutting valve and solid brass head.
  • Consumables included - cutting tip Harris Model 6290-1AC, mixer Harris Model D85 and welding/brazing tip Harris Model 23A90-3.
  • Accessories included - Shade 5 safety glasses (ANSI Z87.1 CE Weld);Handheld ignitor;3/16 in. x 12 ft. twin BxB R-grade hose;No. 5 chrome acetylene Cylinder wrench;black plastic PAT hose reel tote - Cylinders shipped empty
