HMD 601 Oxygen Acetylene Port-A-Torch Kit without Cylinders for CGA 540/200 - 4403213

SKU: 4403213
$340.91 $528.78
Factory Direct
Free Shipping
Lowest Price
Harris - Port-A-Torch® kit without cylinders is made with Harris - ’s 3-tube cutting attachment design and thread. This kit is can cut up to 4 in., braze up to 3 in. copper tube and weld up to ½ in.
Overview

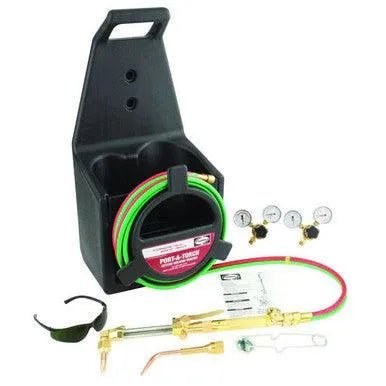

Harris Model HMD 601 Oxygen Acetylene Port-A-Torch kit without Cylinders contains all the quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases all in a convenient portable carrying case. The kit can cut up 4 in. (101.6mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 3 in. (76.2mm) diameter copper tube and is supplied with a size tip for brazing copper up to ¾ in. (19.1mm) tube. The kit is capable of welding up to 1/2 in. (12.7mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.

Features
  • Medium Duty Port-A-Torch 3-tube design kit with Cylinders designed to be used with oxygen and acetylene gases.
  • Regulator oxygen and acetylene Harris Model 601 with 50mm dual scale plastic gauges, notched adjusting knob and our distinguished internal encapsulated seat filter. Oxygen Regulator that delivers up 80 psi and acetylene that Regulator delivers up 15 psi.
  • Torch handle Harris Model 85 has twin-tube, silver-brazed connections and is equipped with external replaceable FlashGuard check valves.
  • Cutting attachment Harris Model 72-3 features brazed triangular stainless-steel tubes, fold-forward cutting lever, ease-on cutting valve and solid brass head.
  • Consumables included - cutting tip Harris Model 6290-1AC, mixer Harris Model D85 and welding/brazing tip Harris Model 23A90-3.
  • Accessories included - Shade 5 safety glasses (ANSI Z87.1 CE Weld);Handheld ignitor;3/16 in. x 12 ft. twin BxB R-grade hose;No. 5 chrome acetylene Cylinder wrench;black plastic PAT hose reel tote - Cylinders shipped empty
Specifications
FeatureValue
Gas / GasService Acetylene; Oxygen
Cutting Attachment Harris - Model Number 72-3
Cutting Capacity Up to 1 in. (25.4mm) plate with supplied tip(s); Up to 4 in. (101.6mm) plate with optional larger tip(s) and acetylene cylinder; Optional tip(s) sold separately
Cutting Tip Style - Acetylene-H2 (Size) 6290-1AC
Duty Light to medium
Equipped With FlashGuard® check valves - torch
Fuel Gas Regulator Harris - Model Number 601-15-200B
Gauges 50mm ABS plastic dual scale (psi/bar) - regulators
Hose Connection/Fittings BxB
Hose Size 3/16 in. x 12 ft.
Hose Type Twin Oxygen-Acetylene R-grade
Mixer Harris - Model Number D-85
Mixer Type E-Equal or positive pressure
Oxygen Regulator Harris - Model Number 601-80-540B
Seat PTFE Teflon® - regulators
Tank Connection CGA 540B; CGA 200B
Torch Handle Harris - Model Number 85
Welding Capacity Up to 1/16 in. (1.6mm) plate with supplied tip(s); Up to 1/2 in. (12.7mm) plate with optional larger tip(s) and acetylene cylinder; Optional tips sold separately
Includes
  • Harris - Model 601-15-200 Fuel Gas Regulator - 3000295
  • Harris - Model 601-80-540 Oxygen Regulator - 3000296
  • Harris - Model 85 Torch Handle - 1401340
  • Harris - Model 72-3 Cutting Attachment - 1300380
  • Harris - Model D-85 Mixer Assembly - 9100614
  • Harris - Model 6290-1AC Cutting Tip - 1502172
  • Harris - Model 23A90-3 Welding Tip - 1600870
  • 3/16 in. x 12 ft. Twin B & B R-grade Oxy-Acetylene Hose - 4300556
  • Safety Glasses Shade 5 - 4303629
  • Handheld Ignitor - 9004486
  • Acetylene B-Cylinder Wrench - KH231
  • Port-A-Torch Hose Reel Case - Black - 8855033
  • Trilingual Kit Manual - 9505643
