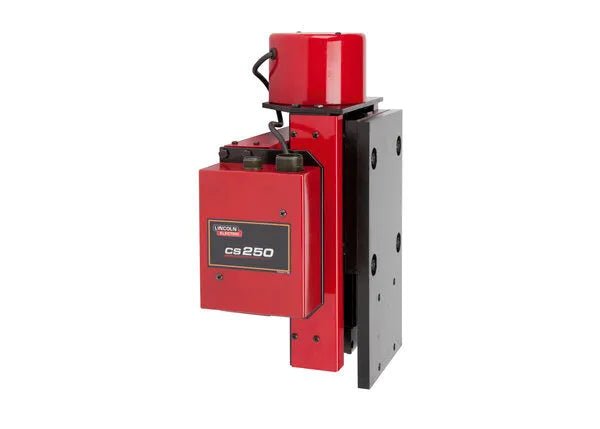

Lincoln K52014-0505-RHM CS250 5 X 5 RHM CROSS SLIDE ASSEMBLY

SKU: K52014-0505-RHM
$16,109.46 $17,762.00
Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.

More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.
Overview
Lincoln K52014-0505-RHM CS250 5 X 5 RHM CROSS SLIDE ASSEMBLY



Arc Products cross slide assemblies are used to mount submerged arc or GMAW single or tandem welding arc equipment. These systems are capable of manipulating the arc in both the horizontal and vertical axes. With the rugged construction, compact and lightweight design and flexible mounting options of these cross slides, it's an easy decision for any fabrication shop to explore the advantages of hard automation over manual welding.

Rugged Construction - Ball bearing V-wheels ride on hardened steel rails mounted on an aluminum base structure Totally enclosed DC gear motors drive the covered recirculating (freewheeling on the compact ST40) ball screws CS250 - 250 lbs. @ 12 in. from adapter plate - Ideal for most single arc welding. A reverse motor mount is offered allowing two systems to weld in close proximity. Available Stroke Lengths - Depending on model, select 3, 5, 6 or 10 in. stroke for vertical or horizontal movement. Fast Travel Speeds (Slew Rate) - CS250 Cross Slide - 32 ipm


Key Features



  • Rugged Construction
  • Ball bearing V-wheels ride on hardened steel rails mounted on an aluminum base structure
  • Totally enclosed DC gear motors drive the covered recirculating (freewheeling on the compact ST40) ball screws
  • CS250 - 250 lbs. @ 12 in. from adapter plate - Ideal for most single arc welding. A reverse motor mount is offered allowing two systems to weld in close proximity.
  • Fast Travel Speeds (Slew Rate) CS250 Cross Slide 32 ipm


Specifications



Mechanized
Mechanized Communication analog
Axis 1 Name Horizontal
Axis 1 Type Linear
Axis 1 Length 5 in. (127 mm)
Axis 1 Max Speed 32 ipm (813 mm/min)
Axis 1 Max Weight Capacity 250 lbs (114 kg) @ 12 in. (305 mm)
Axis 1 Control Joystick/Seam Tracking
Axis 2 Name Vertical
Axis 2 Type Linear
Axis 2 Length 5 in. (127 mm)
Axis 2 Max Speed 32 ipm (813 mm/min)
Axis 2 Max Weight Capacity 250 lbs (114 kg) @ 12 in. (305 mm)
Axis 2 Control Joystick/Seam Tracking
Application
Typical Application Heat Exchangers
Heavy Equipment
Heavy Fabrication
High Pressure Piping
Marine Fabrication & Repair
Offshore
Oil & Gas
Petrochemical
Petrochemical Industry
Pressure Vessels
Process Piping
Railcar Fabrication
Robotics/ Hard Automation
Shipbuilding
Structural Fabrication
Warranty
Warranty 3 Years
