Overview

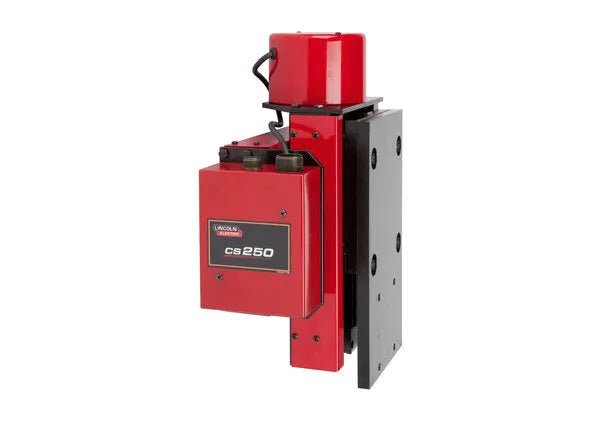

Lincoln K52014-0505-RHM CS250 5 X 5 RHM CROSS SLIDE ASSEMBLY



Arc Products cross slide assemblies are used to mount submerged arc or GMAW single or tandem welding arc equipment. These systems are capable of manipulating the arc in both the horizontal and vertical axes. With the rugged construction, compact and lightweight design and flexible mounting options of these cross slides, it's an easy decision for any fabrication shop to explore the advantages of hard automation over manual welding.

Rugged Construction - Ball bearing V-wheels ride on hardened steel rails mounted on an aluminum base structure Totally enclosed DC gear motors drive the covered recirculating (freewheeling on the compact ST40) ball screws CS250 - 250 lbs. @ 12 in. from adapter plate - Ideal for most single arc welding. A reverse motor mount is offered allowing two systems to weld in close proximity. Available Stroke Lengths - Depending on model, select 3, 5, 6 or 10 in. stroke for vertical or horizontal movement. Fast Travel Speeds (Slew Rate) - CS250 Cross Slide - 32 ipm


Key Features



  • Rugged Construction
  • Ball bearing V-wheels ride on hardened steel rails mounted on an aluminum base structure
  • Totally enclosed DC gear motors drive the covered recirculating (freewheeling on the compact ST40) ball screws
  • CS250 - 250 lbs. @ 12 in. from adapter plate - Ideal for most single arc welding. A reverse motor mount is offered allowing two systems to weld in close proximity.
  • Fast Travel Speeds (Slew Rate) CS250 Cross Slide 32 ipm


Specifications



Mechanized
Mechanized Communication analog
Axis 1 Name Horizontal
Axis 1 Type Linear
Axis 1 Length 5 in. (127 mm)
Axis 1 Max Speed 32 ipm (813 mm/min)
Axis 1 Max Weight Capacity 250 lbs (114 kg) @ 12 in. (305 mm)
Axis 1 Control Joystick/Seam Tracking
Axis 2 Name Vertical
Axis 2 Type Linear
Axis 2 Length 5 in. (127 mm)
Axis 2 Max Speed 32 ipm (813 mm/min)
Axis 2 Max Weight Capacity 250 lbs (114 kg) @ 12 in. (305 mm)
Axis 2 Control Joystick/Seam Tracking
Application
Typical Application Heat Exchangers
Heavy Equipment
Heavy Fabrication
High Pressure Piping
Marine Fabrication & Repair
Offshore
Oil & Gas
Petrochemical
Petrochemical Industry
Pressure Vessels
Process Piping
Railcar Fabrication
Robotics/ Hard Automation
Shipbuilding
Structural Fabrication
Warranty
Warranty 3 Years
