Harris  |  SKU: 1400422

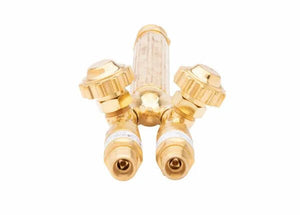

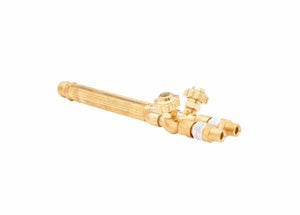

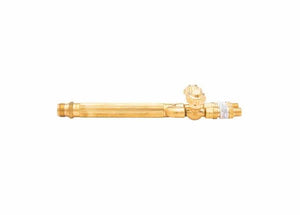

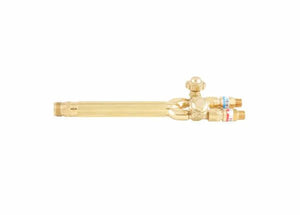

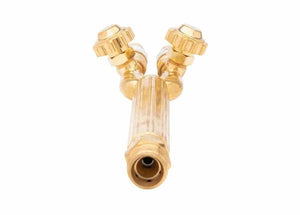

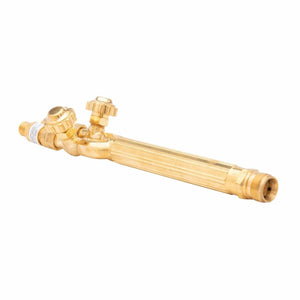

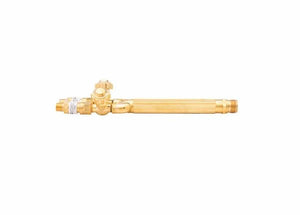

Harris Model VH31 V-Series Heavy Duty Combination Torch Handle - 1400422

$109.00 $170.34
Harris - Model VH31 heavy duty combination torch handle. Compatible mixer Harris - Model V-W and cutting attachment Harris - Model VH-24.
Warranty: 1 Year
Victor Cross Reference Model & Part #: HD 310C - 0382-0015

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Harris Model VH31 V-Series Heavy Duty Combination Torch Handle - 1400422

Harris Model VH31 V-Series is a heavy duty combination torch handle for welding, brazing, cutting and heating. It is designed to provide the highest flow possible allowing the use of larger tips with all fuel gases. The handle features tube-within-a-tube construction. The O-ring sealed for greater strength and higher capacity. Cuts up to 8 in. (203.2mm) plate and Welds up to 1/2 in. (12.7mm) plate.

Features
  • Heavy duty combination torch handle for use with all fuel gases
  • Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
  • Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
  • O-ring sealed for greater strength and higher capacity
  • Features B-hose fittings (9/16 in.-18)
  • Marked with Harris logo and tip size for easy identification
  • Handle is 11 in. (279.4mm) in length
  • Equipped with Harris Model 88-5N FBTL&R flashback arrestors installed
  • Cuts up to 8 in. (203.2mm) plate; Welds up to 1/2 in. (12.7mm) plate

Compatible Cutting Attachment Model Number Vh34
Compatible Cutting Tip Model Number - Alternate Fuel (Size) V-101
V-101AC
Compatible Heating Tip Model Number - Acetylene-h3 (Size) J-63 (1-3)
Compatible Heating Tip Model Number - Alternate Fuel (Size) 1390 (H
3H
B)
Compatible Mixer Model Number V-W
Compatible Tip Tube Model Number 8593
Compatible Welding/Brazing Tip Style - Acetylene-h3 (Size) 23A90-3 (0-10)
Compatible Welding/Brazing Tip Style - Alternate Fuel (Size) 1390-N (2-80N)
Construction Tube-within-a-tube
Cutting Capacity Up to 8 in. (203.2mm) plate
Duty Heavy
Equipped With FlashGuard Flashback Arrestors Torch Type
Gas / Gas Service Acetylene
Hydrogen
Natural Gas
Methane
Propane
Propylene
Inlet Connection (B) 9/16 in. - 18
Recommended Items/Accessories FlashGuard Flashback Arrestors Torch Type - Model 88-5-FBT R&L - PN 4302202
FlashGuard Check Valve Torch Type - Model 88-6CVT (R&L) - PN 4300390
Torch Length 11 in. (279.4mm)
Typical Application Welding
Brazing
Cutting
Heating
Welding Capacity Up to 1⁄2 in. (12.7mm) plate

Harris Model VH31 V-Series Heavy Duty Combination Torch Handle - 1400422

Harris Model VH31 V-Series is a heavy duty combination torch handle for welding, brazing, cutting and heating. It is designed to provide the highest flow possible allowing the use of larger tips with all fuel gases. The handle features tube-within-a-tube construction. The O-ring sealed for greater strength and higher capacity. Cuts up to 8 in. (203.2mm) plate and Welds up to 1/2 in. (12.7mm) plate.

Features
  • Heavy duty combination torch handle for use with all fuel gases
  • Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
  • Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
  • O-ring sealed for greater strength and higher capacity
  • Features B-hose fittings (9/16 in.-18)
  • Marked with Harris logo and tip size for easy identification
  • Handle is 11 in. (279.4mm) in length
  • Equipped with Harris Model 88-5N FBTL&R flashback arrestors installed
  • Cuts up to 8 in. (203.2mm) plate; Welds up to 1/2 in. (12.7mm) plate

Compatible Cutting Attachment Model Number Vh34
Compatible Cutting Tip Model Number - Alternate Fuel (Size) V-101
V-101AC
Compatible Heating Tip Model Number - Acetylene-h3 (Size) J-63 (1-3)
Compatible Heating Tip Model Number - Alternate Fuel (Size) 1390 (H
3H
B)
Compatible Mixer Model Number V-W
Compatible Tip Tube Model Number 8593
Compatible Welding/Brazing Tip Style - Acetylene-h3 (Size) 23A90-3 (0-10)
Compatible Welding/Brazing Tip Style - Alternate Fuel (Size) 1390-N (2-80N)
Construction Tube-within-a-tube
Cutting Capacity Up to 8 in. (203.2mm) plate
Duty Heavy
Equipped With FlashGuard Flashback Arrestors Torch Type
Gas / Gas Service Acetylene
Hydrogen
Natural Gas
Methane
Propane
Propylene
Inlet Connection (B) 9/16 in. - 18
Recommended Items/Accessories FlashGuard Flashback Arrestors Torch Type - Model 88-5-FBT R&L - PN 4302202
FlashGuard Check Valve Torch Type - Model 88-6CVT (R&L) - PN 4300390
Torch Length 11 in. (279.4mm)
Typical Application Welding
Brazing
Cutting
Heating
Welding Capacity Up to 1⁄2 in. (12.7mm) plate

Includes
What's Included
  • Harris - Model VH31 V-Series® Heavy Duty Combination Torch Handle

Specifications
Gas / GasService Acetylene; Hydrogen; NaturalGas; Methane; Propane; Propylene
Compatible Cutting Attachment Model Number VH24
Compatible Cutting Tip Harris - Model Number - Alternate Fuel (Size) V-101; V-101AC
Compatible Heating Tip Harris - Model Number - Acetylene-H2 (Size)_en-4013CompatibleHeatingTipHarris - ModelNumberAcetyleneH2Size J-63 (1-3)
Compatible Heating Tip Model Number - Alternate Fuel (Size) 1390 (H; 3H; B)
Compatible Mixer Harris - Model Number V-W
Compatible Tip Tube Harris - Model Number 8593
Compatible Welding/Brazing Tip Style - Acetylene-H2 (Size) 23A90-3 (0-10)
Compatible Welding/Brazing Tip Style - Alternate Fuel (Size) 1390-N (2-80N)
Construction Tube-within-a-tube
Cutting Capacity Up to 8 in. (203.2mm) plate
Duty Heavy
Equipped With FlashGuard® Flashback Arrestors Torch Type
Inlet Connection (B) 9/16 in. - 18
Torch Length 11 in. (279.4mm)
Typical Application Welding; Brazing; Cutting; Heating
Welding Capacity Up to 1⁄2 in. (12.7mm) plate

Harris Model VH31 V-Series Heavy Duty Combination Torch Handle - 1400422

Harris Model VH31 V-Series is a heavy duty combination torch handle for welding, brazing, cutting and heating. It is designed to provide the highest flow possible allowing the use of larger tips with all fuel gases. The handle features tube-within-a-tube construction. The O-ring sealed for greater strength and higher capacity. Cuts up to 8 in. (203.2mm) plate and Welds up to 1/2 in. (12.7mm) plate.

Features
  • Heavy duty combination torch handle for use with all fuel gases
  • Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
  • Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
  • O-ring sealed for greater strength and higher capacity
  • Features B-hose fittings (9/16 in.-18)
  • Marked with Harris logo and tip size for easy identification
  • Handle is 11 in. (279.4mm) in length
  • Equipped with Harris Model 88-5N FBTL&R flashback arrestors installed
  • Cuts up to 8 in. (203.2mm) plate; Welds up to 1/2 in. (12.7mm) plate

Compatible Cutting Attachment Model Number Vh34
Compatible Cutting Tip Model Number - Alternate Fuel (Size) V-101
V-101AC
Compatible Heating Tip Model Number - Acetylene-h3 (Size) J-63 (1-3)
Compatible Heating Tip Model Number - Alternate Fuel (Size) 1390 (H
3H
B)
Compatible Mixer Model Number V-W
Compatible Tip Tube Model Number 8593
Compatible Welding/Brazing Tip Style - Acetylene-h3 (Size) 23A90-3 (0-10)
Compatible Welding/Brazing Tip Style - Alternate Fuel (Size) 1390-N (2-80N)
Construction Tube-within-a-tube
Cutting Capacity Up to 8 in. (203.2mm) plate
Duty Heavy
Equipped With FlashGuard Flashback Arrestors Torch Type
Gas / Gas Service Acetylene
Hydrogen
Natural Gas
Methane
Propane
Propylene
Inlet Connection (B) 9/16 in. - 18
Recommended Items/Accessories FlashGuard Flashback Arrestors Torch Type - Model 88-5-FBT R&L - PN 4302202
FlashGuard Check Valve Torch Type - Model 88-6CVT (R&L) - PN 4300390
Torch Length 11 in. (279.4mm)
Typical Application Welding
Brazing
Cutting
Heating
Welding Capacity Up to 1⁄2 in. (12.7mm) plate

Harris Model VH31 V-Series Heavy Duty Combination Torch Handle - 1400422

Harris Model VH31 V-Series is a heavy duty combination torch handle for welding, brazing, cutting and heating. It is designed to provide the highest flow possible allowing the use of larger tips with all fuel gases. The handle features tube-within-a-tube construction. The O-ring sealed for greater strength and higher capacity. Cuts up to 8 in. (203.2mm) plate and Welds up to 1/2 in. (12.7mm) plate.

Features
  • Heavy duty combination torch handle for use with all fuel gases
  • Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
  • Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
  • O-ring sealed for greater strength and higher capacity
  • Features B-hose fittings (9/16 in.-18)
  • Marked with Harris logo and tip size for easy identification
  • Handle is 11 in. (279.4mm) in length
  • Equipped with Harris Model 88-5N FBTL&R flashback arrestors installed
  • Cuts up to 8 in. (203.2mm) plate; Welds up to 1/2 in. (12.7mm) plate

Compatible Cutting Attachment Model Number Vh34
Compatible Cutting Tip Model Number - Alternate Fuel (Size) V-101
V-101AC
Compatible Heating Tip Model Number - Acetylene-h3 (Size) J-63 (1-3)
Compatible Heating Tip Model Number - Alternate Fuel (Size) 1390 (H
3H
B)
Compatible Mixer Model Number V-W
Compatible Tip Tube Model Number 8593
Compatible Welding/Brazing Tip Style - Acetylene-h3 (Size) 23A90-3 (0-10)
Compatible Welding/Brazing Tip Style - Alternate Fuel (Size) 1390-N (2-80N)
Construction Tube-within-a-tube
Cutting Capacity Up to 8 in. (203.2mm) plate
Duty Heavy
Equipped With FlashGuard Flashback Arrestors Torch Type
Gas / Gas Service Acetylene
Hydrogen
Natural Gas
Methane
Propane
Propylene
Inlet Connection (B) 9/16 in. - 18
Recommended Items/Accessories FlashGuard Flashback Arrestors Torch Type - Model 88-5-FBT R&L - PN 4302202
FlashGuard Check Valve Torch Type - Model 88-6CVT (R&L) - PN 4300390
Torch Length 11 in. (279.4mm)
Typical Application Welding
Brazing
Cutting
Heating
Welding Capacity Up to 1⁄2 in. (12.7mm) plate
