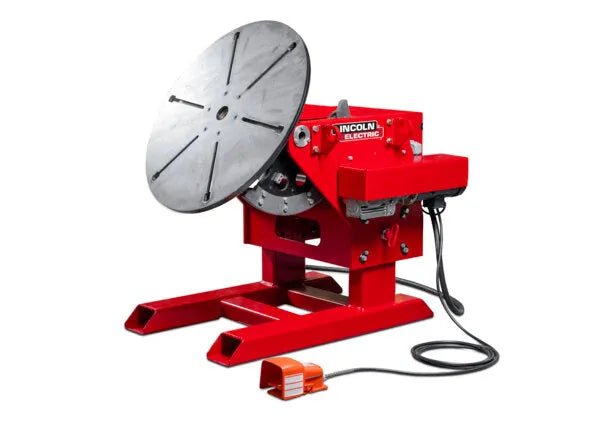

Lincoln 1,500 lb. Floor Mounted Positioner - AD1043-106
TAKE YOUR POSITION.
Lincoln Electric ® welding positioners can be used in manual welding applications or combined with mechanized automation solutions such as Pantheon® manipulators to produce a highly efficient work cell. Floor Mounted Welding Positioners feature motorized rotation and tilt to allow the operatore to ergonomically position the work piece. All positioners are offered with optional accessories to tailor to your application needs.
Features
- Load Capacity: 1,500 lbs. @ 6"
- Motorized rotation & tilt
- Variable speed 3/4HP DC brake motors
- Solid state controls with dynamic braking
- Control unit mounted on the back of positioner
- System Net Weight 1099.98 lb (498.95 kg)
Specifications
Global Attributes
| Positioner Type | Floor Mounted |
| Base Type | Fixed |
| Load Capacity (lb) | 1500 |
| Load Eccentricity (in) | 6 |
| Input Power (VAC) | 115V |
| Tilt Range (Degrees) | 0 - 90 |
| Rotation Torque (in. lbs) | 9000 |
| Rotation Centerline (in) | 26 |
| Table Size (in) | 30 |
| RPM | 0.06 - 3 |
