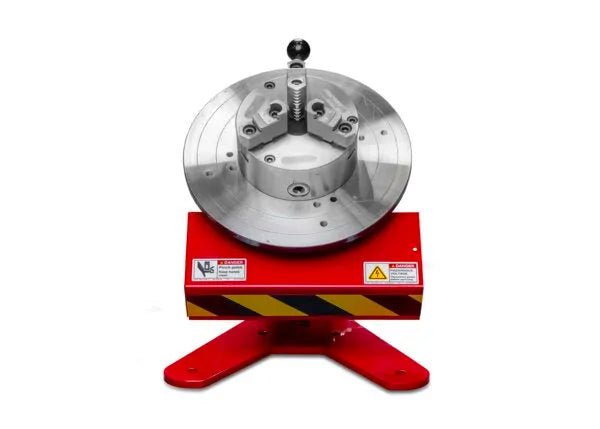

Lincoln 150 lb. Table Top Welding Positioner - AD1043-84
TAKE YOUR POSITION.
Lincoln Electric ® welding positioners can be used in manual welding applications or combined with mechanized automation solutions such as Pantheon ® manipulators to produce a highly efficient work cell. Table Top Welding Positioners have a small footprint to allow for ergonomic work piece handling. Table Top Welding Positioners feature motorized rotation and manual tilt. All positioners are offered with optional accessories to tailor to your welding needs.
Features
- Load Capacity: 150 lbs. @ 2" from the faceplate
- Variable speed DC brake motors
- Solid state controls with dynamic braking
- Manual tilt adjustment
- Table top control unit
Specifications
Global Attributes
| Positioner Type | Table Top |
| Base Type | Fixed |
| Load Capacity (lb) | 150 |
| Load Eccentricity (in) | 2 |
| Input Power (VAC) | 115 |
| Tilt Range (Degrees) | 0 - 90 |
| Rotation Torque (in. lbs) | 375 |
| Rotation Centerline (in) | 9 |
| Table Size (in) | 12 |
| RPM | 0.2 - 10 |
