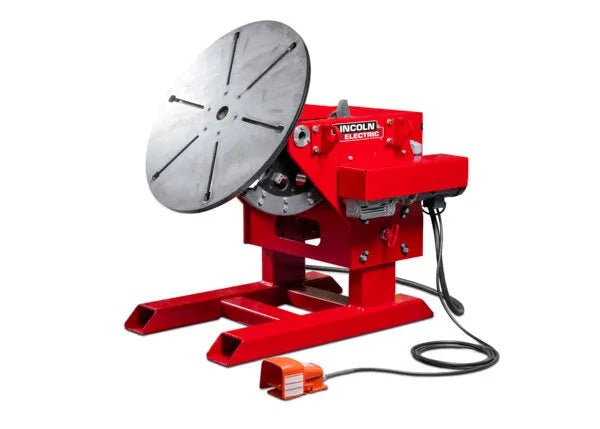

Lincoln 6,000 lb. Floor Mounted Positioner with Manual Elevation (480V) - AD1043-121
TAKE YOUR POSITION
Lincoln Electric ® welding positioners can be used in manual welding applications or combined with mechanized automation solutions such as Pantheon® manipulators to produce a highly efficient work cell. Floor Mounted Welding Positioners feature motorized rotation and tilt to allow the operatore to ergonomically position the work piece. All positioners are offered with optional accessories to tailor to your application needs.
Features
- Load Capacity: 6,000 lbs. @ 12"
- Motorized rotation & tilt
- Variable speed 2HP DC brake motors
- Solid state controls with dynamic braking
- Height Adjustment Range: 18" (6" Increments)
- Control unit mounted on the back of positioner
Specifications
Global Attributes
Positioner Type | Floor Mounted with Manual Elevation |
Base Type | Adjustable |
Load Capacity (lb) | 6000 |
Load Eccentricity (in) | 12 |
Input Power (VAC) | 480V |
Tilt Range (Degrees) | 0 - 135 |
Rotation Torque (in. lbs) | 72000 |
Centerline Height Range (in) | 39 - 57 |
Table Size (in) | 40 |
RPM | 0.03 - 0.9 |
