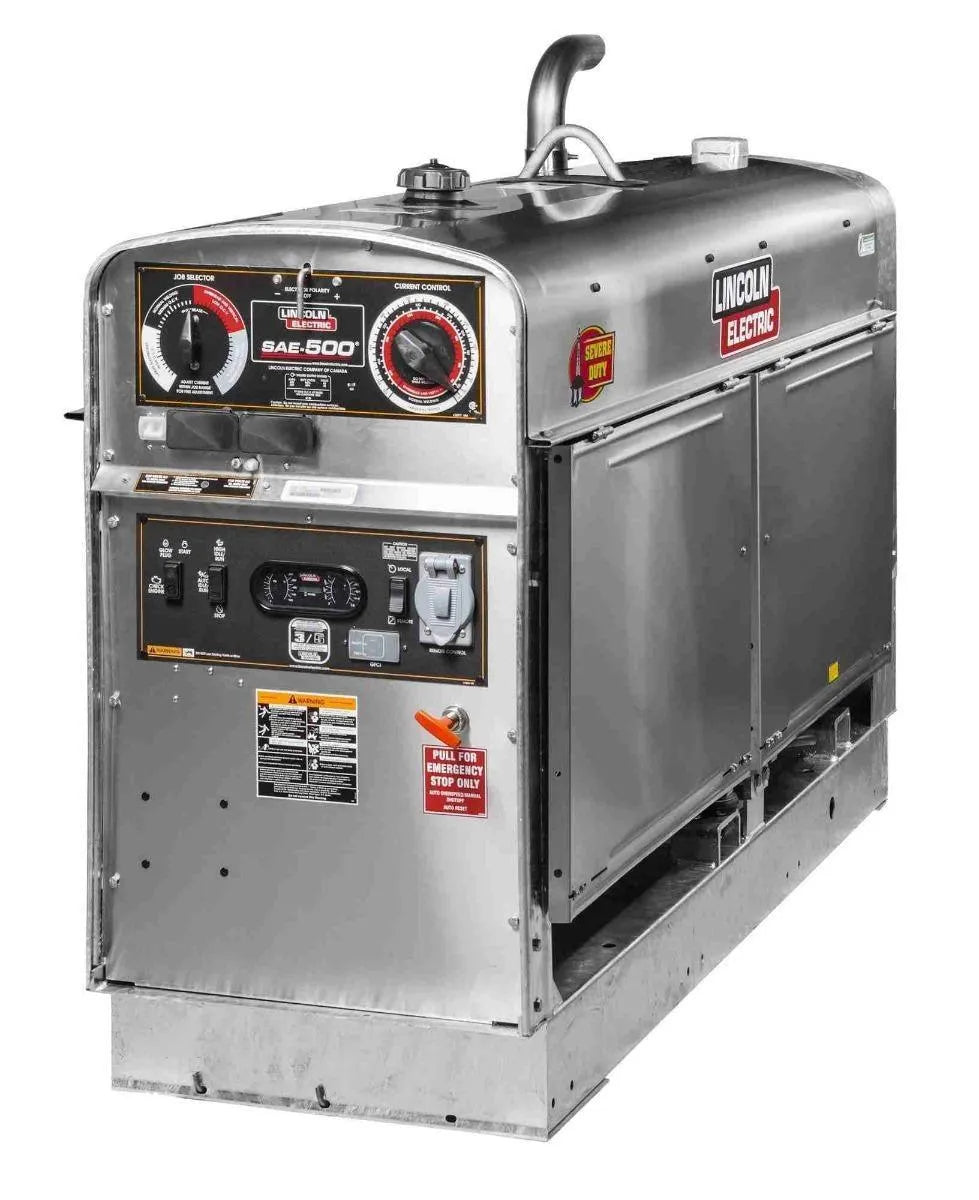

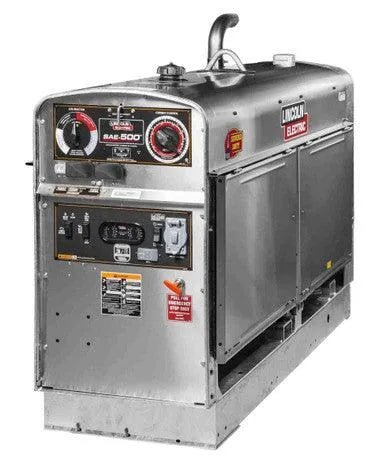

Lincoln Electric SAE-500 Severe-Duty Engine-Driven Welder/Generator (DEUTZ) ‚Äî K3955-1
SUPERIOR CHOICE FOR CRITICAL WELDS¬†
The Lincoln SAE-500 severe-duty welder/generator is the preferred choice among welders who face the most challenging conditions for its great arc performance, design simplicity, reliability and ruggedness. Designed especially for pipeline welding and field construction, this rugged, reliable machine is built to handle the toughest tasks. It is made to stand up to the rust and corrosion encountered in offshore saltwater environments for pipeline maintenance, welding and construction.
Besides their tough materials and construction, these SAE-500 severe-duty welders provide plenty of power and features that will make work fast and efficient. These machines will support stick and TIG welding and gouging. Add a CV adapter and use them for flux-cored welding too. WeldingMart offers free shipping on this machine.
The Diesel Workhorse
For demanding jobs that call for high-amperage capabilities, the SAE-500 offers 500 amps for DC stick welding and 3,000 watts of AC power. The SAE-500 is powered by a heavy-duty Deutz diesel engine, which boasts low maintenance and long life for hassle-free operation. Add CV wire welding with the optional CV adapter.
Heavy-gauge steel case withstands rough field handling.
Dual Continuous Control
Continuous adjustment of voltage and current. Select either a soft ‚Äúbuttery‚Äù arc or a snappy ‚Äúdigging‚Äù arc for fast, high-quality welding.
High Duty Cycle Welding Output¬†
100% duty cycle at 400 amps and 60% duty cycle at 500 amps for demanding applications.
Heavy-Duty Industrial Engine¬†
Deutz four-cylinder, water-cooled industrial turbocharged diesel engine offers low maintenance and increased power with 64 HP EPA Tier 4 compliance.
Designed for the Offshore Salt-Spray Environment¬†
- Stainless steel and hot-dip galvanized case and internal sheet metal parts
- Stainless steel brush-holder assemblies
- All-copper coils
- Coated radiator, laminations and wire connections
- Sealed switches
- Spark arrestor and engine air intake shutdown device, as per mineral management services code, are standard
