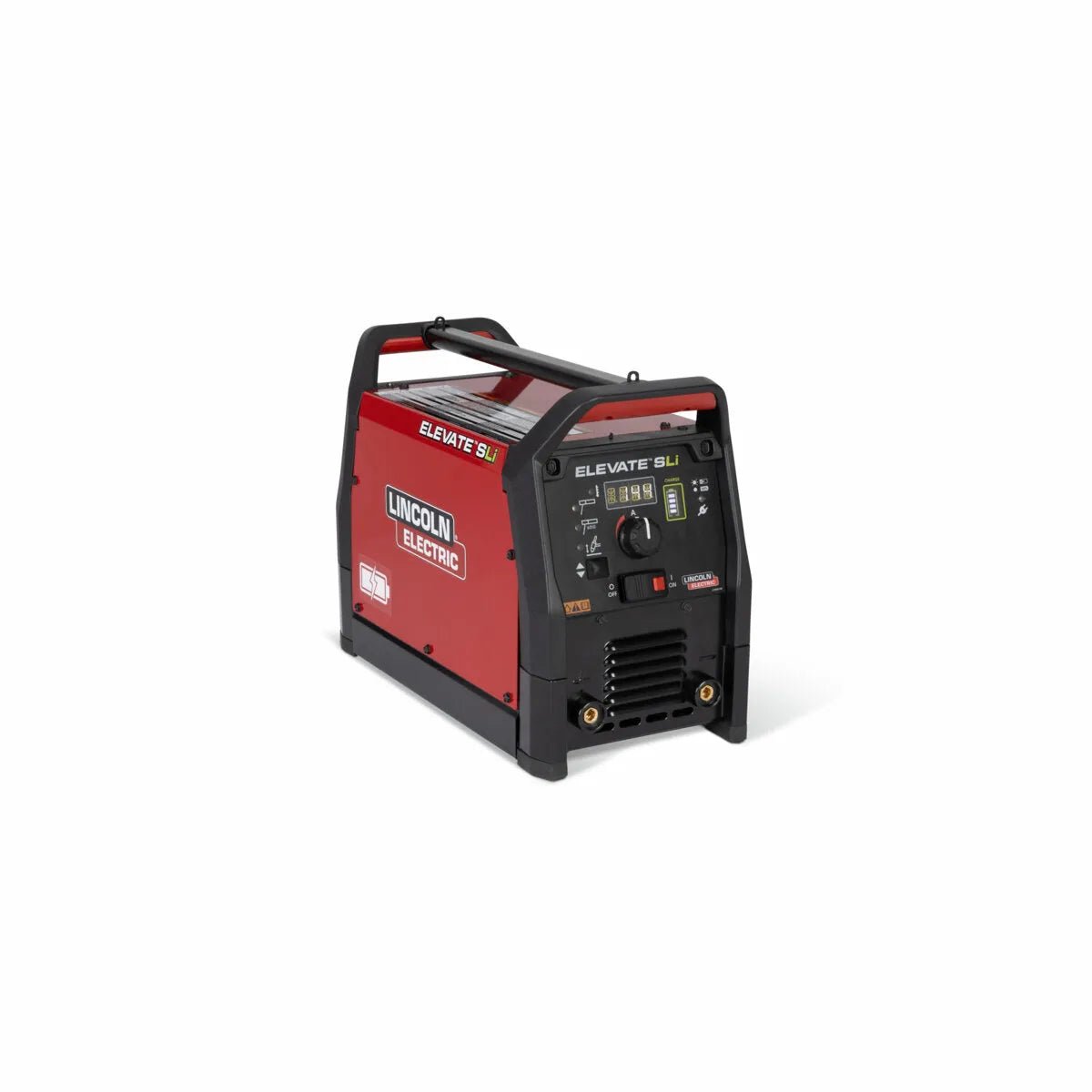

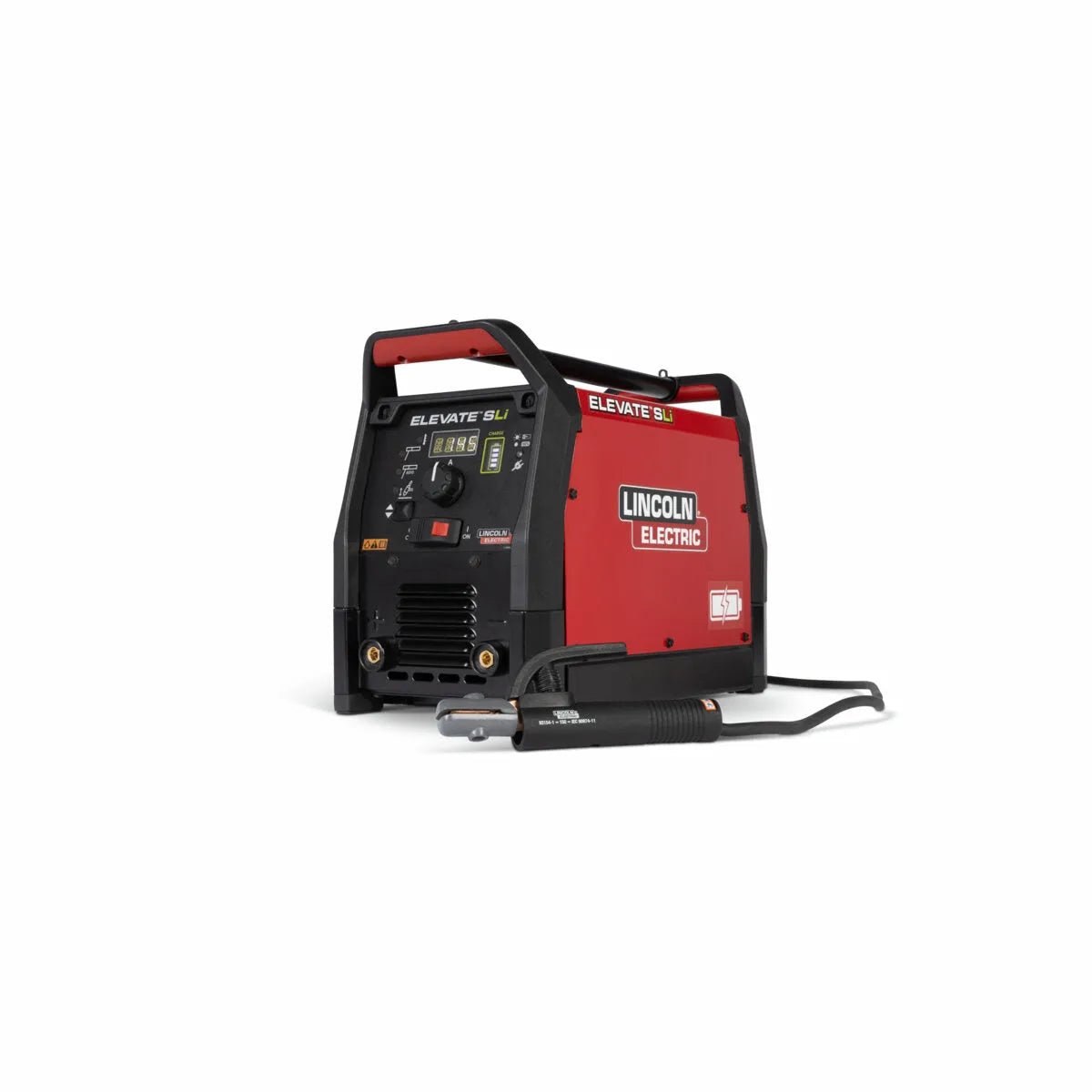

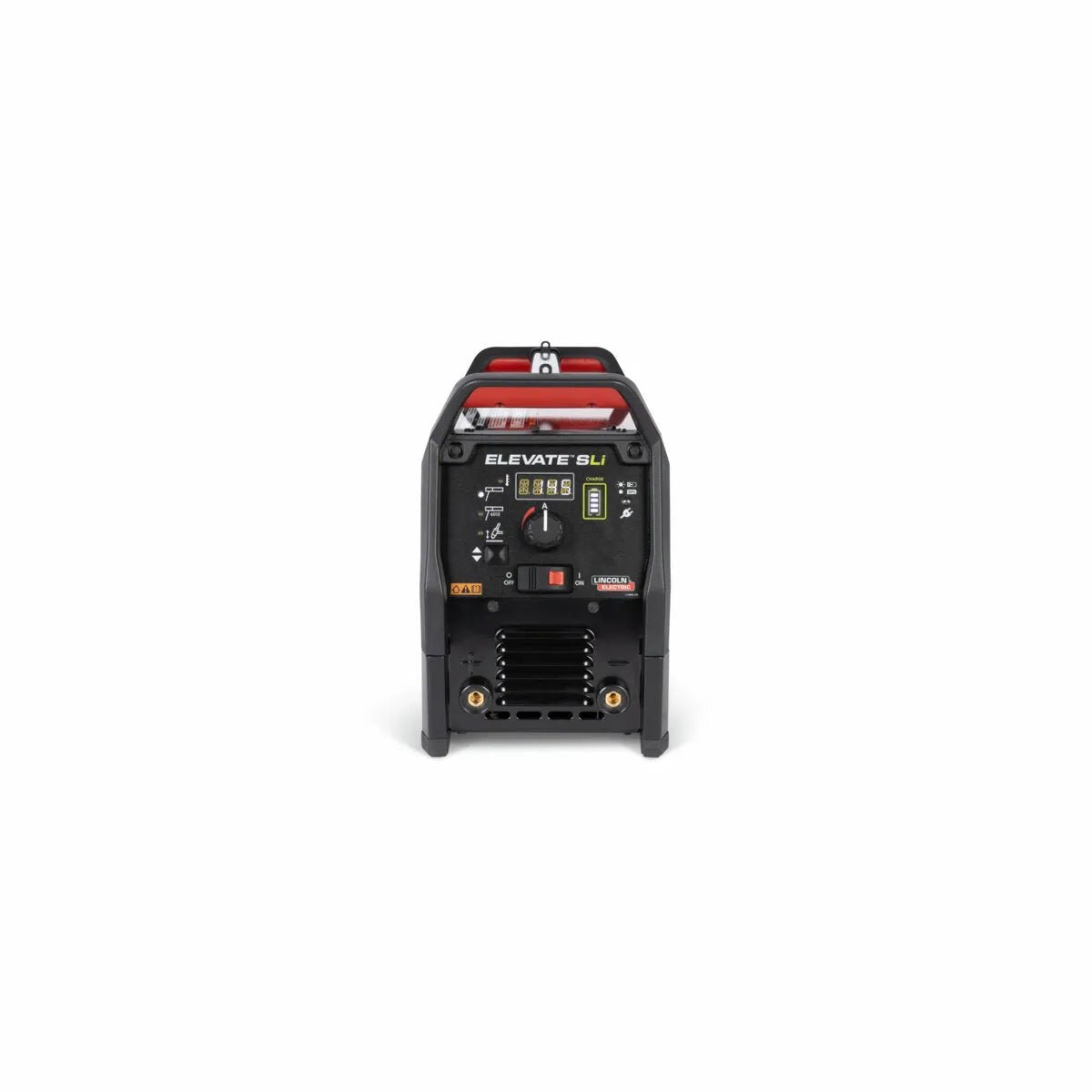

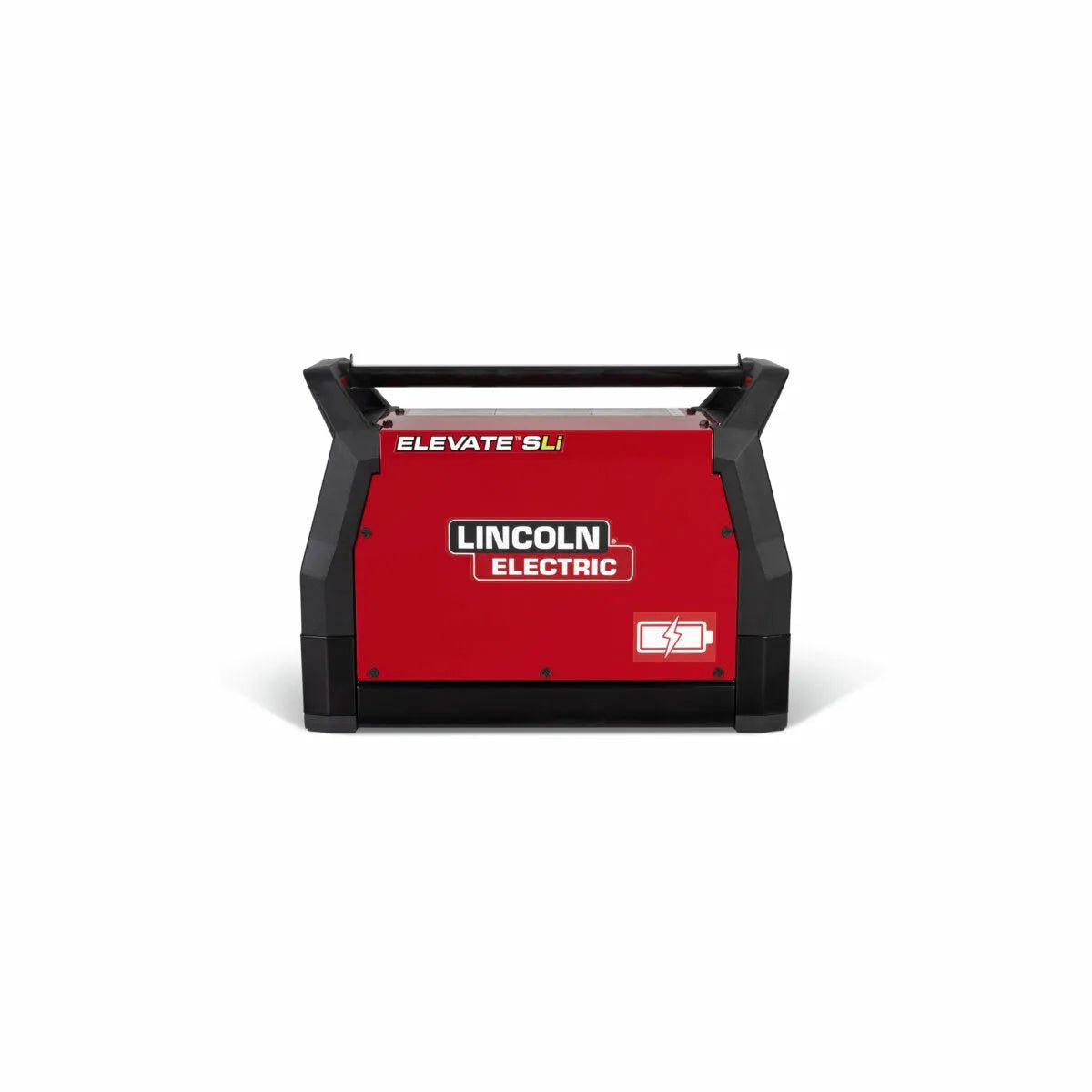

Lincoln Elevate SLi - Battery-Powered with Rolling Case Package - K5622-1

SKU: K5622-1
$3,590.08

Financing Options

As low as /mo with.
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
The Lincoln Elevate SLi Battery-Powered Welder with Rolling Case Package offers lightweight portability, dual-process welding, and off-grid power for remote and emergency applications.

Overview

The Lincoln Elevate SLi Battery-Powered Welder with Rolling Case Package - K5622-1 redefines portability and reliability in professional welding. Built to endure rugged jobsite conditions, this lightweight and durable system delivers exceptional cordless Stick and TIG performance. Trusted by operators who demand performance without compromise, the Elevate SLi eliminates the need for generators or long weld cables, offering unmatched mobility and versatility for remote and hard-to-reach applications.

Delivering up to 145 amps of output, the Elevate SLi supports a full range of Stick electrodes, including 6010 and 7018 up to 5/32 inch, while Touch Start TIG functionality ensures clean, contamination-free arc starts. Adjustable Hot Start and Arc Force settings enable optimized electrode performance and precise penetration control across a variety of materials. Powered by an internal Lithium Iron Phosphate battery, this machine offers extended run time and can weld up to 21 rods per full charge, recharging in just 60 minutes via standard 120V input. Weighing only 33 lbs and featuring an ergonomic shoulder strap and rolling case, the Elevate SLi is built for effortless transport and maximum jobsite flexibility.

Key Features
  • Delivers powerful 145A output performance for efficient Stick and TIG welding operations.
  • Proven Chopper Technology ensures smooth starts, stable arcs, low spatter, and clean weld beads.
  • Handles a wide range of rods including 6010 and 7018 up to 5/32 inch, with Touch Start TIG capability.
  • Hot Start and Arc Force adjustments offer improved control over electrode starting and weld penetration.
  • Weighs only 33 lbs and includes an adjustable shoulder strap and rolling case for maximum portability.
  • Internal Lithium Iron Phosphate battery supports welding up to 21 sticks on a single charge with rapid 60-minute recharge time.
  • Built tough with an IP23S environmental rating and fan-as-needed cooling for extended service life.
  • Supported by Lincoln Electric's 3-year warranty, offering long-term confidence and support.

Specifications

Machine Inputs & Outputs

Phase 1: Input Voltage #1 (Voltage/Phase/Hertz): 120 / 1 / 60

Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle):
Stick: 145A / 25.8V

Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle):
TIG: 145A / 15.8V

Product Weights & Dimensions

Dimensions (H x W x D): 14 in x 9.1 in x 18.3 in (356 mm x 231 mm x 465 mm)
Net Weight: 33 lbs (15 kg)

General Specifications

Machine Processes:
• Stick (SMAW)
• TIG (GTAW)

Open Circuit Voltage: Average: 55V Peak: 72V
Number of Operators per Machine: 1

Input Voltage: 120
Input Hertz: 60 Hz
Input Phase: Single Phase

Mode Icon: CC

Output Range:
Stick: 10-145A
TIG: 4-145A

Polarity: DC

Machine Technologies & Connections

IEC Rating: IP23S
Machine Communication Technology: Analog
Work Lead Connector Type: Dinse

Battery

Battery Type: Lithium Iron Phosphate (LiFePO4) Battery
Watt Hours (Wh): 576
Charge Time: 60 Minutes

Applications

Typical Applications:
• Construction
• Mining
• Railroad Maintenance
• Automotive
• Brewery
• Construction & Field Erection
• General Fabrication
• Maintenance & Repair
• Marine Applications
• Marine Fabrication & Repair
• Offshore
• Repeir Welding
• Shipbuilding
• Structural Fabrication

Warranty

Warranty: 3 Years

Details
Downloads

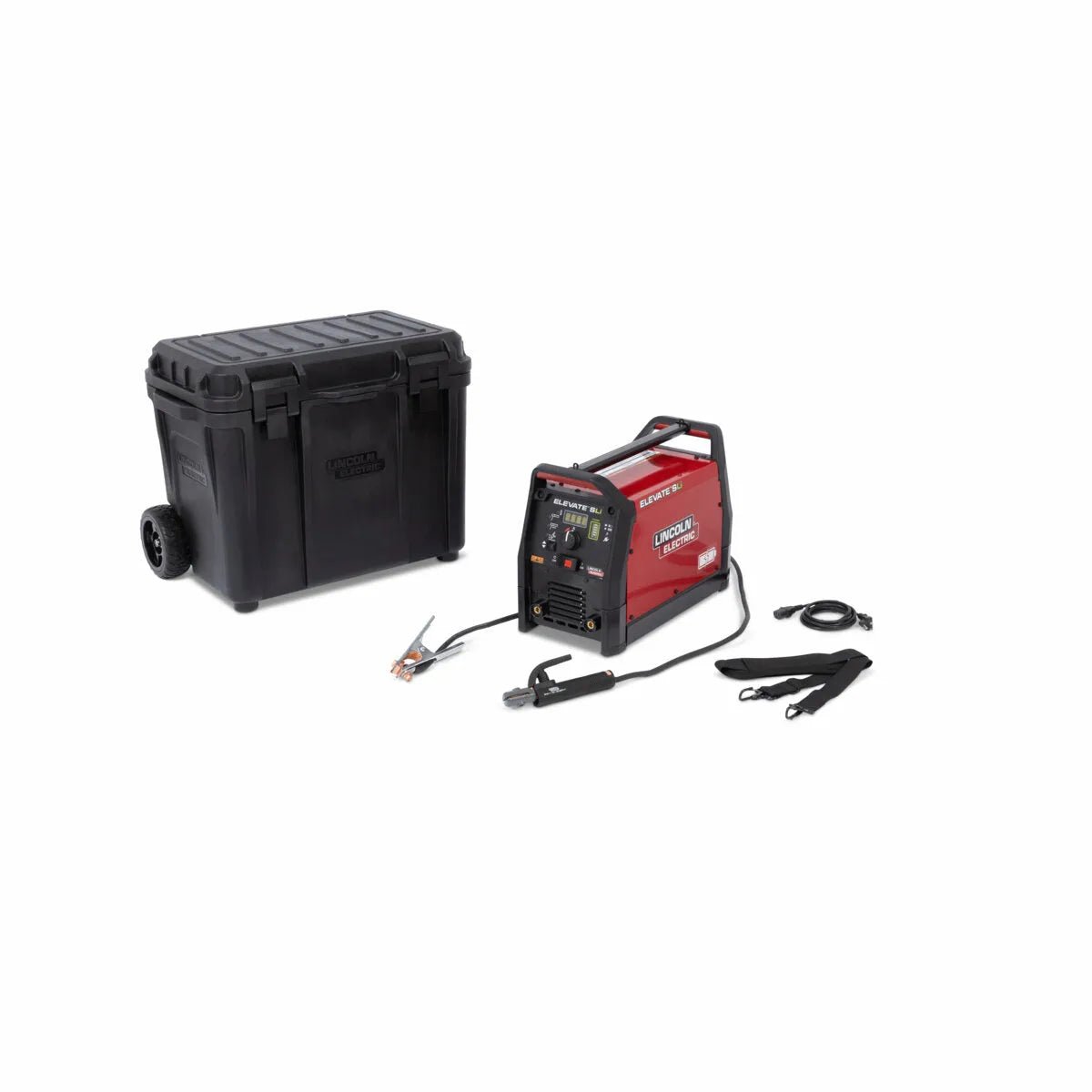

Includes
  • 200A Industrial Electrode Holder, Cable and Twist Mate™ Plug (K5612-1)
  • Work Cable and Clamp with Twist Mate™ Plug (K5482-1)
  • Fully Adjustable Shoulder Strap (KP5656-1)
  • 120V Input Cord, 8 ft. (2.4m) (KP5655-1)

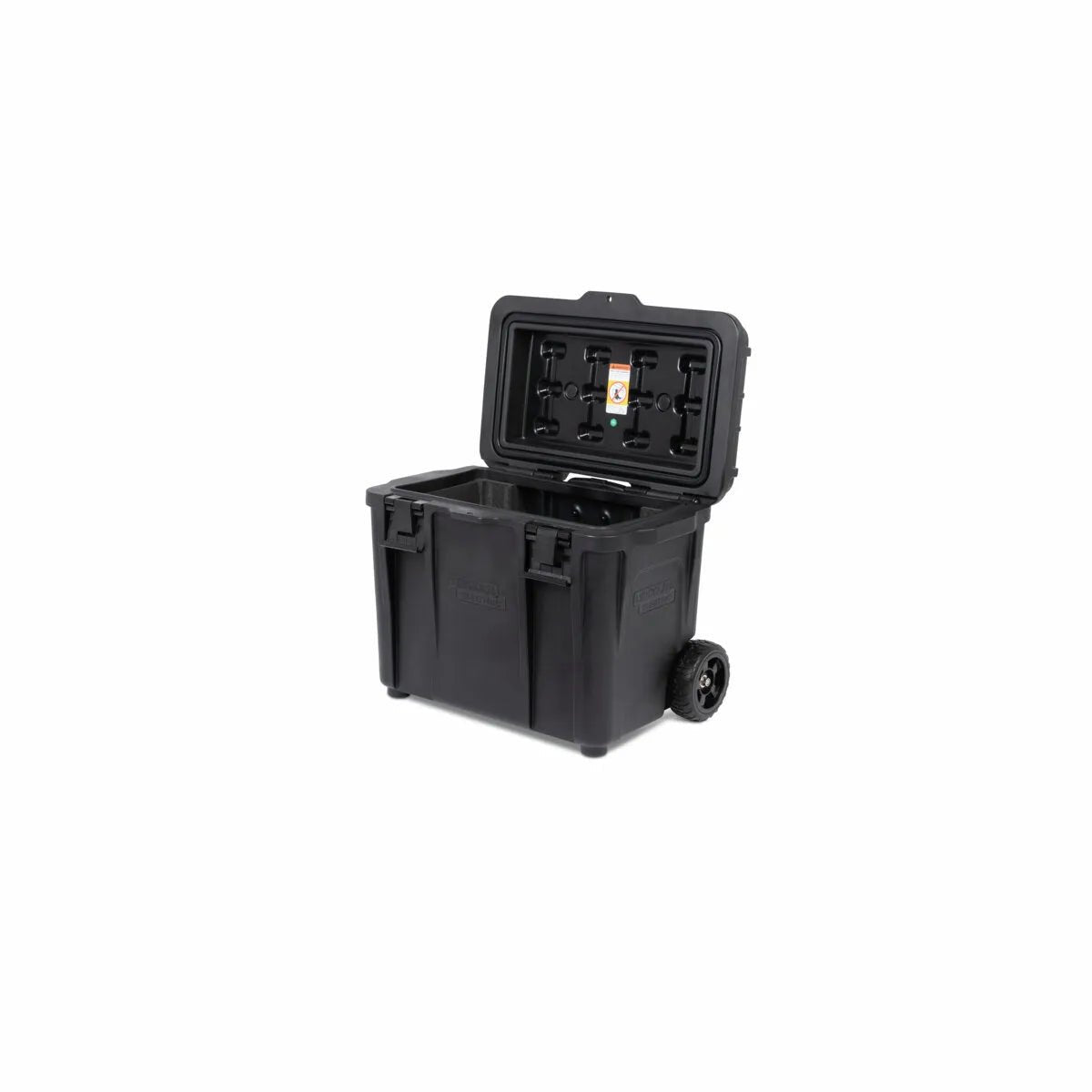

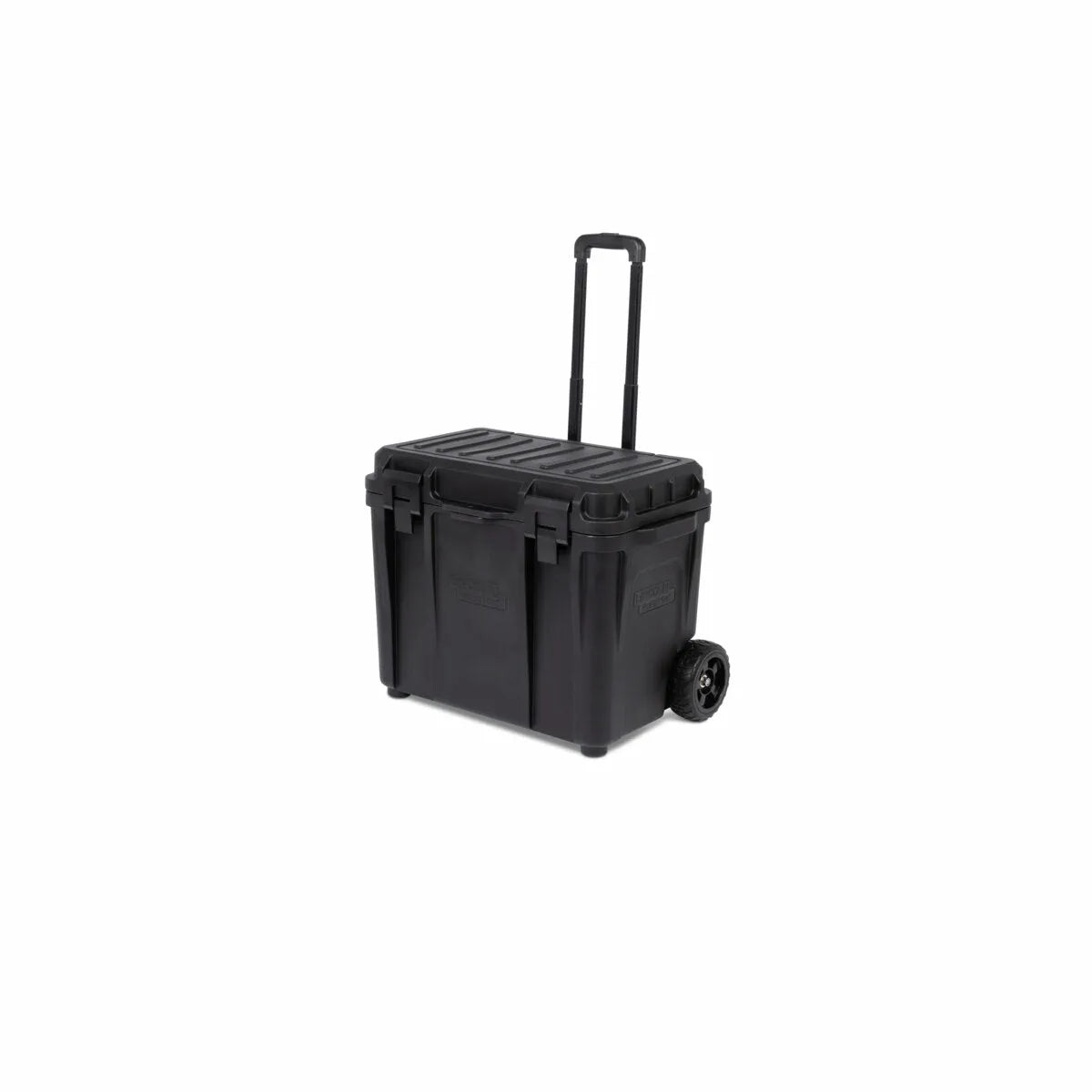

  • Rolling Carrying Case (K5548-1)
