Lincoln Electric | SKU:
ED033842

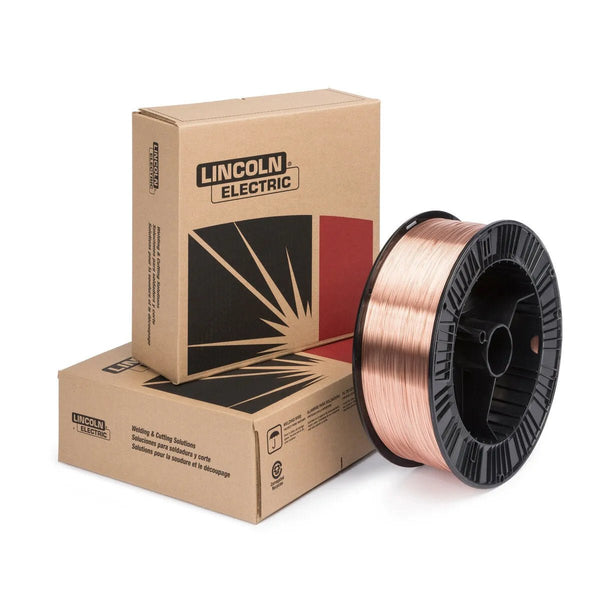

Lincoln ED033842 SuperArc L-56 N MIG (GMAW) Wire, 0.035 in, 33 lb Spool
$182.16
Unit price
/
Unavailable
SuperArc® L-56 N from Lincoln Electric has high levels of manganese and silicon deoxidizers to tolerate medium to heavy mill
scale surfaces.
AWS / Classification:
ER70S-6
Lincoln ED033842 SuperArc L-56 N MIG (GMAW) Wire, 0.035 in, 33 lb Spool is backordered and will ship as soon as it is back in stock.
Financing / Leasing Available
Financing / Leasing Available
Welding Equipment And Industrial Supplies Financing
Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.
It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.
Benefits of Lease-to-Own Welders
A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.
Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.
More Information
Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.
Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.
Have additional questions? Contact us to speak with a member of the WeldingMart team.
DETAILS
DETAILS
Includes
Includes
What's Included
- (1) 33 lb Spool
Specifications
Specifications
CONFORMANCE
| CONFORMANCES | SPECIFICATION | CLASSIFICATION |
|---|---|---|
| AWS | AWS A5.18 | ER70S-6 |
MECHANICAL PROPERTIES
| Classification | Shielding Gas | Polarity | Yield Strength @ 0.2% Offset, MPa (ksi) | Tensile Strength, MPa (ksi) | Elongation, % | Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F) |
|---|---|---|---|---|---|---|
| ER70S-6 Requirement | 100% CO2 | DC+ | 400 (58) min. | 480 (70) min. | 22 min. | 27 (20) min. |
| Typical Result, As-welded | 100% CO2 | DC+ | 460 (66) | 570 (83) | 27 | 34-49 (25-36) |
WIRE COMPOSITION
| Classification | %C | %Cr | %Mn | %Mo | %Ni | %P | %S | %Si | %Total Cu |
|---|---|---|---|---|---|---|---|---|---|
| ER70S-6 Requirement | 0.06 - 0.15 | 0.15 max. | 1.40 - 1.85 | 0.15 max. | 0.15 max. | 0.025 max. | 0.035 max. | 0.80 - 1.15 | 0.50 max. |
| Typical Result | 0.10 | 0.02 | 1.46 | 0.00 max. | 0.01 | 0.005 | 0.009 | 0.89 | 0.18 |
TYPICAL OPERATING PROCEDURES
| Diameter | Transfer Mode | Shielding Gas | Polarity | CTWD, mm (in.) | Wire Feed Speed, m/min (in/min) | Voltage, volts | Approx. Current, amps | Melt-off Rate, kg/hr (lb/hr) |
|---|---|---|---|---|---|---|---|---|
| 0.035 in (0.9 mm) | Short Circuit Transfer | 100% CO2 | DC+ | 9-12 (3/8-1/2) | 2.5 (100) | 18 | 80 | 0.7 (1.6) |
| 0.035 in (0.9 mm) | Short Circuit Transfer | 100% CO2 | DC+ | 9-12 (3/8-1/2) | 3.8 (150) | 19 | 120 | 1.1 (2.4) |
| 0.035 in (0.9 mm) | Short Circuit Transfer | 100% CO2 | DC+ | 9-12 (3/8-1/2) | 6.4 (250) | 22 | 175 | 1.8 (4.0) |
| 0.035 in (0.9 mm) | Spray Transfer | 90% Ar / 10% CO2 | DC+ | 12-19 (1/2-3/4) | 9.5 (375) | 23 | 195 | 2.7 (6.0) |
| 0.035 in (0.9 mm) | Spray Transfer | 90% Ar / 10% CO2 | DC+ | 12-19 (1/2-3/4) | 12.7 (500) | 29 | 230 | 3.6 (8.0) |
| 0.035 in (0.9 mm) | Spray Transfer | 90% Ar / 10% CO2 | DC+ | 12-19 (1/2-3/4) | 15.2 (600) | 30 | 275 | 4.4 (9.6) |
| 0.045 in (1.1 mm) | Short Circuit Transfer | 100% CO2 | DC+ | 12-19 (1/2-3/4) | 3.2 (125) | 19 | 145 | 1.5 (3.4) |
| 0.045 in (1.1 mm) | Short Circuit Transfer | 100% CO2 | DC+ | 12-19 (1/2-3/4) | 3.8 (150) | 20 | 165 | 1.8 (4.0) |
| 0.045 in (1.1 mm) | Short Circuit Transfer | 100% CO2 | DC+ | 12-19 (1/2-3/4) | 5.1 (200) | 21 | 200 | 2.5 (5.4) |
| 0.045 in (1.1 mm) | Spray Transfer | 90% Ar / 10% CO2 | DC+ | 12-19 (1/2-3/4) | 8.9 (350) | 27 | 285 | 4.2 (9.2) |
| 0.045 in (1.1 mm) | Spray Transfer | 90% Ar / 10% CO2 | DC+ | 12-19 (1/2-3/4) | 12.1 (475) | 30 | 335 | 5.7 (12.5) |
| 0.045 in (1.1 mm) | Spray Transfer | 90% Ar / 10% CO2 | DC+ | 12-19 (1/2-3/4) | 12.7 (500) | 30 | 340 | 6.0 (13.2) |
| LECO Diameter | 0.035 in (0.9 mm) |
| LECO Package | 33 lb Spool |
| Diameter (in) | 0.035 |
