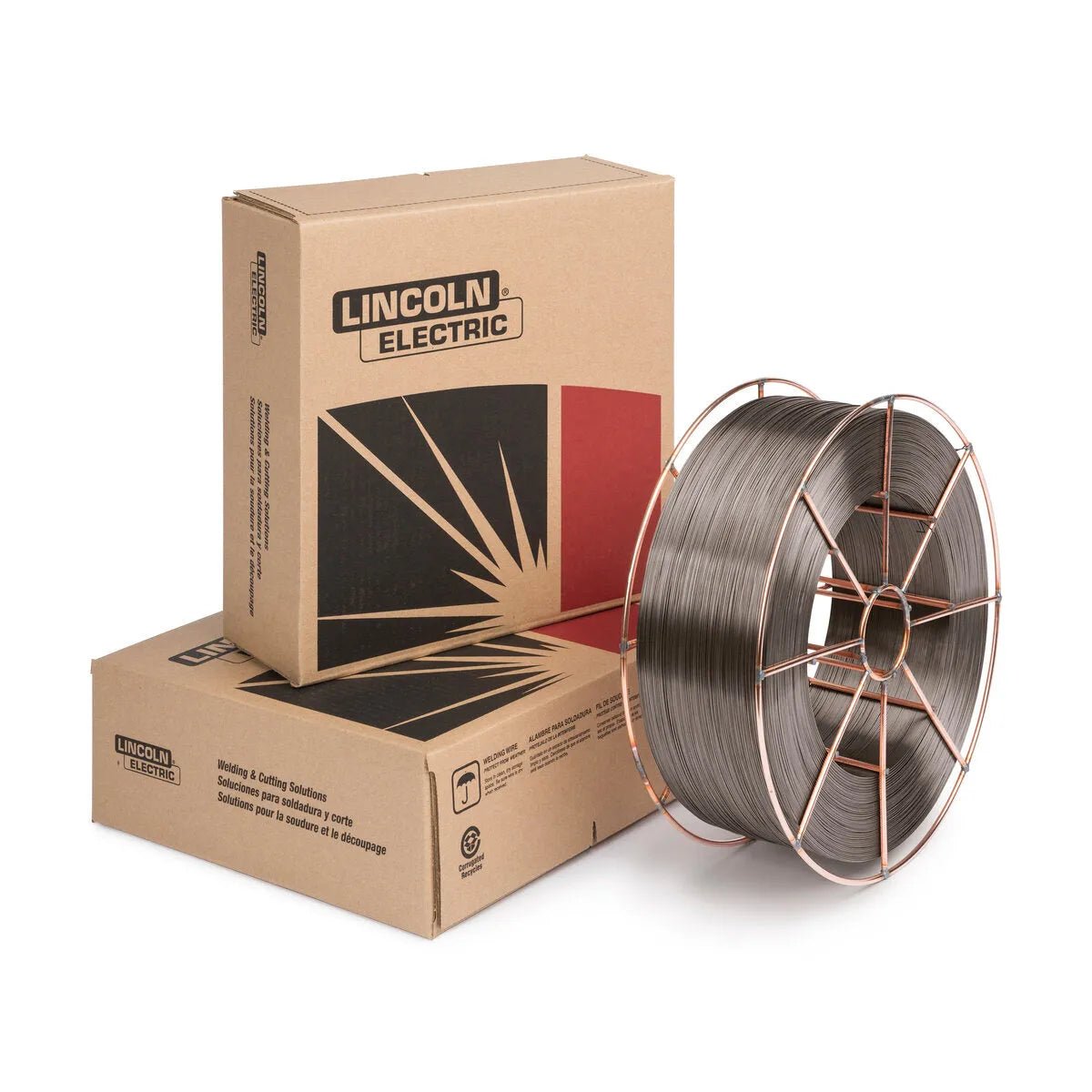

Lincoln Electric Lincore ED031128 Flux-Core Wire 0.045" – 25 lb

SKU: ED031128
$388.16 $421.00
Lincoln Elite Dealer
Free Shipping
Lowest Price
LINCORE® M Flux-Cored Self-Shielded Wire produces an austenitic manganese deposit on hammers, dredge parts, crushers, breaker bars and buckets applications. (Build Up and Joining)
AWS / Classification: EN/ISO: T Fe9
Overview

LINCORE M 0.045 inch welding wire is ideal for build-up and repair of Hadfield-type austenitic manganese materials as well as carbon and low alloy steels, deposits resistance on severe impact as well as moderate abrasion and offers unlimited layers with proper preheat and interpass temperatures and procedures.

Features
  • Deposit resists severe impact as well as moderate abrasion
  • Produces an austenitic manganese deposit that work-hardens
  • Recommended for build-up and repair of Hadfield-type austenitic manganese materials as well as carbon and low alloy steels
  • Unlimited layers with proper preheat and interpass temperatures and procedures

Specifications
FeatureValue
Classification Hardness Rockwell C
Typical Result 18-28
Typical Result, Work-hardened 30-48
Classification %C%Cr%Mn%Ni%Si
Typical Result 0.64.913.00.50.4
Diameter PolarityESO, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr)
0.045 in (1.1 mm) DC+25 (1)5.1 (200)22801.5 (3.3)
0.045 in (1.1 mm) DC+25 (1)8.9 (350)241452.7 (6.0)
0.045 in (1.1 mm) DC+25 (1)12.7 (500)261854.4 (9.6)
1/16 in (1.6 mm) DC+30 (1 1/8)3.8 (150)231302.2 (4.9)
1/16 in (1.6 mm) DC+30 (1 1/8)6.4 (250)252003.9 (8.6)
1/16 in (1.6 mm) DC+30 (1 1/8)8.9 (350)272505.6 (12.4)
5/64 in (2.0 mm) DC+32 (1 1/4)3.2 (125)242402.9 (6.4)
5/64 in (2.0 mm) DC+32 (1 1/4)4.4 (175)273004.2 (9.3)
5/64 in (2.0 mm) DC+32 (1 1/4)6.4 (250)293606.2 (13.6)
7/64 in (2.8 mm) DC+45 (1 3/4)1.9 (75)252403.5 (7.8)
7/64 in (2.8 mm) DC+45 (1 3/4)3.2 (125)273606.2 (13.6)
7/64 in (2.8 mm) DC+45 (1 3/4)3.8 (150)283957.5 (16.6)
7/64 in (2.8 mm) DC+64 (2 1/2)1.9 (75)252403.6 (8.0)
7/64 in (2.8 mm) DC+64 (2 1/2)4.4 (175)304008.8 (19.5)
7/64 in (2.8 mm) DC+64 (2 1/2)5.7 (225)3245511.6 (25.6)
Note
As with all austenitic manganese welding products, interpass temperatures should be limited to 260°C (500°F) maximum.
A stringer bead, or at most, a slight weave is recommended to limit heat build-up. Excessive heat build-up causes manganese carbide precipitation that damages the toughness of austenitic manganese.
LECO Diameter 0.045 in (1.1 mm)
LECO Package 25 lb Steel Spool
Diameter (in) 0.045
Downloads
Includes
  • (1) 25 lb Steel Spool
